Fiche technique

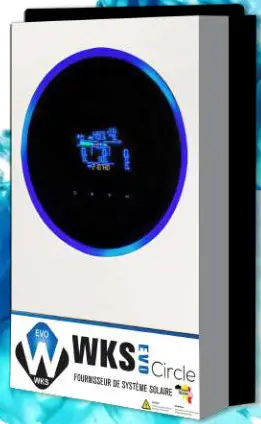

Onduleur WKS EVO Circle 5,6 kVA 48V
WKS EVO Circle Hybrid inverter
- Pure Sine Wave MPPT Solar Inverter
- Customizable status LED ring with RGB lights
- Touch button with 4.3″ color LCD screen
- Wide DC input range
- Data log events stored in the inverter
- Built-in Wi-Fi for mobile monitoring (app available)
- Communication port reserved for BMS
- Operation possible without battery
- Parallel operation with up to 9 units
- Possibility of choosing the operating mode via timer

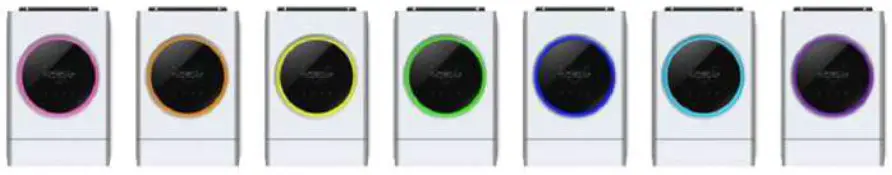

User-programmable RGB lighting for different usage modes.
Three light effects
Circular scroll
Rapid scrolling of the color of your choice in one move continuous circular.
Wheel
Illuminates with twinkling lights in the color of your choice.
Pursuit
Illuminate the color of your choice up and down in the circle.
| MODEL | |
| Nominal power | 5600VA/5600W |
| ENTRANCE | |
| AC input voltage | 170-280 VAC (for personal computers) |
| Selectable voltage range | 90-280 VAC (for household appliances) |
| Frequency range | 50Hz/60Hz (automatic detection) |
| EXIT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC +/- 5 |
| Overload capacity | 5s@>/=150% load; 10s@110%~150% load; 100ms @ >/=200% load |
| Yield (peak) | 93% |
| transfer time | 10 ms (for personal computers); 20 ms (for household appliances) |
| Waveform | pure sine wave |
| DRUMS | |
| Battery voltage | 48 VDC |
| Float charge voltage | 54 VDC |
| Overload protection | 66 VDC |
| SOLAR CHARGER AND AC CHARGER | |
| Solar charger type | MPPT |
| Maximum power of the PV generator | 6000W |
| MPPT range at working voltage | 120~430VDC |
| Maximum open circuit voltage of PV | 450VDC |
| Maximum solar charging current | 120A |
| Maximum AC charging current | 120A |
| PHYSIQUE | |
| Dimension, D x W x H (mm) | 140x295x468 |
| Net weight (kgs) | 11.0 12.0 |
| Interface de communication | USB/RS232/RS485/Wifi/Contact sec |
| ENVIRONMENT OF USE | |
| Humidity | 5% to 95%a Relative humidity (non-condensing) |
| Operating temperature | From -10°C to 50°C |
| Storage temperature | From -15°C to 60°C |
