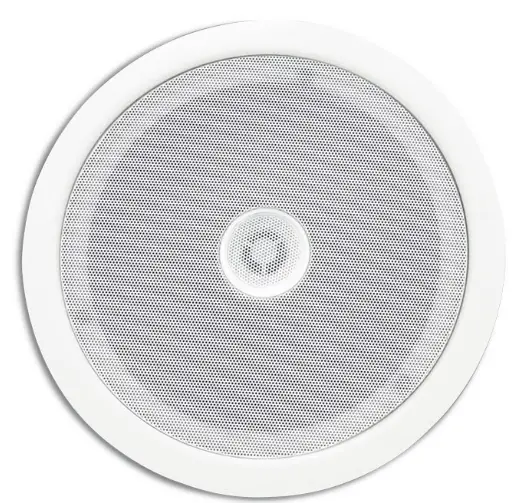

WORK PRO IC 8S Ceiling Loudspeakers
SAFETY INSTRUCTIONS
- Read the instructions of this manual.
- Keep these instructions in a safe place.
- Heed all warnings.
- Follow all instructions.
- When the installation of this device, please, respect your country’s safety regulations.
- Don’t use this device close to water or high-humidity places. Clean only with dry cloth.
- Don’t install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Make certain that the equipment is always installed so that is cooled and can’t Overheat.
- Only use attachments/accessories specified by the manufacturer.
- A speaker suspended or fixed from the ceiling or another surface is a product potentially dangerous and its installation must be made by qualified professionals. Work PRO recommends that all the speakers should be fixed taking into account all the regulations trom the country where is going to be installed.
OVERVIEW

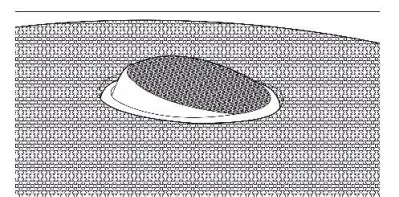

This ceiling speaker series combines a coaxial woofer and a swivel tweeter. The result is an excellent audio response and the possibility to get the desired directivity turning the tweeter. This last feature is very suitable for appliances where the main point will be word intelligibility. IC series has been designed for 100V line installations. It includes 3 references with different woofer diameters and power outputs. Each element disposes of a transformer with 4 power tap positions, (IC 8S has 5 power tap positions). Its fixations system allows to placement the ceiling speaker quickly and securely.
| IC 5S | IC6S | IC8S | |
| Elements | 5″ ¼woofer+ 1″ tweeter | 6″ ½ woofer+ 1″ tweeter | 8″ woofer+ 1″ tweeter |
| Power taps (1OOV line) | 1OW (1 kO) /SW (2k0) / 2,5W(4k0) / 1,25W(8k0) | 1OW (1kO) /SW (2k0) / 2,5W(4k0) / 1,25W(8k0) | 30W (3330) /1SW (6660) / 8W(1 k30) / 5W(1 k90) |
| Frequency response | 50Hz- 20kHz | 43Hz- 20kHz | 28Hz- 20kHz |
| Sensitivity (SPL@1 m) | 88dB SPL | 90dB SPL | 92dB SPL |
| Peak SPL | 98dB | 100dB | 106dB |
| Colour | RAL 9003 | RAL 9003 | RAL 9003 |
| Material (enclosure) | ABS plastic | ABS plastic | ABS plastic |
| Material (grille) | Metal | Metal | Metal |
| Mounting dimensions (0 x D) | 172 x 30 mm (max. ceiling thickness) | 200 x 30 mm (max. ceiling thickness) | 225 x 30 mm (max. ceiling thickness) |

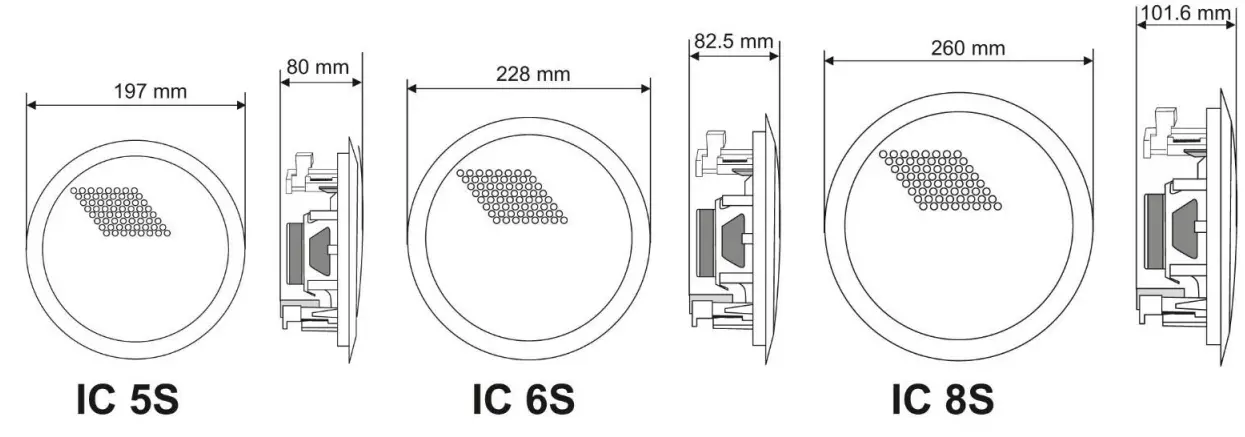

| Dimensions (0 x D) | 197×80 mm | 228 x 82,5 mm | 260 x 101.6 mm |
| Weight | 0, 85 kg | 1 kg | 1, 4 kg |
FEATURES
- 2-way coaxial ceiling speakers.
- Swivel tweeter for directivity control.
- 100V line operation.
- 4/5 different power taps on each speaker (depending on model).

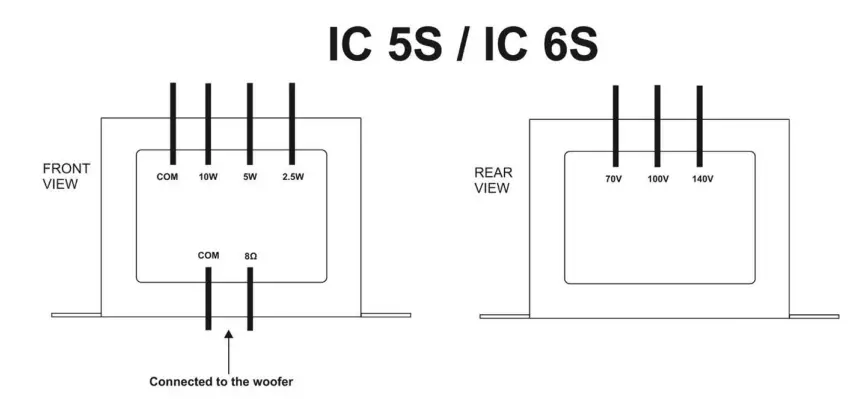

CONNECTIONS
- 10W: Use the COM cable (black color), and 10W (ORANGE).
- 5W: Use the COM cable (black color), and 5W (WHITE).
- 2.5W: Use the COM cable (black color), and 25w (GREEN).
1.25W connection
- If the amplifier has a 100V line output, use the cable COM (black color) and 100V (BLUE).
- If the amplifier has 70V line output, use the cable COM (black color) and 70V (BROWN).
- If the amplifier has a 140V line output, use the cable COM (black color) and 140V (YELLOW).

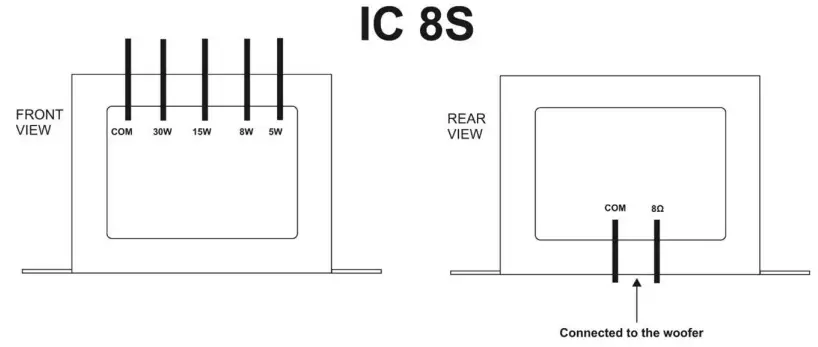

CONNECTIONS:
- 30W: Use the COM cable (black color), and 30W (BLUE).
- 15W: Use the COM cable (black color), and 15W (BROWN).
- 8W: Use the COM cable (black color), and 8W (WHITE).
- 5W: Use the COM cable (black color), and 5W (RED)
Av. Saler n°14 Poligono. Ind. L’Alteró. Silla 46460 VALENCIA-SPAIN Tel:+34 961216301 www.workproaudio.com
