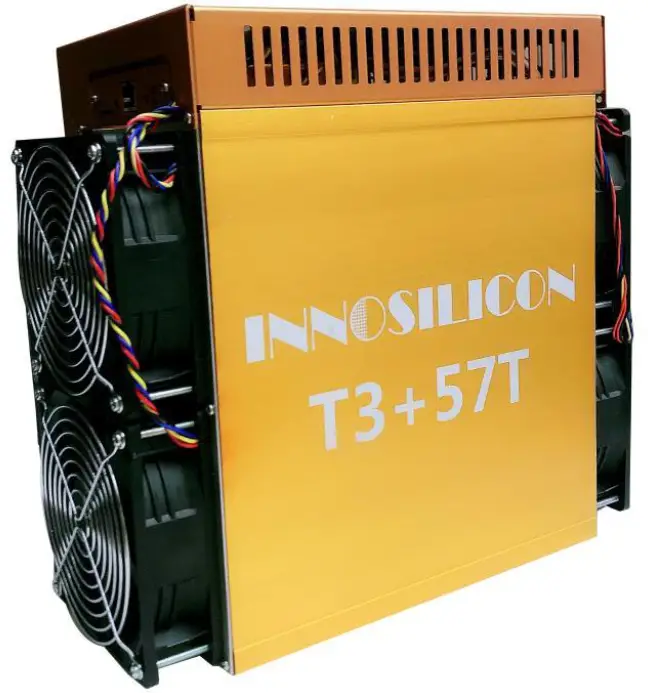

Innosilicon T3+ Btc Miner User Manual (+ PDF)

T3+ BTC
USER MANUAL

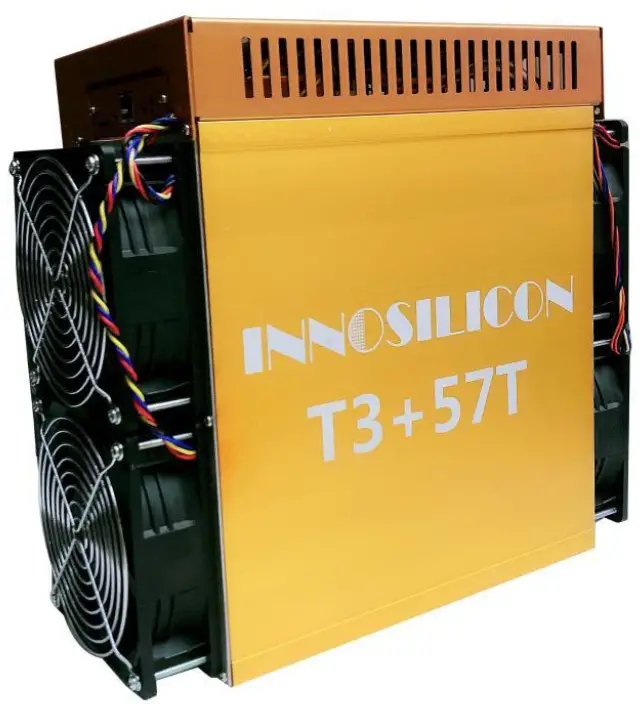

Overview

Specifications

Part Number	T3+
Algorithm	Sha256
Hash Rate	57TH/S (+/-5%)
Size (L×W×H)	305mm(L)203mm(W)278mm(H)
Net Weight	10.38KG
Operating Temperature	0–40 ℃(device junction temperature)
Network Connection	Ethernet

Contents hide

1 Assemble the miner

1.1 2.2 Assemble & Operate

2 Operate the miner

3 Documents / Resources

4 Related Posts

Assemble the miner

2.1 Open the package to check the miner

Check whether the warranty sticker is damaged, especially the one on the hash boards PSU port side. If the warranty sticker is damaged when you receive the miner, please
contact our after-sales personnel in time.
Before assembling the miner, pls shake the miner gently. Please contact our aftersales personnel immediately if there is a metallic collision sound.
Check whether the two fans work well if you find the fans broke please contact our after-sales personnel.
The wiring of the miner shall not be changed including the power cable and data cable interface as shown in the figure below.

Notes:
There is an indicator on each hash board that shows the work status of the hash board.
Being constantly lit means the hash board works properly.
Flickering represents the overtemperature of the hash board. Please check the fans of the miner, environment temperature, and ventilation conditions.
Being off means the hash board doesn’t work. Please try to reboot the miner or change the data cable. Pls, contact our after-sales team if the problem still exists.

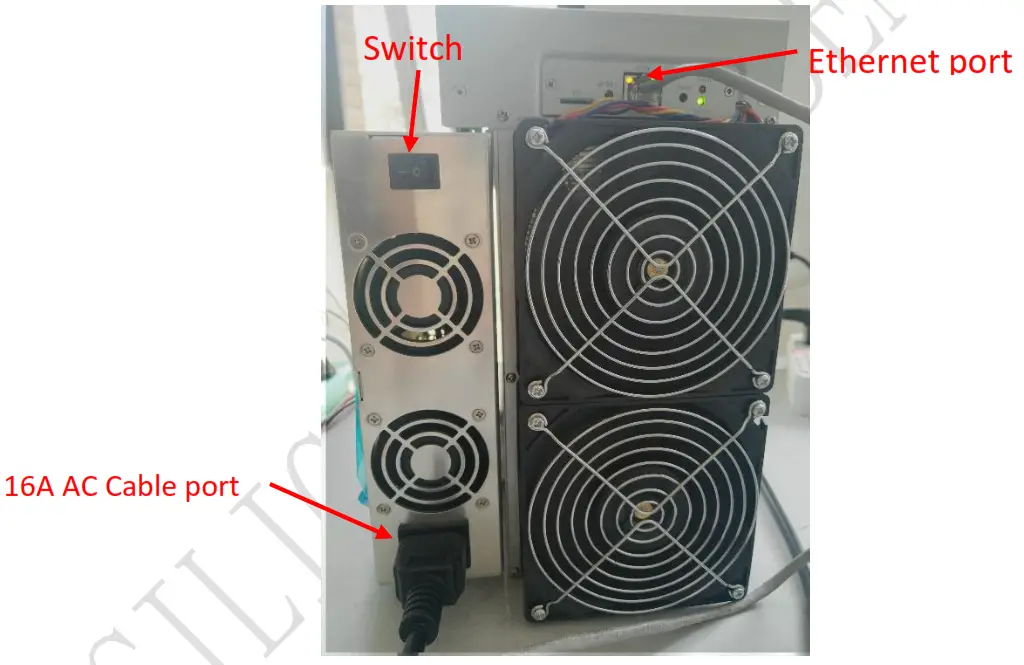

2.2 Assemble & Operate

Connect the miner and the router by the Ethernet cable and then the miner can start to run after being powered on.

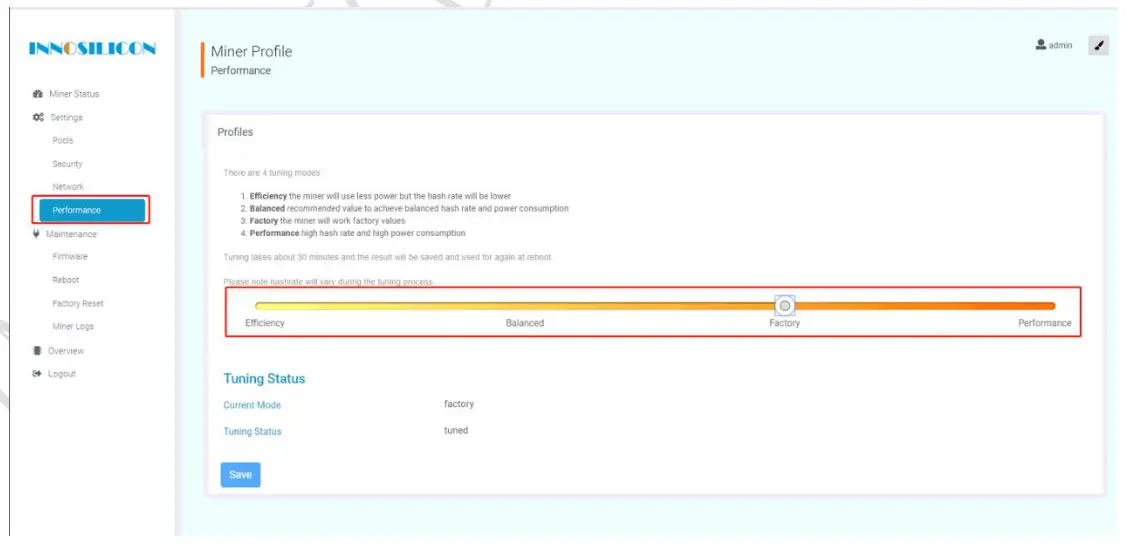

Notes: T3+ miners consume much more power under some modes. Pls, choose the proper sockets.

Normal Indicator： Being constantly lit represents static IP and flickering represents DHCP
Fault Indicator： Being on means there is something wrong with the network; Being off means it is OK.
IP SET button:

Press it for 1 to 4 seconds and the following functions can be realized:
(1) Sending the IP miner to the “Set IP” tool;

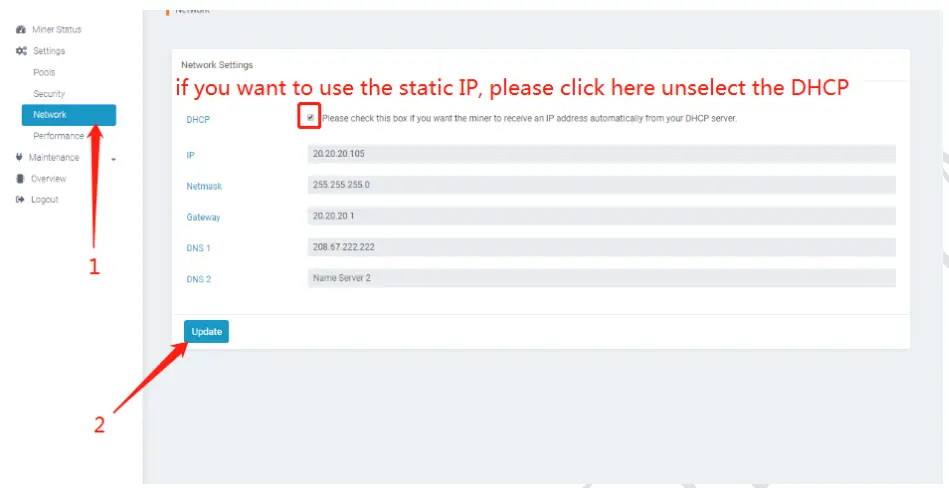

(2) Changing the miner to a Static IP within the specified range with the IPset tool

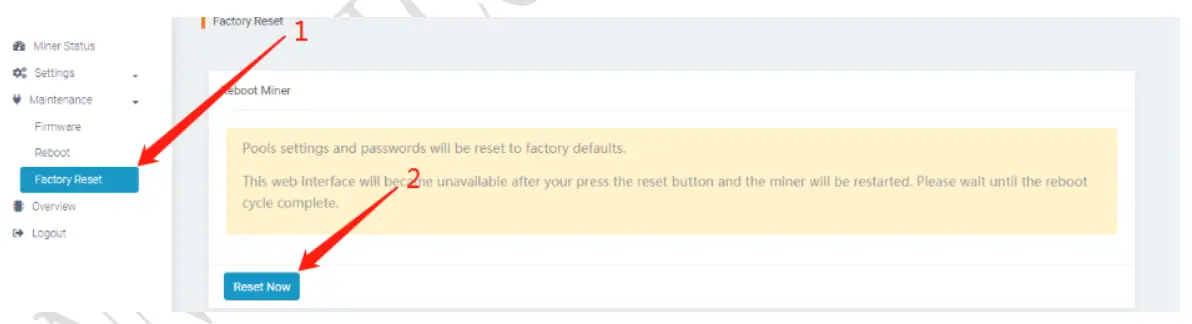

Press it for 4 to 15 seconds, the miner IP will be switched to DHCP and the pool settings will be restored to default settings.
Press it for 15 to 30 seconds to switch the Dynamic (Static) IP to Static (Dynamic).
RESET button: Press the “Reset” button to restart the miner.

Operate the miner

3.1 Enter the miner console
DHCP is the default IP mode of the miner (The normal indicator of the control board now is flickering green when the DHCP service of the router is enabled.). Find the IP via the IP scanner or the SetIP tool developed by our company. Pls, refer to the official support center for the downloading address https://www.innosilicon.com/html/support_en/tool.html.

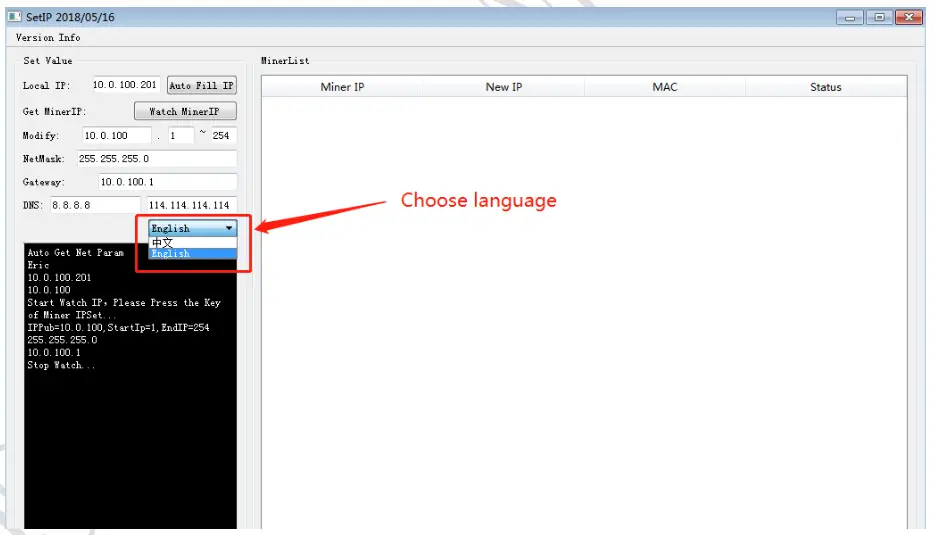

a) Save SetIP in the pc on the same network with the miner, then double click the tool and choose the language.

b) Report the miner IP

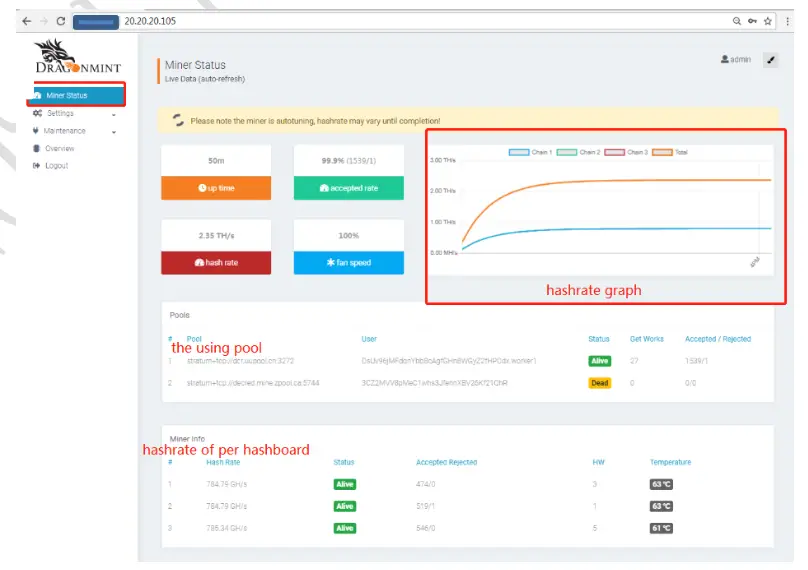

Enter the IP of the miner in the browser and press the Enter button to go to the miner console page.
Chrome is the suggested browser. (Please try with dragonadmin if the password admin is invalid.)
