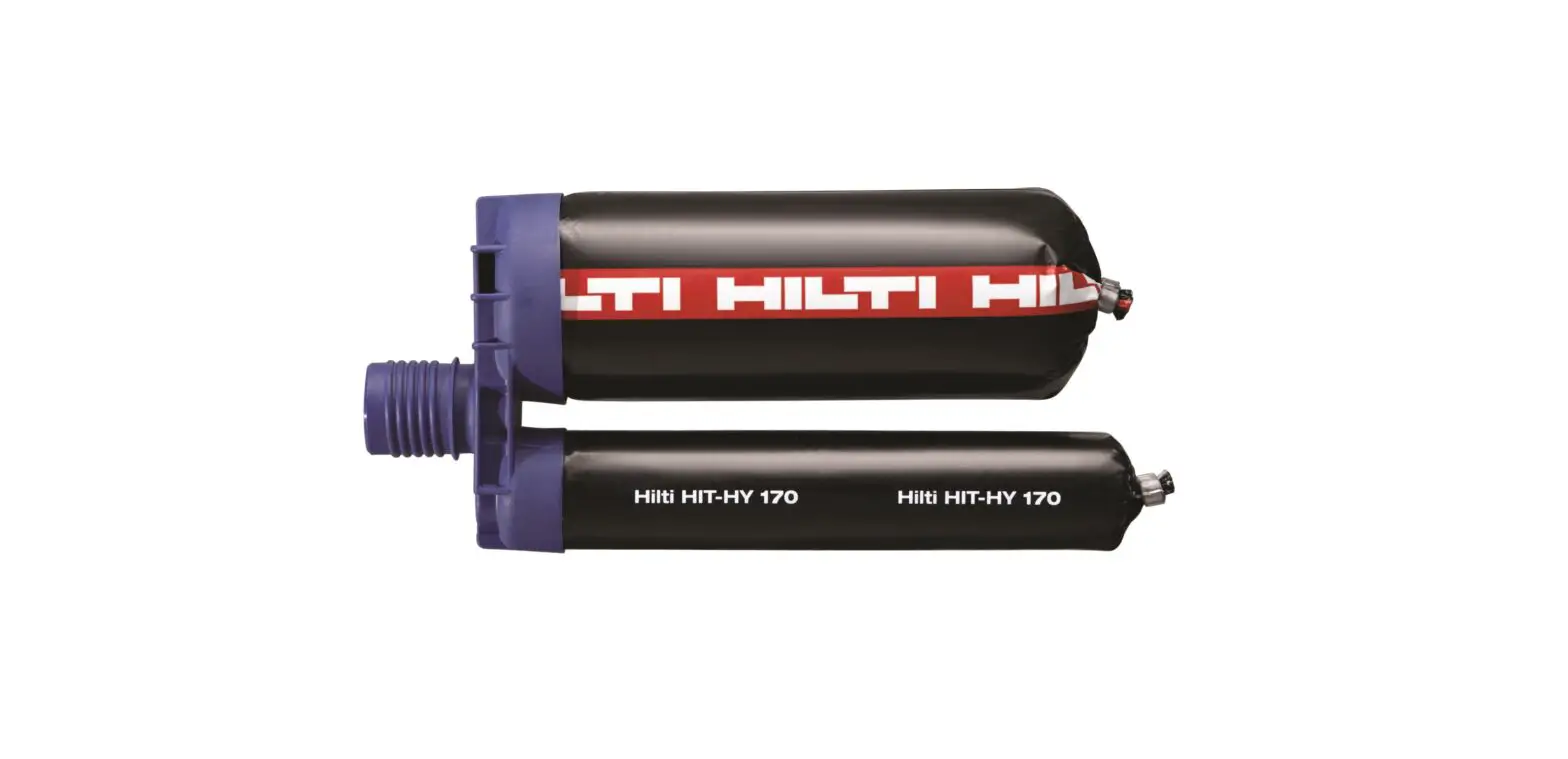

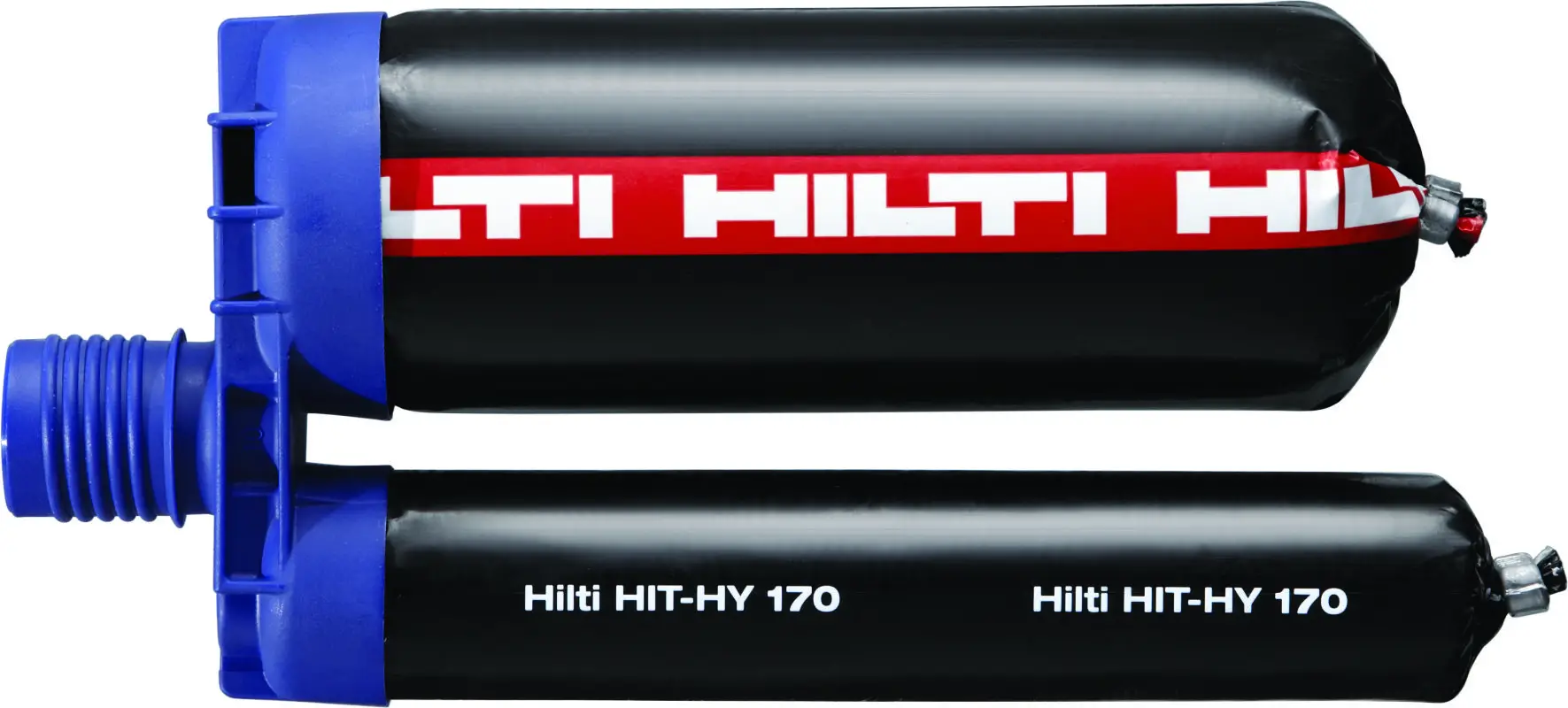

HILTI HY170 Injectable Mortar

Product Information

The product is the HIK-T, a solid brick used for construction purposes. It is available in various sizes and is suitable for use in different base materials. The brick is commonly used in building and masonry projects.

Product Usage Instructions

Choose the appropriate size of the HIK-T brick based on the specifications provided in the user manual.
Prepare the base material according to the recommended guidelines.
Apply the appropriate mortar, such as HY170, HY10, HIT MM+, M12, or M16, depending on the specific requirements of your project.
Place the HIK-T brick onto the prepared base material, ensuring it is properly aligned and positioned.
Secure the brick in place using the recommended fixing system, such as injection mortar.
For additional support, consider using a roof top over the anchor installation in certain situations:
- When there is a shear deflection greater than 3 mm
- When the anchor is not perpendicular to the insulation plaster
- When the plaster roughness exceeds 3 mm
- When the hole drilled in rendering is larger than 26 mm
If dealing with thick rendering or hard fiber board, drill the depth of the black plastic part with a 26 mm drill bit.

Please refer to the user manual for more detailed instructions and safety precautions. For any further assistance or technical support, please contact Hilti customer service.

WHICH REQUIRED BASED MATERIAL

Hollow brick
Solid brick
Concrete

Hilti Corporation, FL-9494 Schaan Hilti Werke

0672-CPR-0962

ETA22/0275

Notified body 672

EAD 331985-01-0604

Distance fixing system for use with injection mortar

www.hilti.group

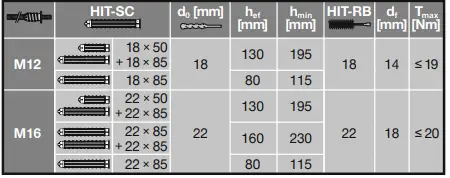

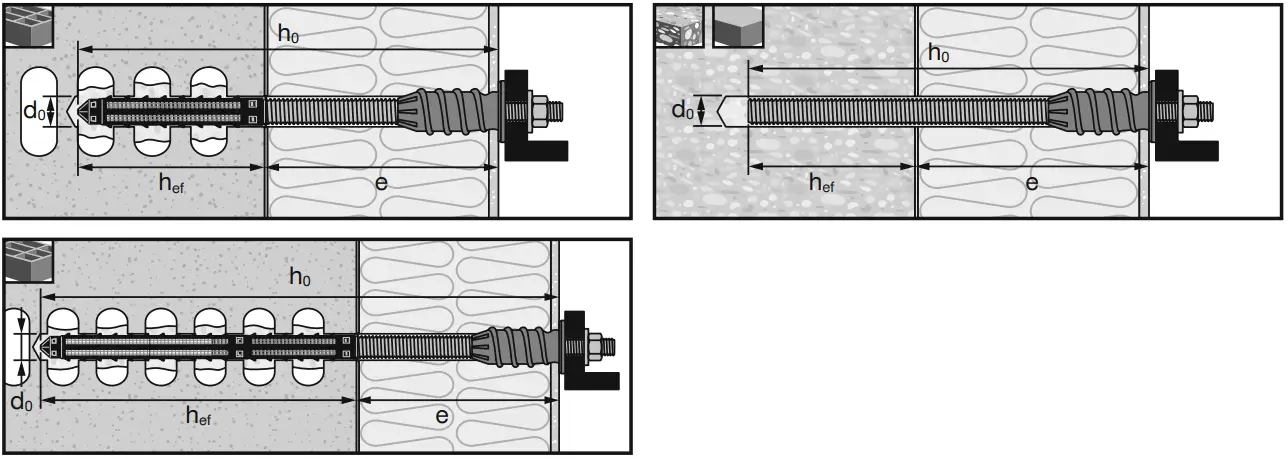

Base material
Mortars	HY170 / HY10 / HIT MM+	HY270	HY170 / HY10 / HIT MM+	HY270	HY170 / HY200 A / HY200-R / HY10 / CT-1 / HIT MM+
HIK-T size	M12	M16	M12	M16	M12	M16
h0 max	300	390	300	390	260	350
e max	160	220	220	300	220	300
d0	18	22	14	18	14	18

DIMENSIONS

SAFETY GUIDANCE

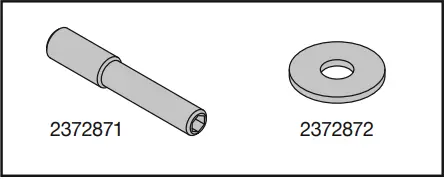

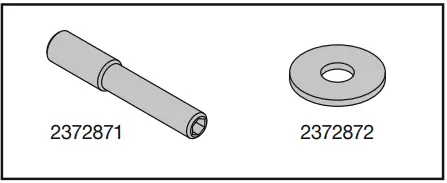

REQUIRED TOOLS

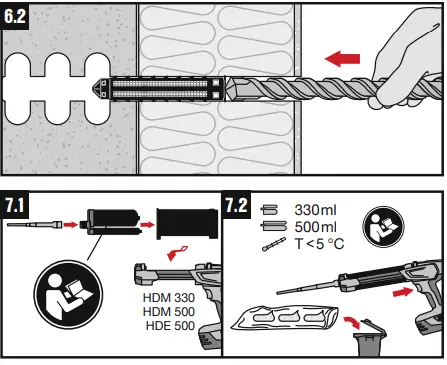

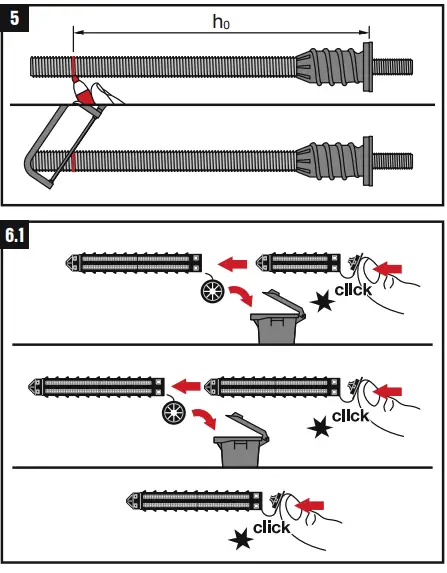

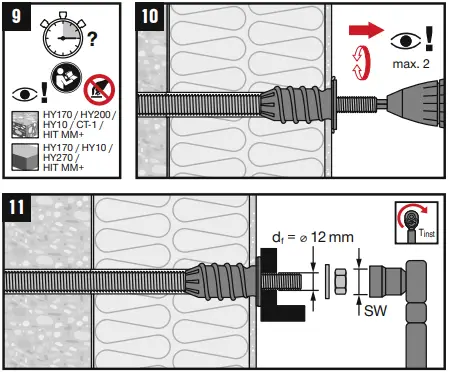

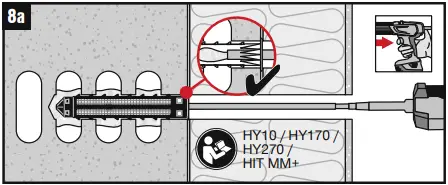

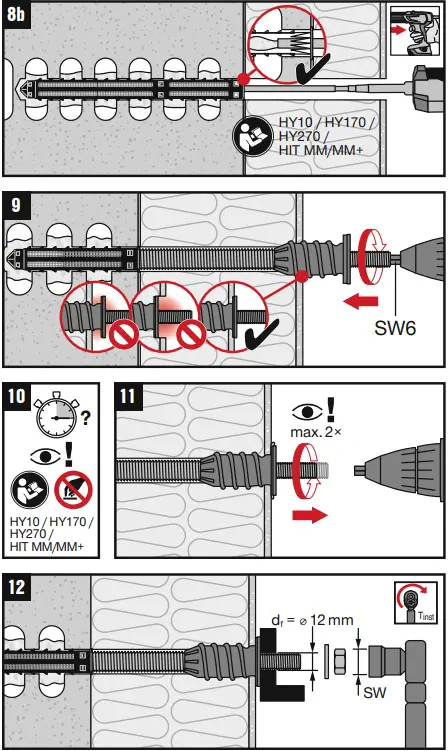

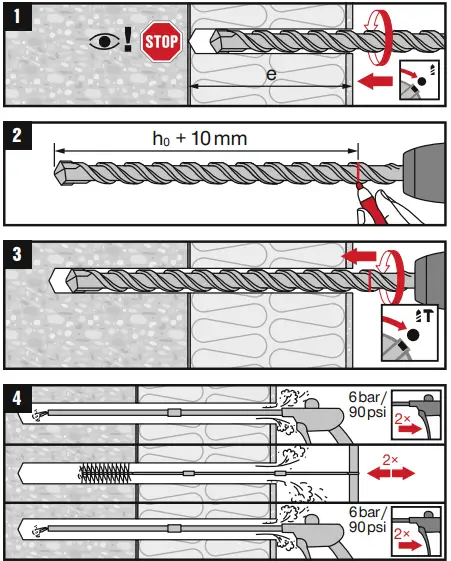

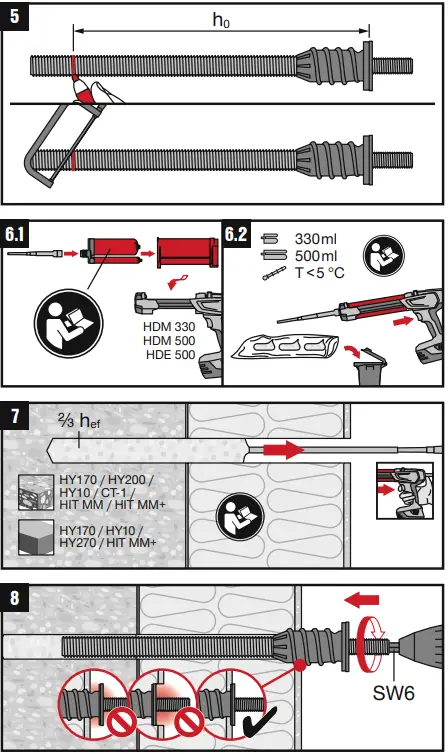

HOW TO FIX

WEIGHT AND DIMENSIONS

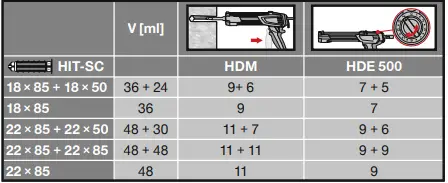

CAPACITY

WEIGHT AND DIMENSIONS

A rooftop over the anchor installation is needed when:

There is a shear deflection and it is more than 3 mm
Anchor is not perpendicular to the insulation plaster
Plaster roughness is more than 3 mm
The hole drilled in rendering is larger than 26 mm
