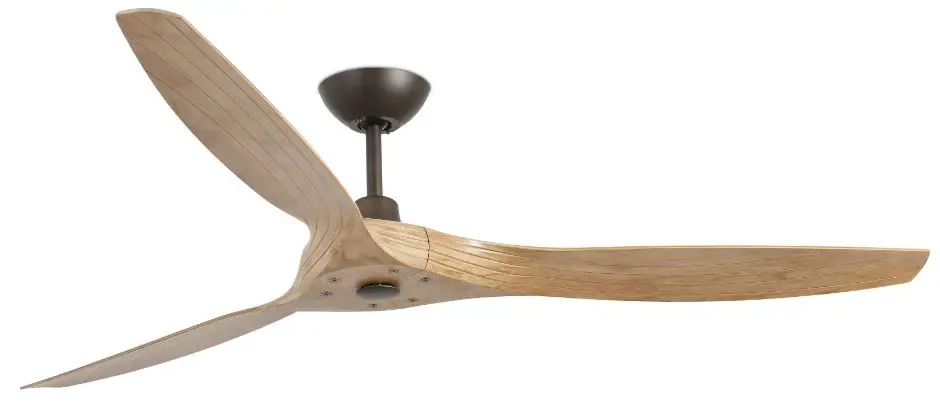

FARO 33519 Morea Ceiling Fan
INTRODUCTION
Congratulations on the purchase of your new Faro Barcelona fan that will provide you, design, quality and comfort for many years. We are proud of our work and appreciate the opportunity to provide one of the best ceiling fans available. It’s time to start enjoying your Faro Barcelona ceiling fan. The manuals contain the complete instructions for installing and operating with your fan safely. Remember to tighten all screws firmly and make all connections correctly
Technical Specifications
| Speeds | A | W | RPM | CFM | M3MIN | Power | |
| I – low | 0,06 | 3 | 58 | V | 220-240 | ||
| II | 0,09 | 7 | 105 | Hz | 50/60 | ||
| III | 0,13 | 12 | 131 | ||||
| IV | 0,17 | 17 | 148 | ||||
| V – High | 0,33 | 38 | 195 | 7473 | 211.7 | ||

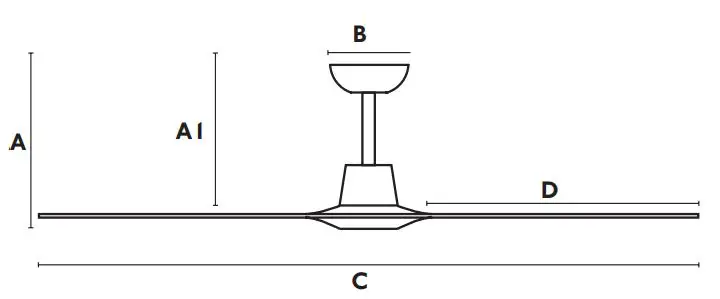

sizes mm / inch
| A | A1 | B | C | D |
| 290 / 11.41” | 270 / 10.62” | Ø148/5.82” | Ø1520/60” | 750 / 29.52” |
Weight
| kg | 5,45 |
| lb | 12.01 |
Ref. 33511
Motor
| Material | Steel |
| Finished | Brown |
Blades
| Material | ABS |
| Finished | Brown |

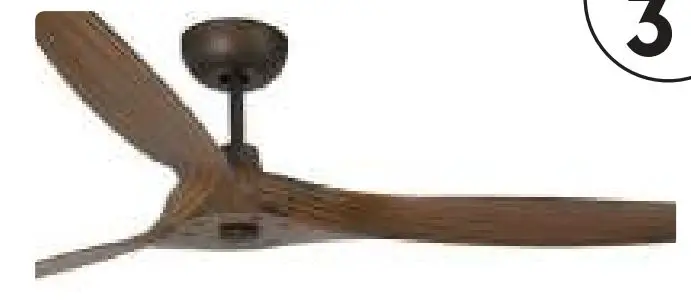

Ref. 33519
Motor
| Material | Steel |
| Finished | Brown |
Blades
| Material | ABS |
| Finished | Maple |

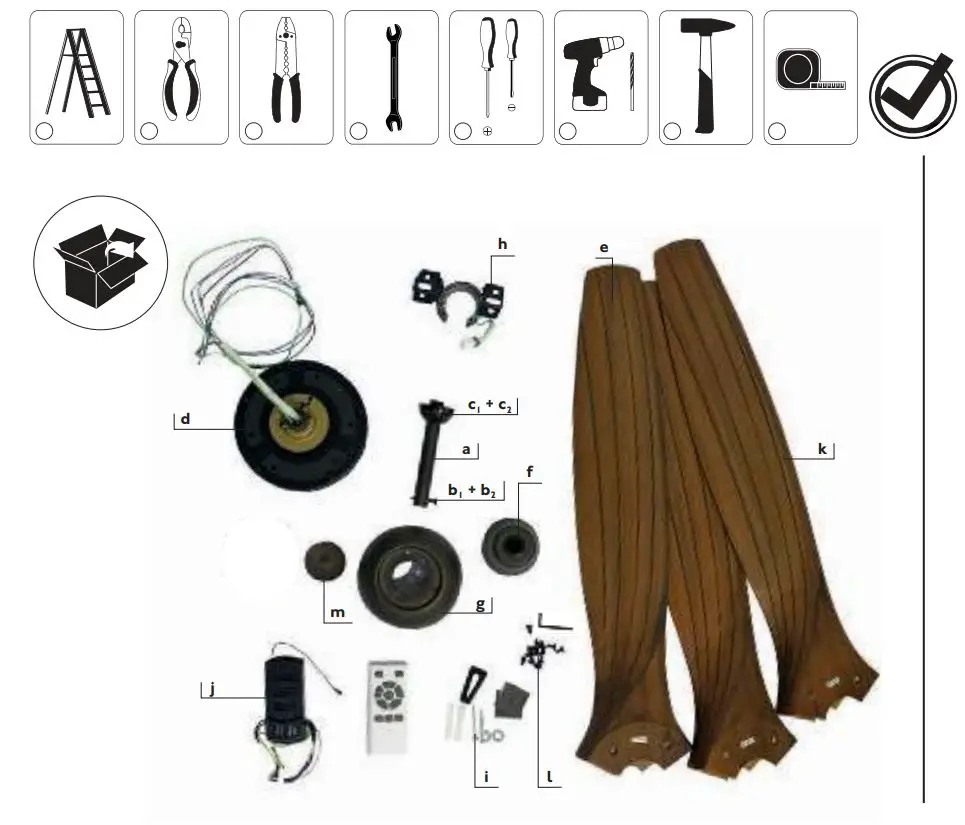

WHAT IN THE BOX

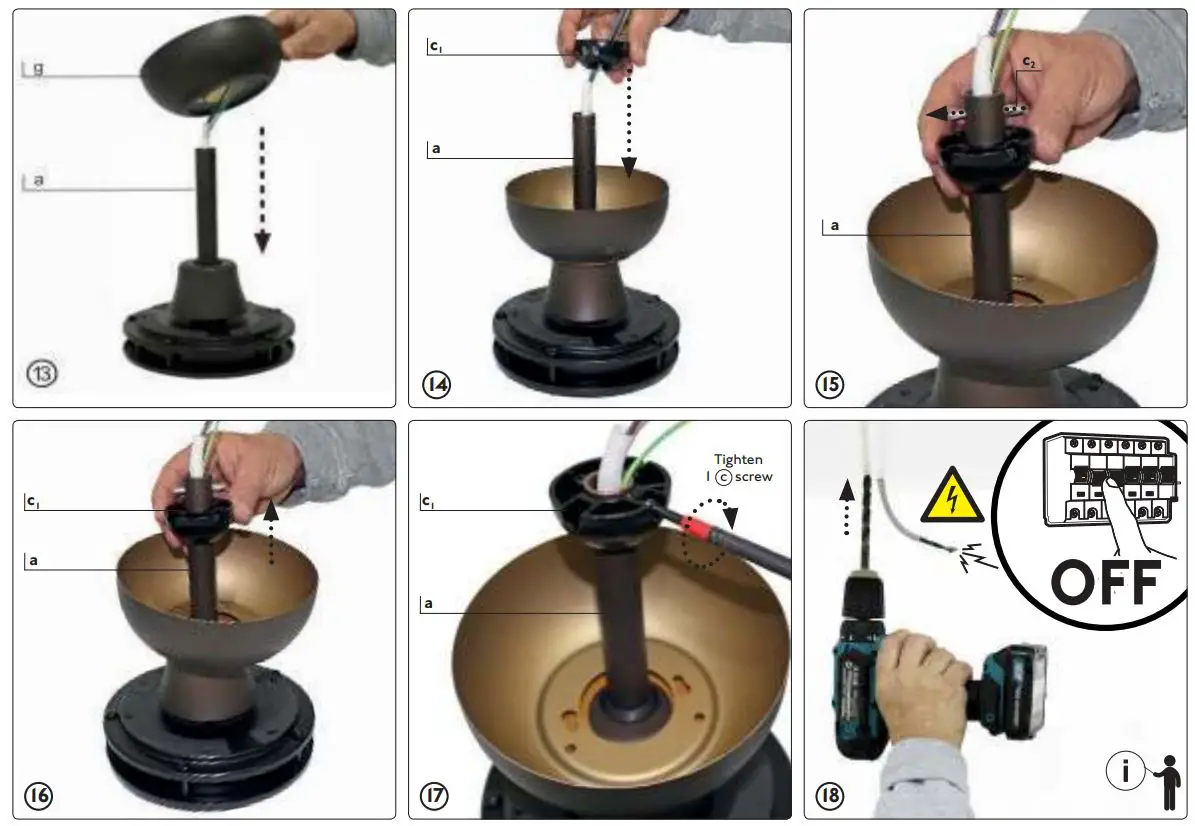

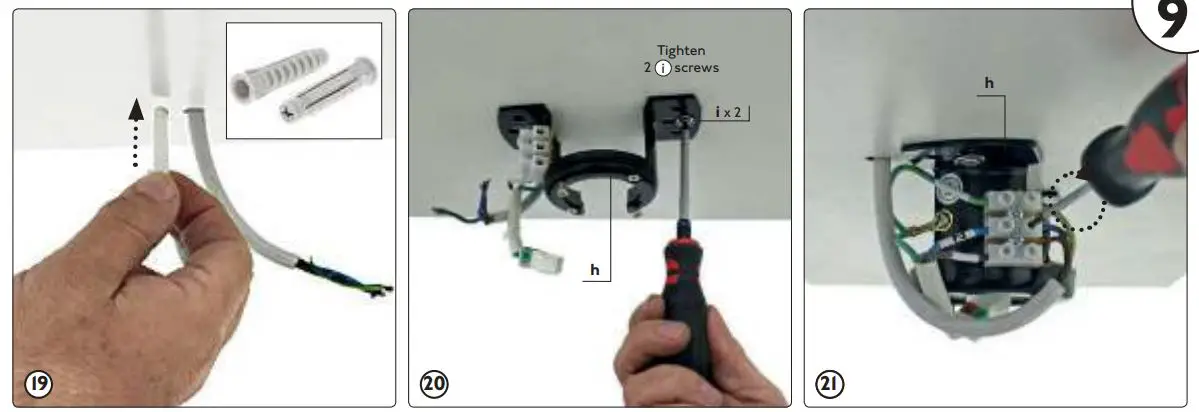

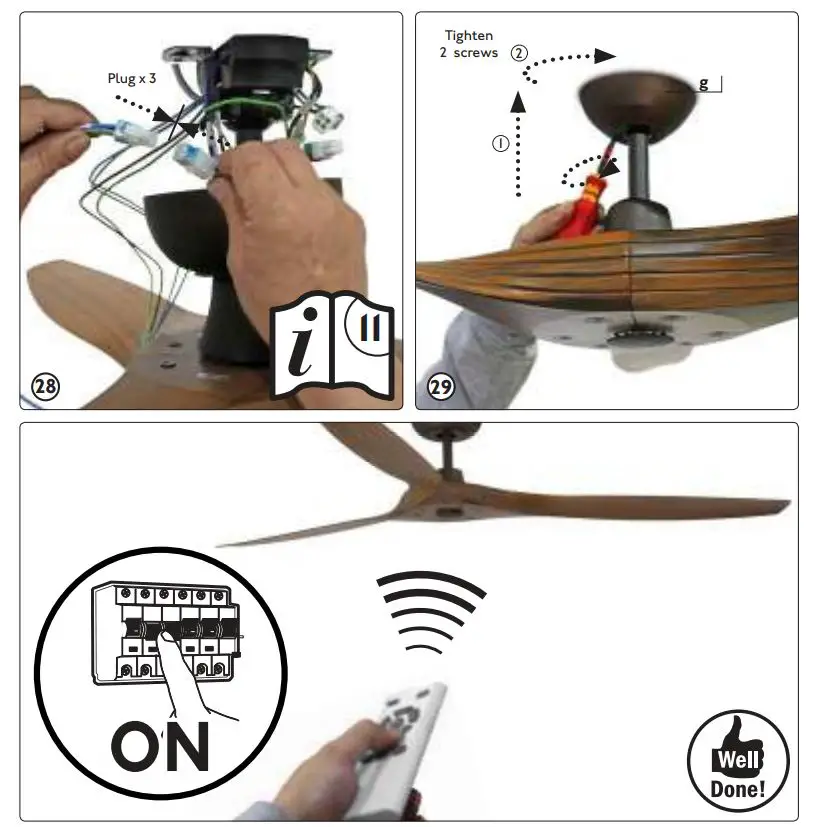

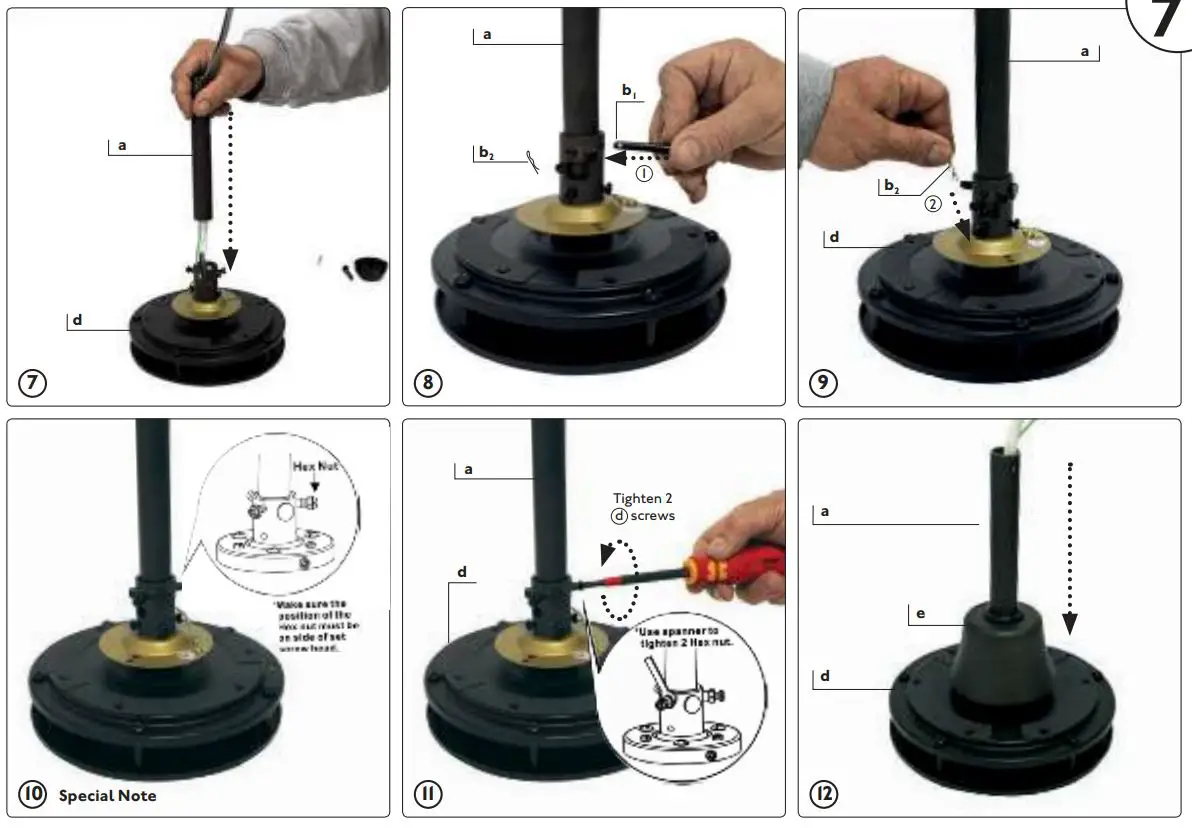

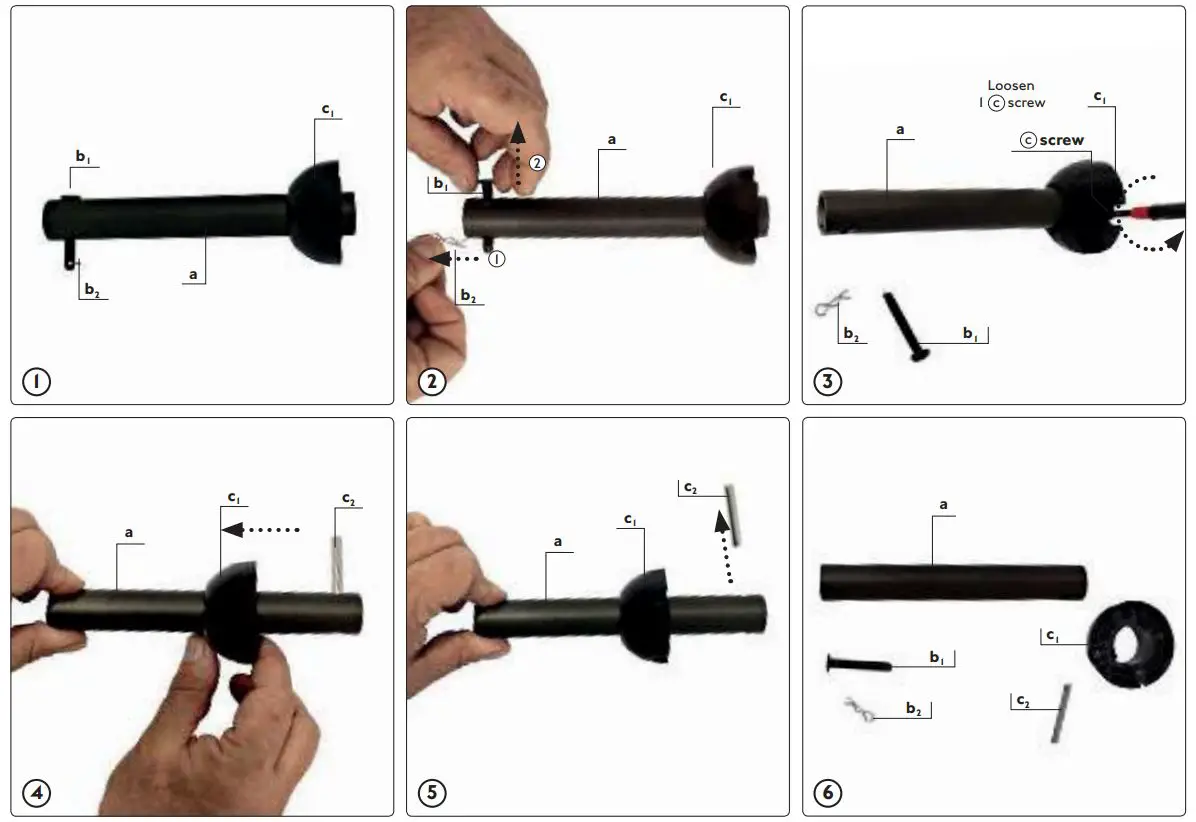

INSTRUCTION

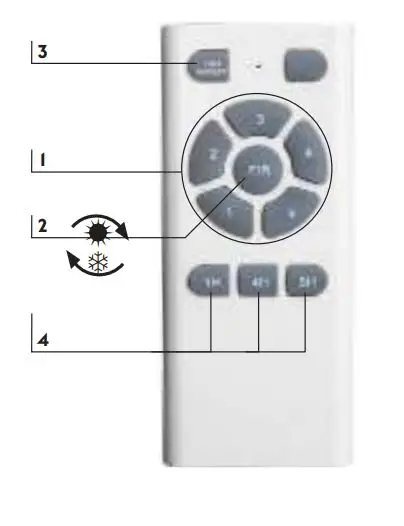

Remote control
OPERATIONS WITH THE TRANSMITTER
- Fan speed
- Reverse function
- On-off for fan
- With Programmer: It will works for 1h, 4h, 8h
Faro Barcelona - Experts in lighting and ventilation
