JADMAR JSLC-SOL Solar Sign Lighting
INSTALLATION INSTRUCTIONS
Construcon and Materials
- Aluminum Alloy Housing and Polycarbonate Lens
- Tempered Glass Crystalline Solar Panel
- Direct Wall Mount
Opcal System
- 210° Light Distribuon
Electrical System
- Power: 5W / 10W / 15W / 20W
- CCT: 4000K / 5000K
- Sizes: 1FT / 2FT / 3FT / 4FT Models Available
- Voltage: Solar Panel 5.5V Baery: 3.7V
- Efficacy: 100 lm/W
- CRI: >70
- Operang Temp: -4°F to 149°F (-20C to 300C)
- Charging Temp: 32°F to 113°F (0C to 45°C)
Operaon Mode
| Model Number | JSLC-SOL-5W-5V-40K JSLC-SOL-5W-5V-50K | JSLC-SOL-10W-5V-40K JSLC-SOL-10W-5V-50K | JSLC-SOL-15W-5V-40K JSLC-SOL-15W-5V-50K | JSLC-SOL-20W-5V-40K JSLC-SOL-20W-5V-50K |
| LED Power | 5W | 10W | 15W | 20W |
| Solar Panel Power | 5.5V 4.5W | 5.5V 9W | 5.5V 13W | 5.5V 17W |
| Battery | Li-Ion 3.7V 8800mAH | Li-Ion 3.7V 17600mAH | Li-Ion 3.7V 26400mAH | Li-Ion 3.7V 8800mAH |
| Product Size | 11.81″ x 2.52″ x 4.59″ | 23.62″ x 2.52″ x 4.59″ | 32.68″ x 2.52″ x 4.59″ | 41.38″ x 2.52″ x 4.59″ |
| Charging Time | 8-9 Hours (1000W/m2) | |||
| LED Color | 4000K / 5000K | |||
| CRI | >70 | |||
| LED Life Time | >50,000 Hours | |||
| Beam Angle | 210° | |||
| Housing Material | Aluminum Alloy and Polycarbonate lens | |||
| Solar Panel Material | Tempered Glass Crystalline Panel | |||
| Controller | Automatic Sunshine Control | |||
| Work Mode | 5 Hrs Full Brightness + 25% brightness Dimming till dawn | |||

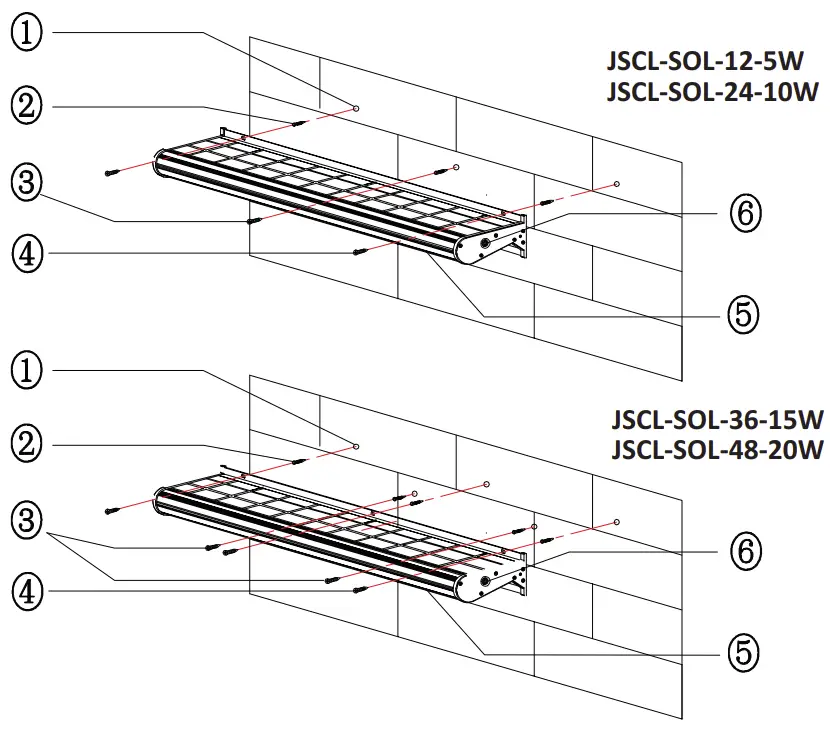

STEP 1:
Drill mounng holes.
Note: Models JSCL-SOL-12-5W and JSCL-SOL-24-10W have three holes and JSCL-SOL-36-15W and JSCL-SOL-48-20W have five holes. See 1.
STEP 2:
Install the wall anchors
Note: Models JSCL-SOL-12-5W andJSCL-SOL-24-10W have one hole and JSCL-SOL-36-15W and JSCL-SOL-48-20W have two holes. See 2.
STEP 3:
Install the solar light through the hanging holes on the back of the light. Note: Screws should not be in all the way. Allow a distance of about 0.12” (3mm) from the wall. See 3.
STEP 4:
Adjust the solar light with the screws. See 4.
STEP 5:
Remove the protective film from the light. See 5.
STEP 6:
Turn on the switch for the first me and it will work automatically everyday. See 6.
