NOXION LED Bulkhead Pro User Manual

NOXION Logo

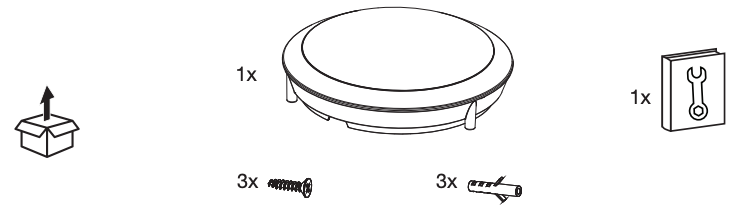

Content

Content

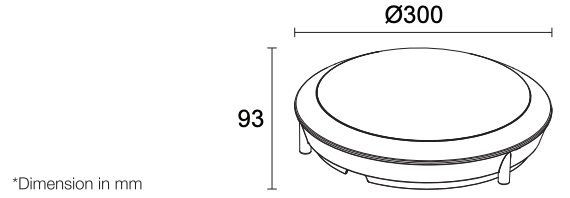

Dimension

Dimension

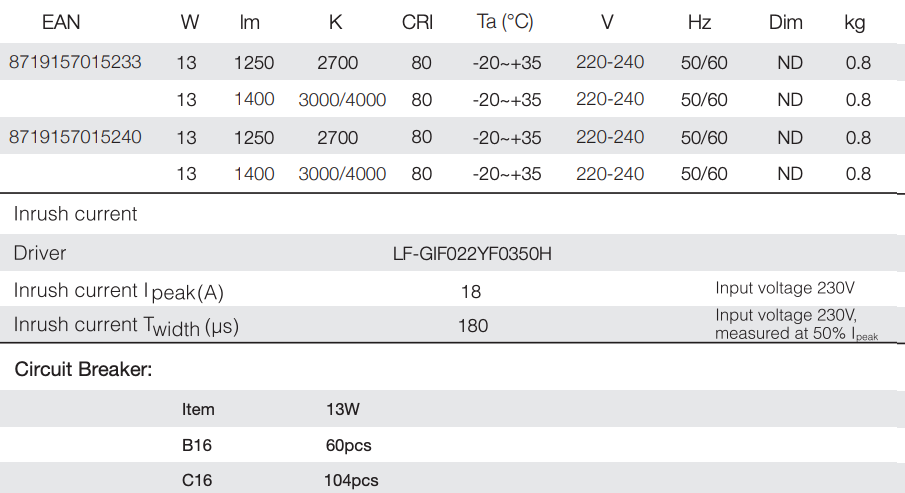

Table

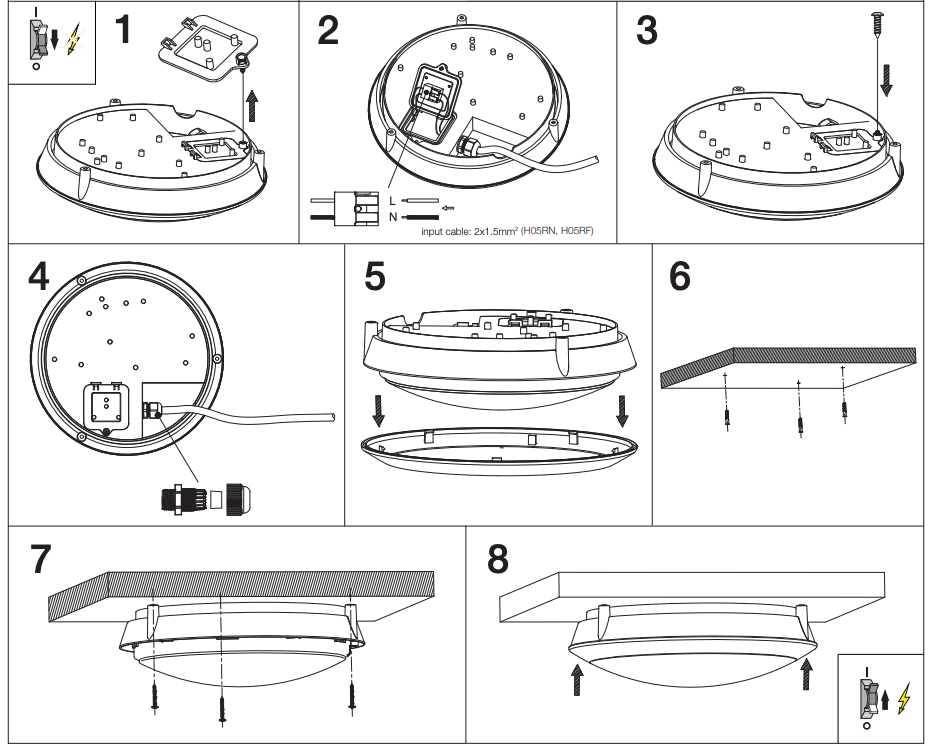

Assembly

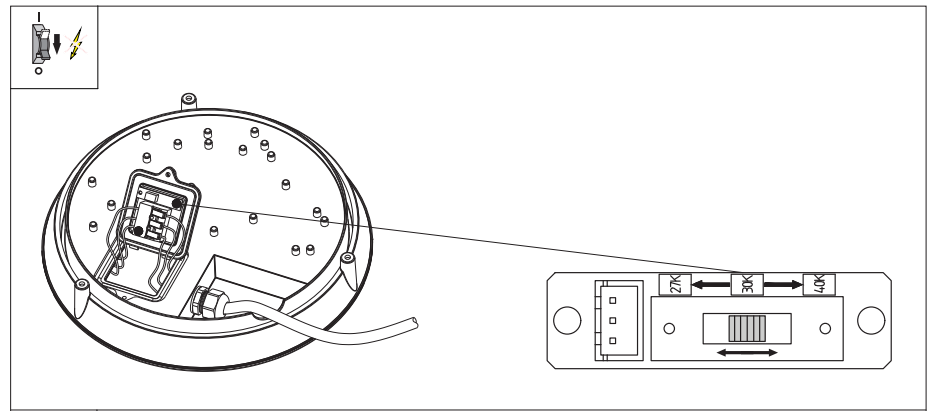

To adjust the color temperature

To adjust the color temperature

Sensor Setting

Sensor Setting

The luminaire shall be installed and maintained by a qualified electrician, in accordance with the national regulations in each country. The luminaire contains no replaceable parts. In case of the luminaire is damaged, it shall be exclusively replaced by the manufacturer or authorized dealer. Keep the operating manual tor later use. The manufacturer is not responsible for the incorrect use and assembly of this product.

Noxion Logo 1

© 2021 Noxion B.V. – All rights reserved. Data subject to change without notice. Noxion retains the right to modify product specifications without any prior notice or obligation and does not assume any liability for any consequences of using document. Subject to errors and printing errors.

Version: February 2021

Noxion B.V.
Schootense Dreef 27,
5708 HZ Helmond,
The Netherlands
+31 (0)85 – 303 29 82
www.noxion.com
[email protected]
