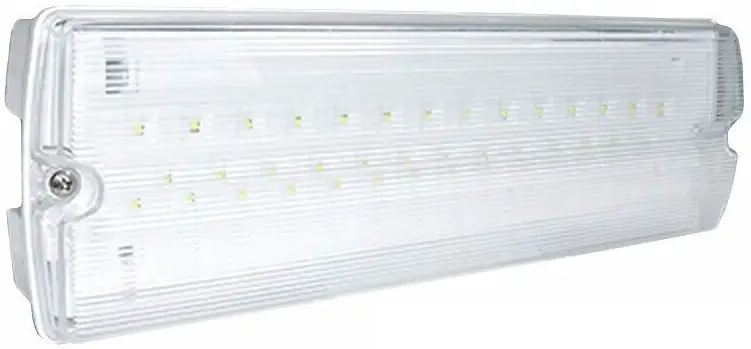

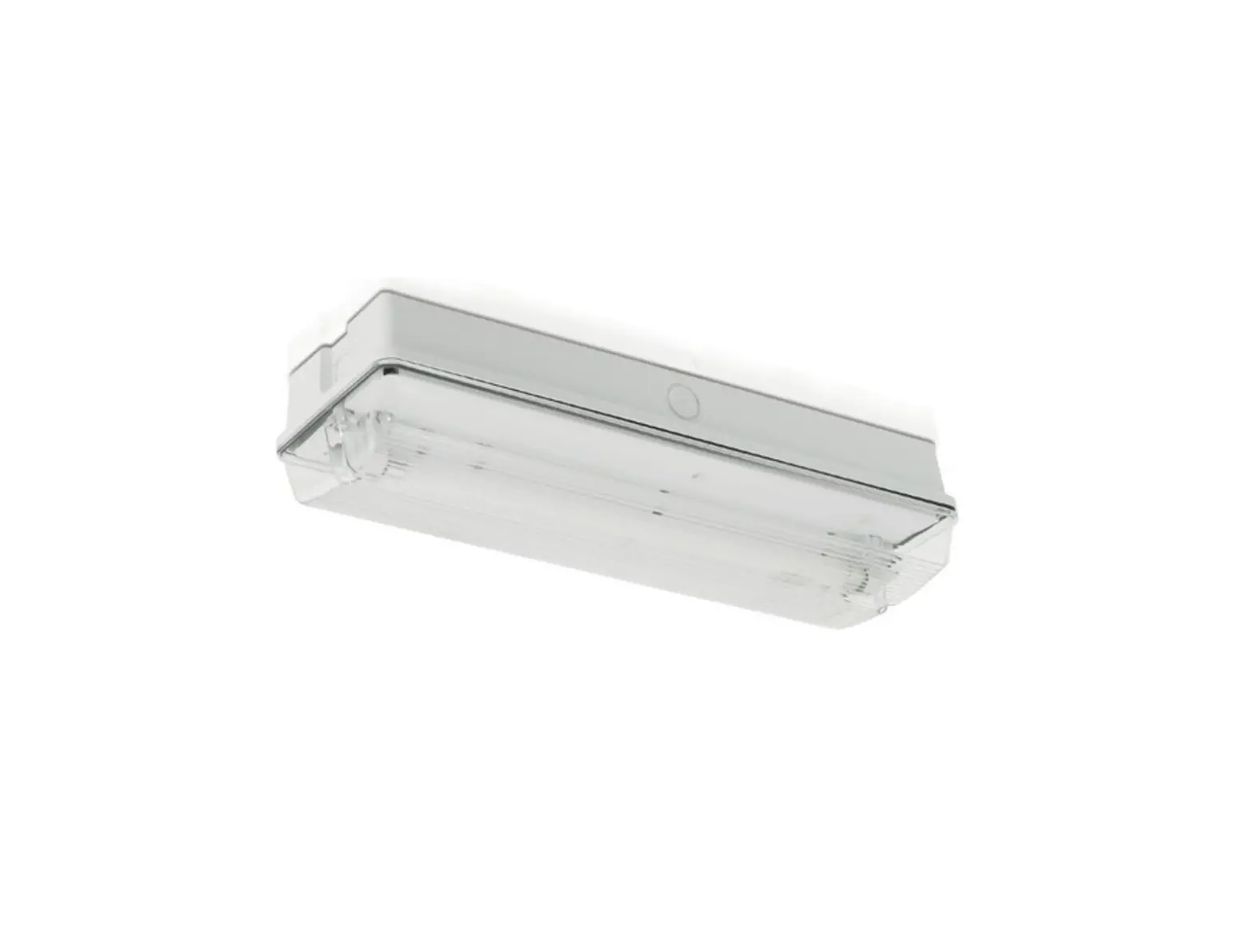

Eterna EMLED3M LED Emergency Bulkheads
Low energy alternative to standard fluorescent emergency bulkheads
- Polycarbonate construction
- Internal or external use
- 20mm gland entries as standard
- Hinged gear tray & push fit terminal block: allows for quicker and easier installation and maintenance
- Minimum 3-hour functionality in emergency mode
- High-output LEDs with bright white light
- Semi-recessed fixing option available: BULKFRAME allows a more discreet installation option
- Dedicated self-adhesive legend pack included with a combination of symbols: allows multiple exit path designation options
- Additional legend sets available: ISOLGDSET (ISO 7010 format) / LGDSET (signs directive format) which can be used as additional legend sets or as individual stickers for walls and doors
- Viewing distance 20m
- Replacement battery: code EB1
- Fitting 5-year warranty, battery 1-year warranty.
MAINTAINED VERSIONS
- Facility for remote switching and non-maintained mode
- 235 lm when connected to mains,150 lm when connected to the battery

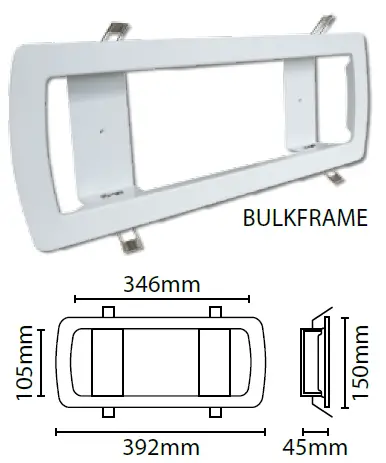

BULKFRAME
- Pressed steel construction
- Spring retaining clips
- Semi-recessed fixing: allows a more discreet installation option
- Hole cut-out size: 350mm x 117mm
- Fittings/Frame = M.O.M: 1 / O.P.Q: 12
- Legends = M.O.M: 12 / O.P.Q: 12
Specification
| Code | Version | Wattage | Colour Temp. | Lumens | Avg. Rated Life (Hrs) | IP Rating |
| EML3MISO | Maintained With ISO 7010 Legend Set | 7W |
6000K | 235 lm (mains) 150 lm (battery) |
30,000 hrs |
IP65 |
| EMLED3M | Maintained With Signs Directive Legend Set | |||||
| EML3NMISO | Non-Maintained With ISO 7010 Legend Set | 2W | 150 lm | |||
| EMLED3NM | Non-Maintained With Signs Directive Legend Set | |||||
| BULKFRAME | White Bulkhead Frame | |||||
| ISOLGDSET | ISO 7010 Legend Set | |||||
| LGDSET | Signs Directive Legend Set | |||||
