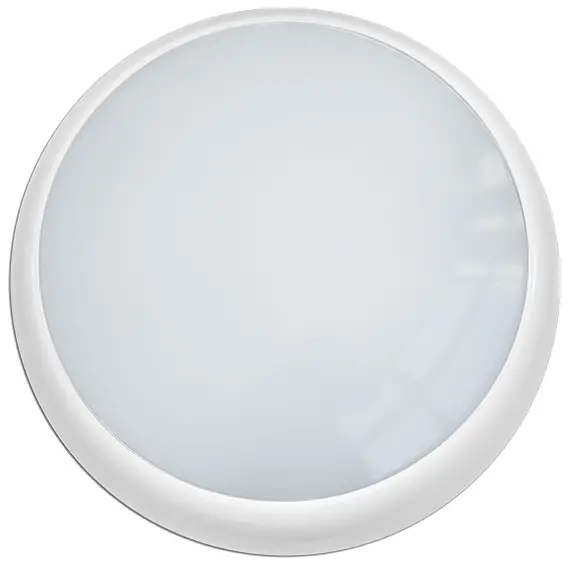

Eterna CFLEDWHSC LED Bulkhead CT Single
17W LED CEILING/WALL LIGHT
- Polycarbonate construction
- Visually similar, energy-efficient alternative to 28W 2D fittings
- Multiple low-power LED array & optically optimised diffuser: ensures a soft lighting effect with no degradation of light output
LI-ION EMERGENCY VERSIONS
- 3hr maintained emergency lighting: also available in nonemergency options
- Facility for non-maintained mode
- Battery – Li-Ion 3.2V 1500mAh
- Battery 1-year warranty
- Replacement battery code: EB11
MICROWAVE SENSOR VERSIONS
- Adjustable detection angle: up to 150°
- Adjustable detection range: Max. 4-6m at 3m installation height
- Adjustable time setting: 5 seconds – 30 minutes
- Adjustable Lux control: 2/10/25/50 lux or disable
- Detection is possible through doors, glass panels & thin walls
| Code | Version | Wattage | Colour Temp. | Lumens | Avg. Rated Life (Hrs) | IP Rating | MOM / OPQ |
| CFLEDWHSC | Standard |
17W |
4000K |
1843 lm |
50,000 hrs |
IP65 |
1 / 8 |
| MSLEDWHSC | MW | ||||||
| CFLWHEM3SC | EM3 | ||||||
| MSLWHEM3SC | MW + EM3 |

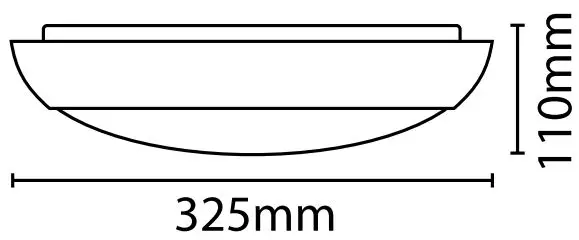

DIMENSION
LED LAMP SPECIFICATIONS
- Luminaire lumens (with diffuser) 1843 lm
- Lumens from the chip (no diffuser) 2143 lm
- Useful lumens 1668 lm
- Rated Wattage 17W
- Rated luminous flux 1668 lm
- Nominal lifetime of the lamp is 50,000 hrs
- Colour temperature 4000K
- Number of switching cycles before premature lamp failure ≥15,000
- Warm-up time up to 60% of the full light output Instant full light
- Dimmable No
- Nominal beam angle 120°
- Rated power 17W
- Rated lamp life time 50,000 hrs
- Displacement factor ≥0.8
- Lumen maintenance factor at end of nominal life ≥0.8
- Starting time <0.1s
- Colour rendering ≥80
- Colour consistency Within a six-step Macadam ellipse
- Rated peak intensity 545cd
- Rated beam angle 120°
- Voltage/Frequency 240V~50Hz
- Lumen efficacy: 98 lm / W
- This product contains a Light Source of Energy Efficiency Class E
- Not suitable for accent lighting
