Set van IP44 CABINET LED OPBOUW
Installation manual
Warning!
Switch off the power at the circuit breaker/fuse before installing,

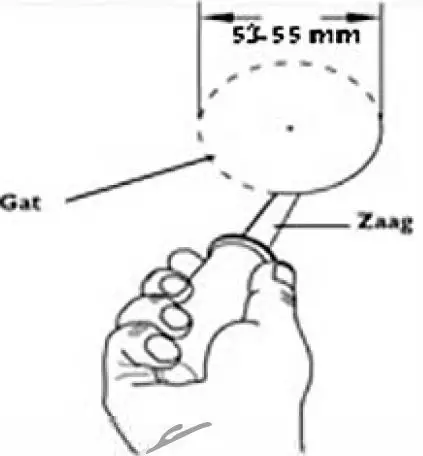

If you are going to use these spots as surface-mounted spots, you do not have to cut a hole, otherwise: Make a hole in your ceiling with a minimum of 53 and a maximum of 55 mm.

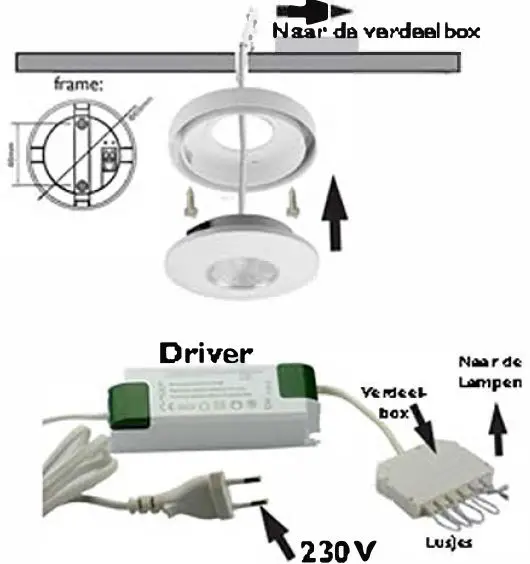

The Cabinet spots are available in sets of at least 2 up to 6 spots on I driver. Connect the mini plugs of the spots to the distribution box which is located on the low-voltage side of the driver.The loops go into the empty sockets.The 230Volt plug goes into your 230Volt socket The spots are connected serially to the distribution box. Therefore, the supplied loops must be connected to the empty sockets,
Heat generation?
Due to the low wattage and excellent heat dissipation, the tern perature of the spotlight is low.
If you are in doubt regarding the above, please consult a qualified electrician.
