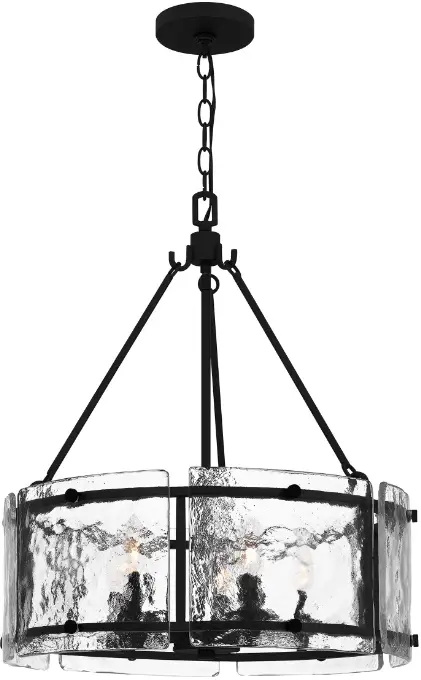

QUOIZEL FTS2821EK and FTS2821MM Fortress 5-Light Earth Black Pendant Ceiling Light

Product Information

The FTS2821EK and FTS2821MM are fixtures that come with a fixture loop assembly, center rod, socket assembly, crossbar assembly, outlet box screw, ceiling canopy, quick link, fixture chain, glass panels, rubber washer, lock screw, wire connector, and cage. The ceiling canopy shape may vary depending on the item purchased. The recommended bulb type is a candelabra (E12) type B bulb with a maximum wattage of 60W.

Product Usage Instructions

1. Thread the fixture loop assembly, center rod, and socket assembly together.
2. Install the crossbar assembly onto the outlet box.

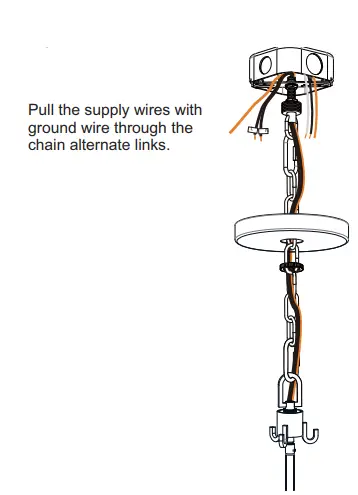

3. Install the fixture chain by pulling the supply wires with the ground wire through the alternate links of the chain. Optional: Adjust chain as desired using pliers and a soft cloth.
4. Wire the fixture by connecting the white wire from the supply to the ribbed side of the wire from the fixture identified with the label N. Connect the black (or red) wire from the supply to the smooth side of the wire from the fixture identified with the label L. Connect the ground wire from the supply to the ground wire from the fixture identified with the label G. Connect the green ground wire.
5. Install the ceiling canopy.
6. Install the cage.
7. Install the glass panels.
8. Install five correct bulbs referring to fixture markings and/or labels for maximum wattage.
9. Restore electricity and save this sheet for future reference.

If you encounter any issues during installation or need further assistance, call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST) or visit www.quoizel.co

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

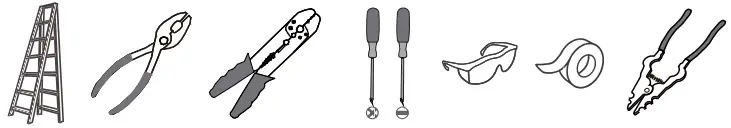

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

PACKAGE CONTENTS

MOUNTING HARDWARE

INSTALLATION

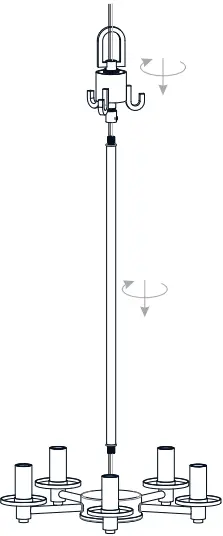

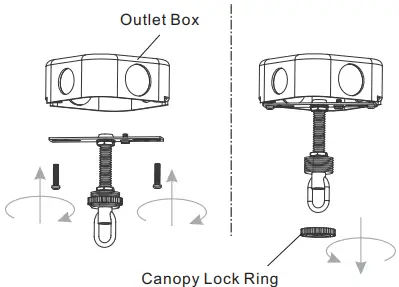

1. Thread Fixture Loop Assembly, Center Rod and Socket Assembly Together
2. Install Crossbar Assembly

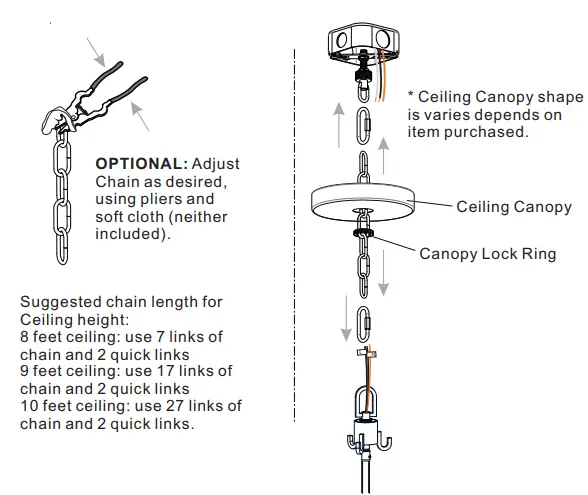

3. Install Fixture Chain
4. Pull Supply Wires

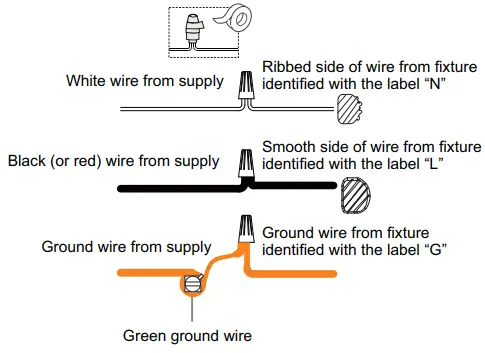

5. Wiring

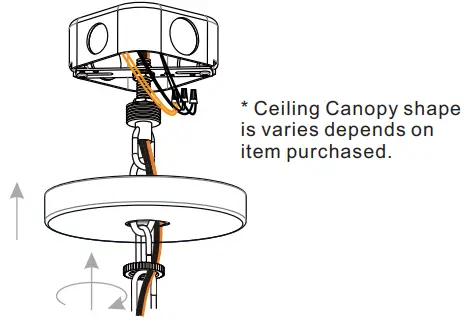

6. Install Ceiling Canopy

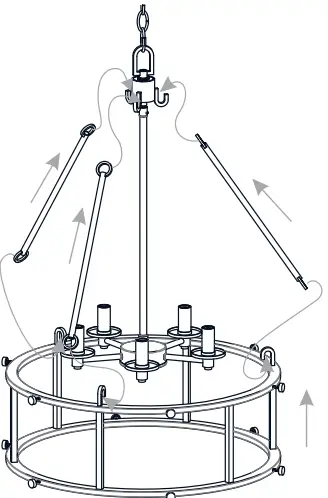

7. Install Cage

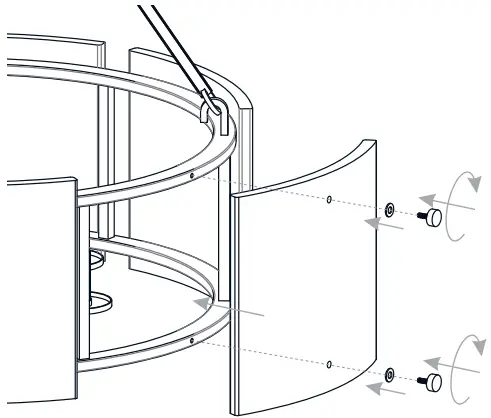

8. Install Glass Panels

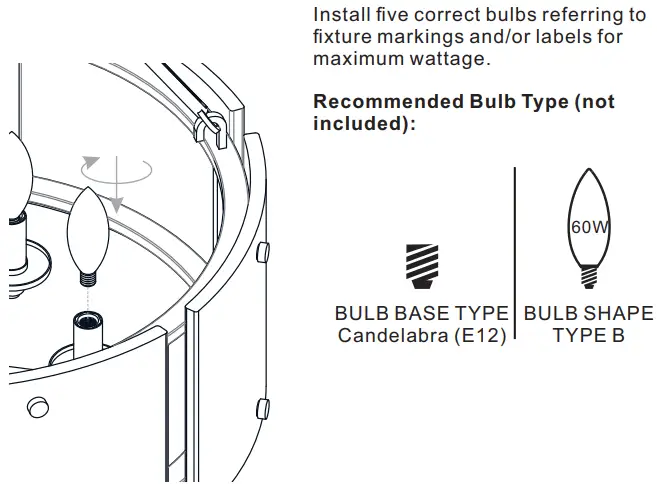

9. Install Bulbs

Your installation is now complete! Restore electricity and save this sheet for future reference.
