Hornbach 31271 Garden Shed Karibu Instruction Manual

HORNBACH 31271 Garden Shed Karibu

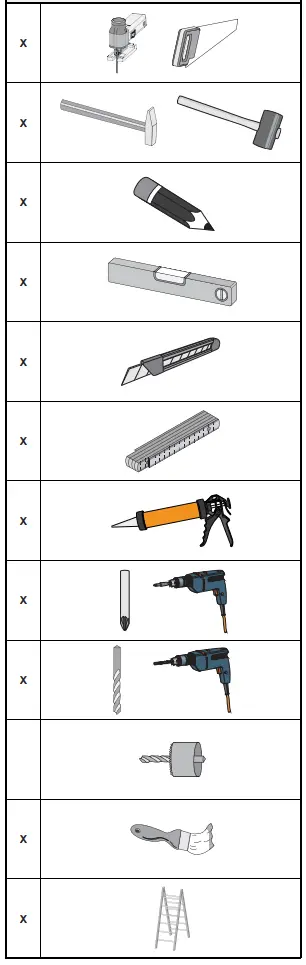

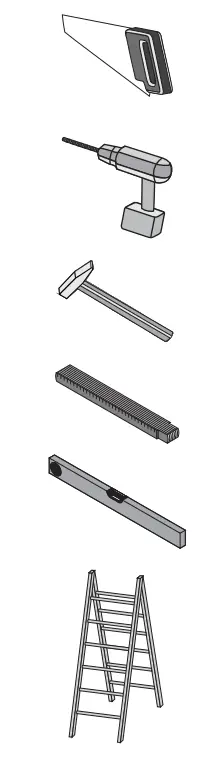

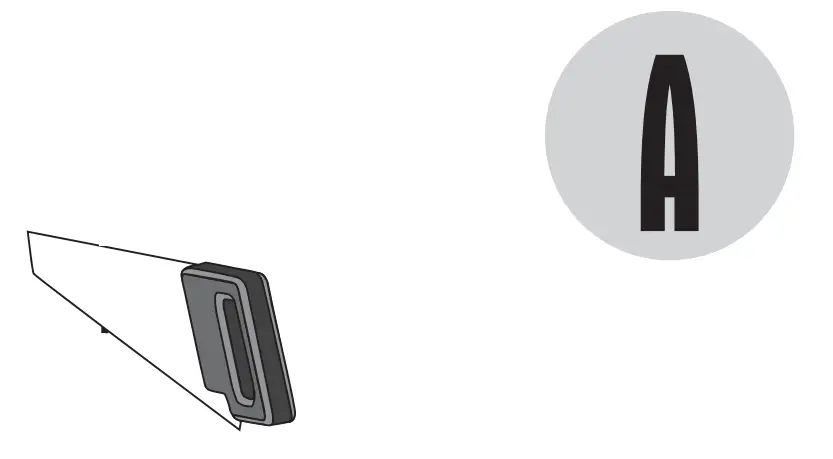

Tools

First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only!

9 x B1	2380 x     45 x 18 mm	ID 16368
33 x B2	180 x 140 x 26 mm	ID 56910
2 x B3	1560 x 190 x 26 mm	ID 31279
2 x B4	1740 x 190 x 26 mm	ID 67445
2 x B5	2040 x 190 x 26 mm	ID 78730
9 x B6	3570 x 190 x 26 mm	ID 68942

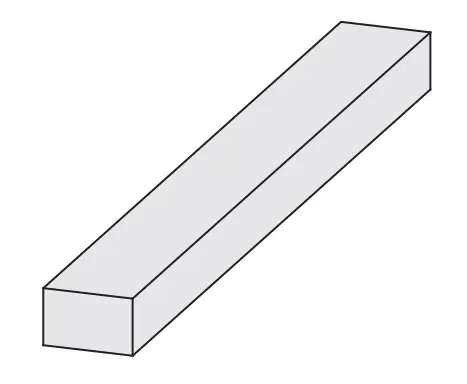

12 x B7	200 x     38 x 38 mm	ID 69082
4 x B8	3631 x     60 x 40 mm	ID 67909
6 x B9	2230 x     45 x 45 mm	ID 60415

32 x W1	1043 x 121 x 40 mm	ID 21381

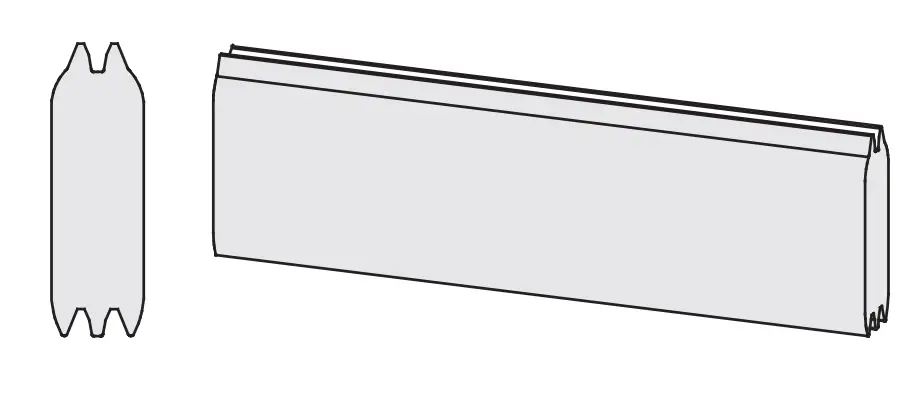

38 x W2	2970 x 121 x 40 mm	ID 67538
24 x W3	3570 x 121 x 40 mm	ID 67847

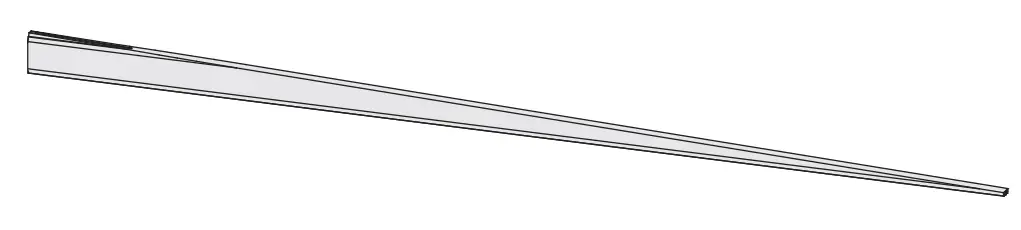

46 x	R1	3300 x	96 x	19 mm	ID 19571

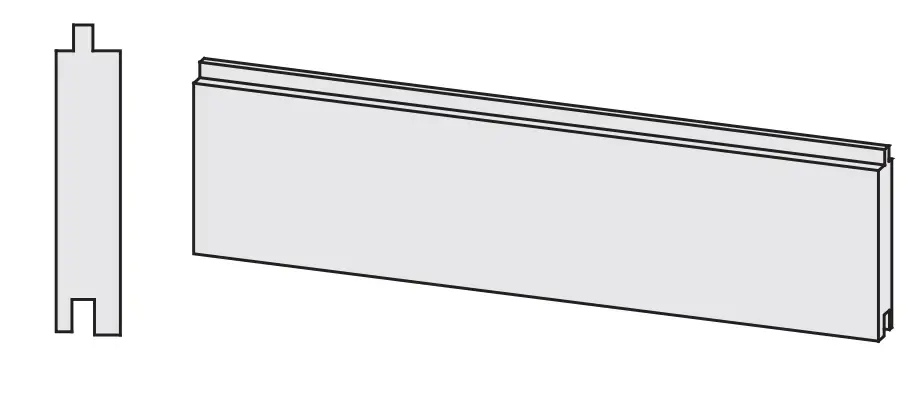

2 x	G1	2970 x	121 x	40 mm	ID 91717

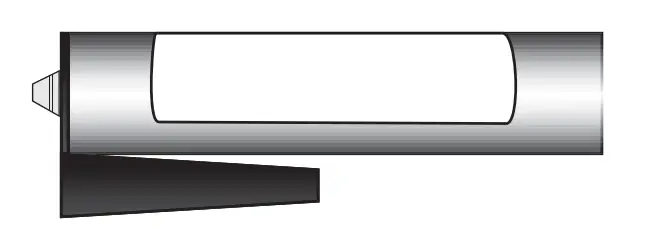

1 x		ID 55202

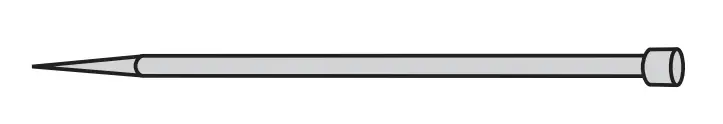

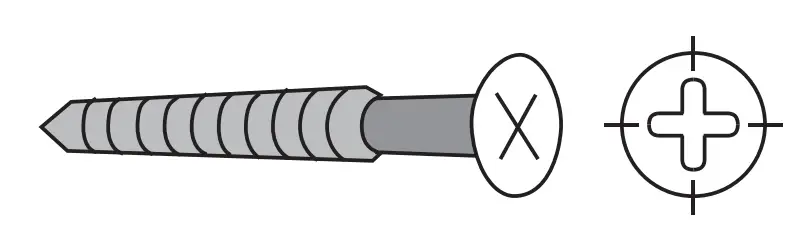

570 x	2 x 50 mm	ID 25453

50 x	4 x 30 mm	ID 3686
130 x	4 x 35 mm	ID 3687
220 x	4 x 50 mm	ID 3688
430 x	4 x 70 mm	ID 3689
50 x	4,5 x 80 mm	ID 9204

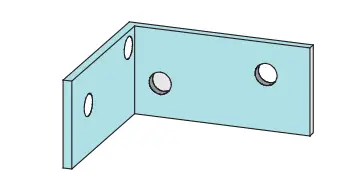

6 x		ID 33143

8 x		ID 21208

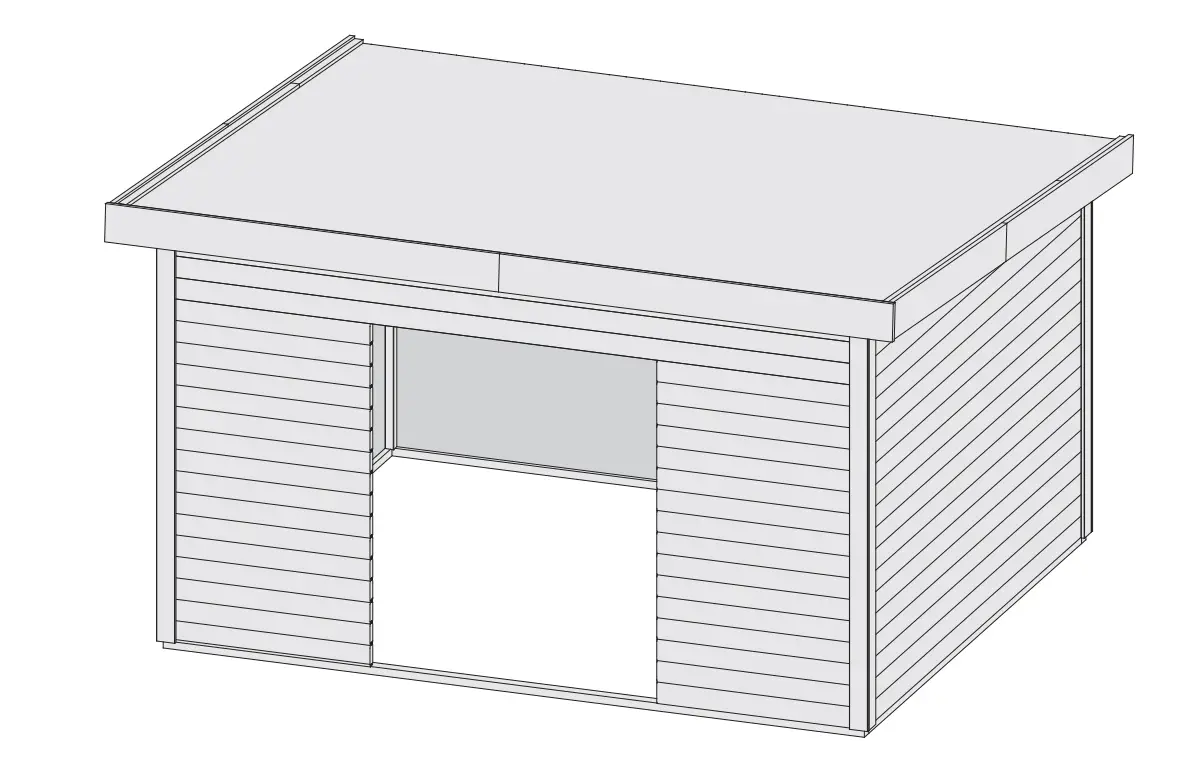

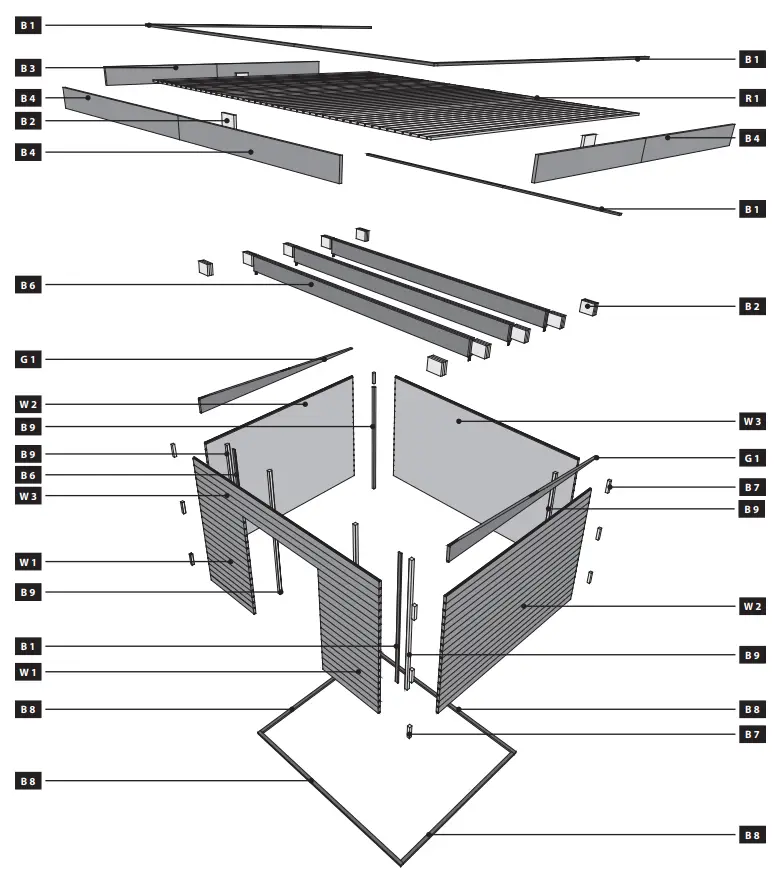

Overview

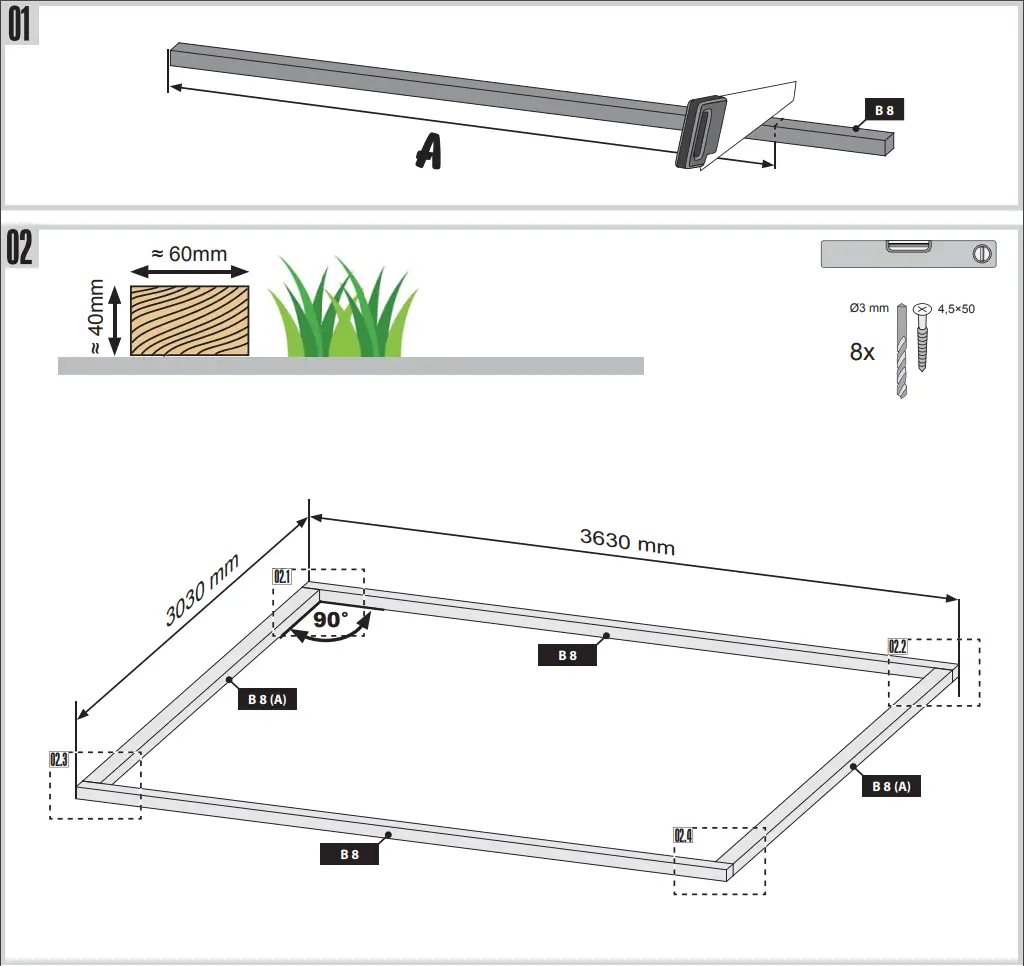

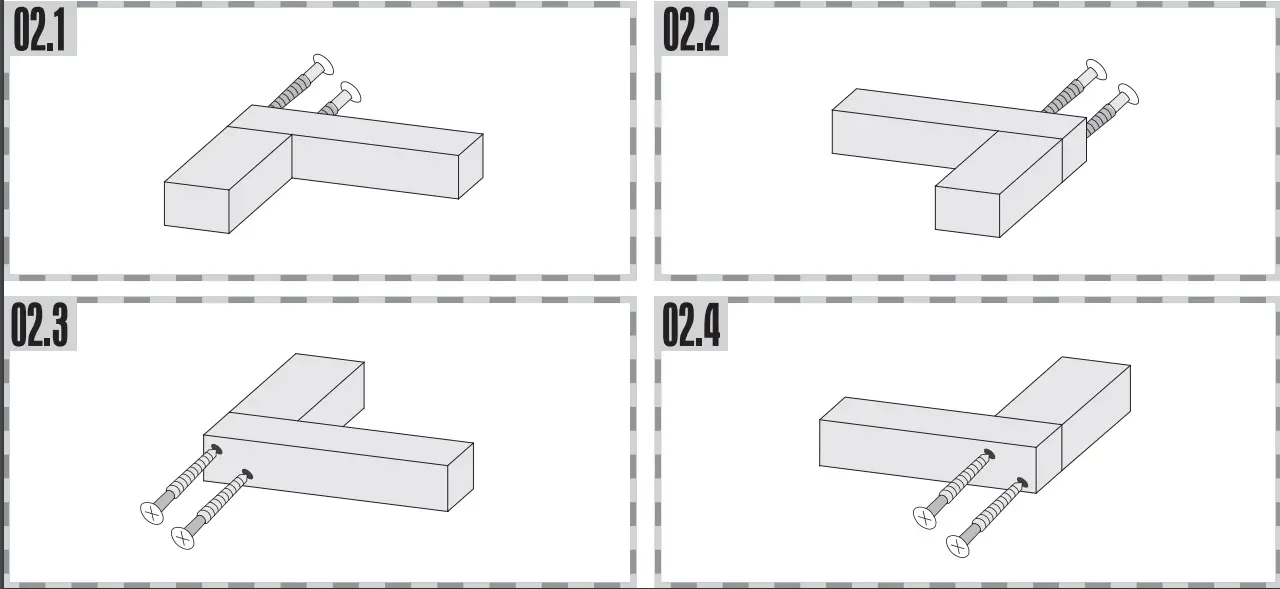

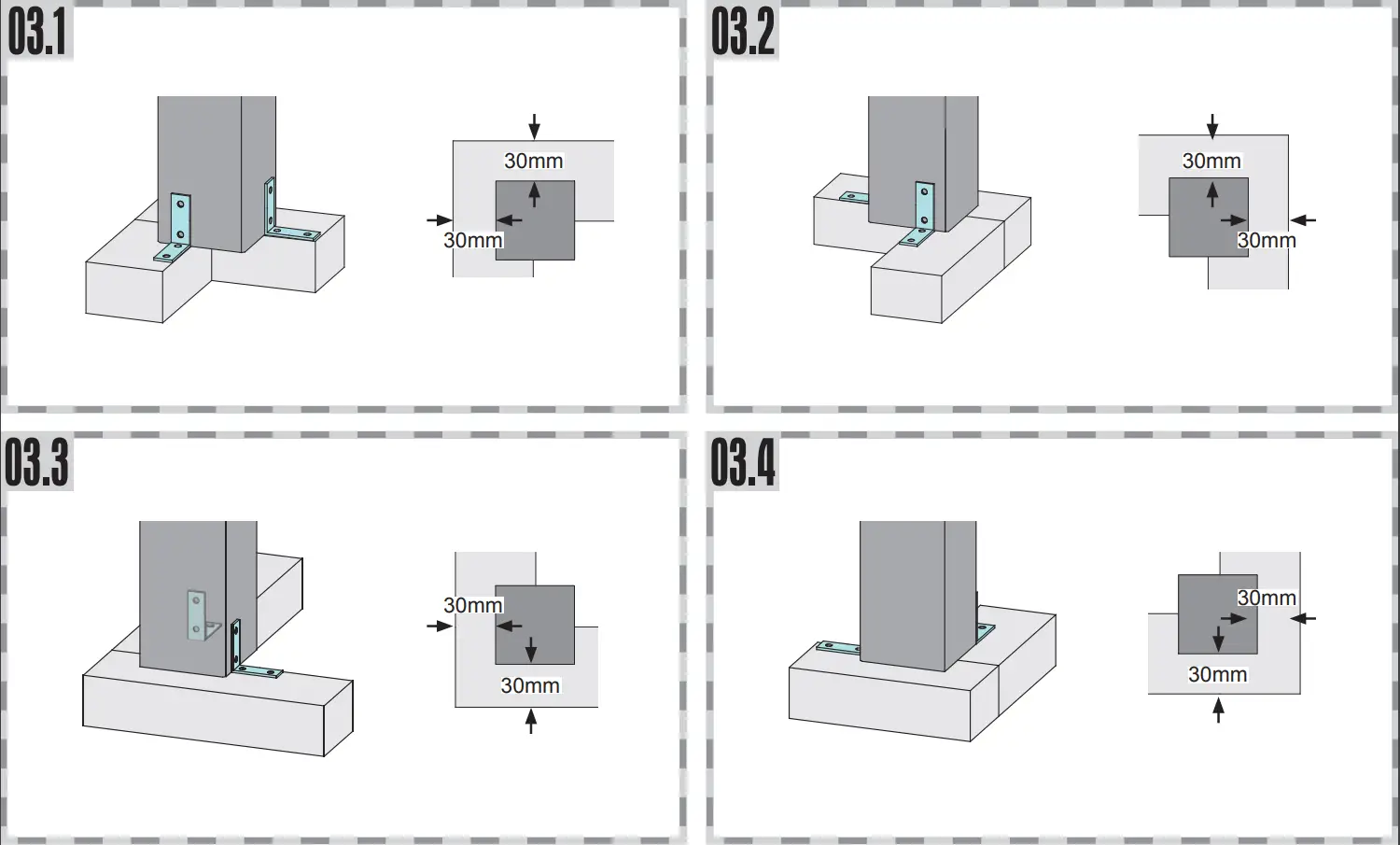

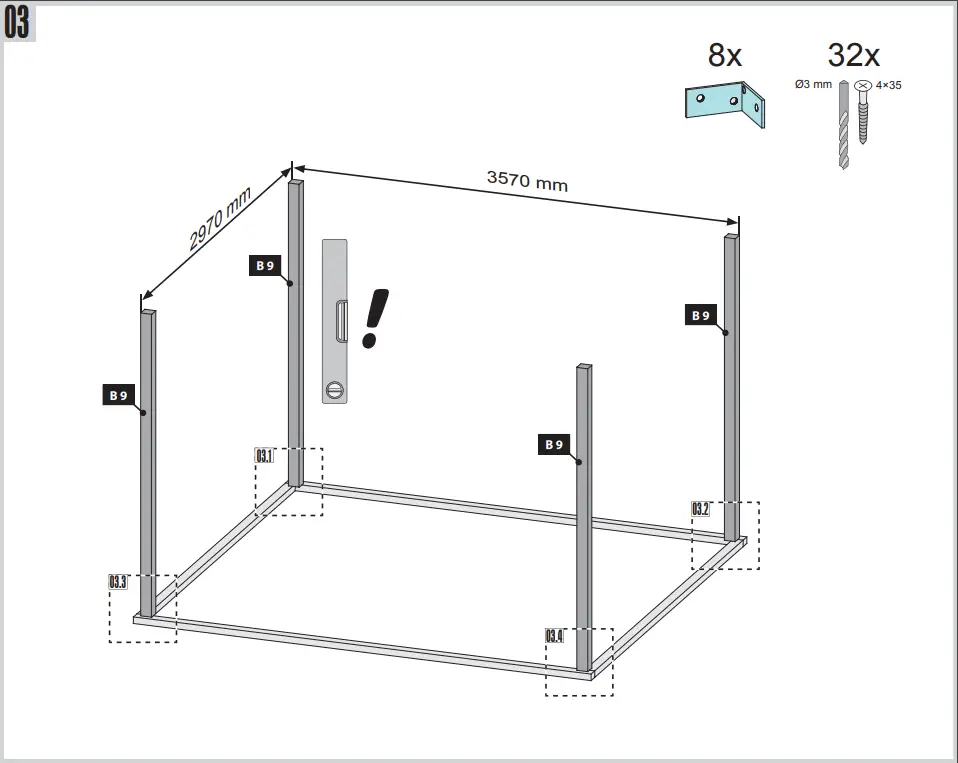

Dimension

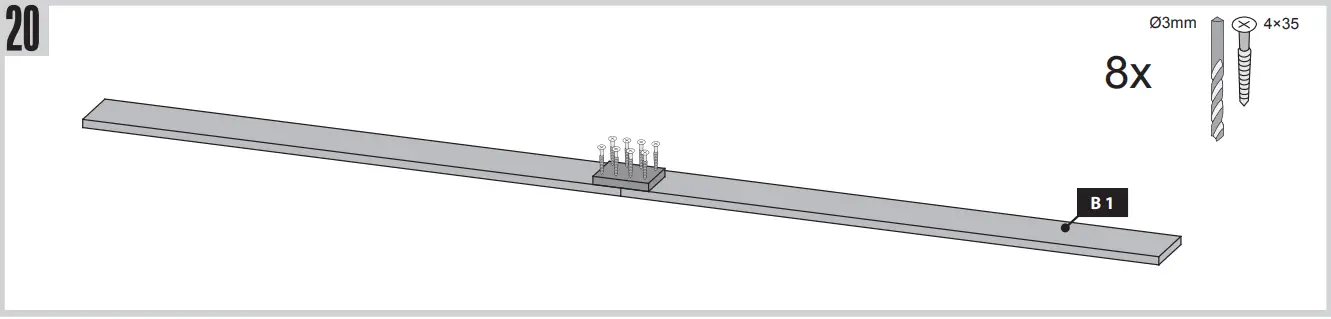

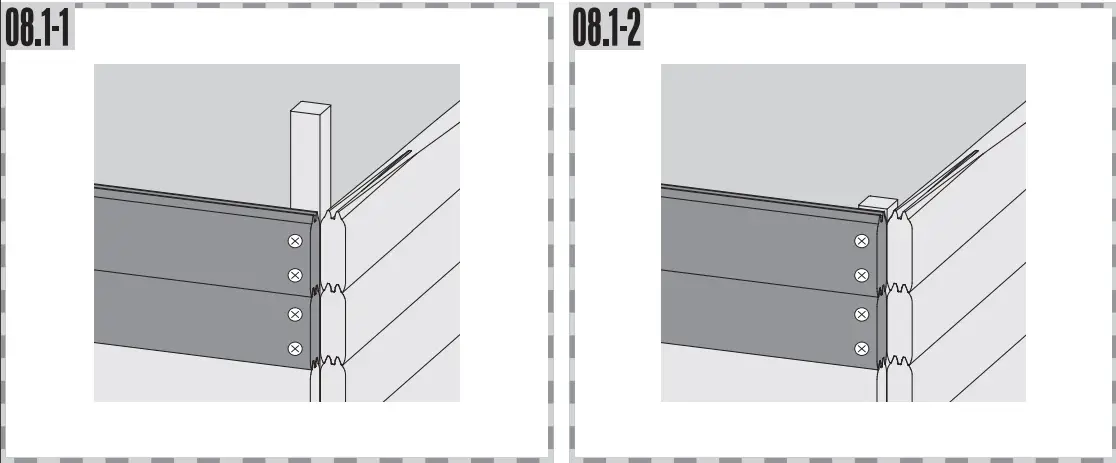

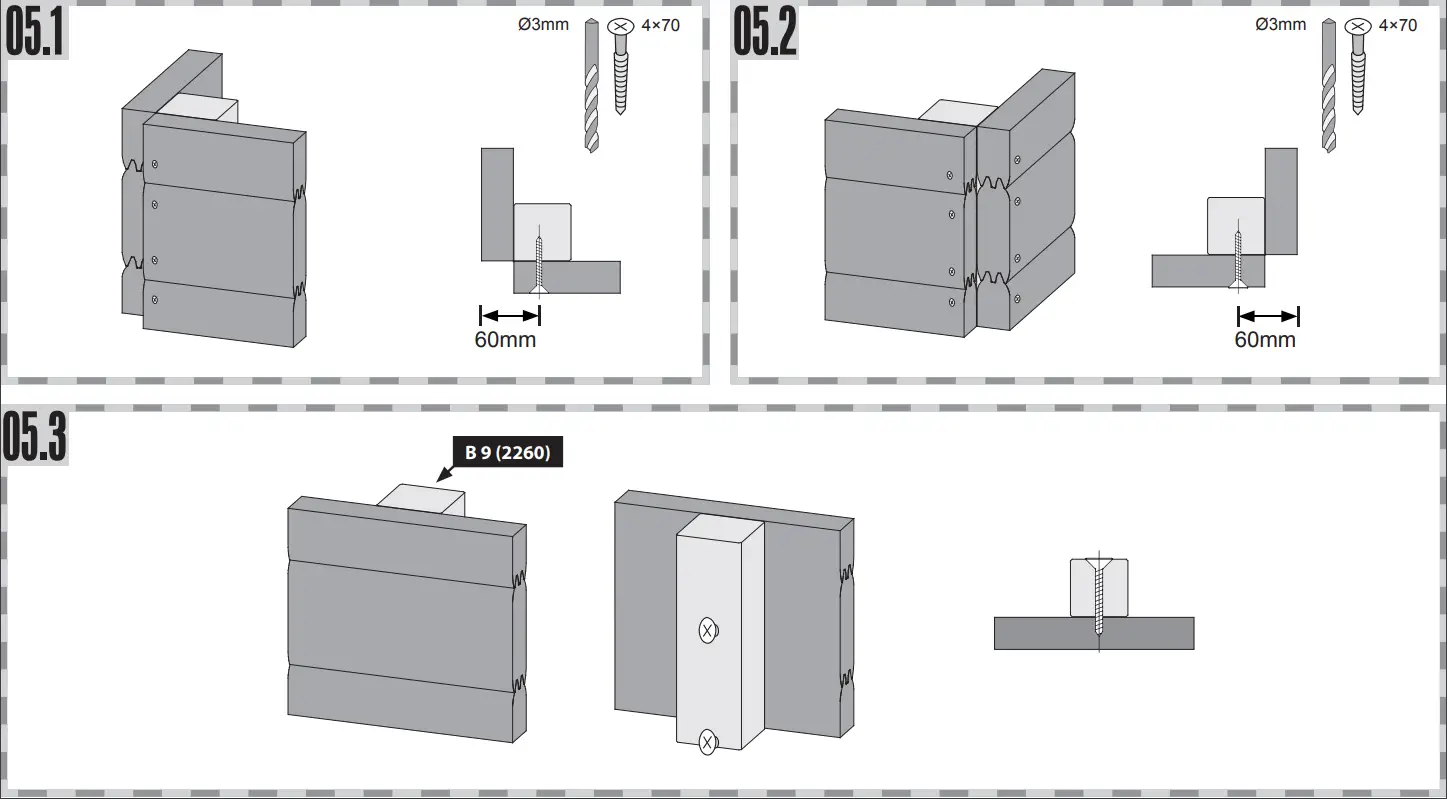

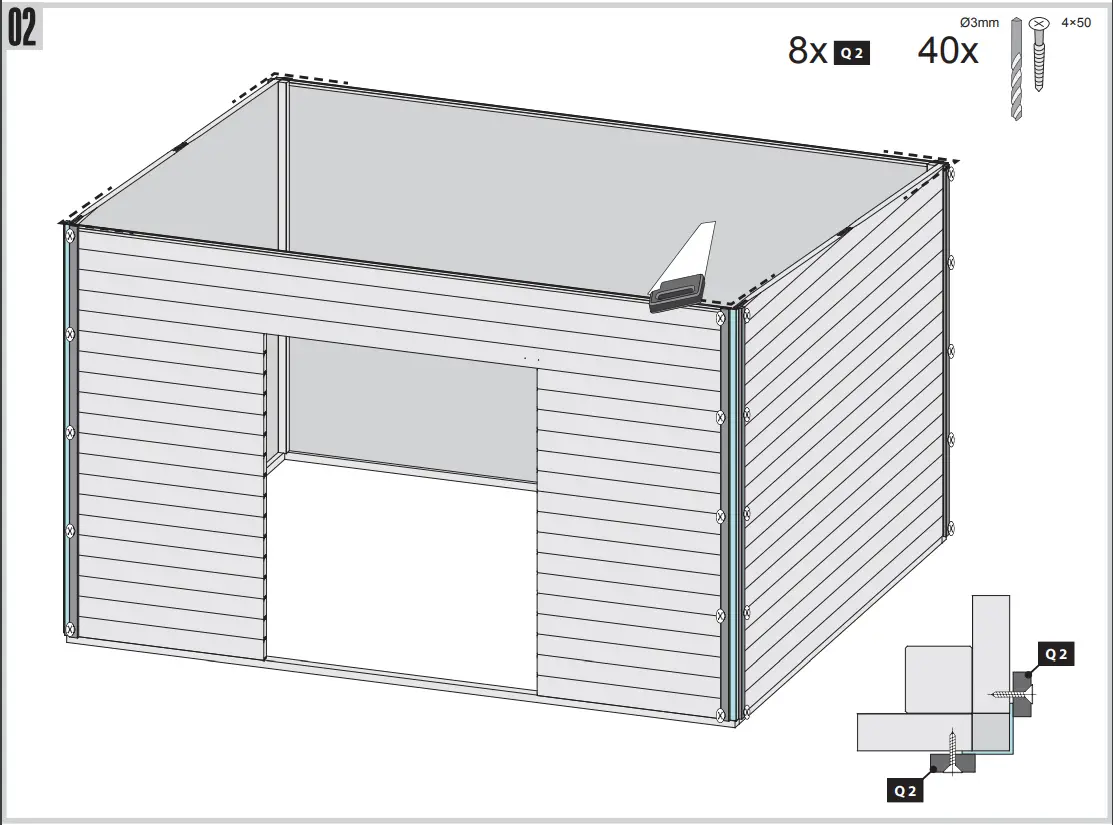

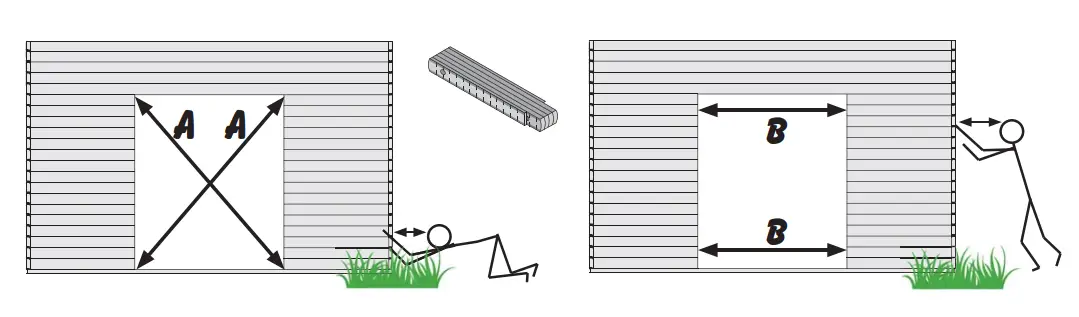

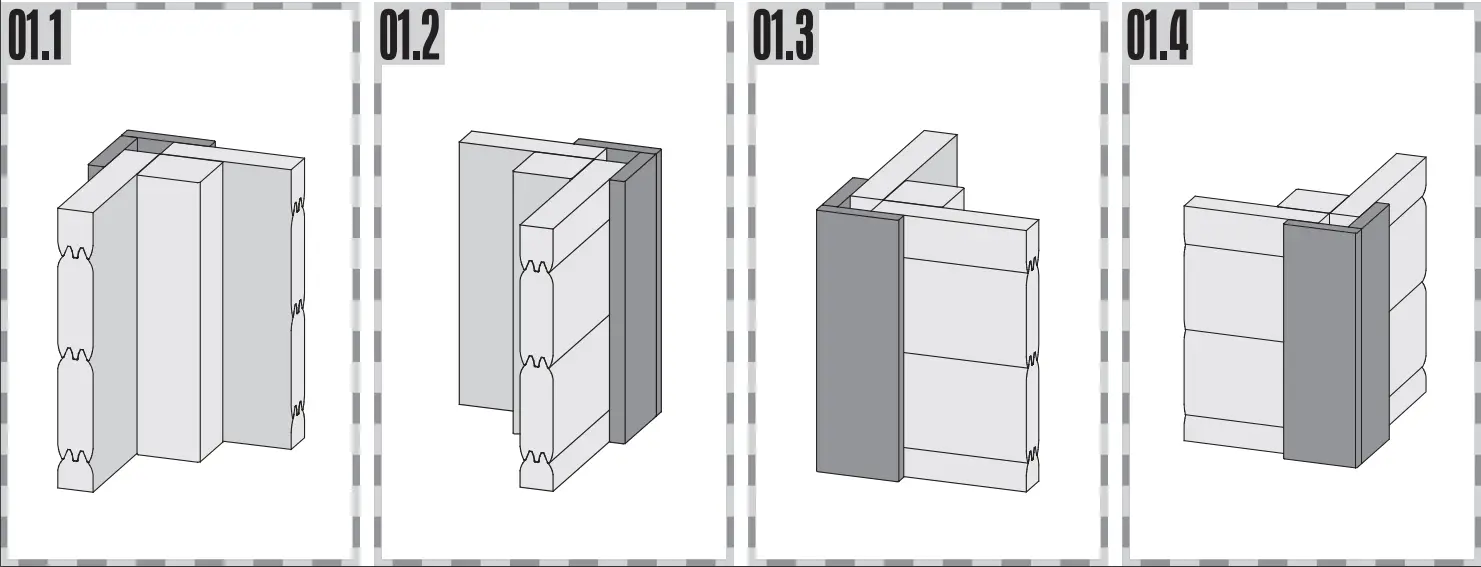

Building Instructions

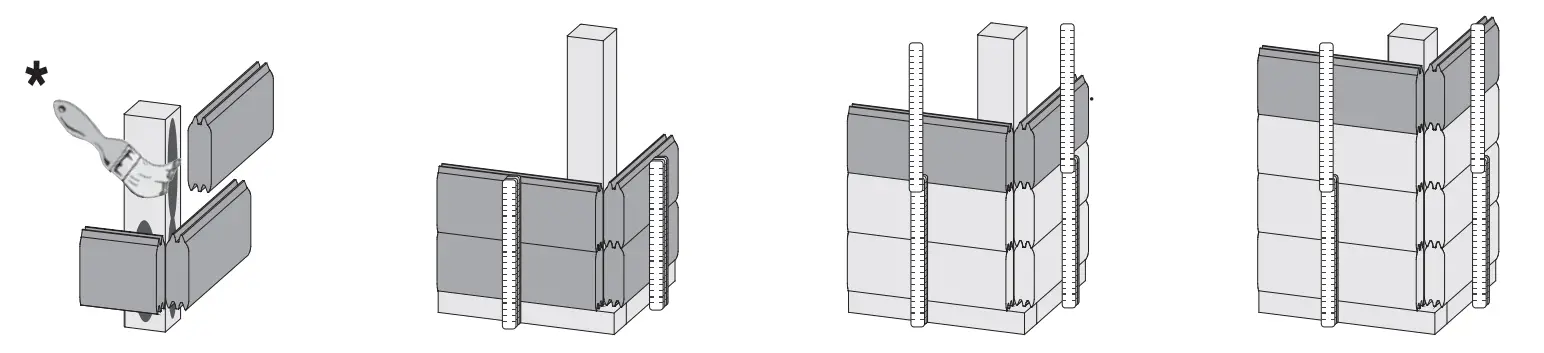

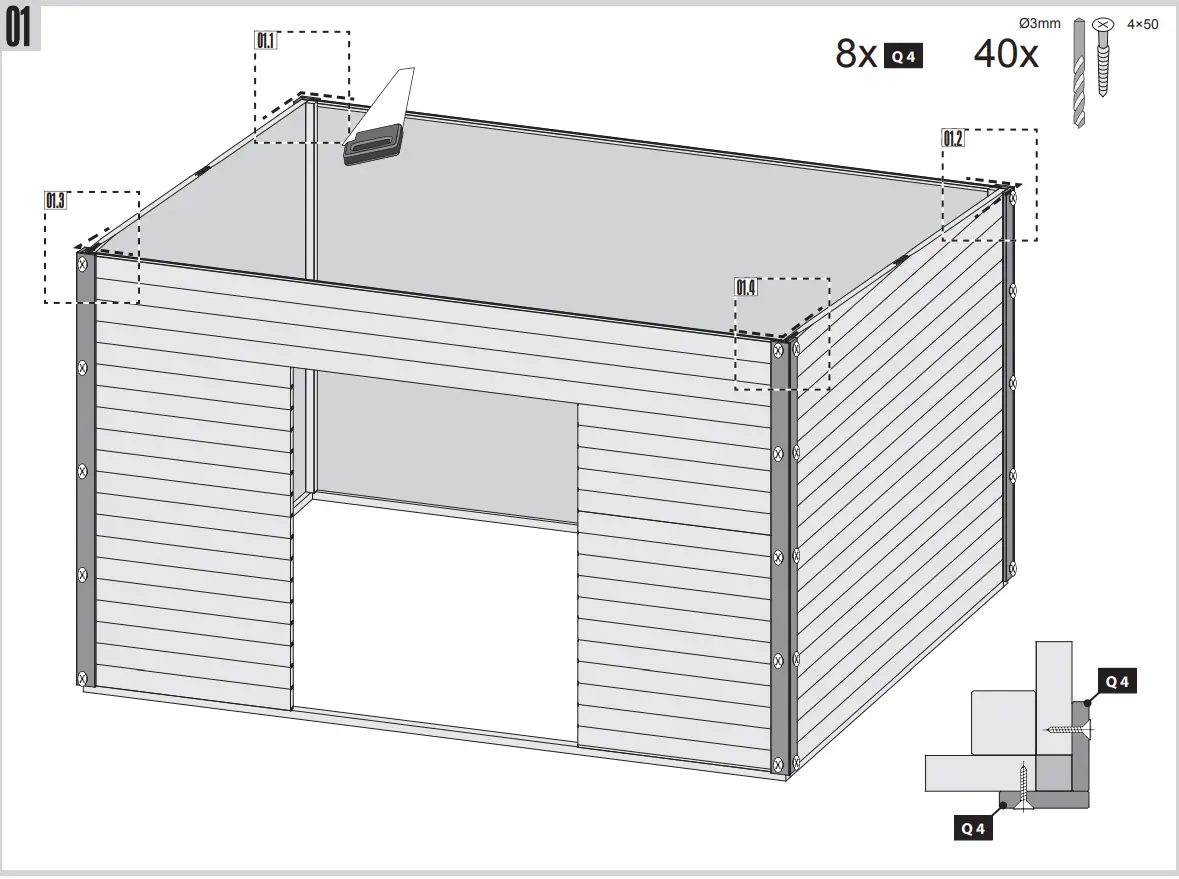

Glue! Look for the same height

Glue! Look for the same height

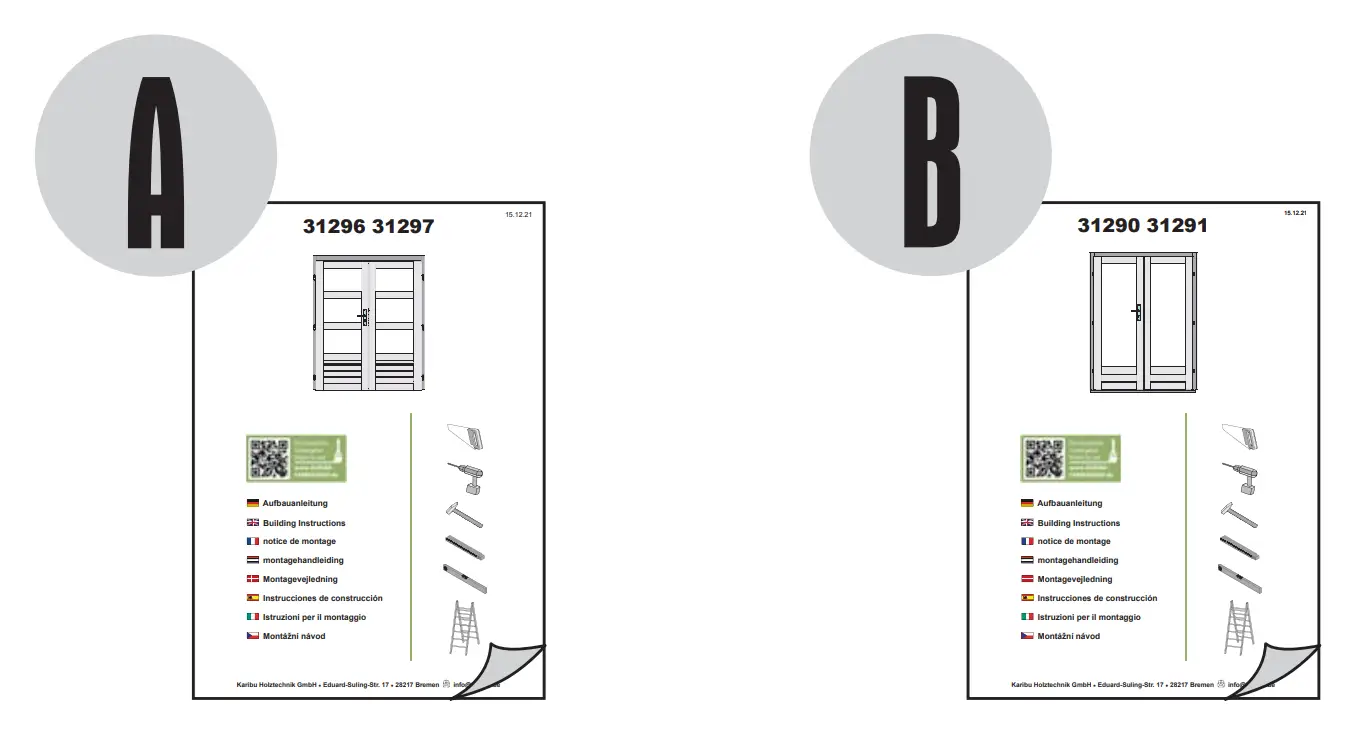

Dear customer, pay attention to the correct design variant!

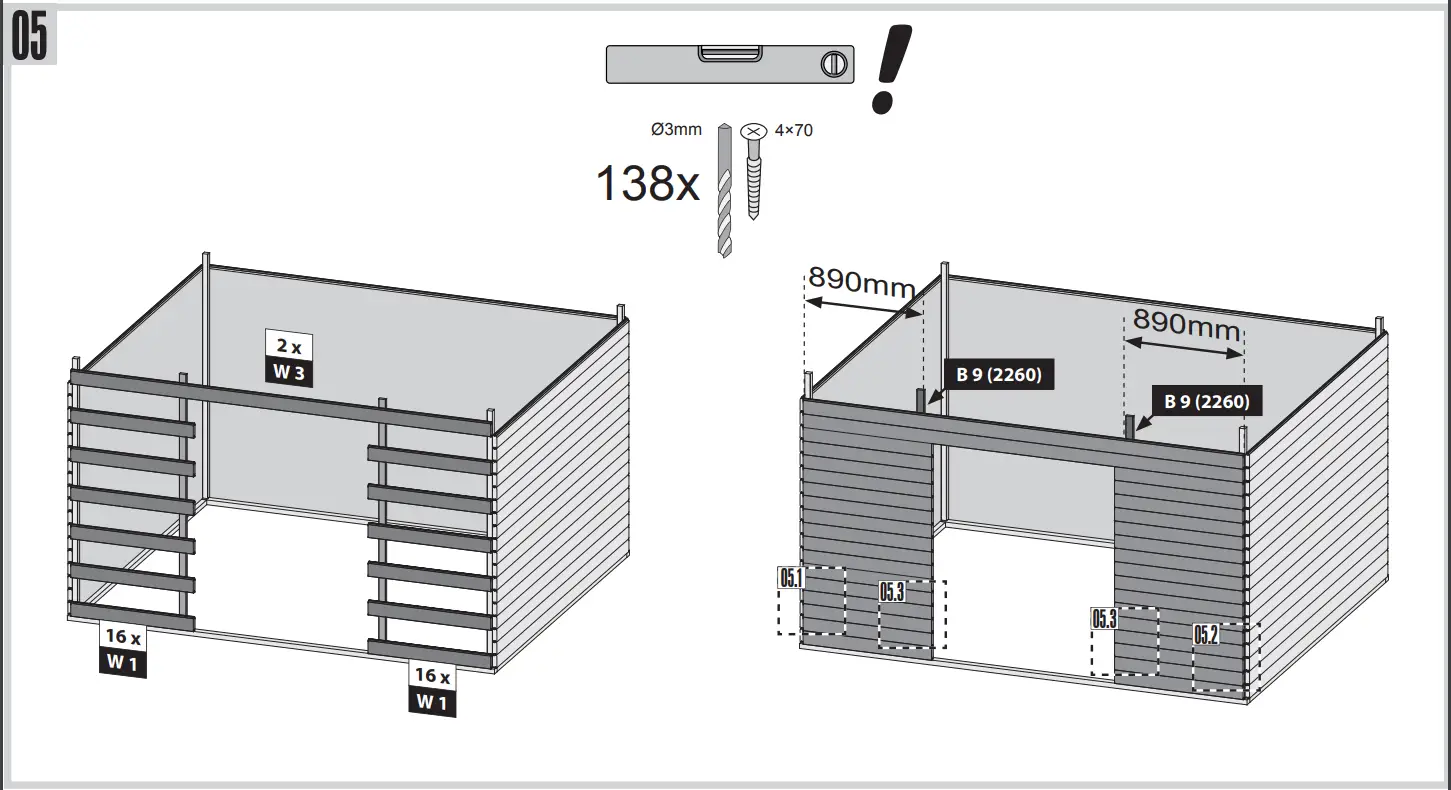

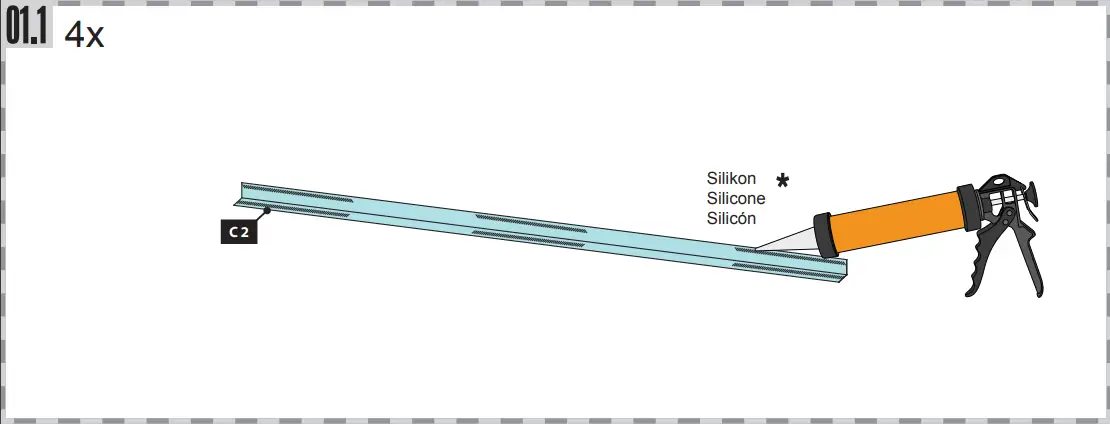

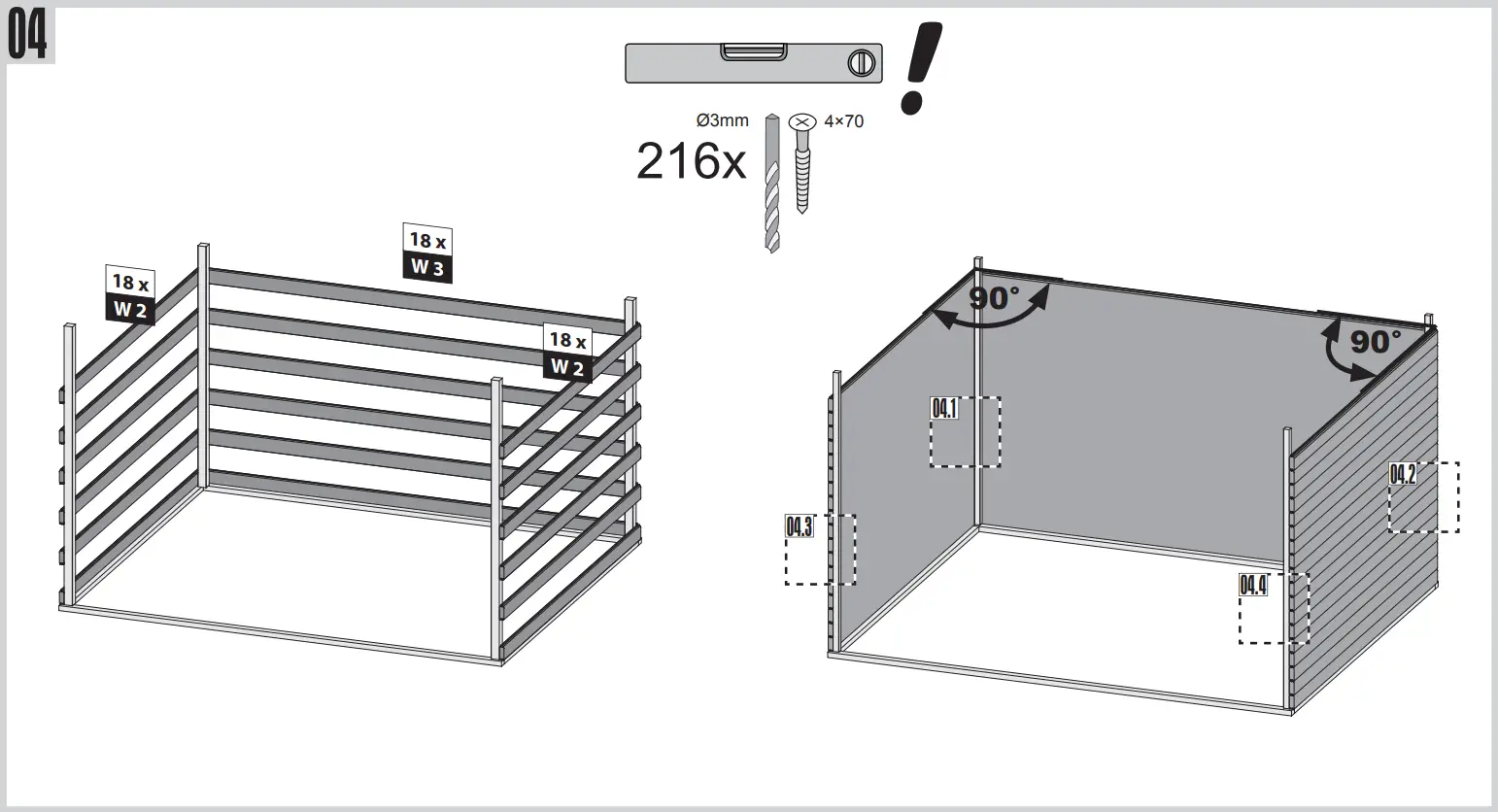

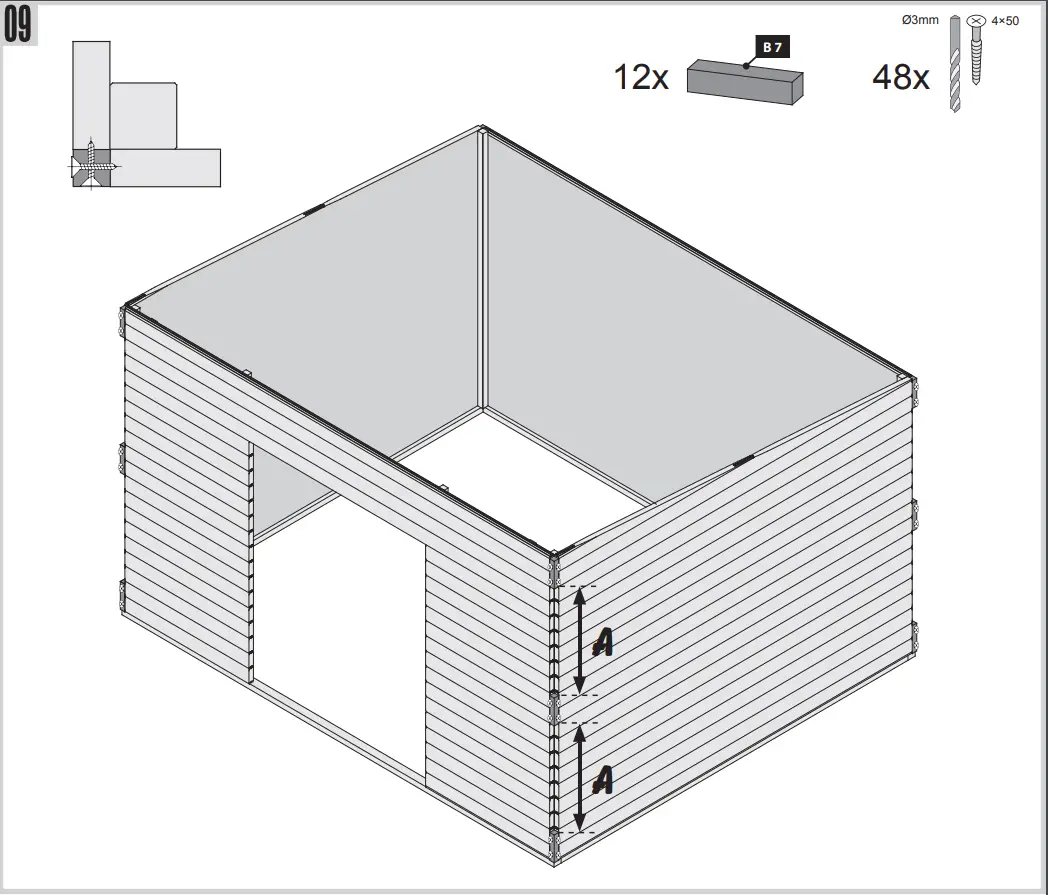

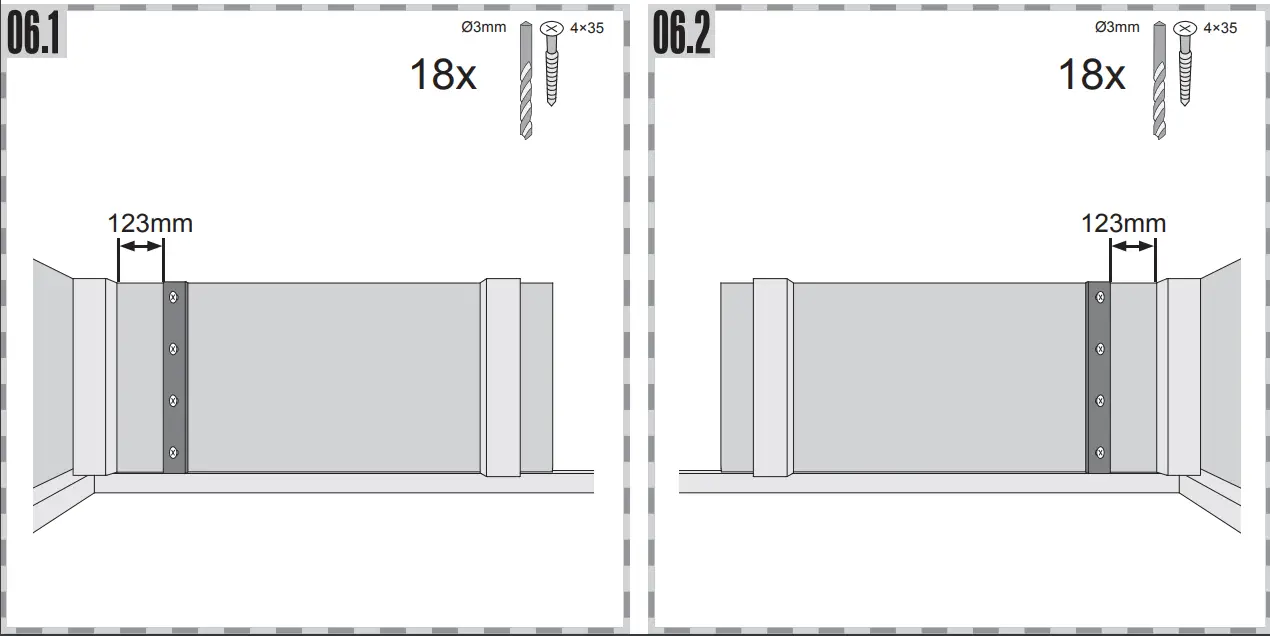

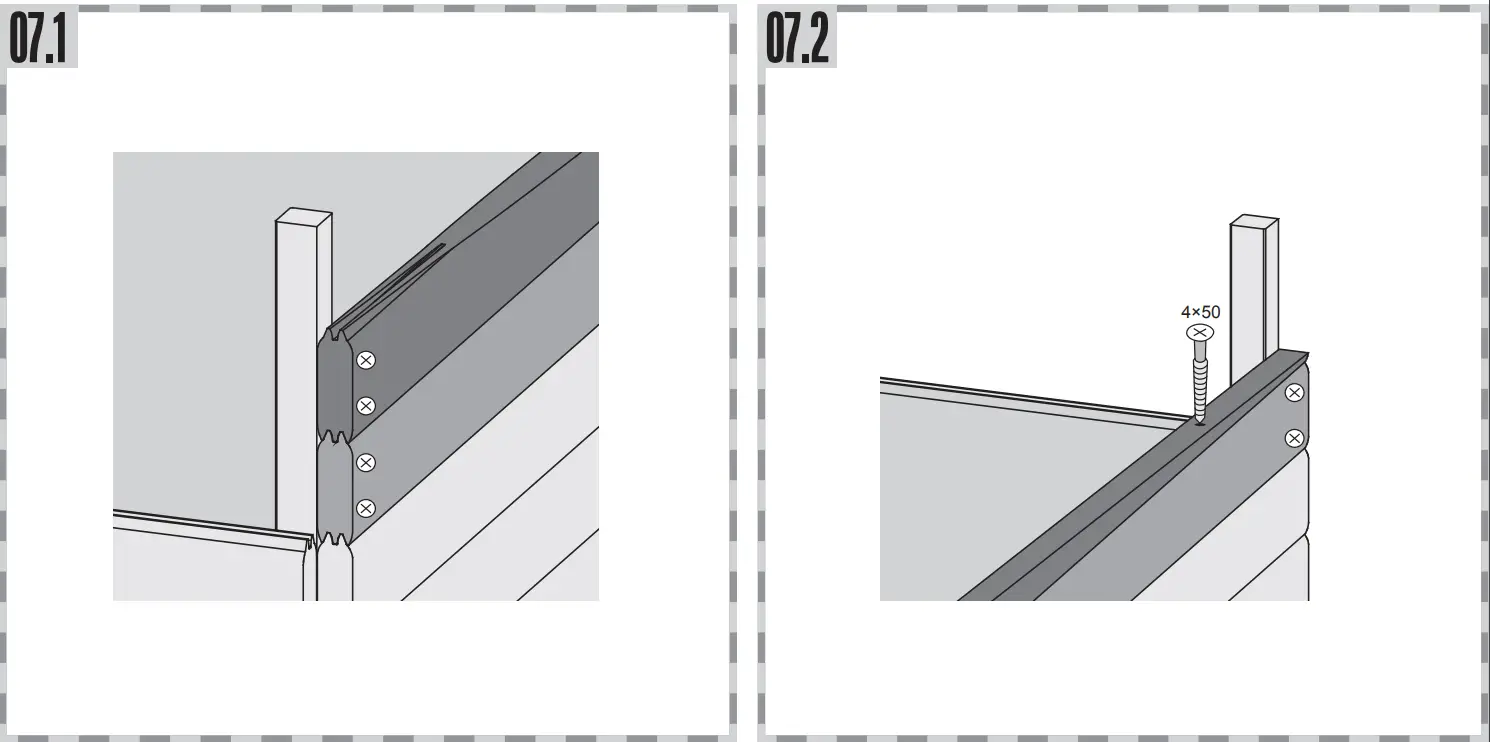

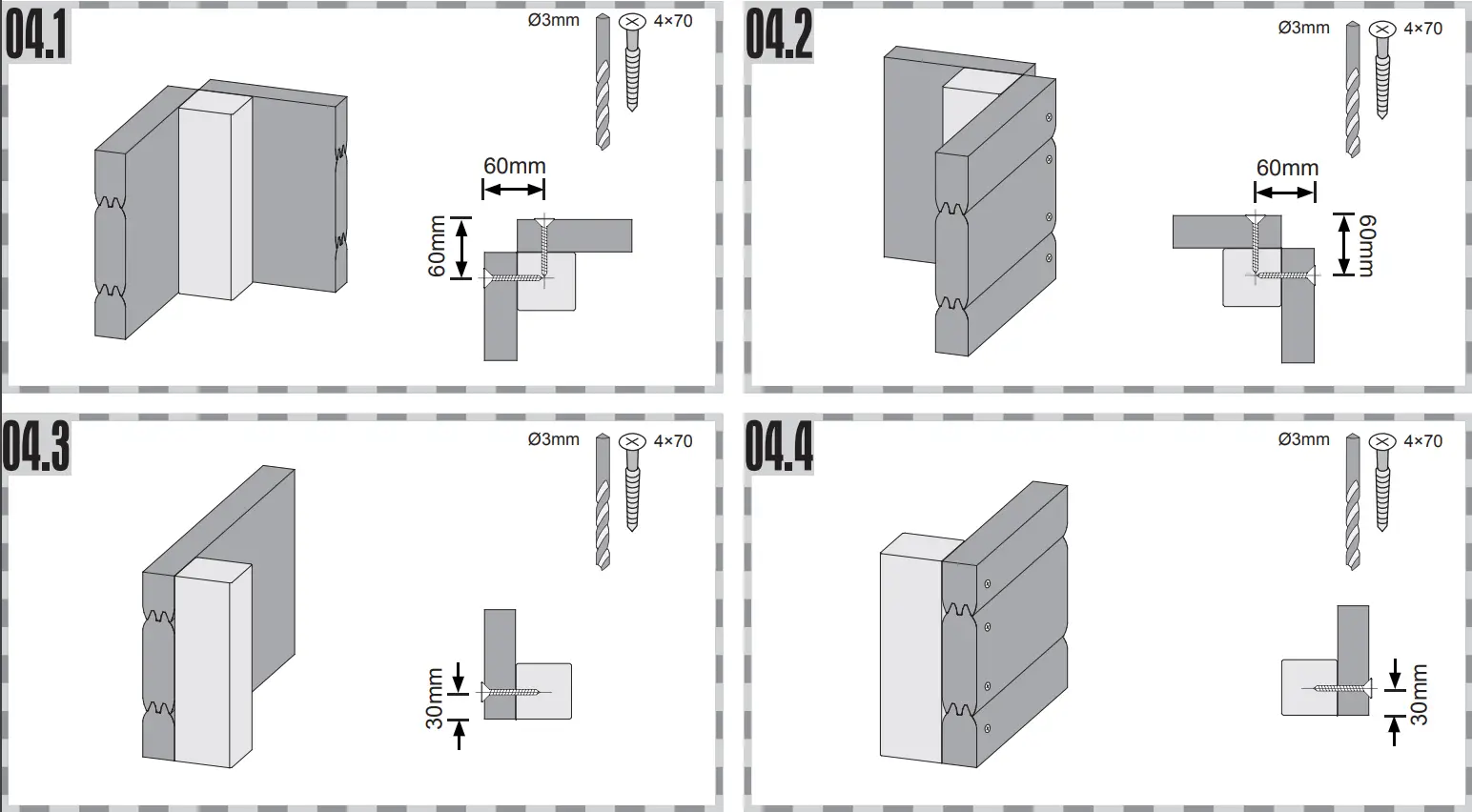

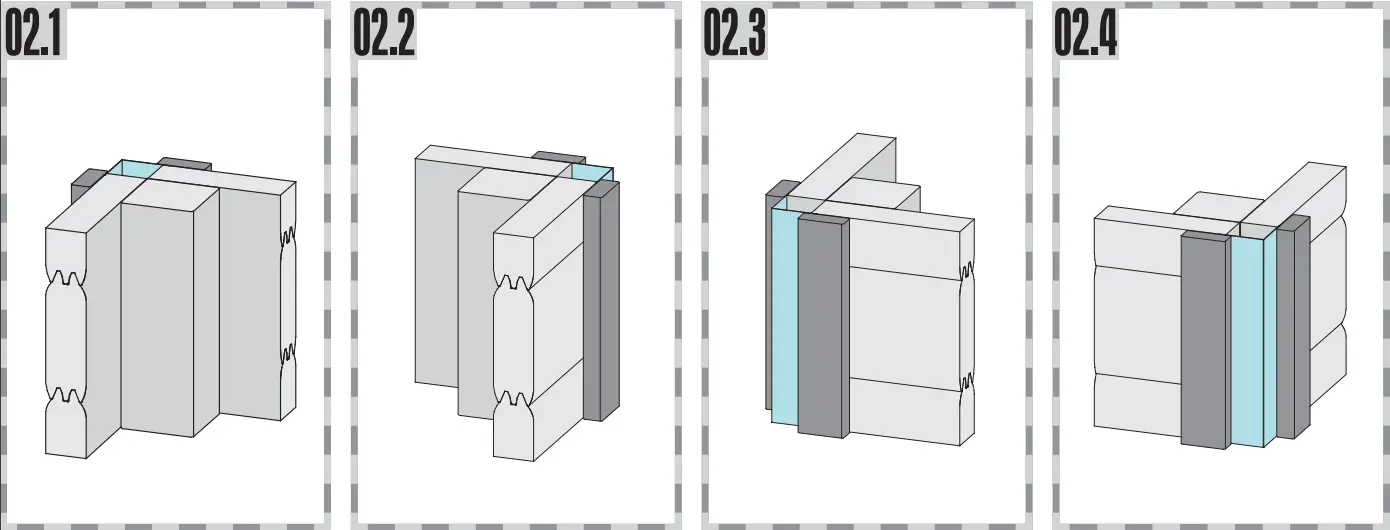

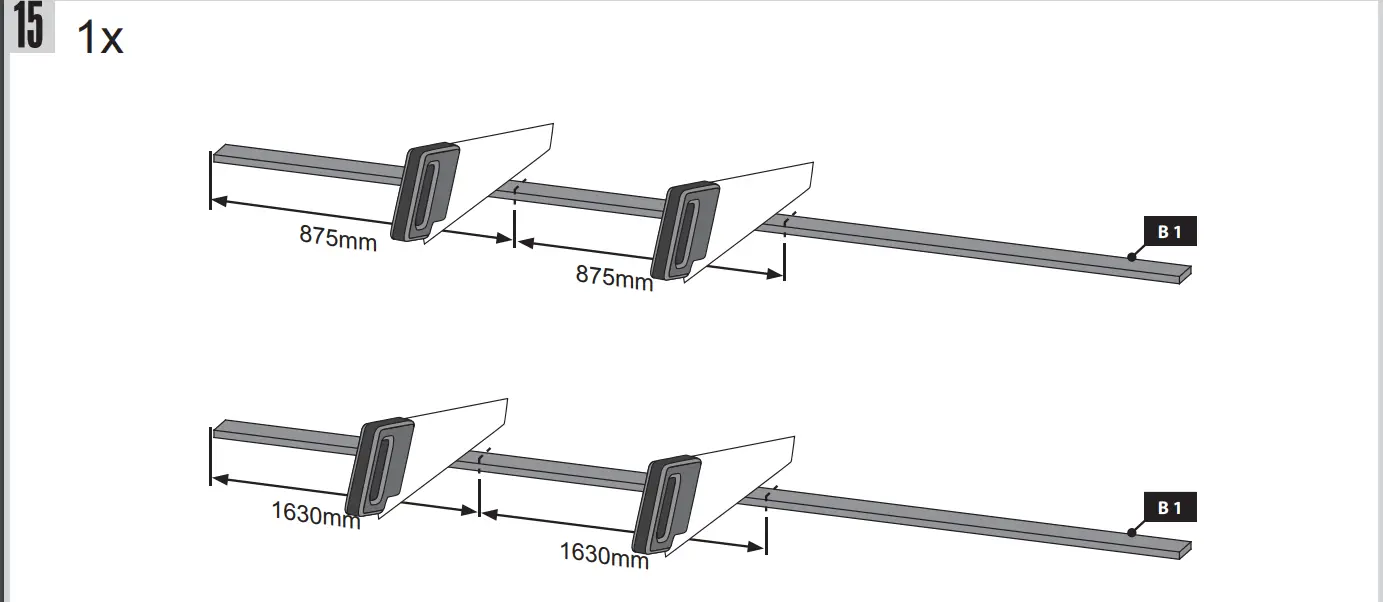

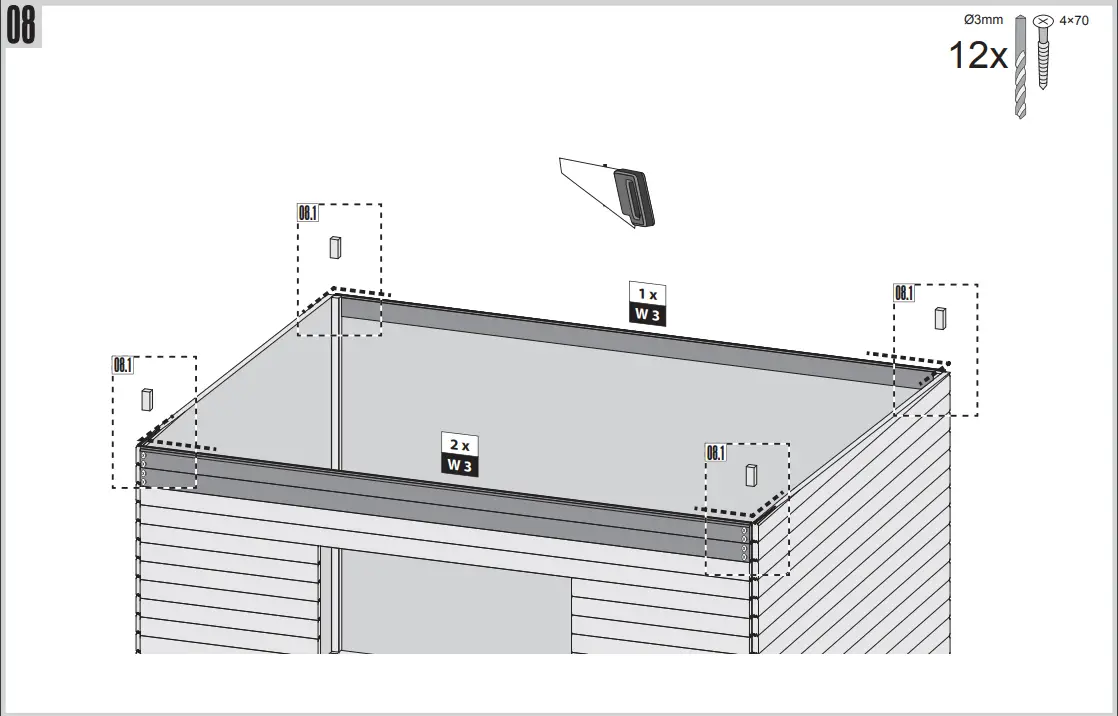

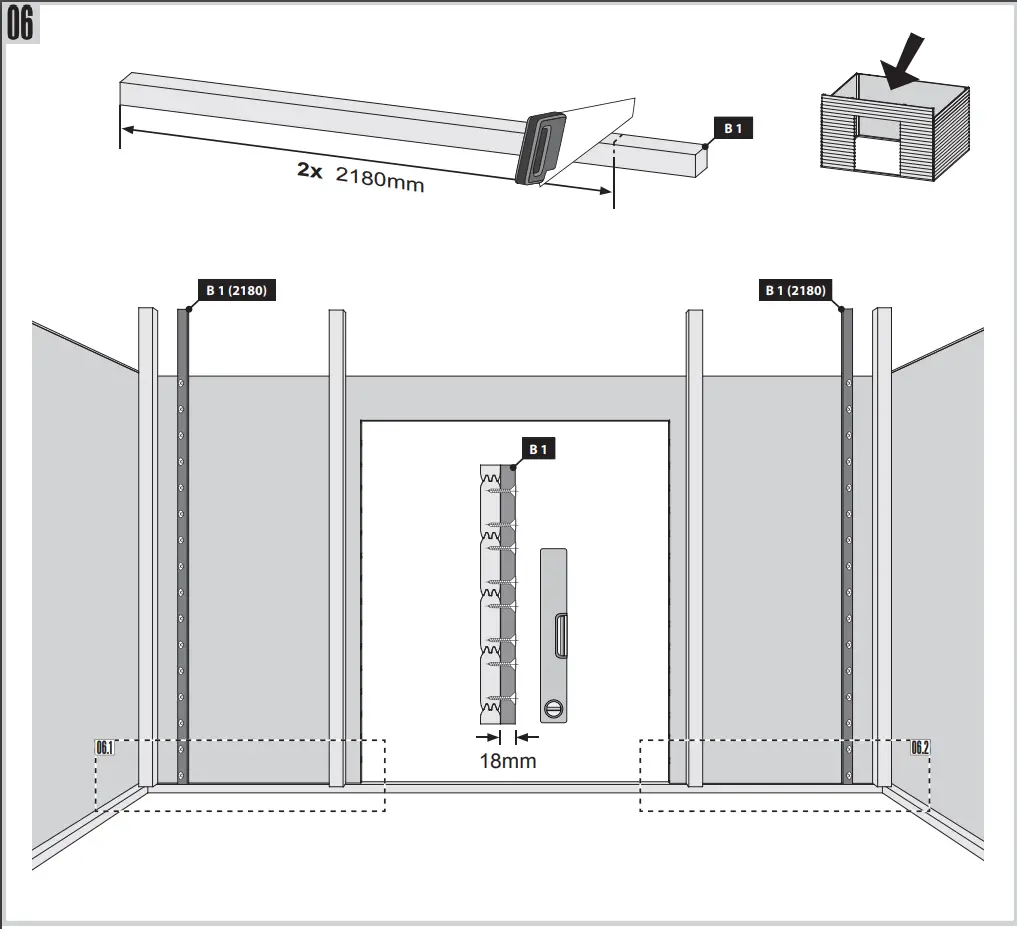

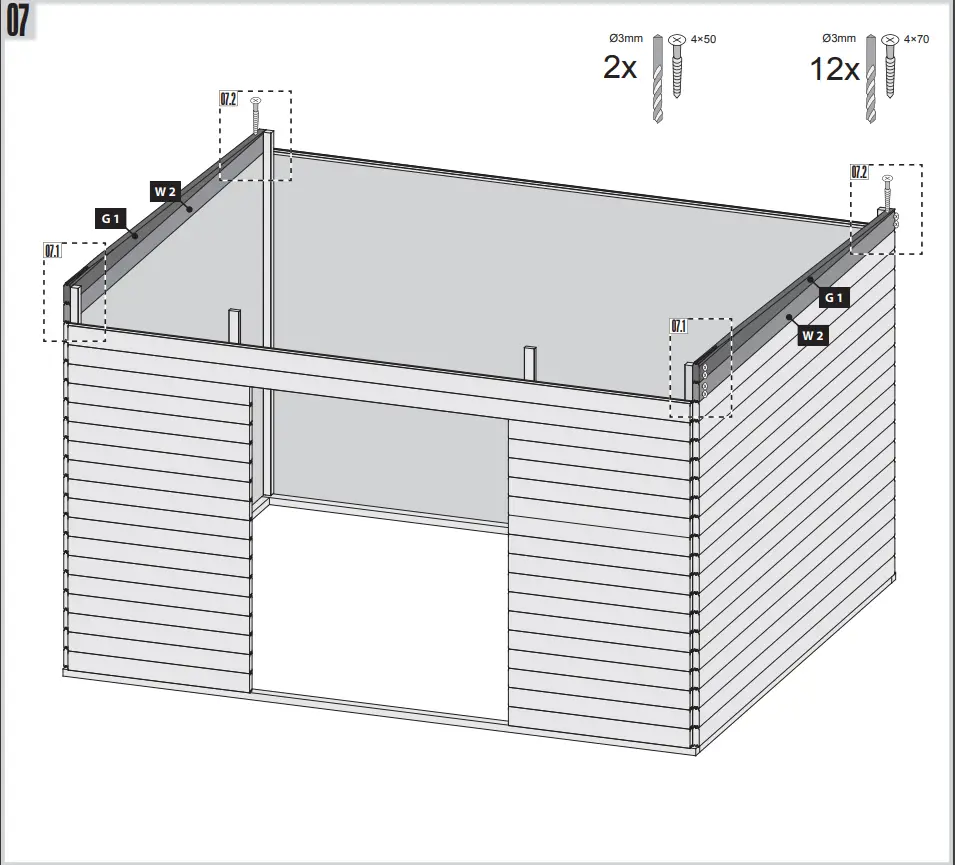

Building Instructions

Dear customer, pay attention to the correct design variant!

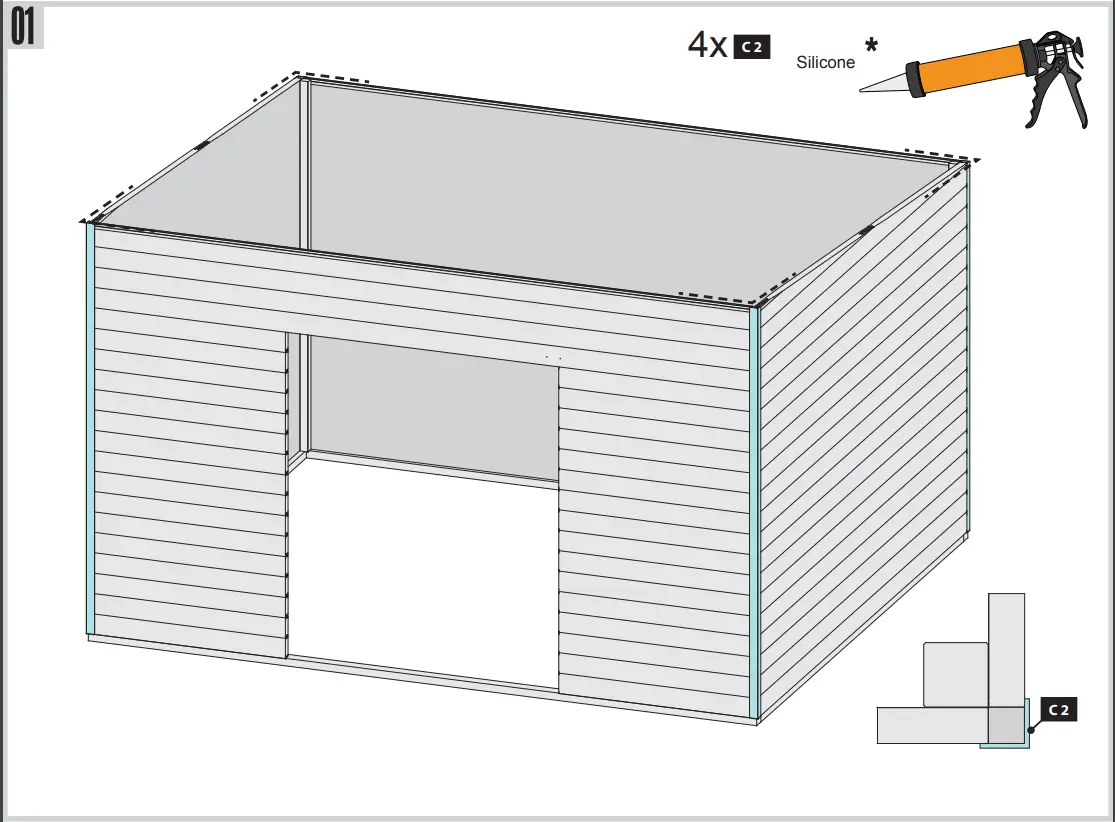

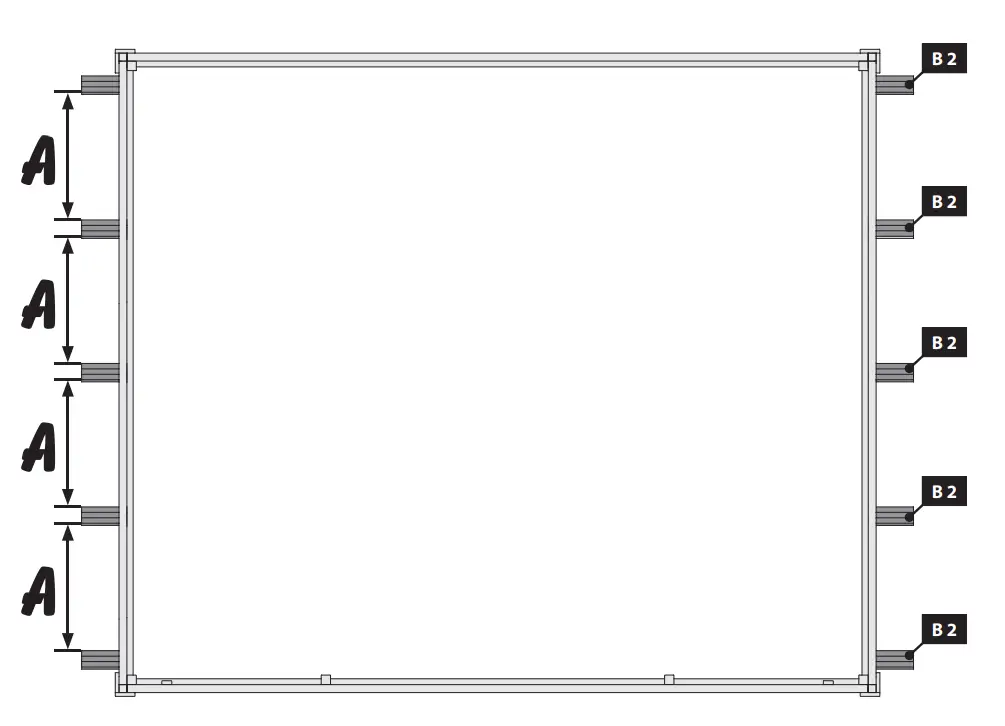

Top view

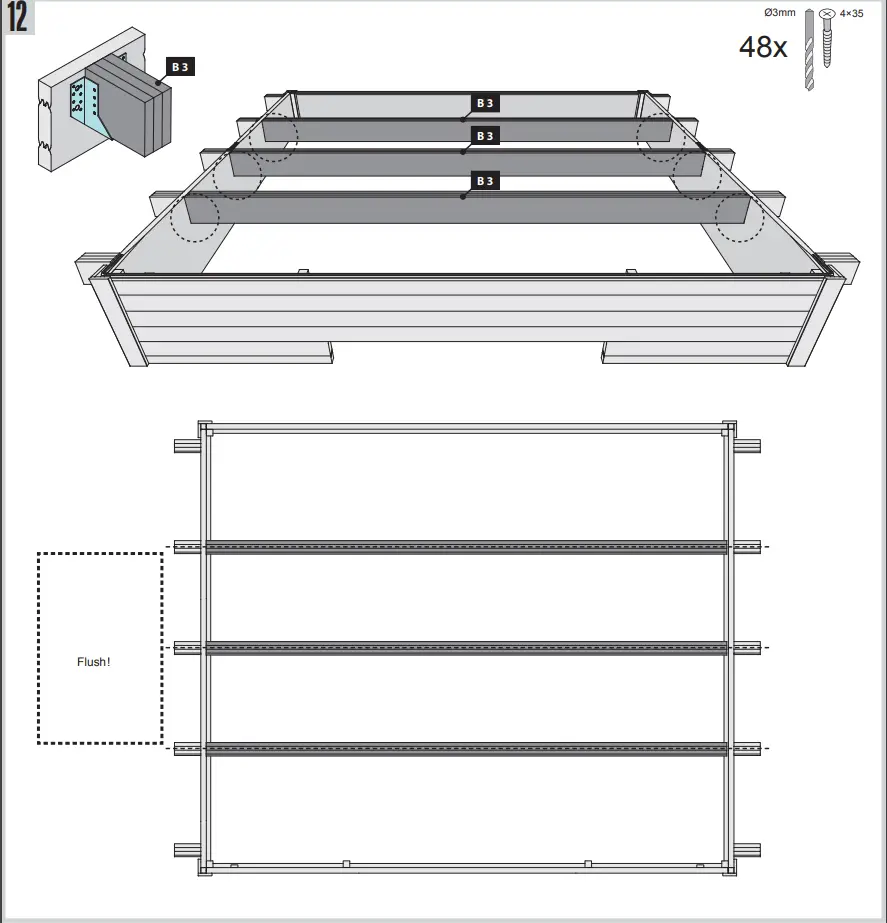

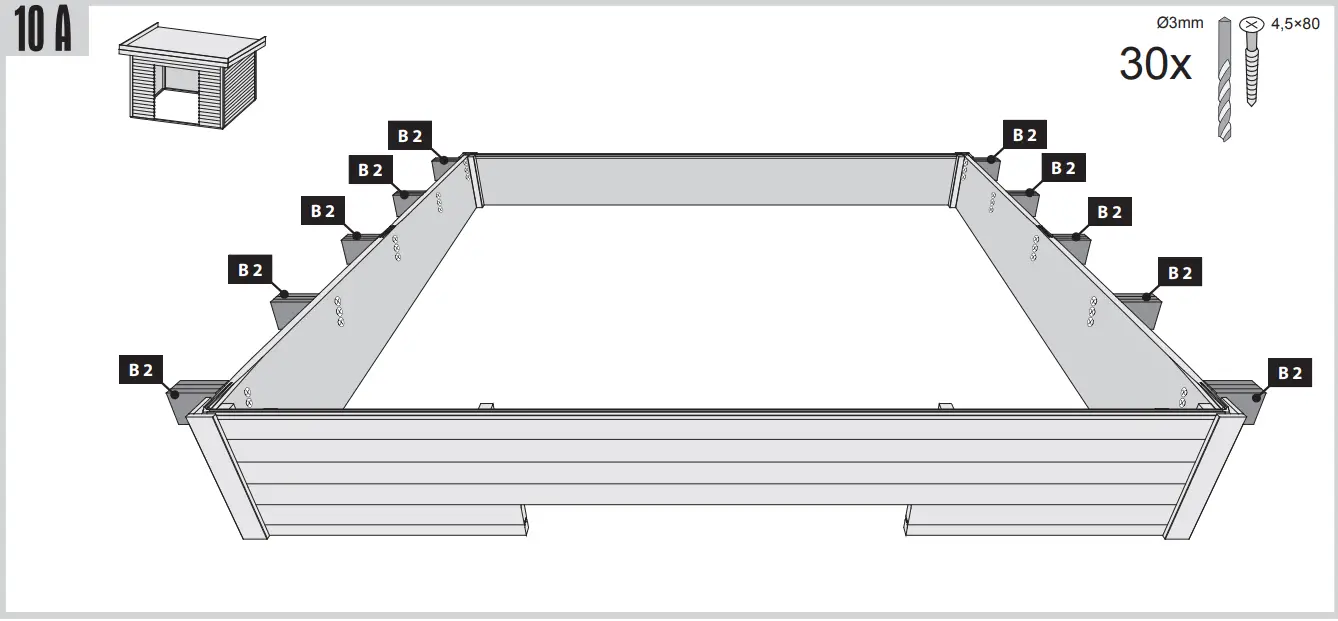

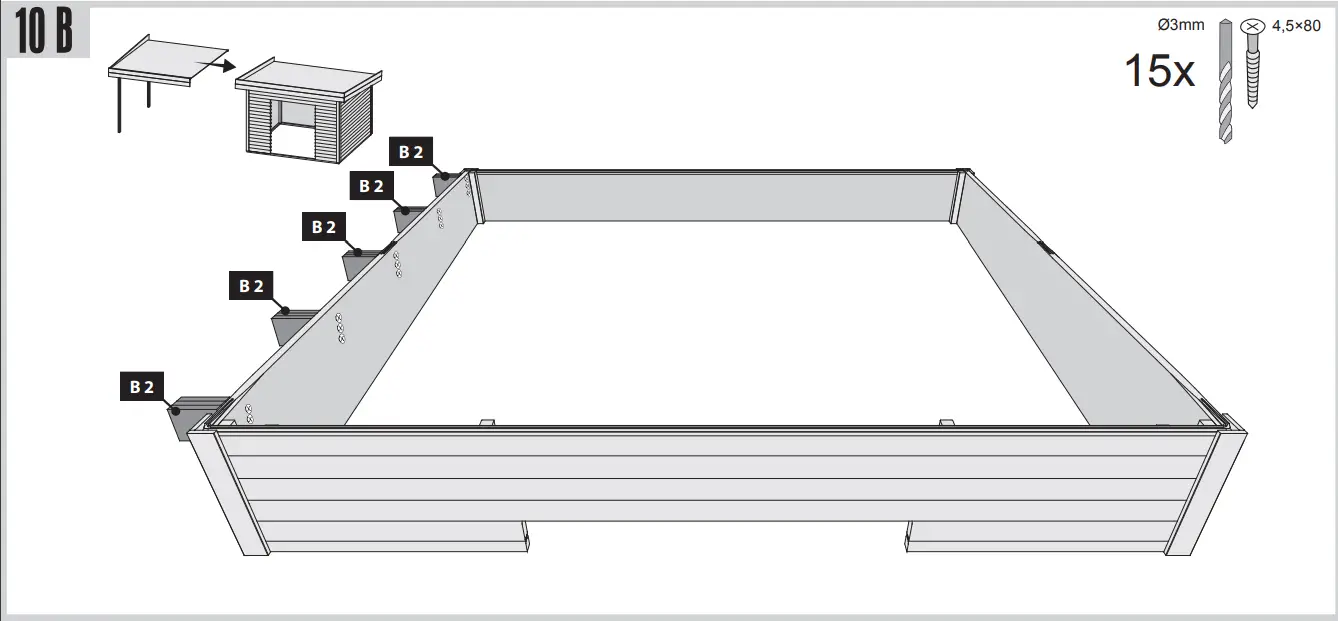

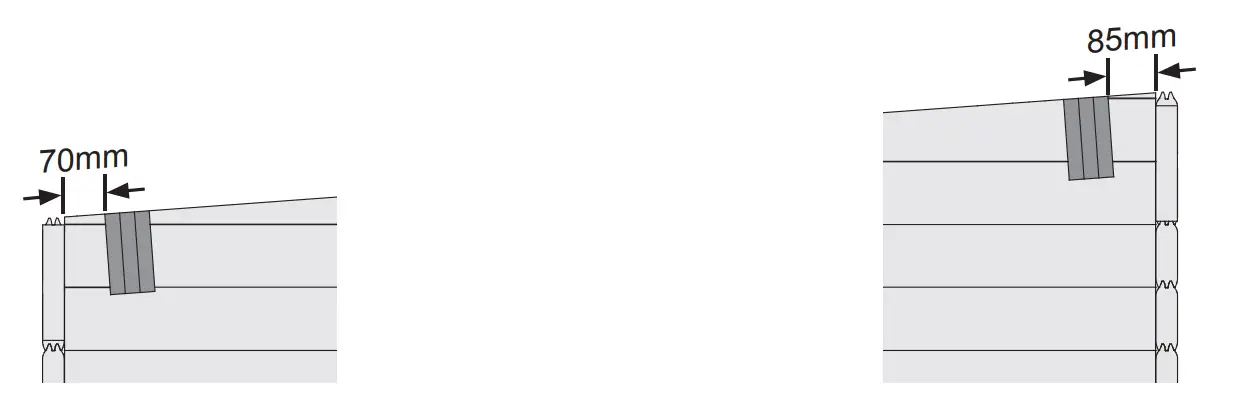

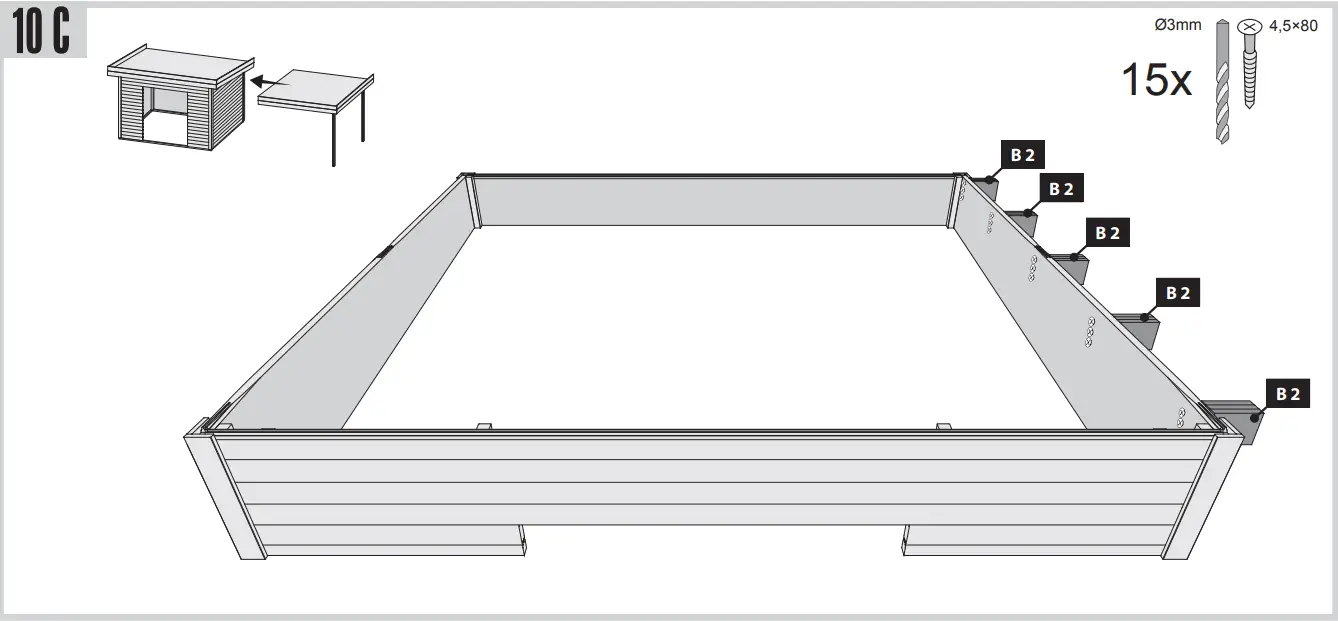

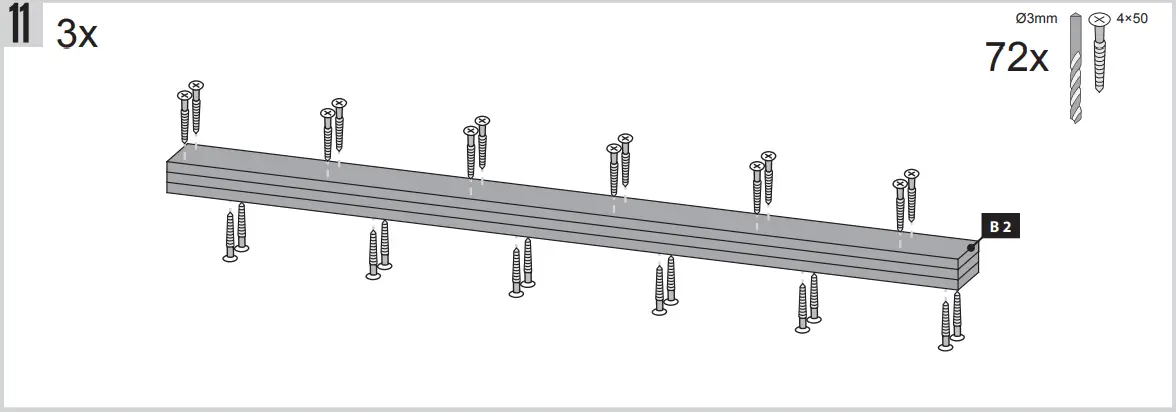

Side wall

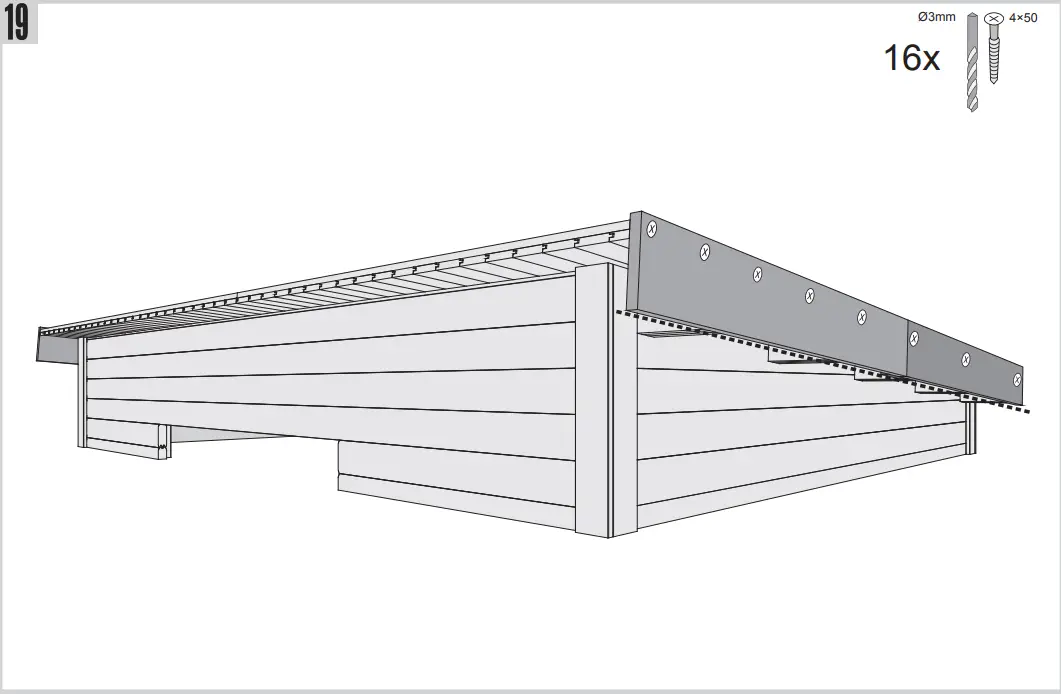

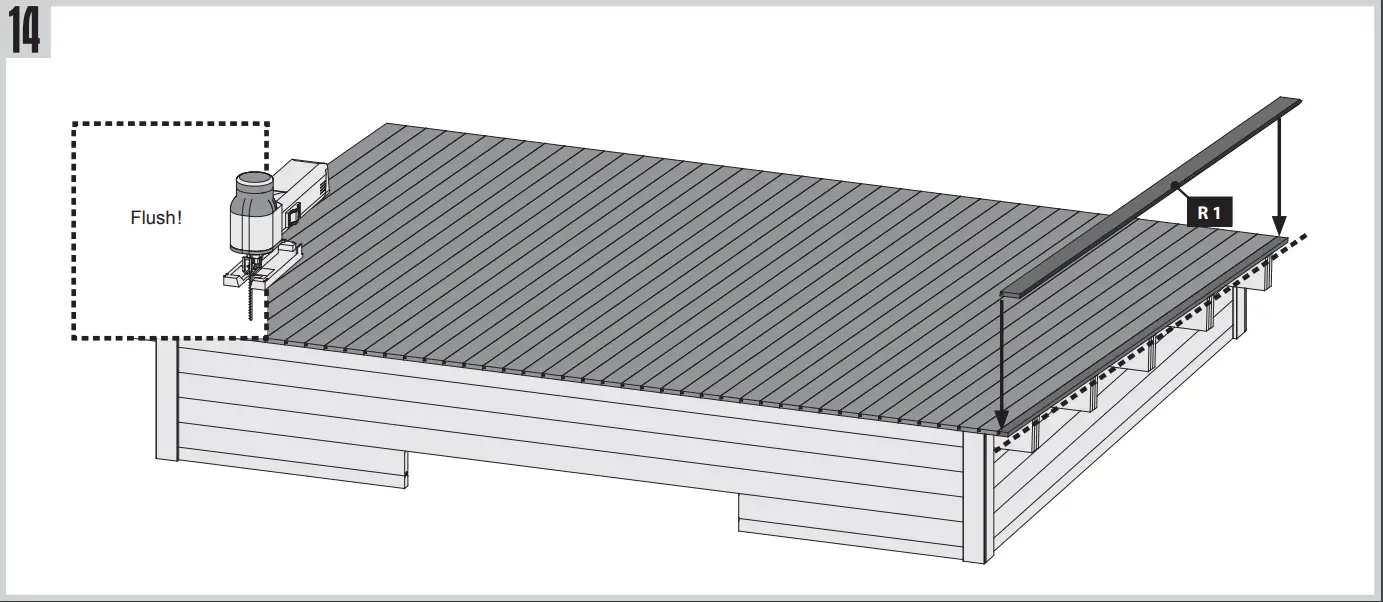

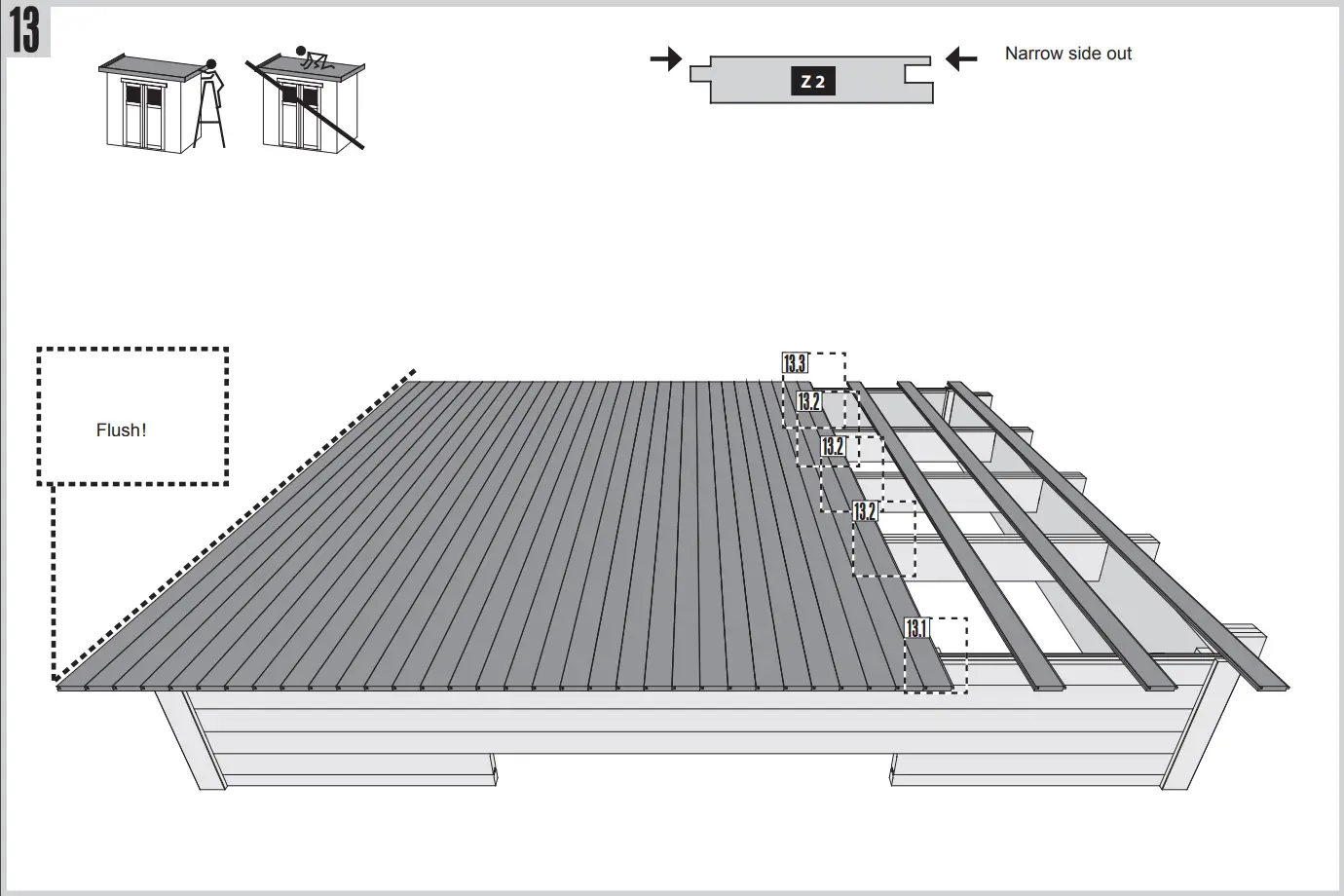

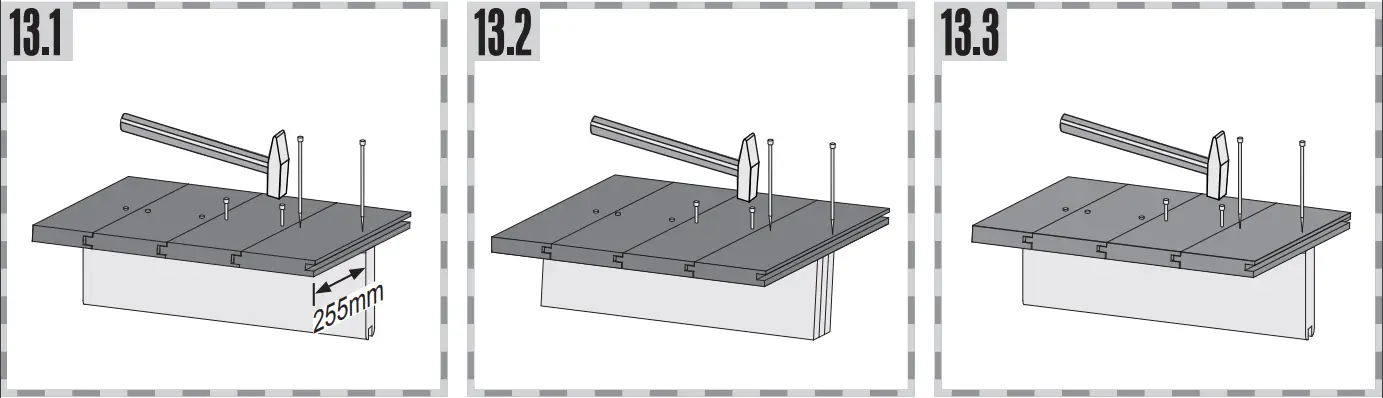

Narrow side out

Not included

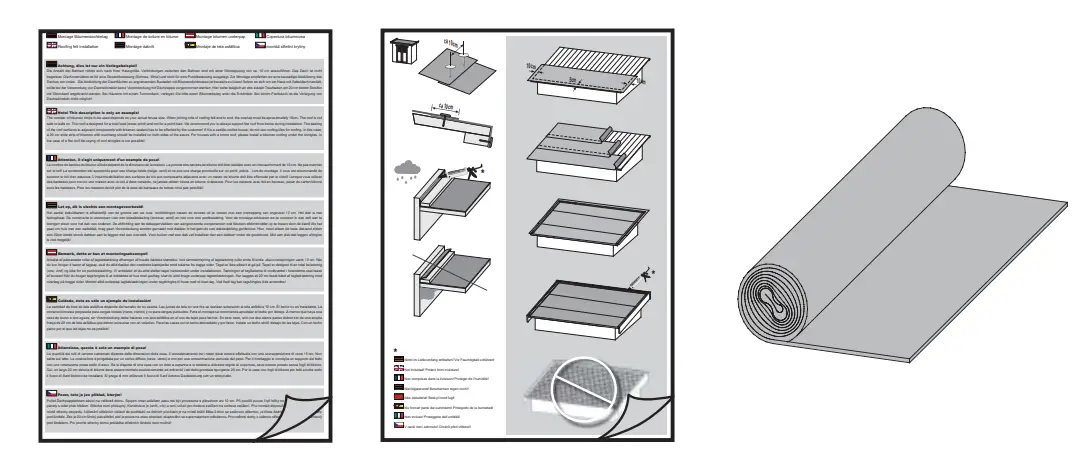

Roofing felt installation

Note! This description is only an example!

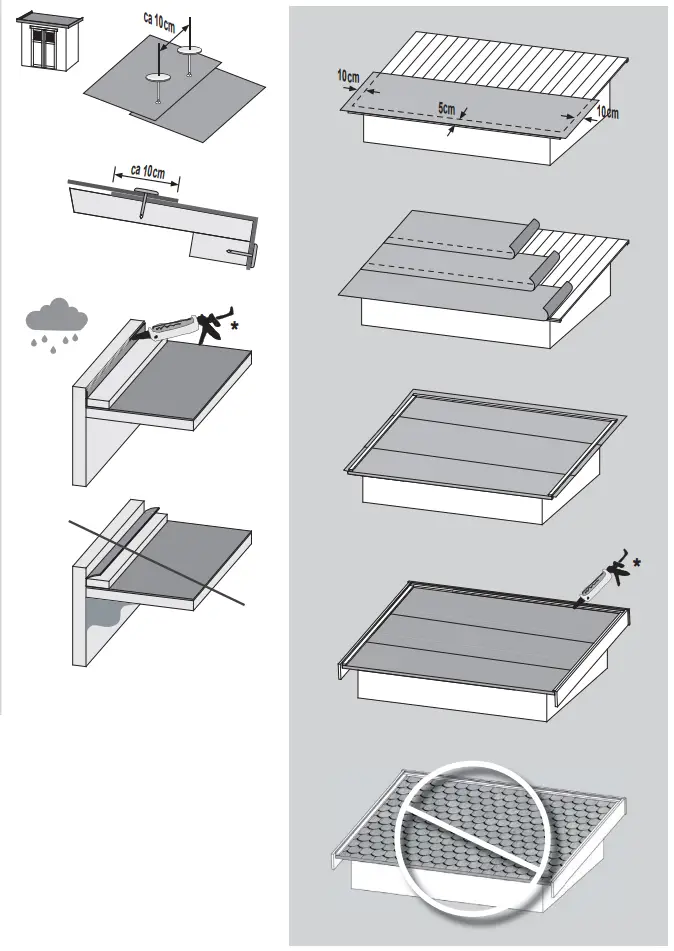

The number of bitumen strips to be used depends on your actual house size. When joining rolls of roofing felt end to end, the overlap must be approximately 10cm. The roof is not safe to walk on. The roof is designed for a total load (snow, wind) and not for a point load. We recommend you to always support the roof from below during installation. The sealing of the roof surfaces to adjacent components with bitumen sealant has to be effected by the customer! If it is a saddle-roofed house, do not use roofing tiles for roofing. In this case, a 20 cm wide strip of bitumen with overhang should be installed on both sides of the eaves. For houses with a tone roof, please install a bitumen roofing under the shingles. In the case of a flat roof the laying of roof shingles is not possible!

Not included! Protect from moisture!

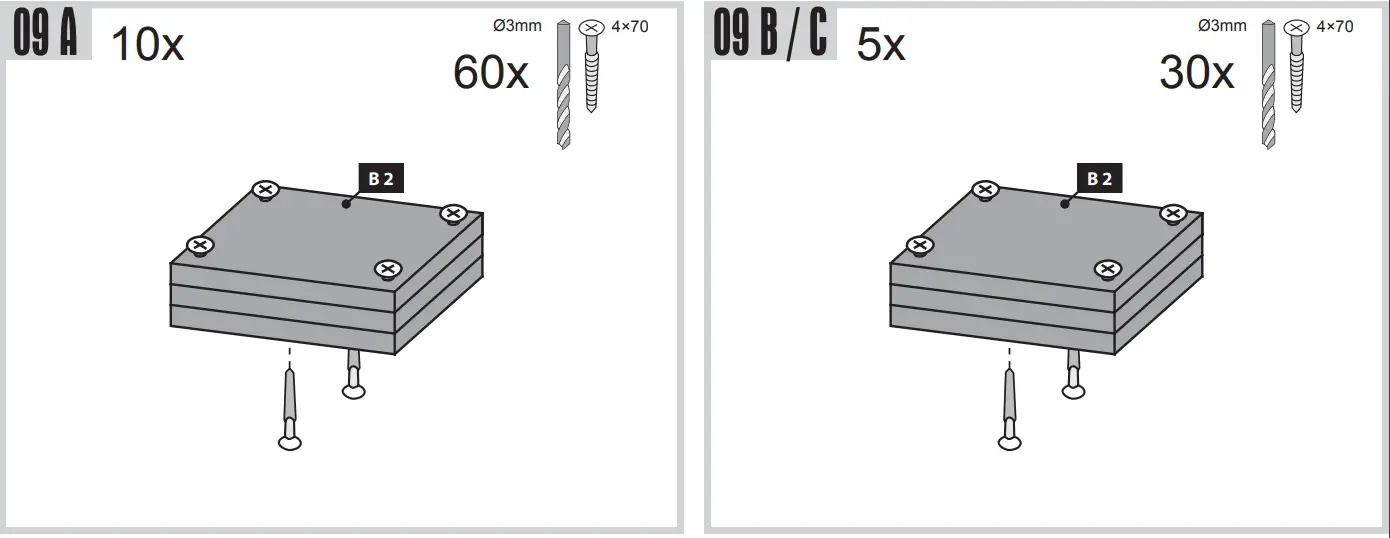

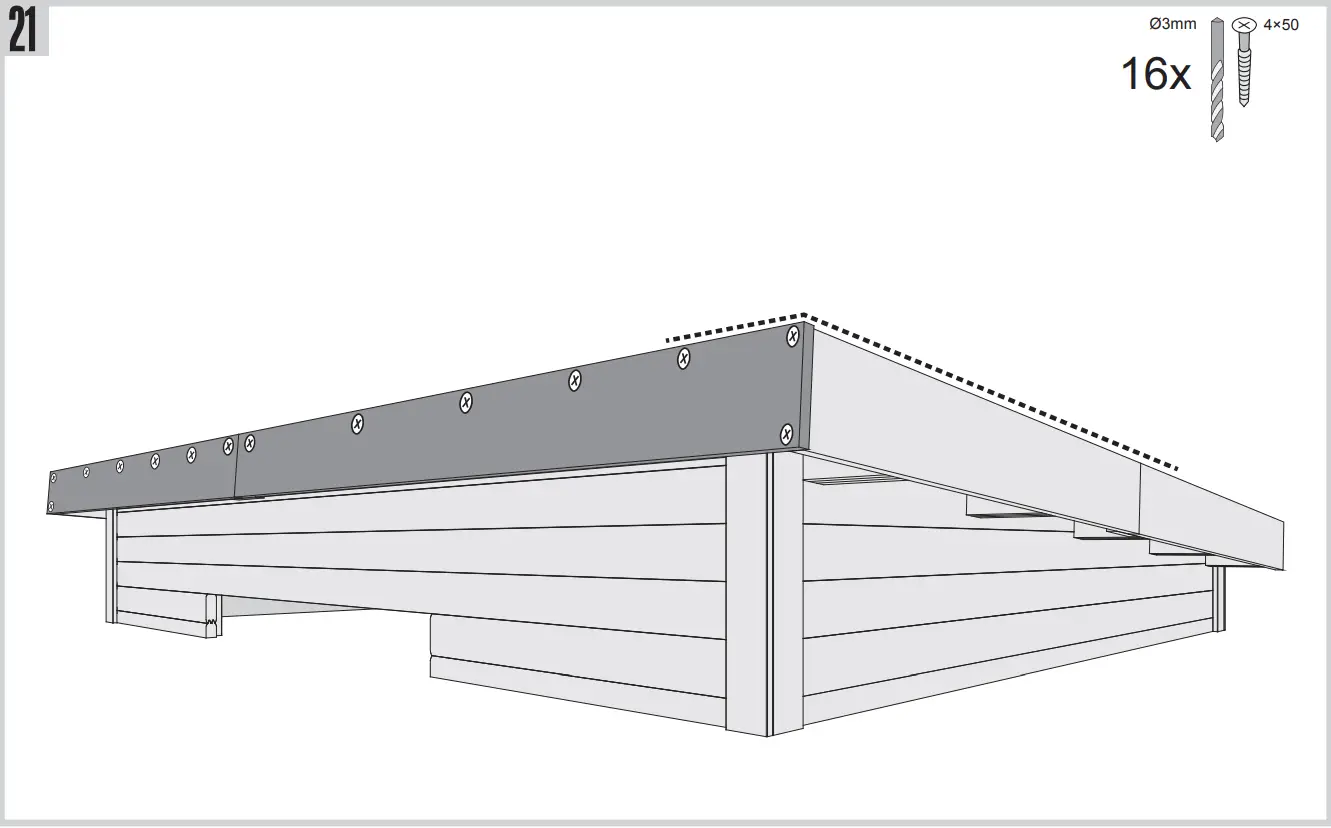

Building Instructions
