7798 Garden shed Karibu Tossens
3 297 x 297 cm grey
Instructions
7798 Garden shed Karibu Tossens 3 297 x 297 cm grey
7798 41531
https://www.karibu-farbenshop.de/
Building Instructions
+49 421 38693 33
First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only!
| 2 x Z1 | 2100 x 45 x 18 mm | ID 19547 |
| 2 x Z2 | 2100 x 95 x 18 mm | ID 11427 |
| 1 x Z3 | 1980 x 58 x 28 mm | ID 39800 |

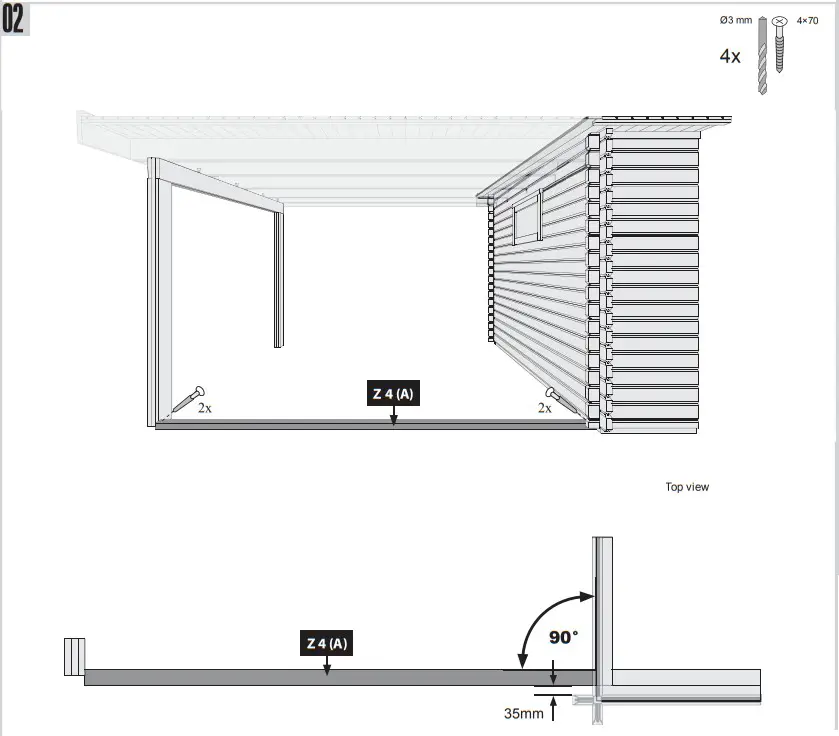

| 1 x Z4 | 3090 x 60 x 40 mm | ID 28694 |
 | ||
| 20x | 4x 25 mm | ID 5841 |
| 30 x | 4 x 30 mm | ID 3686 |
| 75 x | 4 x 50 mm | ID 3688 |
| 4 x | 4 x 70 mm | ID 3689 |
 | ||
| 4 x | 4,5 x 25 mm | ID 71185 |
 | ||

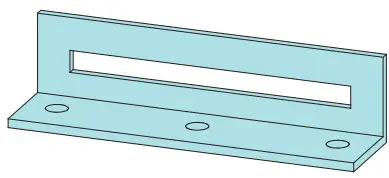

| 4 x | 80 x 20 x 20 mm | ID 71184 |

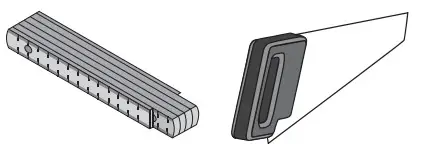

* Not included

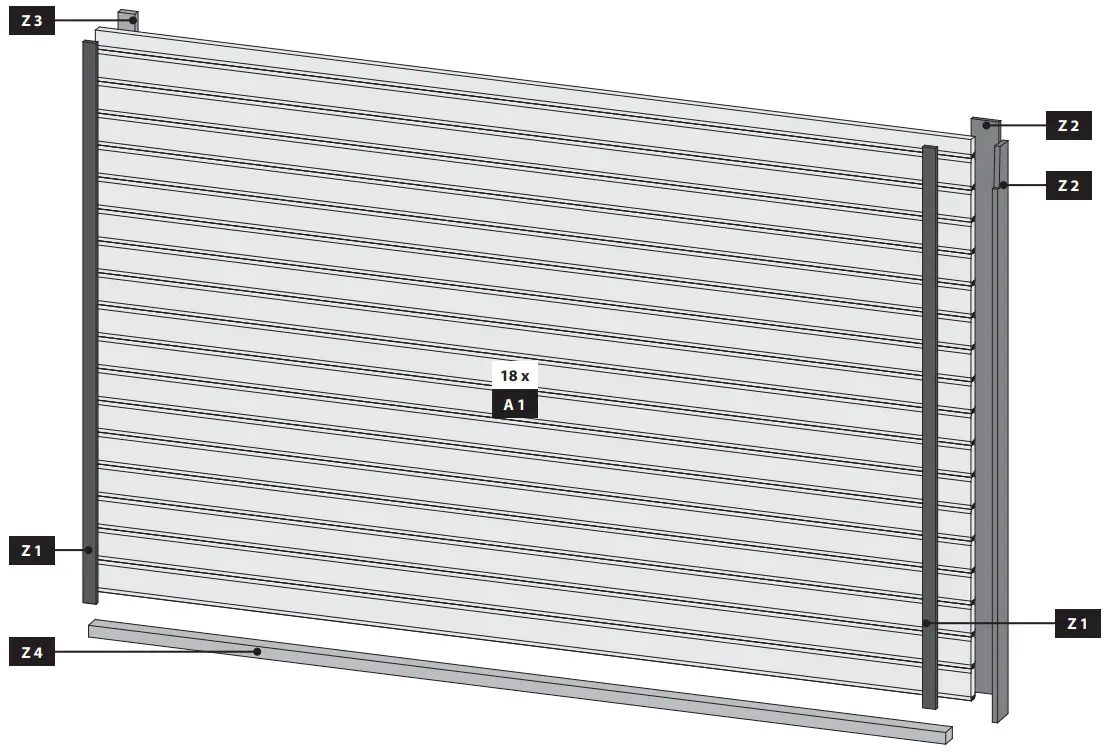

Overview

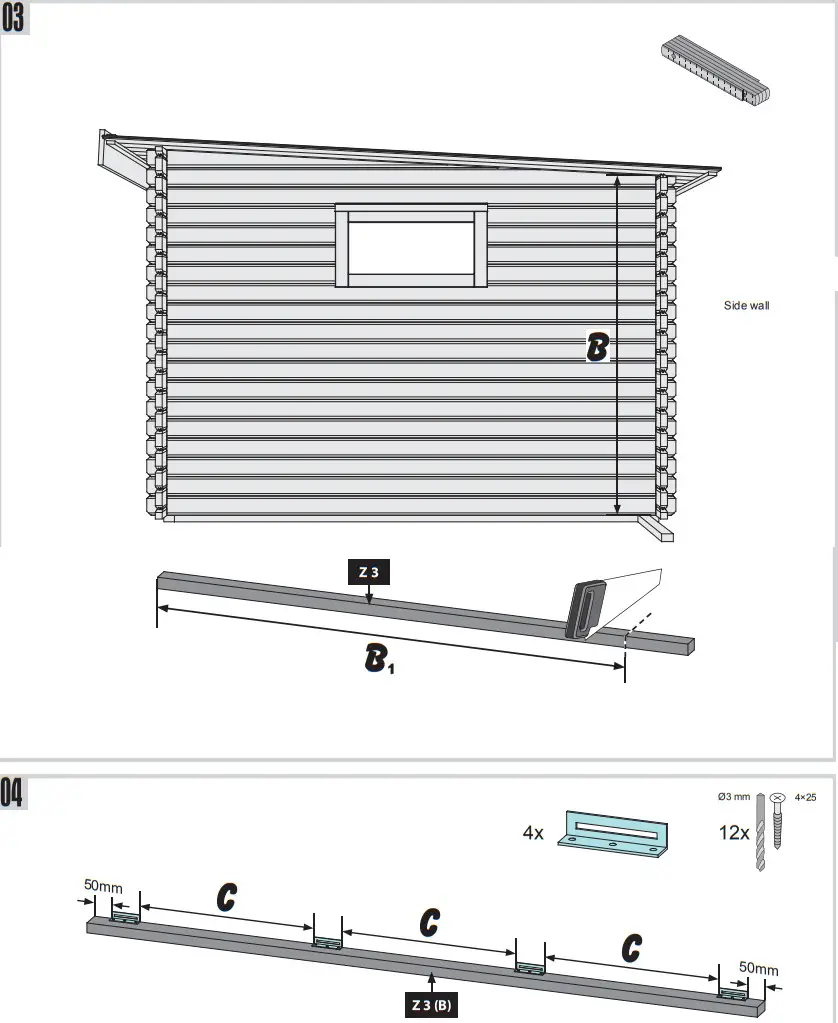

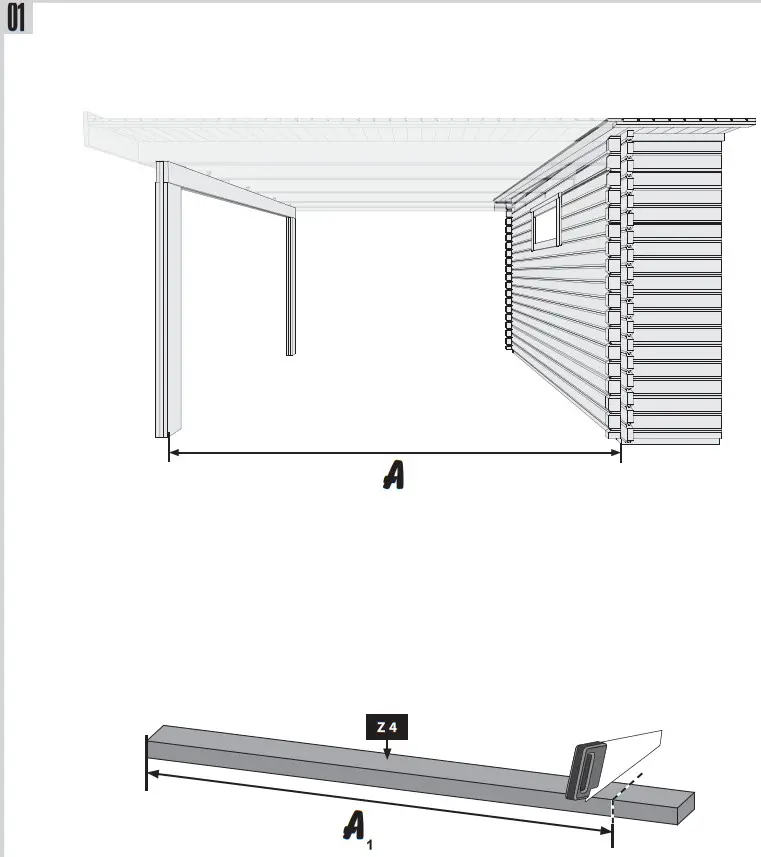

1. Length must be determined and sawn
