38369 Garden shed Tossens 5 387 x 297 cm
Building Instructions
38369 Garden shed Tossens 5 387 x 297 cm
Not included
- Length must be determined and sawn
- With accessories
- Fixed temporarily
- Inventory of the house

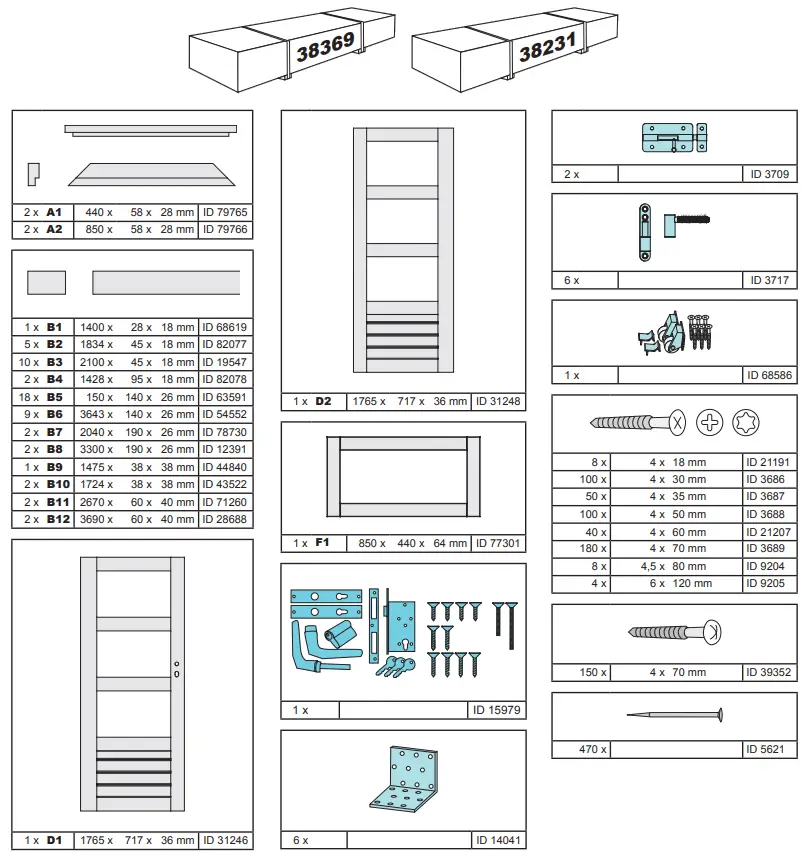

First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only!

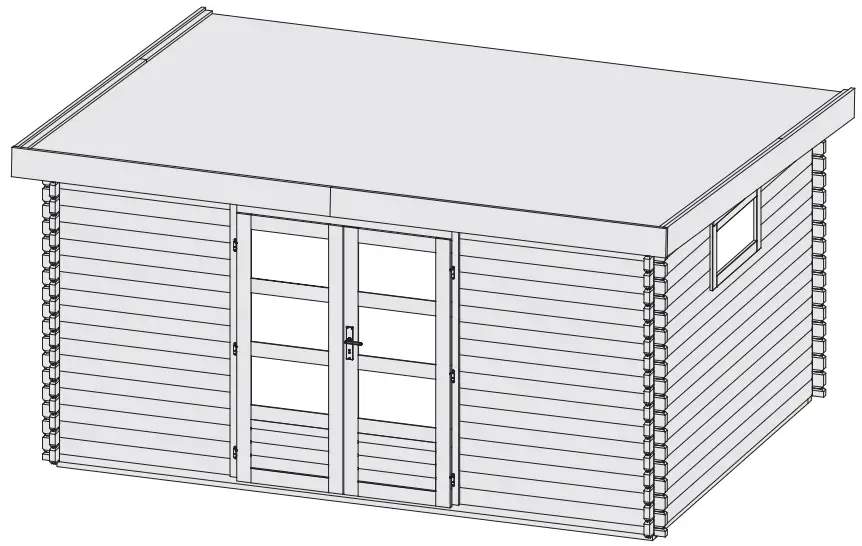

Overview
Cut-outs for screw connections
Cut-outs for screw connections

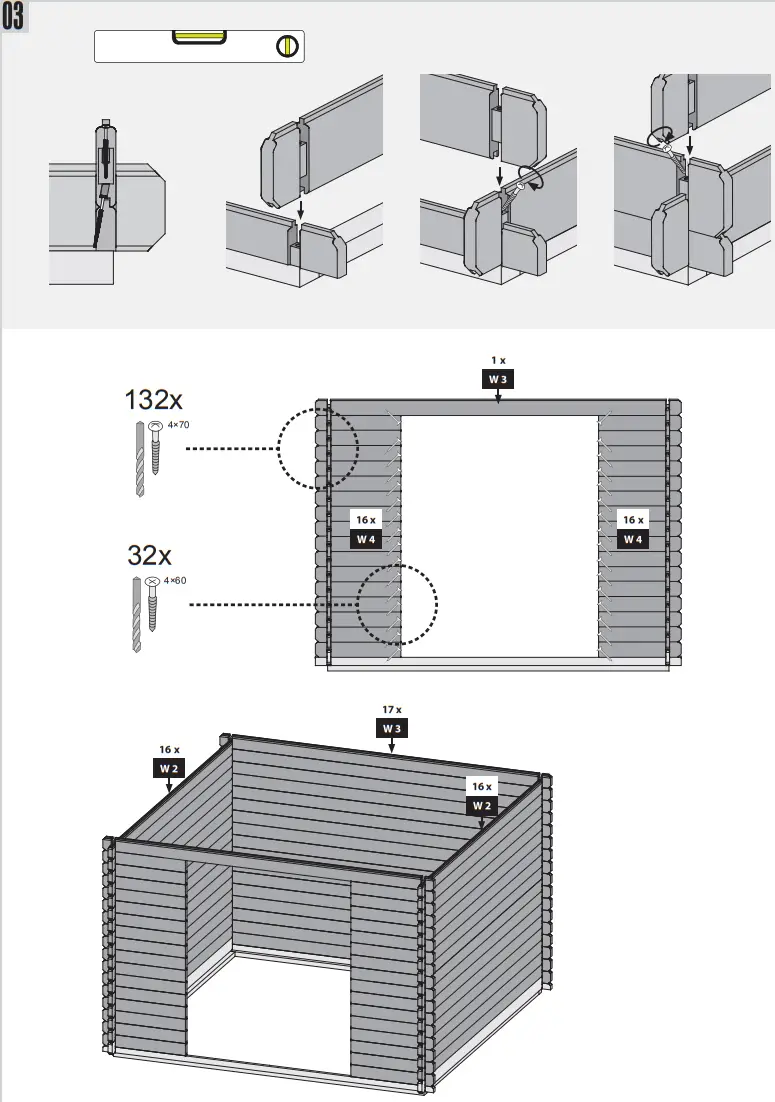

Wood is subject to a natural process of swelling and contraction. For this reason, over the course of the year your house “grows” and “shrinks”. Shorter wooden boards (front) adapt faster than long boards to the momentary climatic conditions. This can result in cracking. In order to reduce this cracking and at the same time allow for the natural growth and shrinkage behaviour of the wood, at the window and door recesses you must join each two boards positioned directly over each other. For this purpose, use 4 x 60 Spax joints. Always pre-drill the boards for screw can drill obliquely into the wood without slipping connections. Note: You away by setting on the drill vertically for the first 3-5 mm and only then drilling obliquely.

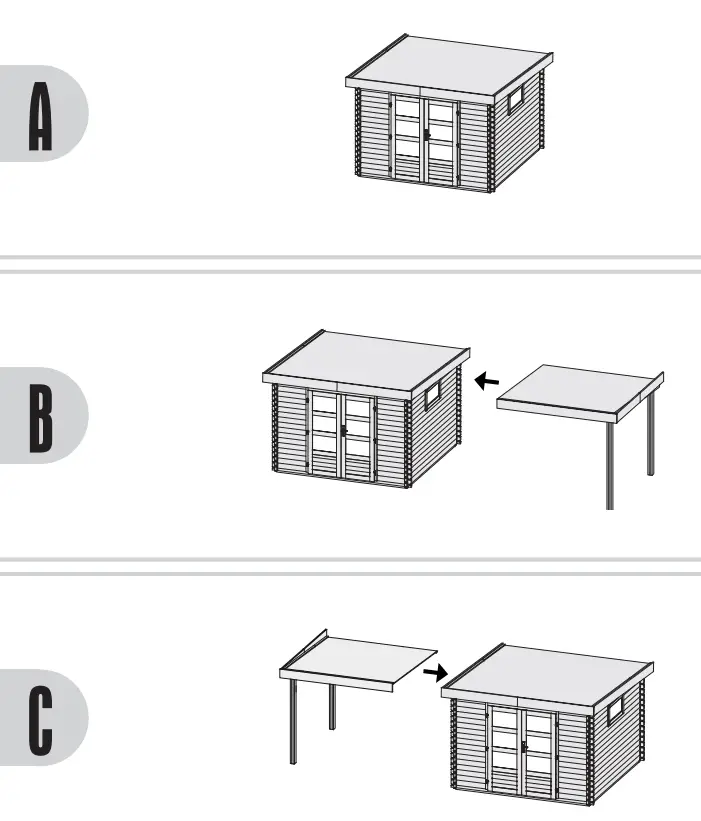

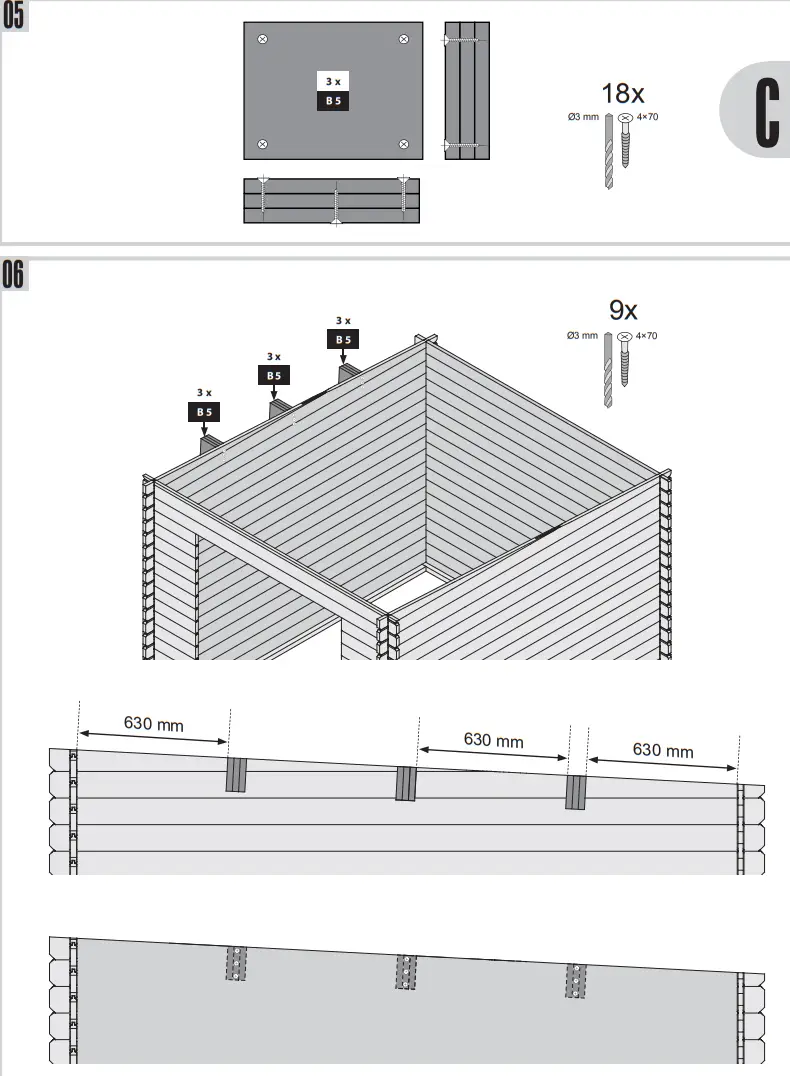

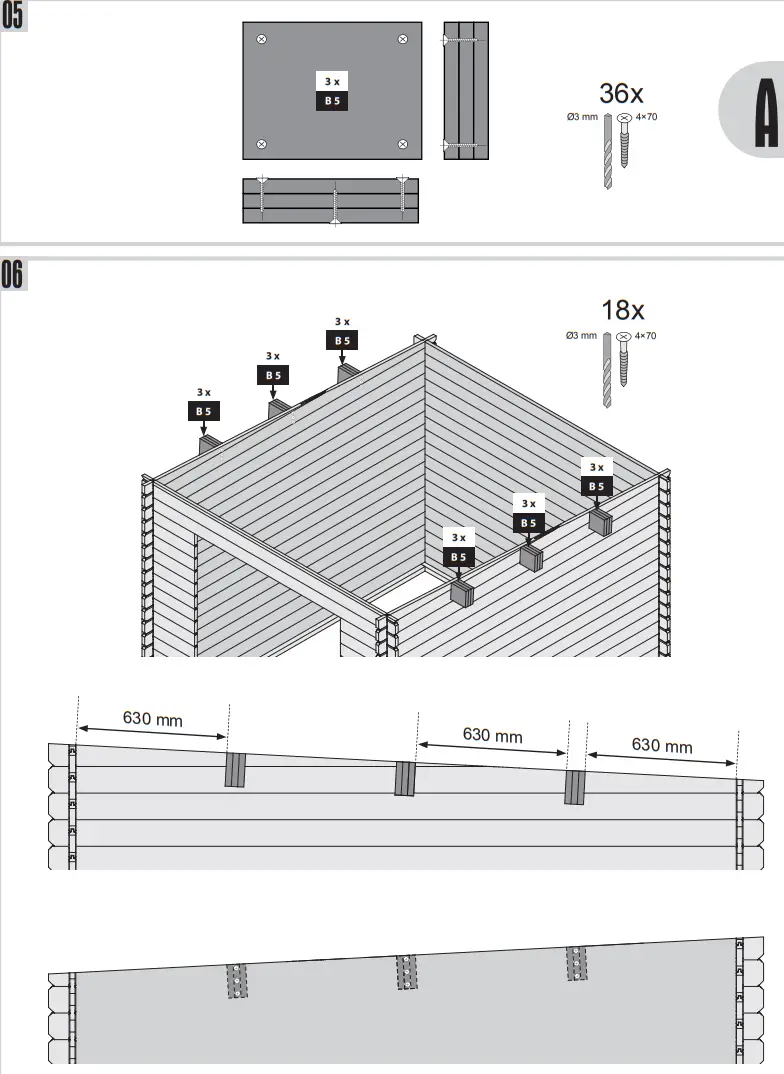

Dear customer, pay attention to the correct design variant!

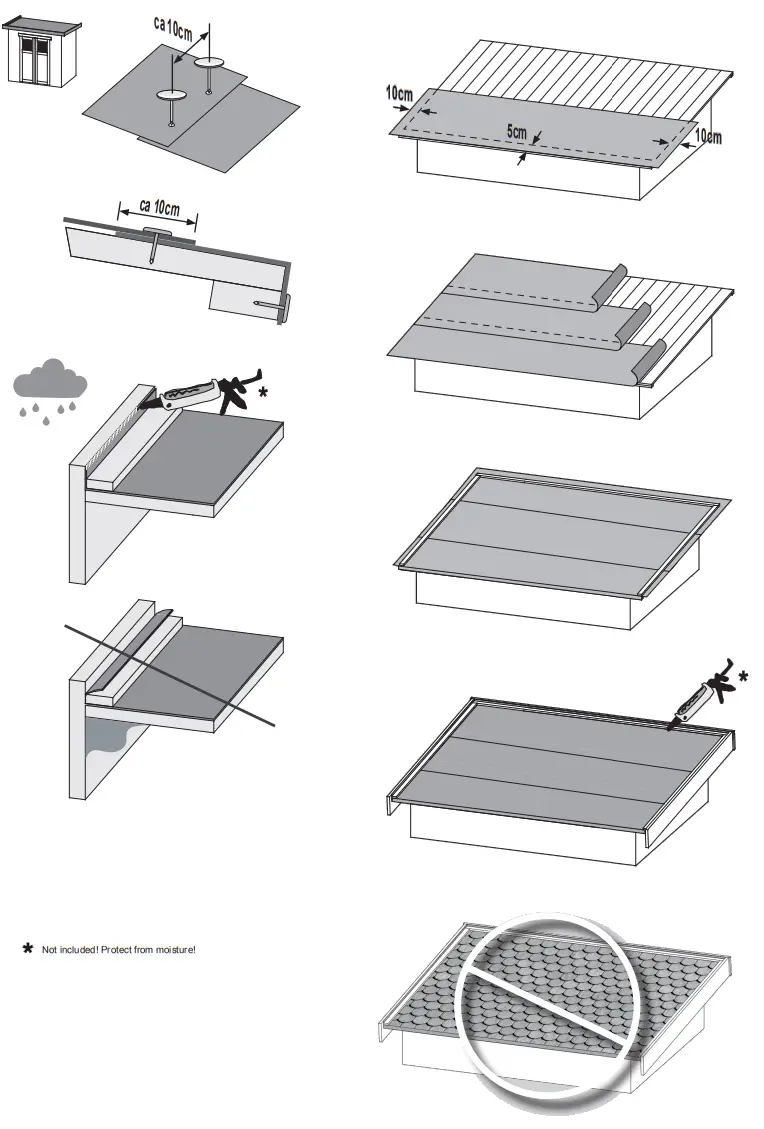

Roofing felt installation
Note! This description is only an example!
The bitumen roofing is used for initial cover and should be supplemented by a separate product according to customers choice after two months. The number of bitumen strips to be used depends on your actual house size. When joining rolls of roofing felt end to end, the overlap must be aproxximately 10cm. The roof is not safe to walk on. The roof is designed for a total load (snow, wind) and not for a point load. We recommend you to always support the roof from below during installation. The sealing of the roof surfaces to adjacent components with bitumen sealant has to be effected by the customer! If it is a saddle-roofed house, do not use roofing tiles for roofing. In this case, a 20 cm wide strip of bitumen with overhang should be installed on both sides of the eaves. For houses with a tonne roof, please install a bitumen roofing under the shingles. In the case of a flat roof the laying of roof shingles is not possible!
Building Instructions

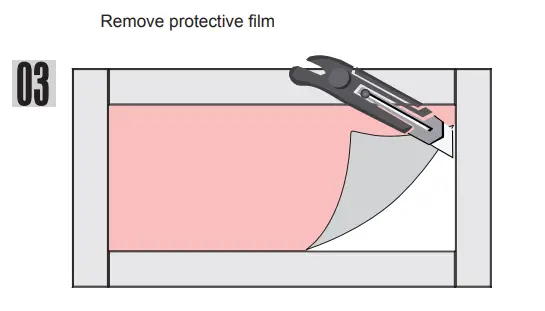

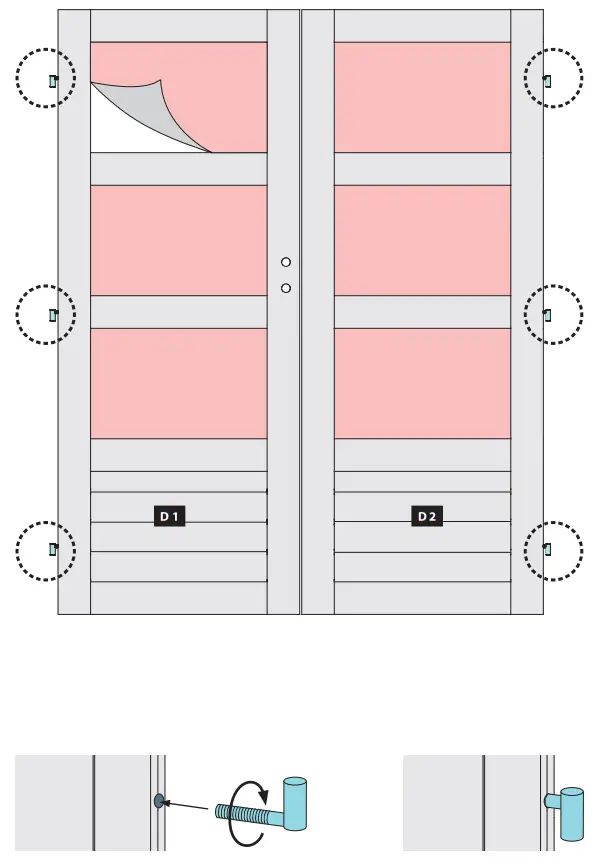

Remove protective film

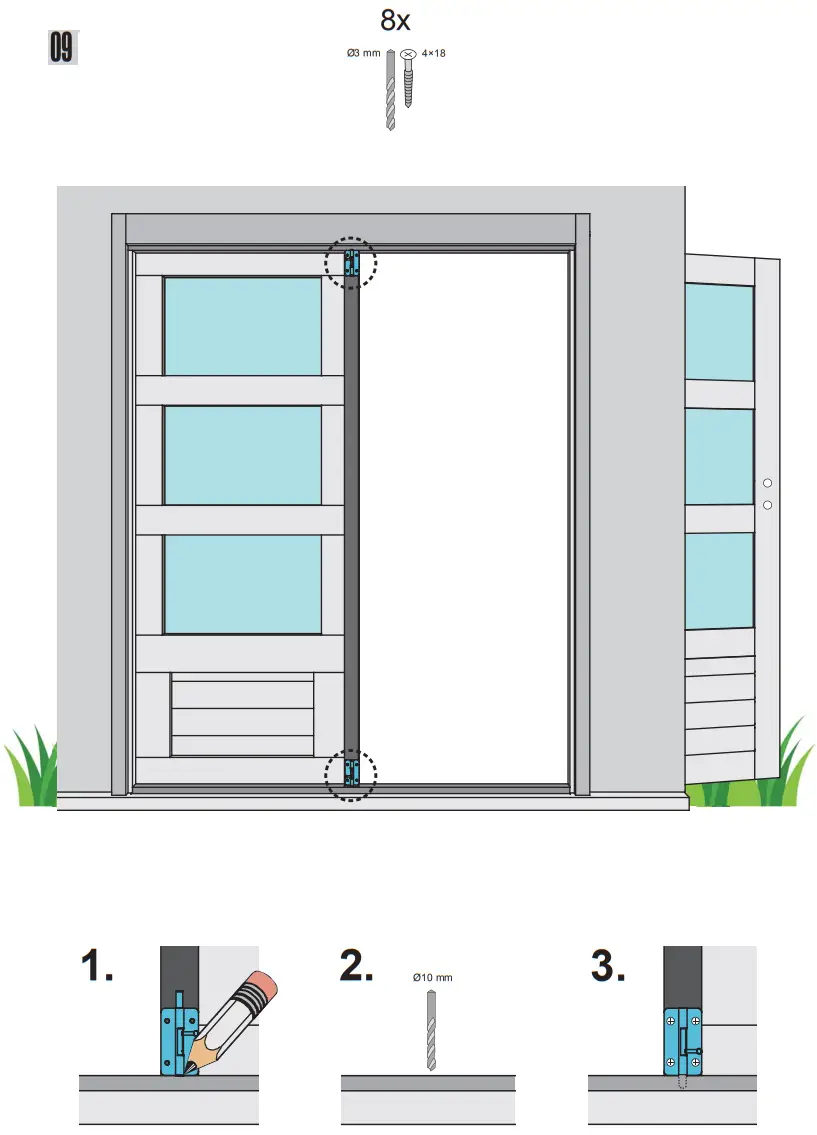

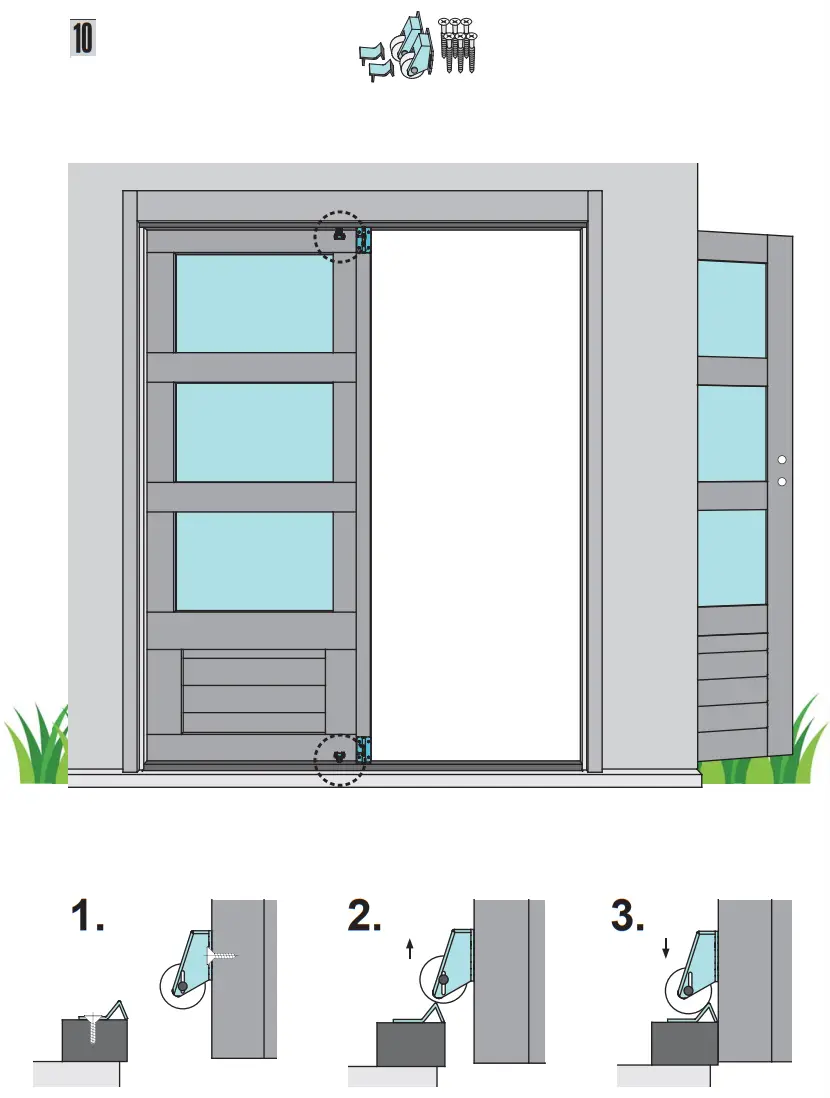

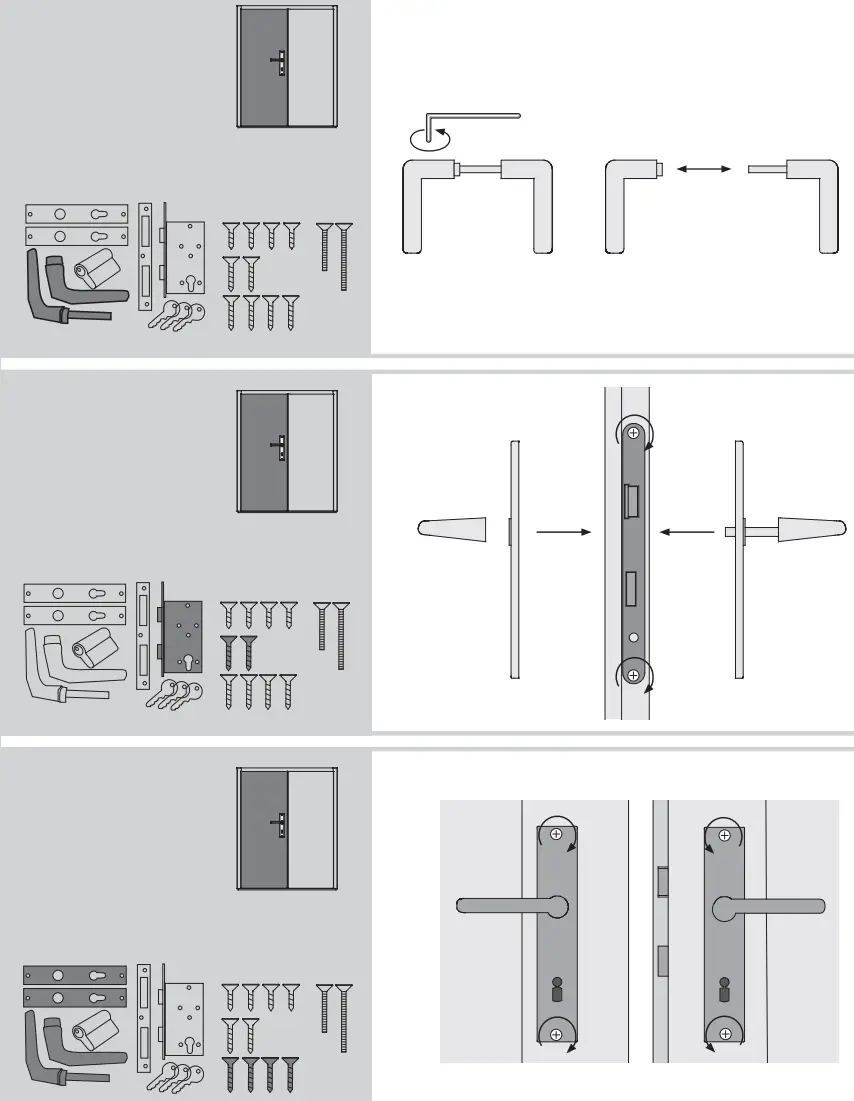

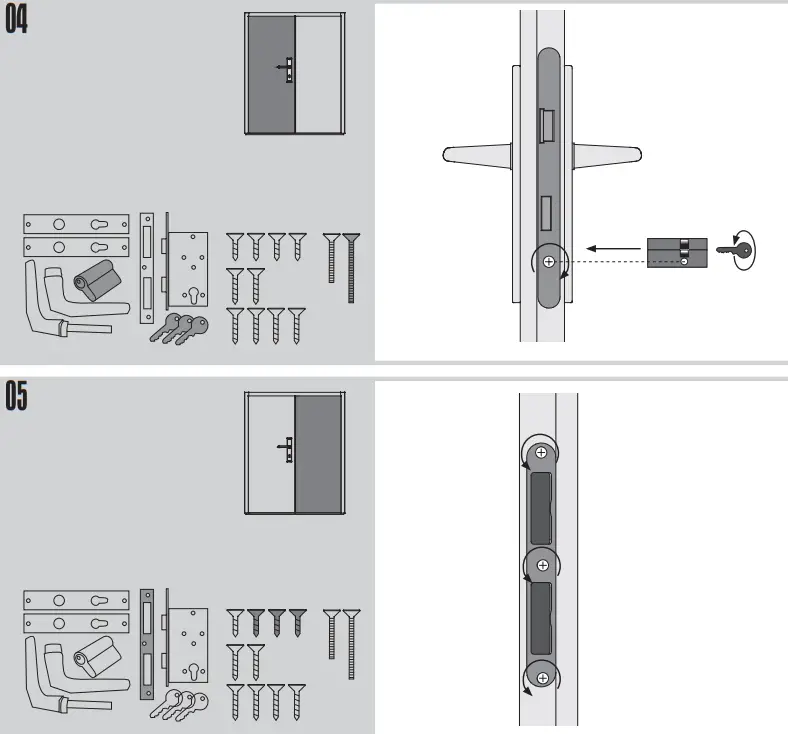

Locks
Building Instructions

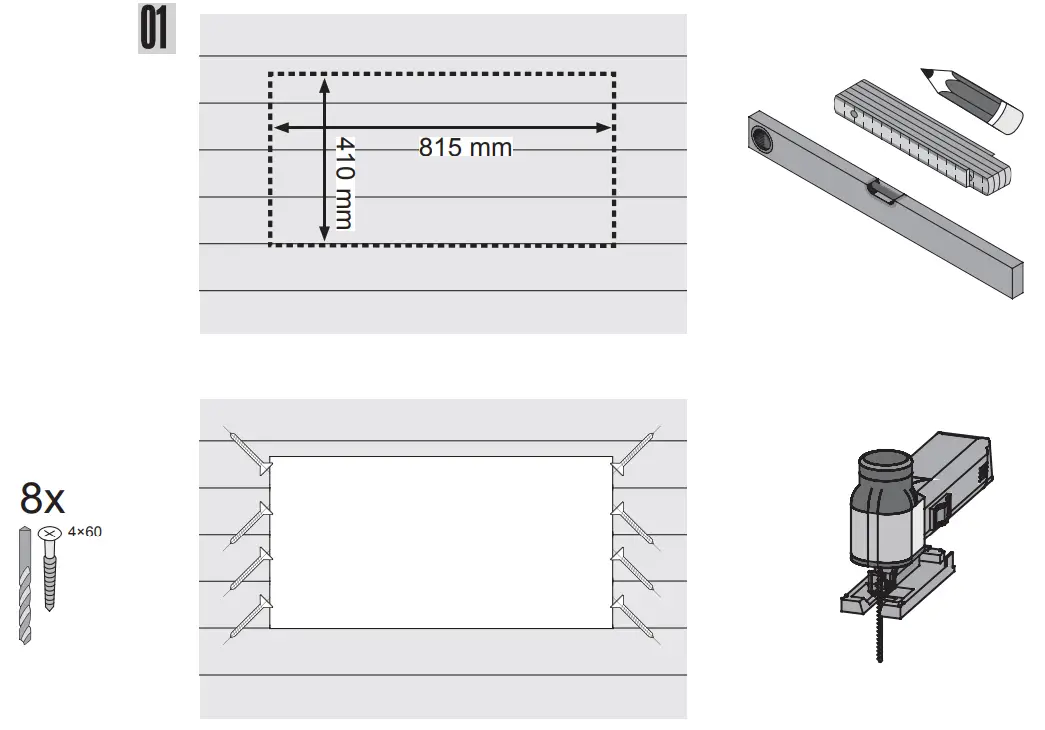

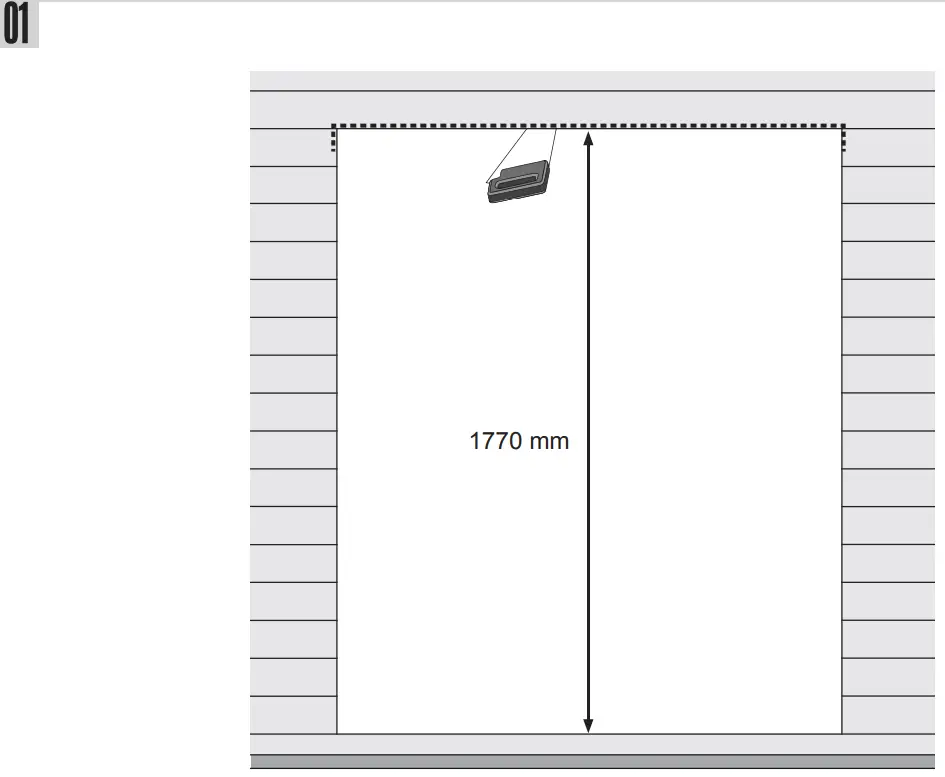

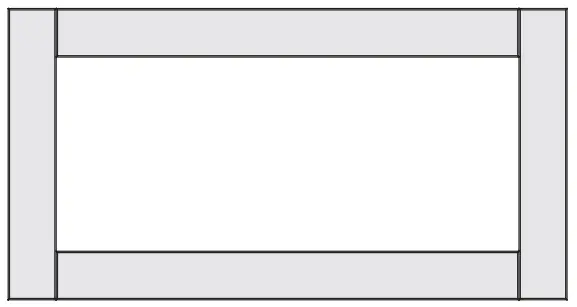

Cutout window
