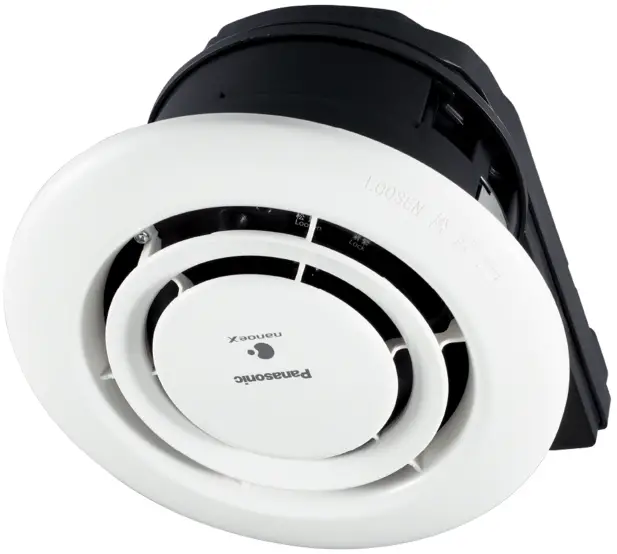

Panasonic FV-15CSD1G Ceiling Mounted Nanoe X Generator
SUPPLIED ACCESSORIES
The following accessories are provided with the product in the package. When you unpack, check if the accessories are all included. If not, please contact your dealer.

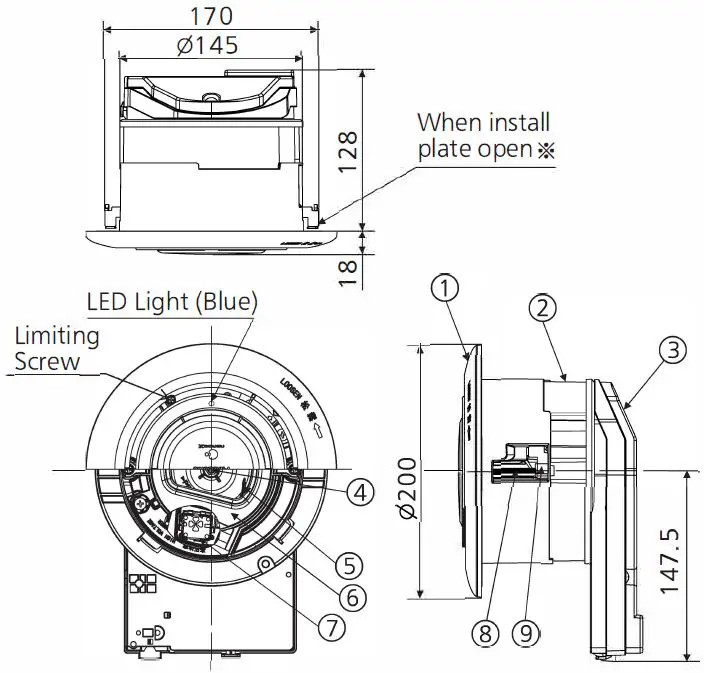

COMPONENTS AND DIMENSIONS
Unit: mm
The initial position of the install plate is closed.
PART LIST
No./Part name/Qty
- Louvre 1
- Frame 1
- Electric Case Assy 1
- Motor 1
- Fan 1
- Orifice Assy 1
- nanoe™ X unit 1
- Install Screw 2
- Install Plate 2
The product is used for cleaning the air in the room by generating nanoe™ X.
