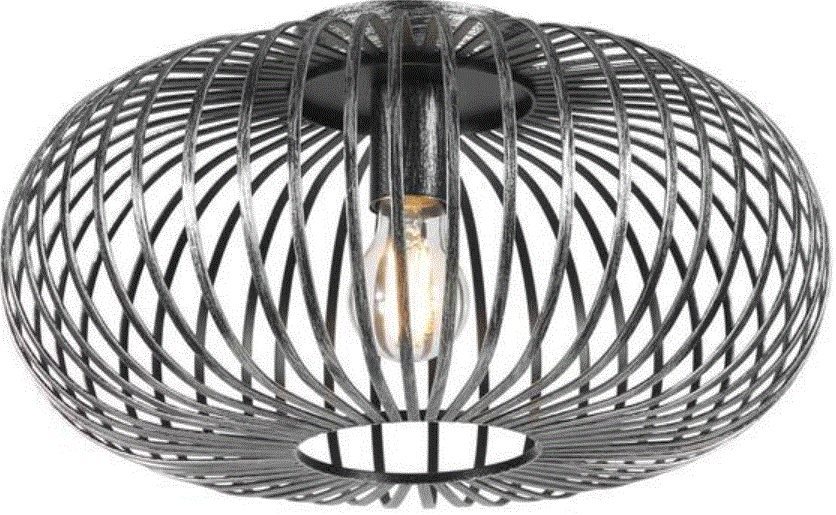

Tribesigns TH-SF0194 Ceiling Light
Product Information
The TH-SF0194/TH-SF0195 Ceiling Light is a fixture that can be used in dry locations. It can accommodate up to 60-watt maximum TYPE A bulbs, 13-watt compact fluorescent light bulbs, or 9-watt LED bulbs. The product is safety listed and can be dimmed with a standard incandescent dimmer. The package includes a junction box, single mounting bracket, canopy screws, fixture, fixture wires, leading wires, wire nuts, mounting screws, and a bulb.
Product Usage Instructions
Please follow the instructions carefully to avoid the risk of fire or injury to persons.
- Before starting the installation of the light fixture, turn off the electrical power.
- Make sure you have the necessary wiring supplies as required by local electrical code.
- The product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture with a clean, soft cloth. Never spray the cleaner directly onto the fixture.
- Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
- Refer to the assembly steps included in the package and follow them carefully.
- Connect the white supply wire to the white or identified fixture wire using UL-listed wire nuts.
- Connect the black supply wire to the plain or black fixture wire using UL-listed wire nuts.
- Connect the bare or green ground wire from the supply to the bare or green fixture ground wire or ground screw.
- Do not exceed the recommended wattage to avoid the risk of fire.
- If you encounter any problems, refer to the troubleshooting section of the manual or contact a qualified electrician.
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS READ ALL INSTRUCTIONS.
SAFETY PRECAUTIONS
- TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
- WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH. NEVER SPRAY CLEANER DIRECTLY ONTO THE FIXTURE.
NOTE: Product may not look exactly as shown in figures.
CAUTION: Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
- This fixture has been rated for up to 60-watt maximum TYPE A bulbs or 13-watt compact fluorescent light bulbs or 9-watt LED bulbs . To avoid the risk of fire, do not exceed the recommended wattage.
- This product is safety listed for dry locations.
- This product may be dimmed with a standard incandescent dimmer.

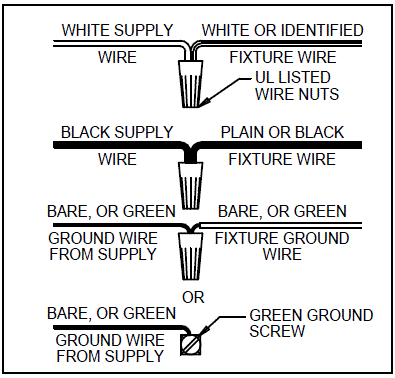

Wiring
Assembly Steps
- D,C
A - G,H B
- F,E C
- J F
APart Included
| Part Included | ||
| Code | Part description | QTY |
| A | Junction Box | 0 |
| C | Single Mounting Bracket | 1 |
| E | Canopy Screws | 2 |
| F | Fixfure | 1 |
| G | Fixfure Wires | 3 |
| H | Leading Wires | 0 |
| J | Bulb | 0 |
Hardware included
| B | Wire Nuts | 4 |
| D | Mounting Screws | 3 |
Trouble Shooting
| Problem | Possible Cause | Solution |
| The bulb will not light. | The power is OFF. | Ensure the power supply is ON. |
| There is a faulty wire connection. | Check the wiring. | |
| The circuit breaker is OFF. | Ensure the circuit breaker is in the ON position. | |
| The fuse blows or circuit breaker trips when the light is turned ON. | There are crossed wires or the power wire is grounding out. | Check the wire connections. Contact a qualified electrician. |
