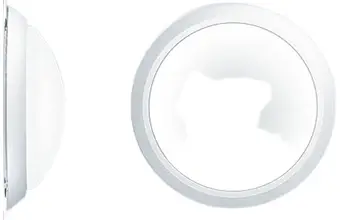

ZUMTOBEL HELISSA LED D360 Wall and Ceiling Luminaire Instructions
Typ-Nr.
A12698 HELISSA LED D360 1 W 230V 5
A12699 HELISSA LED D450 2 W 230V

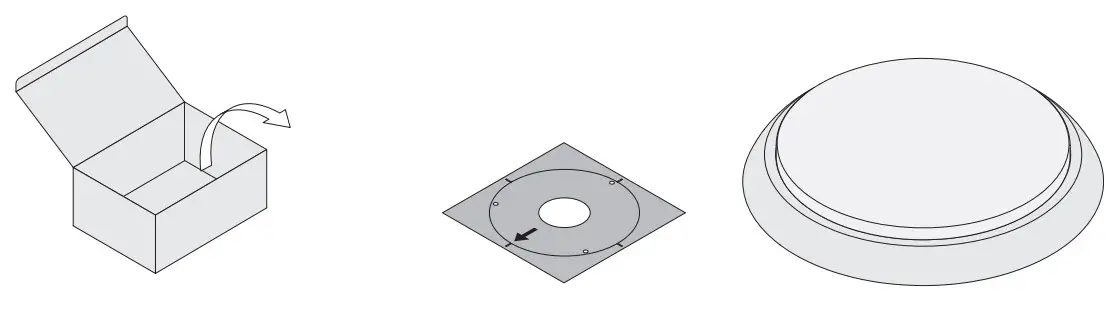

Package Content
IP40

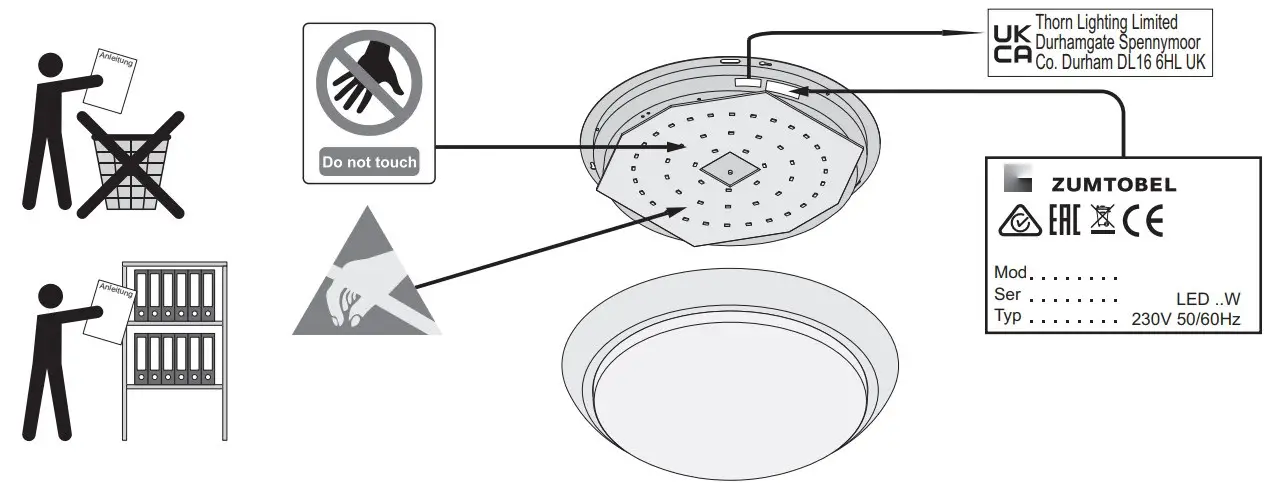

Warnings
Some LED‘s are reserved the emergency (D350 = 4, D450=6) lighting versions and have no function.

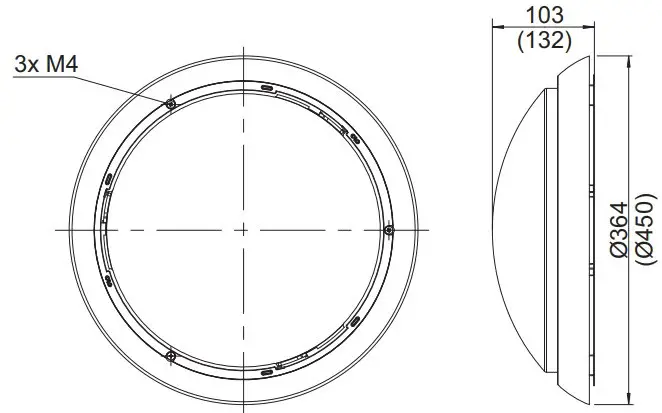

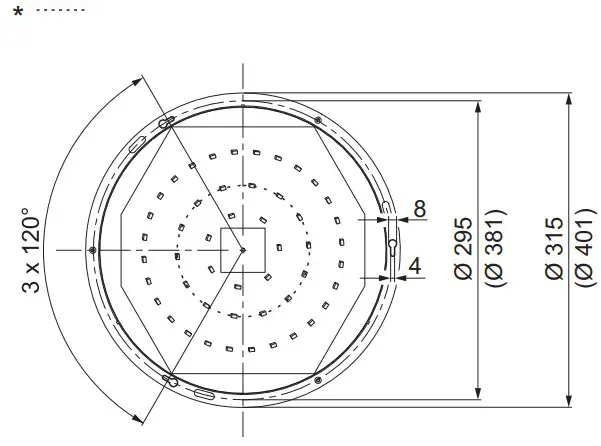

Diminsions
D360 (D450)
D360 (D450)

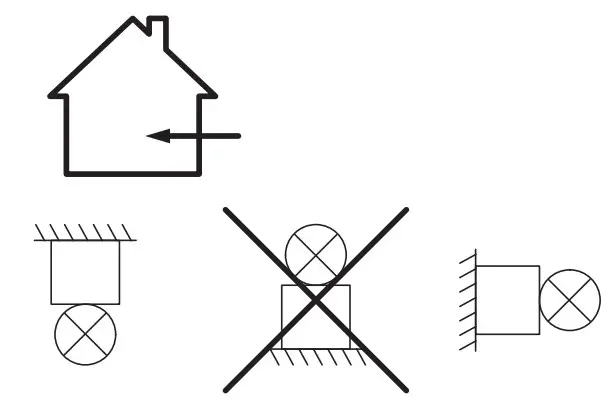

Installation and commissioning may only be carried out by authorized specialists.
The luminaire is used exclusively for lighting and is to be installed in accordance with the national installation regulations. Any other use or installation is regarded as “not according to instructions”.
Use only allowed cable diameters.

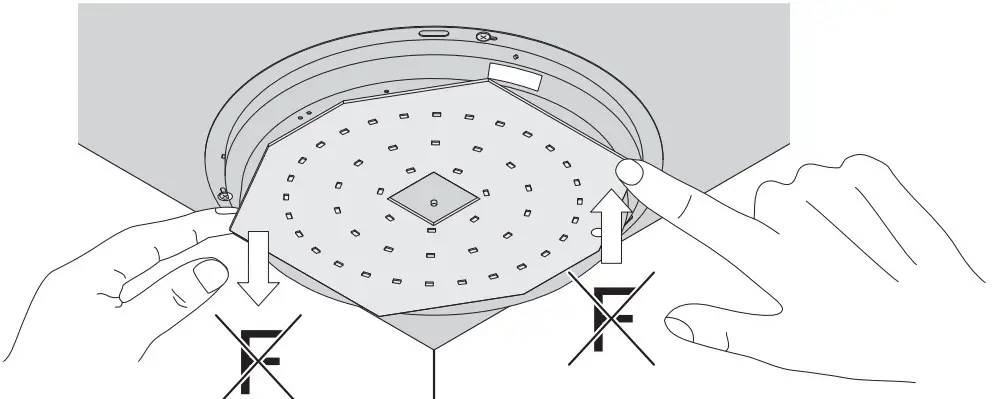

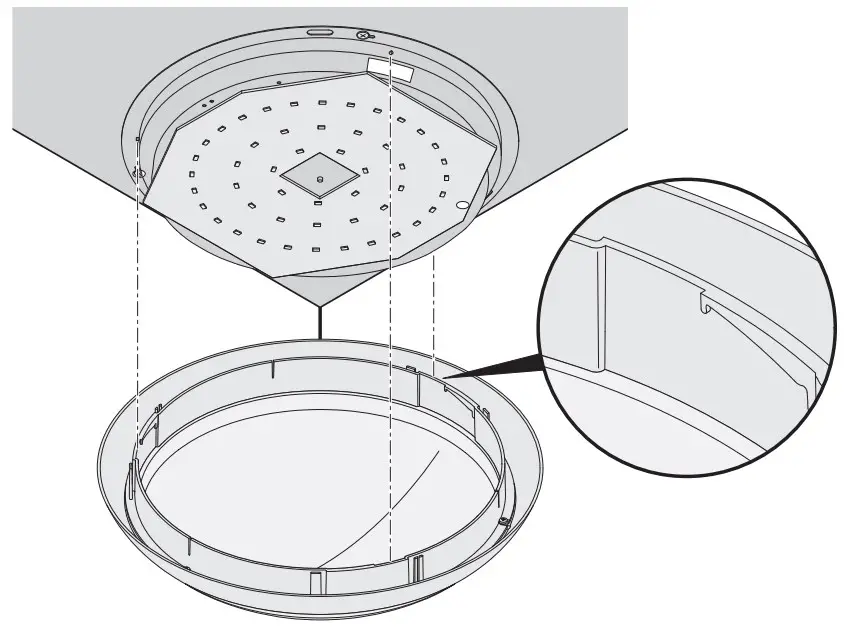

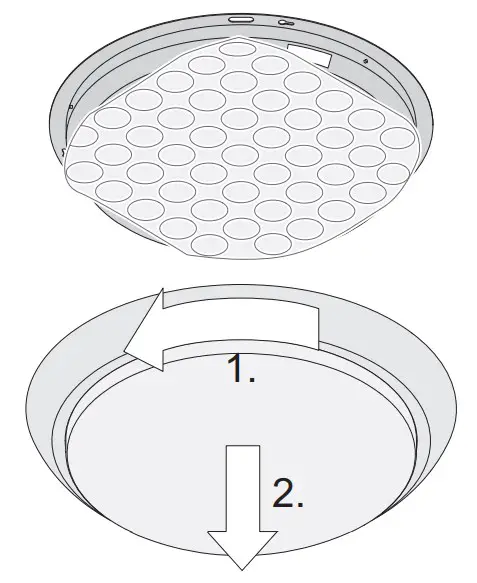

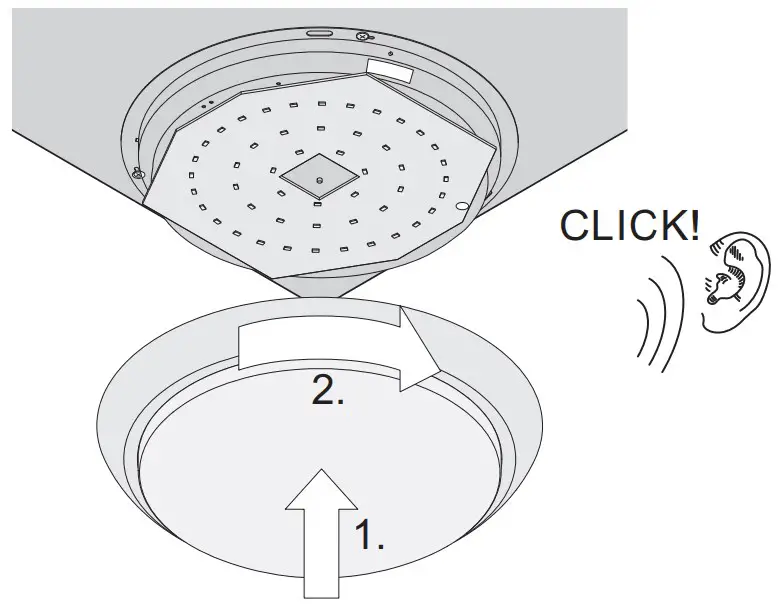

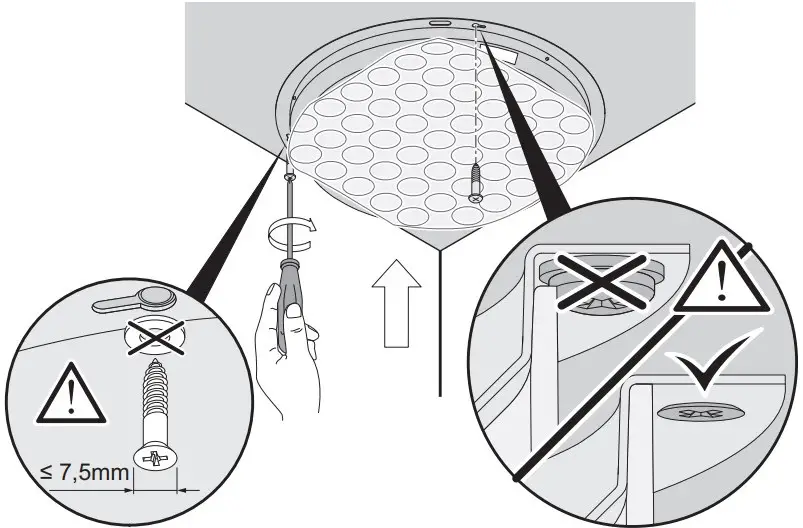

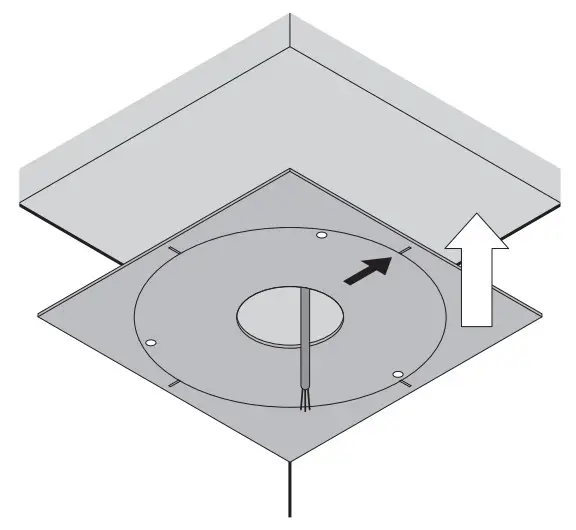

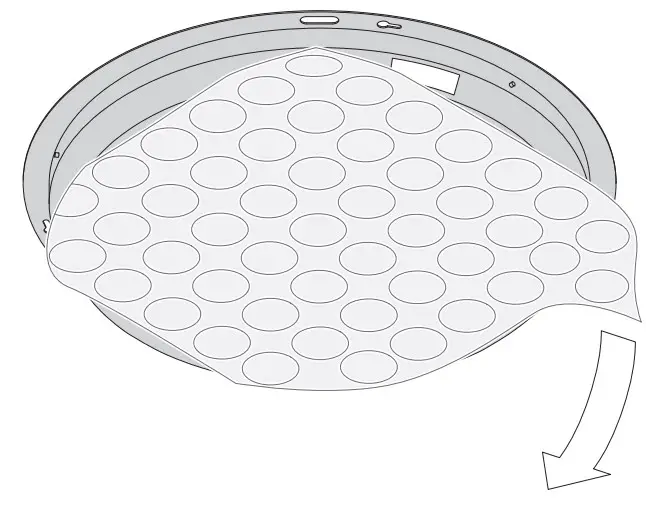

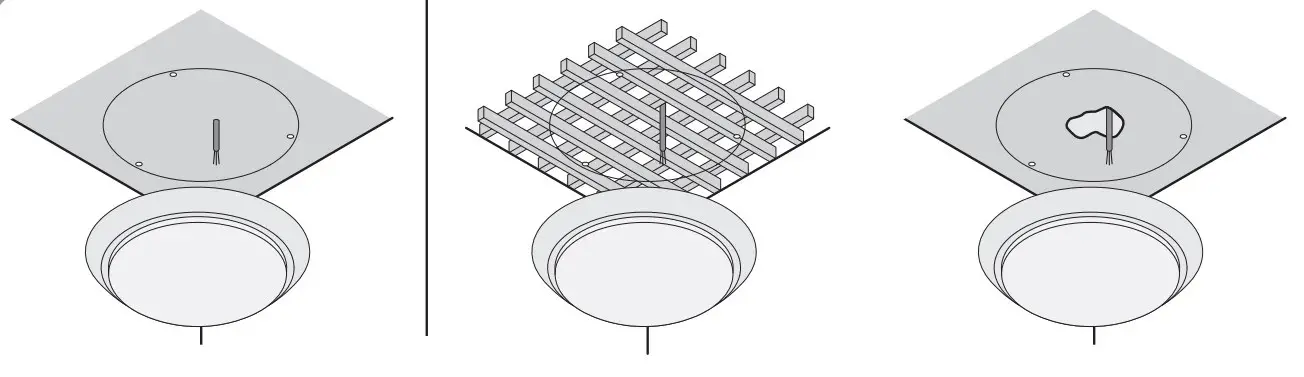

Installation
IP40
IP20
IP20

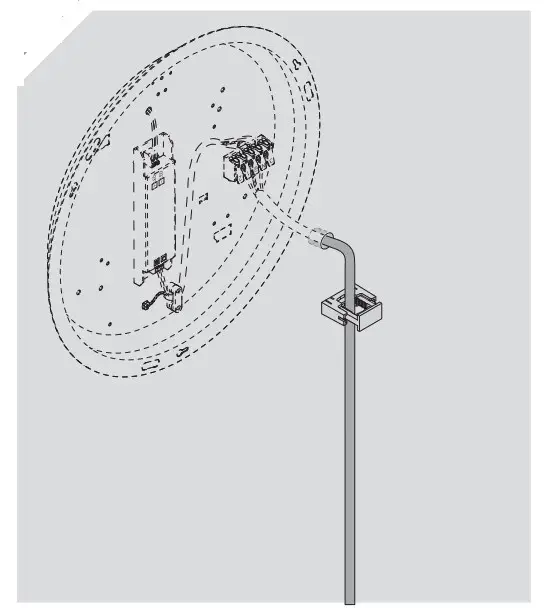

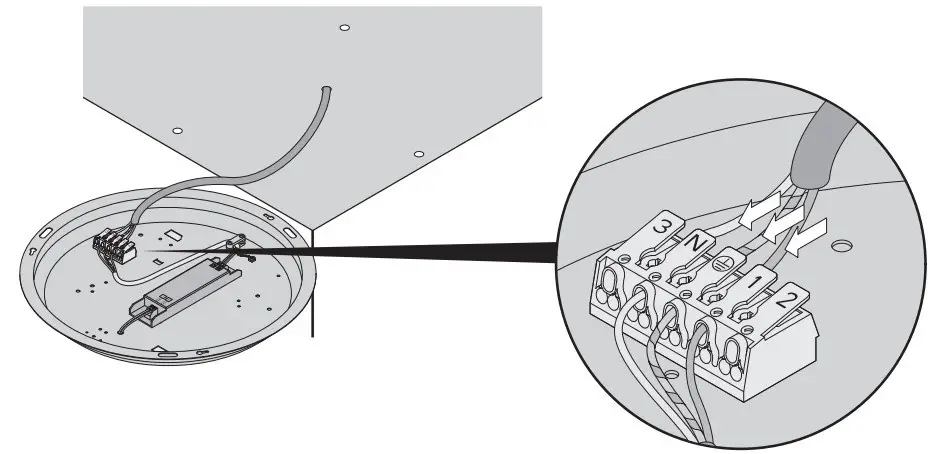

Fix the connecting cable in position.

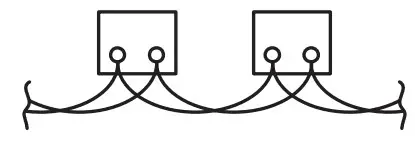

Looping-in (feed through)

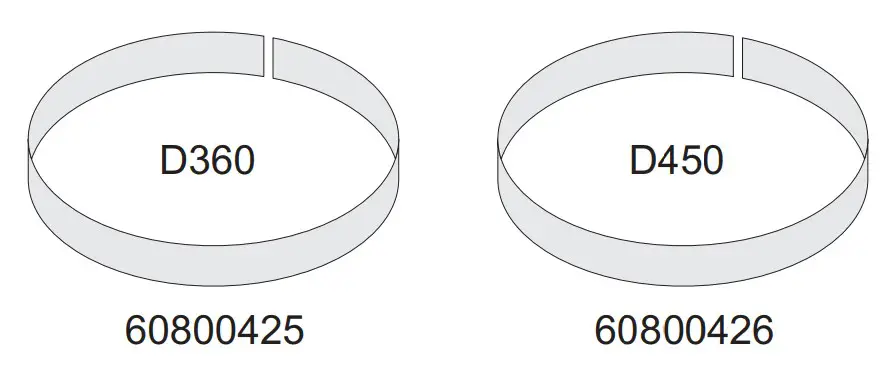

Accessory
Zumtobel Info on (non-) replaceability
The control gear of this luminaire is a non-replaceable component; when the control gear reaches its end of life the whole luminaire shall be replaced.
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Specifications subject to change without notice
