LEE BF2475 Inline Bullet Sizer and Magazine Filler Kit
Inline Bullet Sizer & Magazine Filler Kit

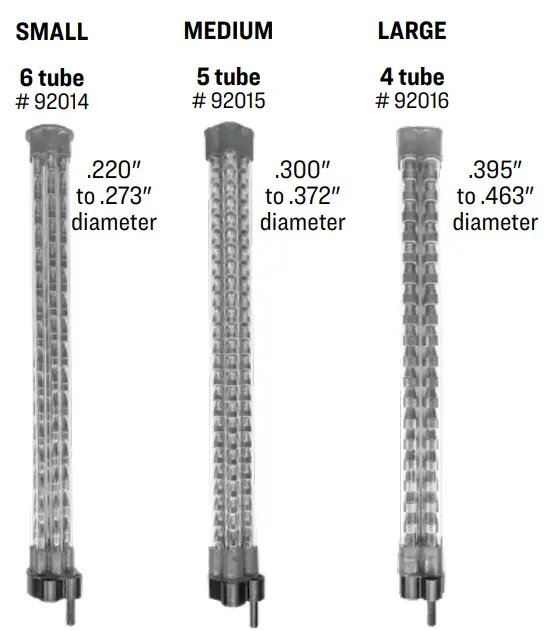

ADDITIONAL MAGAZINES
Keep extra mags on hand for a quick swap when empty
VALUE BUNDLE
All three sizes # 92013
STANDARD FILLING
Size and fill your mag and swap to your Inline bullet feeder, handle bullets once.
Confirm proper feed tube selection are installed
MAGAZINE SIZE | CALIBER | TUBE OD | TUBE ID | COLOR |
| SMALL 6 tube | 22CAL | .323” | .240″ | YELLOW |
| SMALL | 26CAL | .323” | .269″ | CLEAR |
| MEDIUM 5 tube | 30CAL | .445” | .355″ | YELLOW |
| MEDIUM | 35CAL | .445” | .391″ | CLEAR |
| LARGE 4 tube | 40 & 45 CAL | .562” | .478″ | CLEAR |
To change tubes, remove top magazine cylinder and tubes. Install correct tubes and replace top magazine cylinder.
Assemble Multi-tube Adapter
Select connect tube that bullet freely passes through.
There are three sizes: small, medium and large.
Slide appropriate connect tube into the multi-tube adapter.

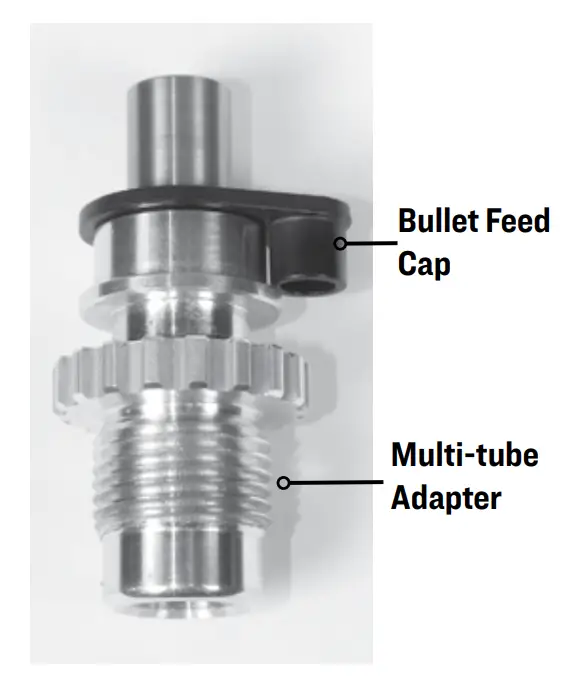

Assemble Multi-tube Adapter
Screw bullet feed cap into multi-tube adapter.

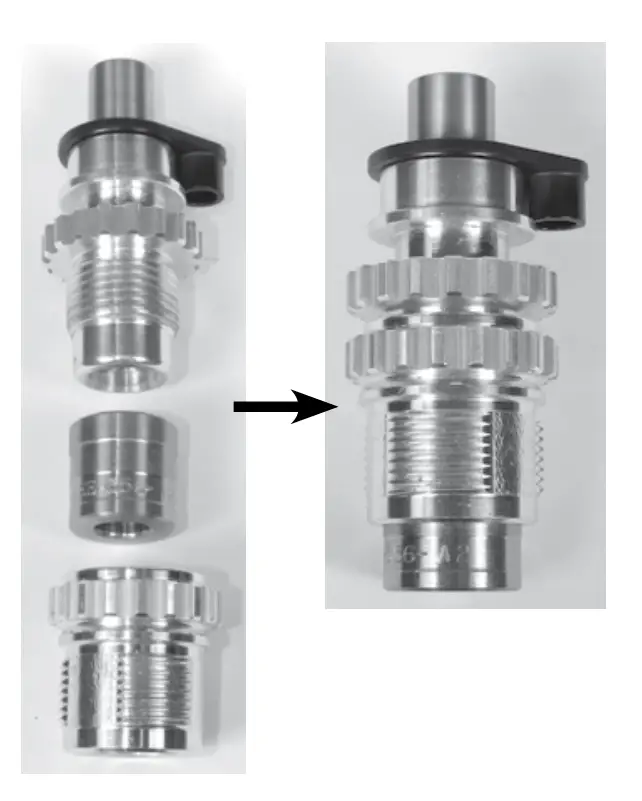

Combine Multitube Adapter and Breech Lock Insert
Tighten multitube adapter assembly into breech lock insert with correct breech lock sizer installed (roll marking down)

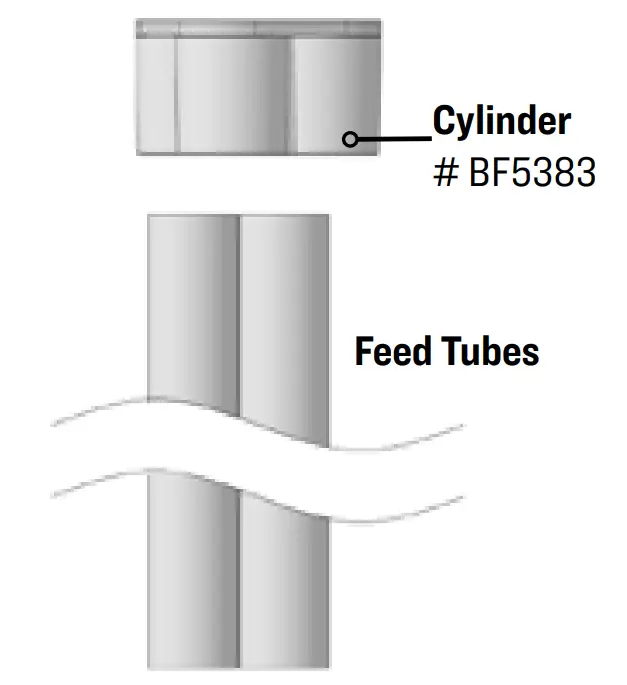

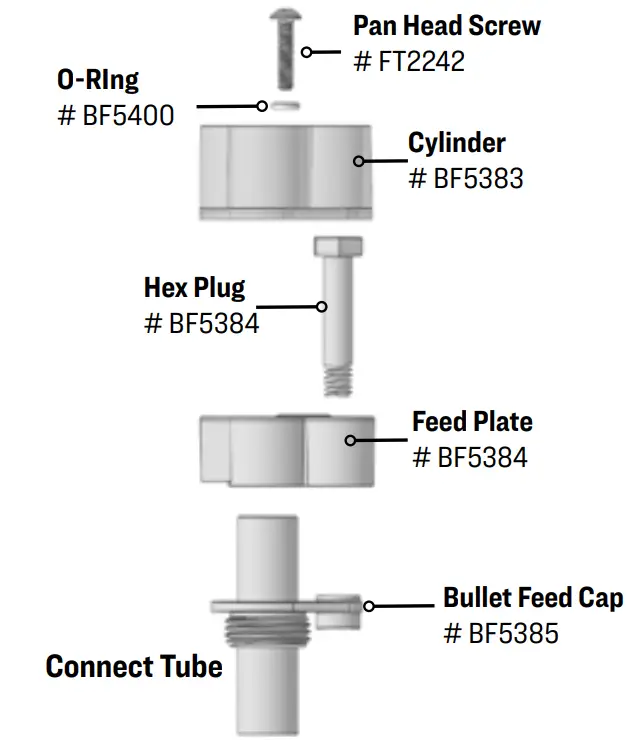

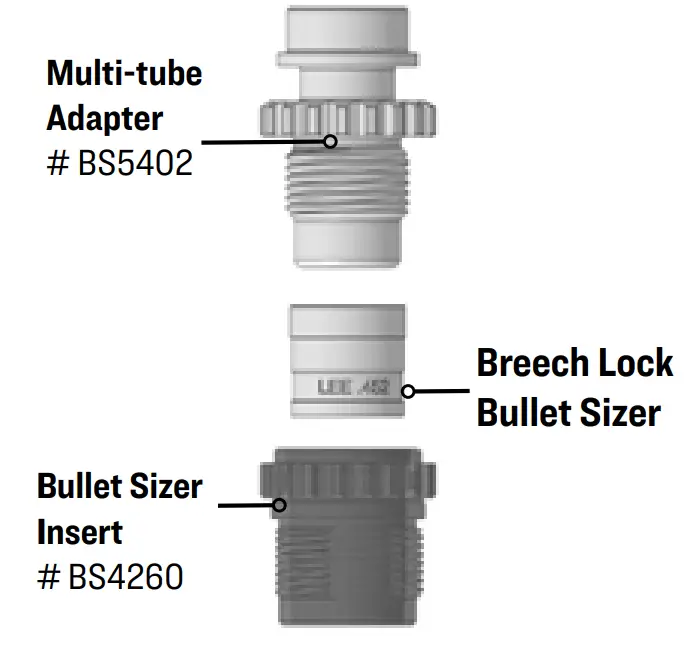

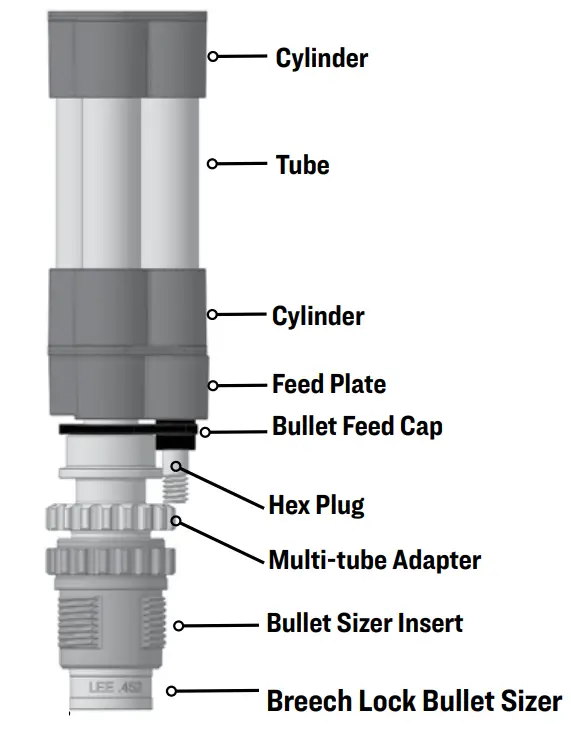

Parts list

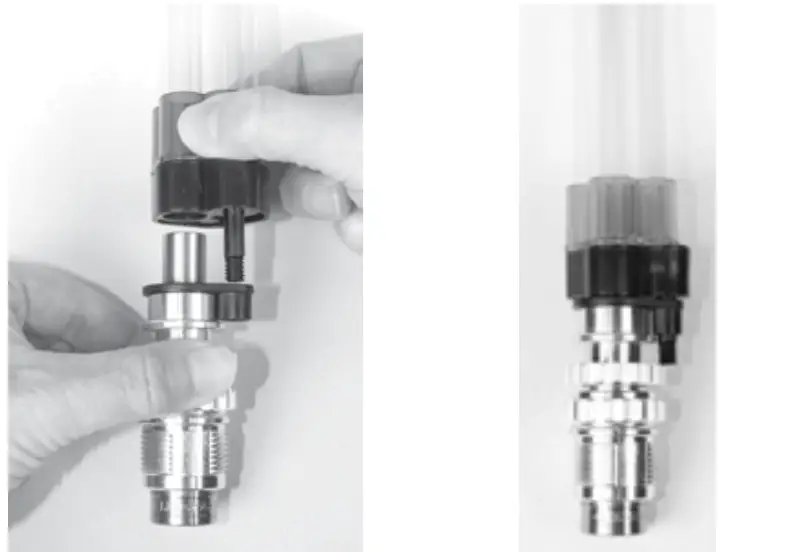

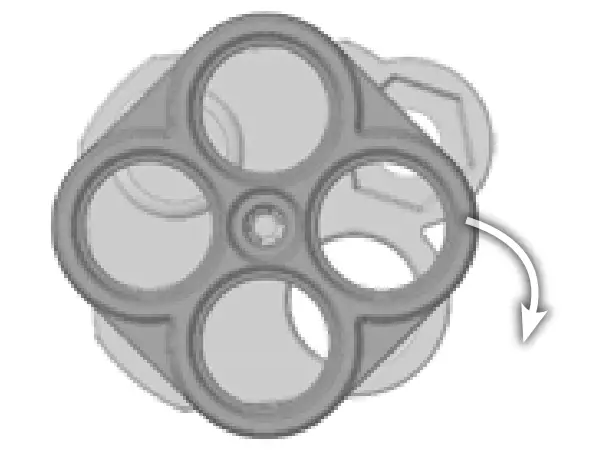

Install Magazine into Mutli-tube Assembly
Slide magazine onto connect tube, aligning the hex plug with cap.
When magazine is filled, rotate cylinder out of register, lift off the filled tubes
Operation tip:
Always rotate tubes clockwise so bullet feed cap does not loosen.

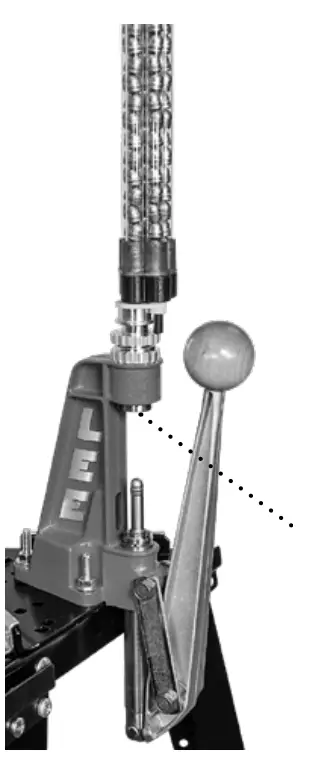

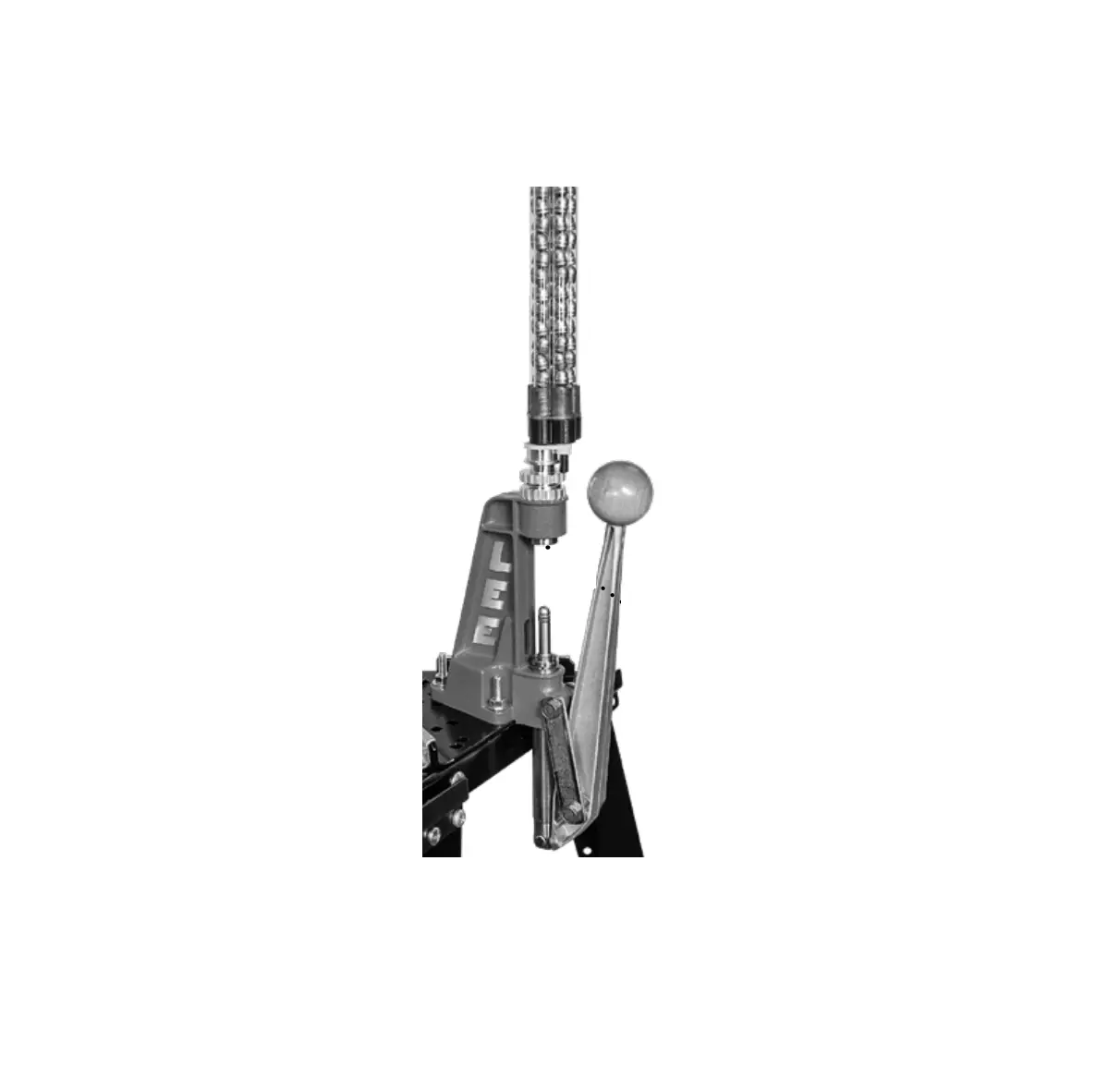

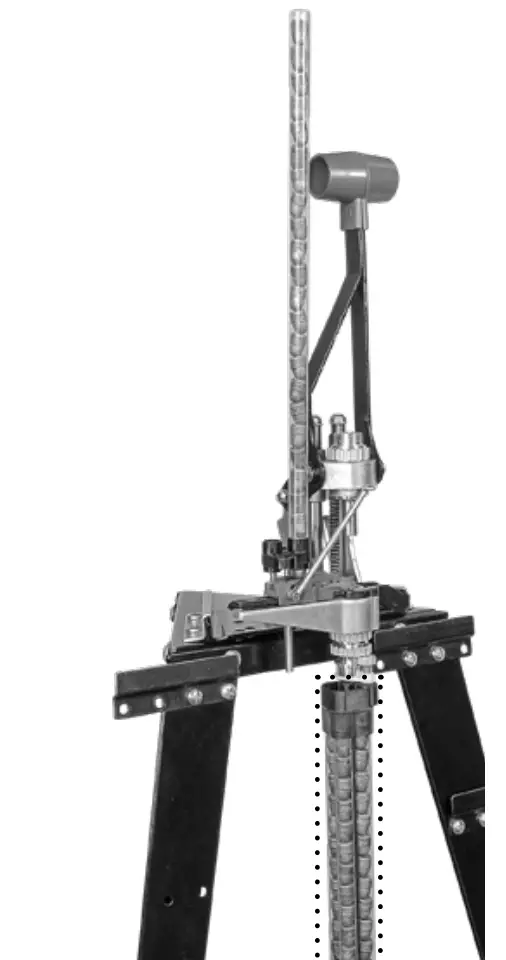

The APP press allows inverted tube filling and sizing.
Size bullets and transfer the directly to the Inline Bullet Feed Die.
APP press # 90933 pictured on Reloading Stand # 90688
