BB-55 Battery Box
Instructions
Product Installation Document
PN 50295:B 07/24/2001 ECN 01-250
BB-55 Battery Box
This cabinet consists of a backbox with an integral, lockable door that is hinged on the bottom to swing down for access.

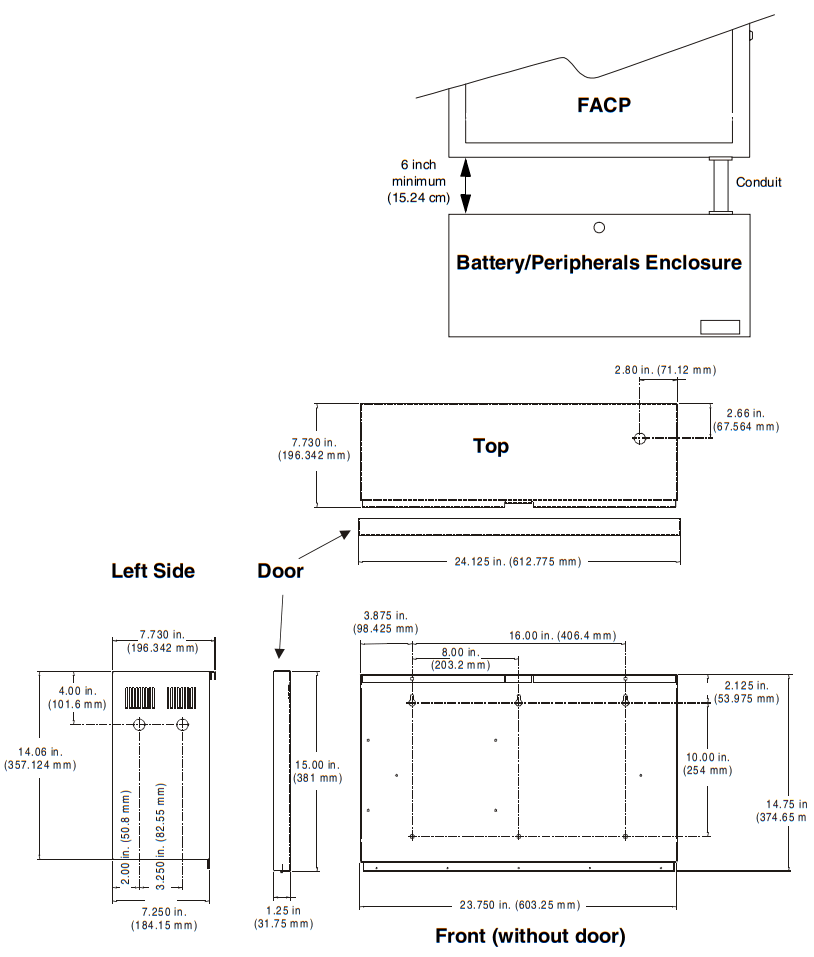

It is designed to be mounted a minimum of 6 inches (15.24 cm) below the fire alarm control panel (FACP). When both cabinets are surface mounted, the knockout in the bottom-right corner of the FACP will line up directly above the knockout in the copyright corner of this enclosure.
This enclosure should be mounted in a clean, dry, vibration-free area, using the six holes provided. Note: The enclosure has 0.875 in. (2.2225 cm) knockouts which accept standard 0.75 in. (1.905 cm) conduit.
Battery/Peripherals Enclosure PN 50295:B 07/24/2001
