Fire-LITe BB-17F Battery Box Instruction
BB-17F Battery Box Product Installation Drawing
Document # 15736 Rev. A
P/N 15736:A ECN:93-199 10/5/93
Overview

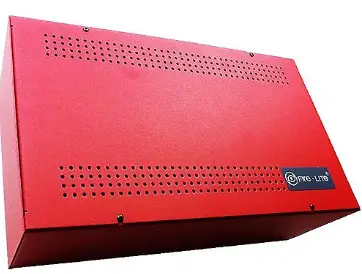

The BB-17F Battery Box may be used to house up to two 17AH batteries. It mounts directly below the FACP cabinet. Knockouts are pro-vided on the top surface of the battery box.
Parts
Installation
- Remove knockouts in the bottom of the FACP cabinet and the top of the BB-17F cabinet.
- Align knockouts in FACP and BB-17F. Anchor the BB-17F to wall using 1/4fl diameter holes in back of cabinet.

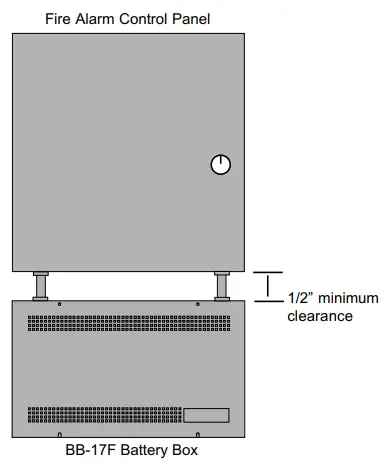

- Run conduit between the BB-17F cabinet and the FACP cabinet. Make sure there is at least 1/2fl of clearance between the BB-17F and the FACP (see illustration at left).
- Run battery cable through conduit from FACP into battery box. Connect cable to batteries.
- Secure the BB-17F cover to cabinet using supplied self-threading screws.
