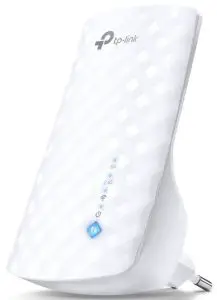

Tp-link Re190 Ac750 Wifi Range Extender Installation Guide

tp-link RE190 AC750 WiFi Range Extender Installation Guide

Setup with videos
Scan the QR code, or visit https://www.tp-link.com/support/setup-video/#range-extenders and search for the setup video of your model.

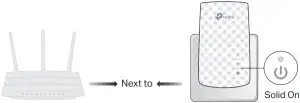

Power On

Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.

Set Up

Via the Tether App

1. Get the up-to-date Tether app from the Apple App Store or Google Play, or simply scan the QR code.

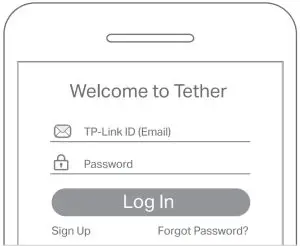

2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.

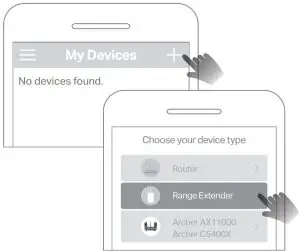

3. Tap the  button and select Range Extender
   Note: If you cannot find your device, please refer to FAQ > Q1.

4. Follow app instructions to complete the setup.

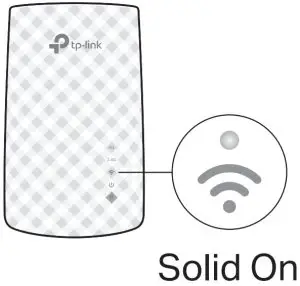

   The  LED should turn solid on, indicating successful connection to your router.
   Note: If the LED does not turn solid on, please refer to FAQ > Q2.


More Setup Methods

Via a Web Browser

1. Connect your computer or smartphone to the extender’s network TP-Link_Extender.
2. Visit http://tplinkrepeater.net or http://192.168.0.254 in a web browser.
   Create a password to log in.
3. Follow web instructions to complete the setup

Via the WPS Button

1. Press the WPS button on your router.
2. Within 2 minutes, press the WPS button on the extender for 1 second. The LED should change from blinking to solid on, indicating successful connection.
3. If the extender connects to a dual band router, repeat steps 1 and 2 to connect to the other band.

Extended Network Names:
Router’s network name with _EXT at the end
or
Same as your OneMesh router (See back for OneMesh details)

Passwords:
Same as your router

For more details, please refer to the user guide at https://www.tp-link.com/support/download/.

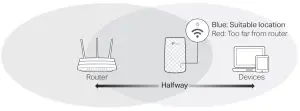

Relocate

1. Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until the LED turns solid blue. If it doesn’t, relocate the extender closer to the router to achieve better signal quality.


Manage the Extender

After setup, you can manage the extender via any of the methods below.
Note: If your extender and router use the same network name, Method 1 is recommended.

Method 1: Via the Tether App

1. Connect your smartphone to the extender‘s or router’s network.

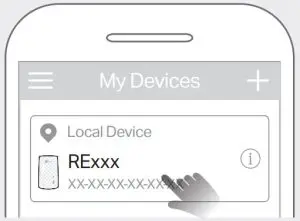

2. Launch the Tether app, select your extender, and log in.
3. Manage the extender as needed.

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender’s network. If you are using a computer, unplug the Ethernet cable if any.
2. Launch a web browser, enter http://tplinkrepeater.net in the address bar, and log in.
3. Manage the extender as needed.

OneMesh™ with Seamless Roaming

TP-Link OneMeshTM router and extenders work together to form one unified Wi-Fi network. Walk through your home and stay connected with the fastest possible speeds thanks to OneMesh’s seamless coverage.

Unified Wi-Fi Network
Router and extenders share the same wireless settings, including network name, password, access control settings and more.

Seamless Roaming
Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds.

Easy Setup and Management
Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router’s web management page.

To check full list of TP-Link OneMesh devices, scan the QR code, or visit https://www.tp-link.com/One-Mesh/compatibility

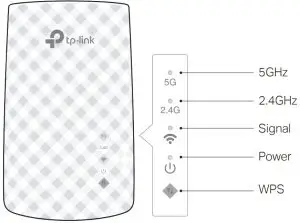

LED Explanation

FAQ (Frequently Asked Questions)

Q1. What should I do if the Tether app cannot find my device during setup?

Try another method by following the steps below:

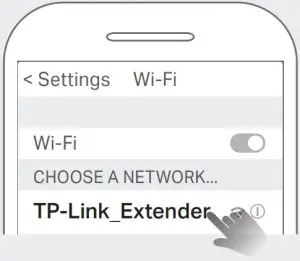

1. Connect your smartphone to the extender’s network TP-Link_Extender.

2. Launch the Tether app, and select your extender.

3. Follow app instructions to complete the setup.
   If you are still having problems, contact our technical support.

Q2. What should I do if the LED doesn’t turn solid on after completing setup via the Tether app or web browser?

• You may have entered incorrect Wi-Fi password for your host router during the configuration. Check the password and try again.
• Make sure the extender is close to your router, preferably within 16 feet, and away from large electrical appliances.
• If you have enabled wireless MAC filtering, wireless access control, or access control list (ACL) on your router, disable them first, then follow any method on the front page to complete the configuration.
• Try setting it up via the WPS button.
• Reset the extender and go through the configuration again.

If you are still having problems, contact our technical support.

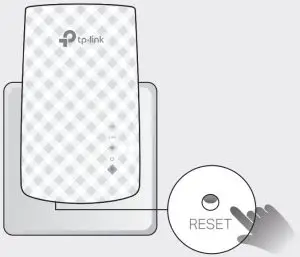

Q3. How do I reset the extender?

• With the extender powered on, use a pin to press the RESET button for 1 second.
  The extender will reboot.


Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device.
Please use this product with care and operate at your own risk.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Customer Support

To communicate with TP-Link users or engineers, please join the TP-Link Community at https://community.tp-link.com.

If you have any suggestions or needs for our product guides, you are welcome to email [email protected].

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.
