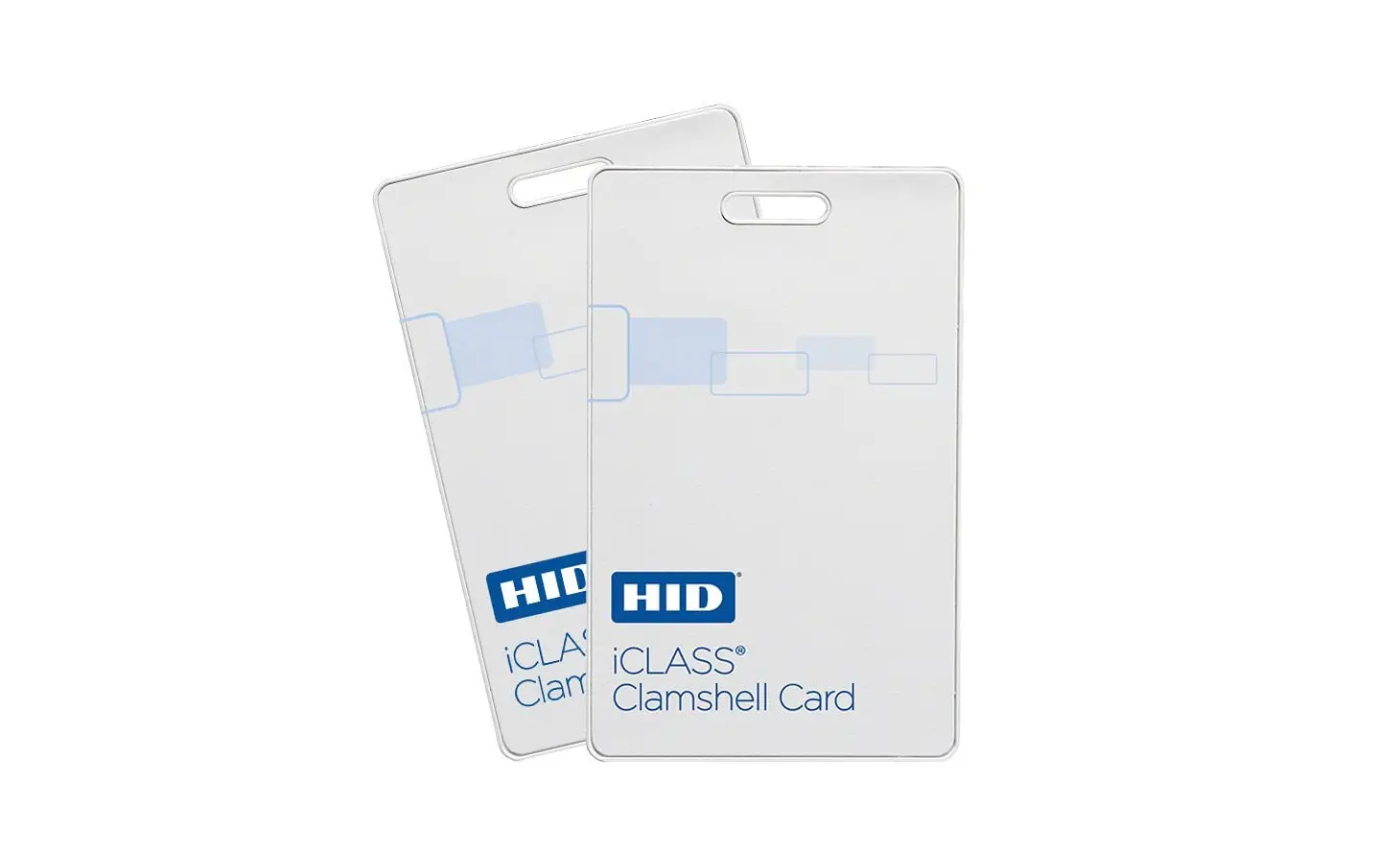

Hid 208 Iclass Clamshell Card User Guide (+ PDF)

HP – Programmed with Security Identity Object (SIO)
and standard iCLASS access control application. (Recommended)¹
P – Programmed with standard iCLASS access control application only
C – iCLASS Unprogrammed, for use with iCLASS SE Encoder

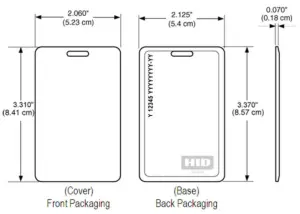

Front Packaging (Select one option)

Y = iCLASS Programming
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number

M – Plain White Vinyl with Matte Finish
G – Plain White with Gloss Finish
C – Custom Artwork – Specify Custom Artwork Number²

Back Packaging (Select one option)

S – Base with Molded HID Logo
C – Custom Artwork – Specify Custom Artwork Number²

Card Numbering³ (Select one option)

M – Sequential Matching Encoded/Printed (Inkjetted)³
N – No Printed Card Numbering
S – Sequential Encoded/Sequential Non-Matching Printed (Inkjetted)³
R – Random Encoded/Non-Matching Sequential Printed (Inkjetted)³

Slot Punch

V – Vertical Slot Punch

Option – Custom Artwork²

_________(Specify Artwork Number – Refer to the Custom Artwork Forms for new Artwork)

Enter your final card options from check boxes above. Example: 2080HPGSNV

Final Part Number

208

–

(Options #)

iCLASS Card Programming Information

Format Number

HID Elite ICE/MOB #

Field Name(s) e.g. Facility Code

Value

QTY

Encoded Start Number	Encoded Stop Number

Printed Start Number	Printed Stop Number

¹Secure Identity Object (SIO) Programming is not mandatory but highly recommended. If SIO programming is not selected the letter H should be left out from Final Part Number, for example: 2080PGSNV

For new artwork files, contact Customer Service for custom artwork number, lead-times, and cost.

Please note that cards shipped within the Americas are always laser-engraved. Inkjetted option is not available for these cards. The majority of part numbers include a printed Sales Order number, contact your local support representative for full details.
