LUX
KONOse Senior Care Smart Hub Thermostat
SKU: KN-ZW-SE1-20
Quickstart
This is a
secure
HVAC-Thermostat
for
.
Please make sure the internal battery is fully charged.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law.
The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material.
Use this equipment only for its intended purpose. Follow the disposal instructions.
Do not dispose of electronic equipment or batteries in a fire or near open heat sources.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This
device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way
communication) and every mains powered node can act as a repeater for other nodes
(meshed network) in case the receiver is not in direct wireless range of the
transmitter.
This device and every other certified Z-Wave device can be used together with any other
certified Z-Wave device regardless of brand and origin as long as both are suited for the
same frequency range.
If a device supports secure communication it will communicate with other devices
secure as long as this device provides the same or a higher level of security.
Otherwise it will automatically turn into a lower level of security to maintain
backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer
to www.z-wave.info.

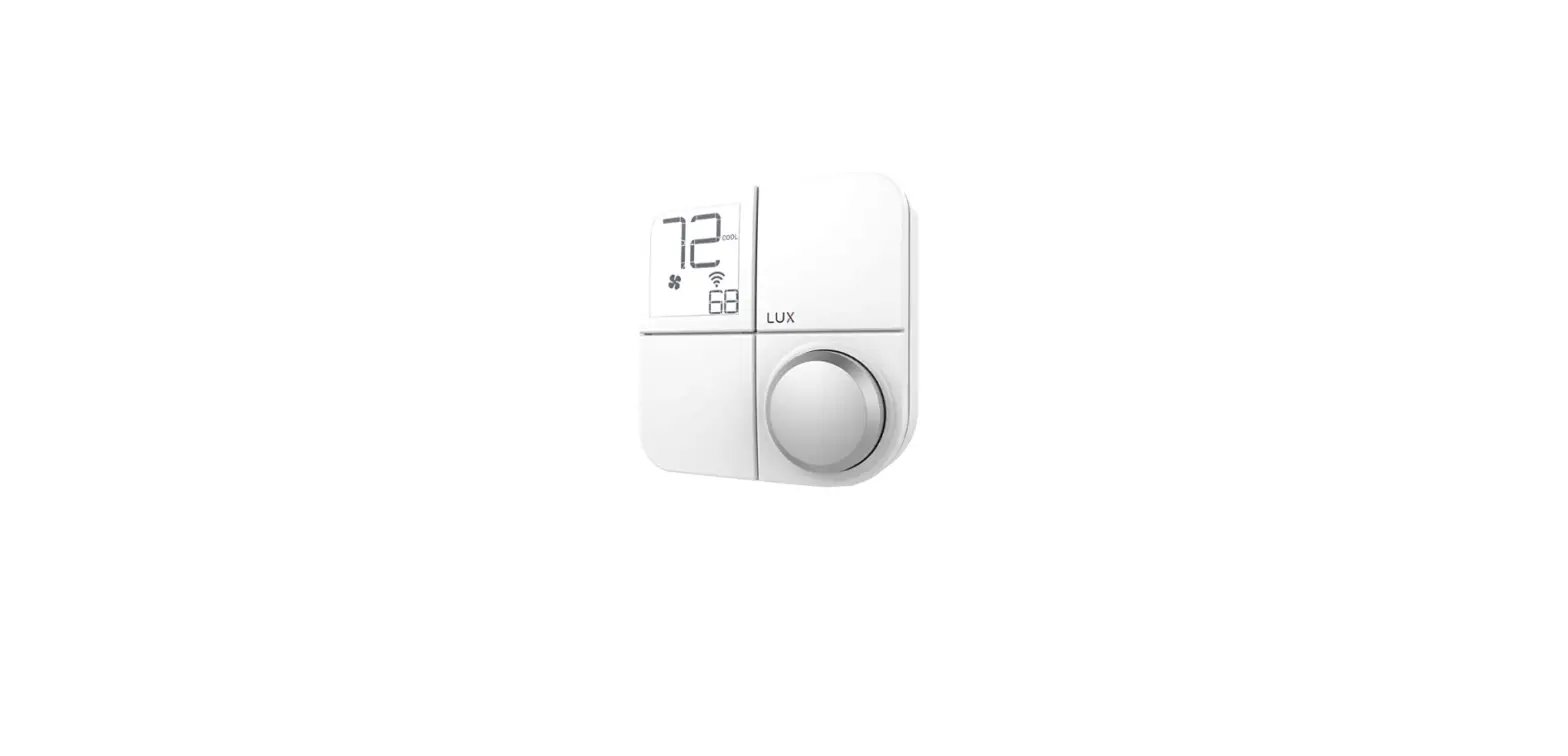

Product Description
KONOse is a smart thermostat made for Seniors. Itseamlessly connects to many smart hubs and blends in orstands out with its interchangeable Dcor-snap covers.KONOse is designed for energy savings, ease of use,increased visibility and for those with limited fine motorskills.System Modes: Heat, Cool, Heat & Cool Conventional: Forced air, gas, oil & electric furnaces(up to 2h/1c) Heat Pumps: With or without Aux/Emergency heat Hydronic (hot water) zone valves (2 wire) Power: 4 AA alkaline batteries , C-wire orLUX Power Bridge (sold separately)
Prepare for Installation / Reset
Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it must be in factory default
state. Please make sure to reset the device into factory default. You can do this by
performing an Exclusion operation as described below in the manual. Every Z-Wave
controller is able to perform this operation however it is recommended to use the primary
controller of the previous network to make sure the very device is excluded properly
from this network.
Inclusion/Exclusion
On factory default the device does not belong to any Z-Wave network. The device needs
to be added to an existing wireless network to communicate with the devices of this network.
This process is called Inclusion.
Devices can also be removed from a network. This process is called Exclusion.
Both processes are initiated by the primary controller of the Z-Wave network. This
controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is
then performed doing a special manual action right on the device.
Quick trouble shooting
Here are a few hints for network installation if things dont work as expected.
- Make sure a device is in factory reset state before including. In doubt exclude before include.
- If inclusion still fails, check if both devices use the same frequency.
- Remove all dead devices from associations. Otherwise you will see severe delays.
- Never use sleeping battery devices without a central controller.
- Dont poll FLIRS devices.
- Make sure to have enough mains powered device to benefit from the meshing
Association – one device controls an other device
Z-Wave devices control other Z-Wave devices. The relationship between one device
controlling another device is called association. In order to control a different
device, the controlling device needs to maintain a list of devices that will receive
controlling commands. These lists are called association groups and they are always
related to certain events (e.g. button pressed, sensor triggers, …). In case
the event happens all devices stored in the respective association group will
receive the same wireless command wireless command, typically a ‘Basic Set’ Command.
Association Groups:
Group NumberMaximum NodesDescription
| 1 | 5 | Z-Wave Plus Lifeline |
Configuration Parameters
Z-Wave products are supposed to work out of the box after inclusion, however
certain configuration can adapt the function better to user needs or unlock further
enhanced features.
IMPORTANT: Controllers may only allow configuring
signed values. In order to set values in the range 128 … 255 the value sent in
the application shall be the desired value minus 256. For example: To set a
parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56.
In case of a two byte value the same logic applies: Values greater than 32768 may
needed to be given as negative values too.
Parameter 1: User Temperature Calibration
User Temperature Calibration
Size: 2 Byte, Default Value: 0
SettingDescription
| -450 – 450 | step-size = 10, in steps of 0.1F |
Parameter 10: Temperature Limit – Cool Max
Temperature Limit – Cool Max (F)
Size: 2 Byte, Default Value: 95
SettingDescription
| 60 – 95 | Cool Max (F) |
Parameter 11: Temperature Limit – Cool Min
Temperature Limit – Cool Min (F)
Size: 2 Byte, Default Value: 50
SettingDescription
| 50 – 75 | Cool Min (F) |
Parameter 12: Temperature Minimum Setpoint Deadband
Temperature Minimum Setpoint Deadband (in a step of 0.1F)
Size: 2 Byte, Default Value: 200
SettingDescription
| 200 – 500 | step-size = 10 |
Enable / Disable Emergency heat option in mode menu.Note: for Heat Pump system only.
Size: 1 Byte, Default Value: 1
SettingDescription
| 0 | disable |
| 0 – 1 | enable |
Parameter 14: Ambient Temperature Change Step-size
Ambient Temperature Change Step-size. 0.5F4F range with a step-size of 0.5F (0.25C).
Size: 2 Byte, Default Value: 50
SettingDescription
| 50 | 0.5F (0.25C) |
| 100 | 1.0F (0.50C) |
| 150 | 1.5F (0.75C) |
| 200 | 2.0F (1.00C) |
| 250 | 2.5F (1.25C) |
| 300 | 3.0F (1.50C) |
| 350 | 3.5F (1.75C) |
| 400 | 4.0F (2.00C) |
Parameter 15: Regular Ambient Temperature Reporting Interval
Regular Ambient Temperature Reporting Interval
Size: 1 Byte, Default Value: 4
SettingDescription
| 1 – 24 | 1 – 24 hours |
Parameter 16: Regular Operating State Reporting Interval
Regular Operating State Reporting Interval
Size: 1 Byte, Default Value: 4
SettingDescription
| 1 – 24 | 1 – 24 hours |
Parameter 17: Command Echo
Command Echo for – Thermostat Mode – Thermostat Fan mode – Thermostat Setpoint
Size: 1 Byte, Default Value: 1
SettingDescription
| 0 | disable |
| 1 | enable |
Parameter 2: Temperature Unit (C/F)
Temperature Unit (C/F)
Size: 1 Byte, Default Value: 1
SettingDescription
| 0 | C |
| 1 | F |
Parameter 3: Available Control mode
Available Control mode
Size: 1 Byte, Default Value: 0
SettingDescription
| 0 | Heat and Cool, Auto |
| 1 | Heat Only |
| 2 | Cool Only |
| 3 | Heat and Cool, no Auto |
| 4 | reserved |
Parameter 4: System Type
System Type
Size: 1 Byte, Default Value: 0
SettingDescription
| 0 | Furnace Gas |
| 1 | Furnace Electric |
| 2 | Heat Pump |
| 3 | Boiler no fan |
| 4 | reserved |
Parameter 5: Reversal valve Type in Heat Pump
Reversal valve Type in Heat Pump
Size: 1 Byte, Default Value: 0
SettingDescription
| 0 | O-valve |
| 1 | B-valve |
Parameter 8: Temperature Limit – Heat Max
Temperature Limit – Heat Max (F)
Size: 2 Byte, Default Value: 90
SettingDescription
| 60 – 90 | Heat Max (F) |
Parameter 9: Temperature Limit – Heat Min
Temperature Limit – Heat Min (F)
Size: 2 Byte, Default Value: 45
SettingDescription
| 45 – 60 | Heat Min (F) |
Technical Data
| Hardware Platform | ZM5202 |
| Device Type | Thermostat – HVAC |
| Network Operation | Always On Slave |
| Firmware Version | HW: 2 FW: 1.00:00.224 |
| Z-Wave Version | 6.71.03 |
| Certification ID | ZC10-20066923 |
| Z-Wave Product Id | 0x0411.0x0001.0x2112 |
| Communications Protocol | Z-Wave Serial API |
| Firmware Updatable | Updatable by Professional/Technician |
| Thermostat Modes | AutoAuto ChangeoverAuxiliary/Emergency HeatAwayCoolFan OnlyFurnaceHeat |
| Thermostat HVAC Systems Supported | Cool OnlyHeat OnlyHeat PumpMulti StageSingle Stage |
| Color | White |
| Thermostat Power Source | BatteryExternal Transformer |
| Security V2 | S2_UNAUTHENTICATED ,S2_AUTHENTICATED |
| Frequency | XXfrequency |
| Maximum transmission power | XXantenna |
Supported Command Classes
- Application Status
- Association Grp Info
- Association V2
- Basic
- Battery
- Clock
- Configuration
- Device Reset Locally
- Firmware Update Md V3
- Manufacturer Specific
- Notification V4
- Powerlevel
- Protection V2
- Security
- Security 2
- Sensor Multilevel V7
- Supervision
- Thermostat Fan Mode
- Thermostat Fan State
- Thermostat Mode V2
- Thermostat Operating State V2
- Thermostat Setpoint V3
- Transport Service V2
- Version V2
- Zwaveplus Info V2
Explanation of Z-Wave specific terms
- Controller — is a Z-Wave device with capabilities to manage the network.
Controllers are typically Gateways,Remote Controls or battery operated wall controllers. - Slave — is a Z-Wave device without capabilities to manage the network.
Slaves can be sensors, actuators and even remote controls. - Primary Controller — is the central organizer of the network. It must be
a controller. There can be only one primary controller in a Z-Wave network. - Inclusion — is the process of adding new Z-Wave devices into a network.
- Exclusion — is the process of removing Z-Wave devices from the network.
- Association — is a control relationship between a controlling device and
a controlled device. - Wakeup Notification — is a special wireless message issued by a Z-Wave
device to announces that is able to communicate. - Node Information Frame — is a special wireless message issued by a
Z-Wave device to announce its capabilities and functions.
