Eachine Moneagle User Manual (+ PDF)

Contents hide

Built-in Dual module and dual system
With DVR function and DVR autonomous system
Built-in video input,Audio output
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
4000mAh high-capacity battery for 3 hours working time
There are three video recording modes
Have the function of video replay
360-degree all-view HD display
Small, light weight, durable
5 Bands and total 8 Channels,40 frequency channel numbers
Built-in battery , easy to carry and outdoor use
Ultra-high luminance and button for controlling luminance
5-23 V wide supply voltage range, support 2-6S lipo battery to charge the monitor
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.

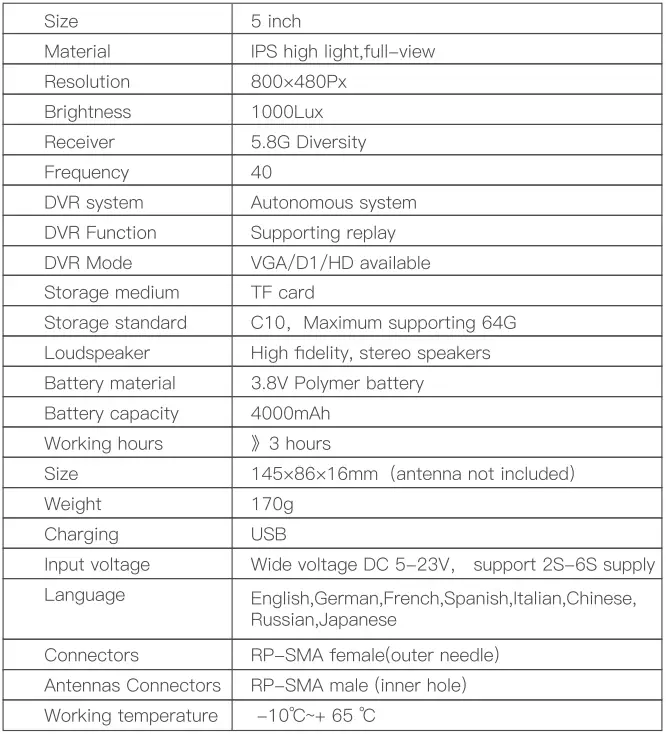

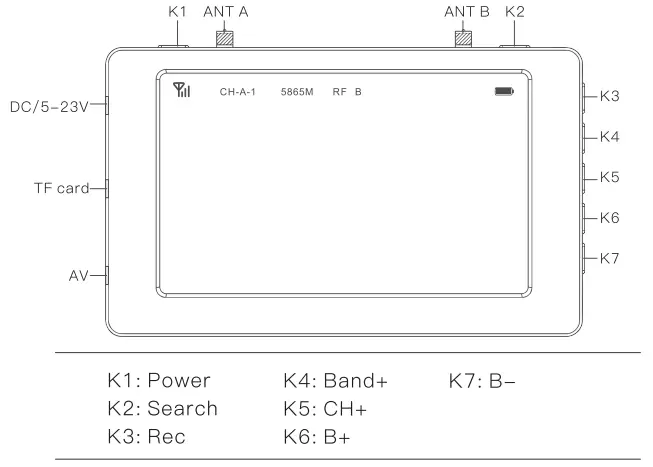

KEY
1. Power/MENU
  Press 3s boot, then press 3s shutdown

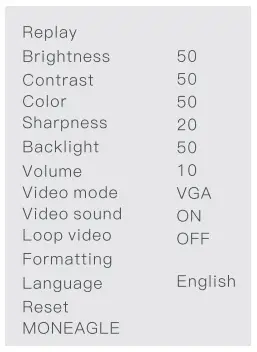

  Short press start to MENU
2. Search
  A key to automatic signal search, Simple operation
3. Rec
  Press the button, recording start, then press the button again to save the video
4. BAND+

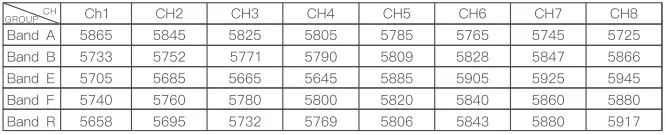

5. 5 Bands
  Default mode, click the BAND+ option, A, B, E, R, F cycle selection
6. CH+
  Default mode, click the option for the CH1-8 cycles;
7. B+/B-
  Button for controlling luminance
JACK
1. AV: video input, Audio output
2. TF card: Support up to 64G
3. DC/5-23V:
  The monitor support DC5—23V wide voltage, it not only can be charged with USB and Power Bank, but also 2—6S lipo battery, which is very suitable for long—time flight.
Battery
Built—in 3.8V 4000mAh high—capacity polymer battery
DVR
*Enter DVR
Short press Power start to MENU, and press Power again to select DVR mode; So press CH+ botton to enter DVR mode. vGA/D1/HD three modes are available.
Parts list
*Host x 1
*USB charging cable x 1
*XT60 expanded charging line x 1
*Video line x 1
*Stick antenna x2
*Installed bracket x 1
*Instruction x 1
