PERIBOARD-816
User Manual
PERIBOARD-81 6

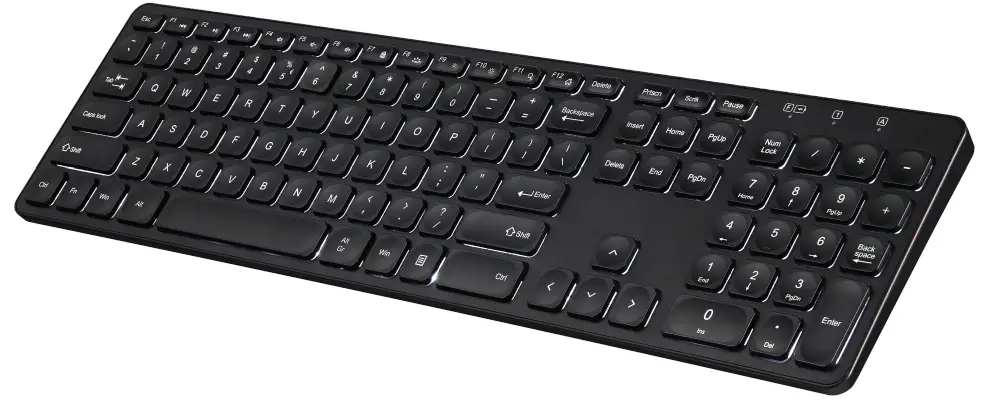

Wired & Wireless Full-sized Scissor-switch Backlit Keyboard
►User Manual

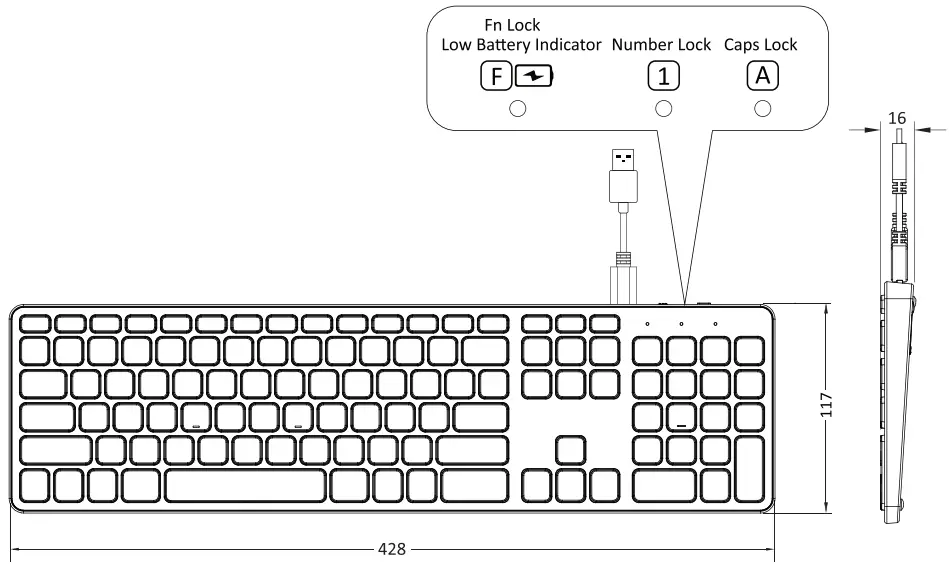

Product Illustration

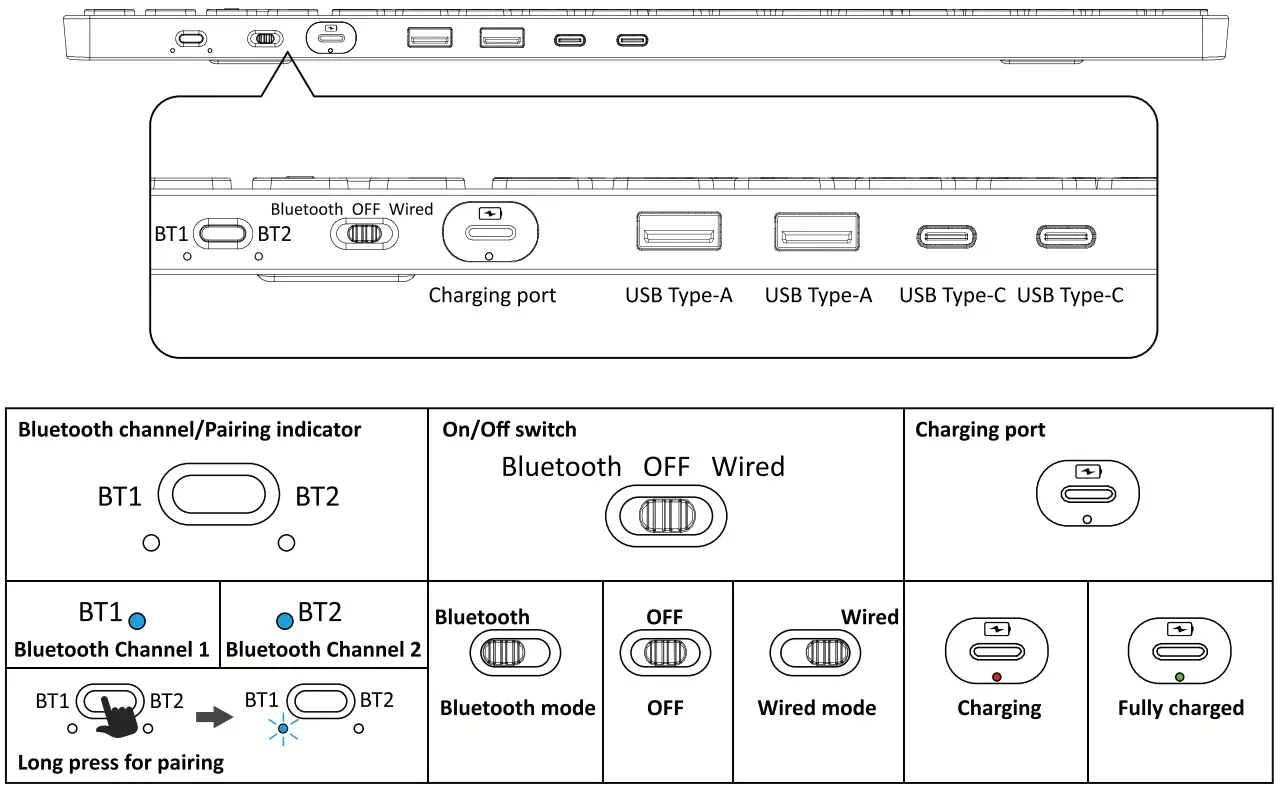

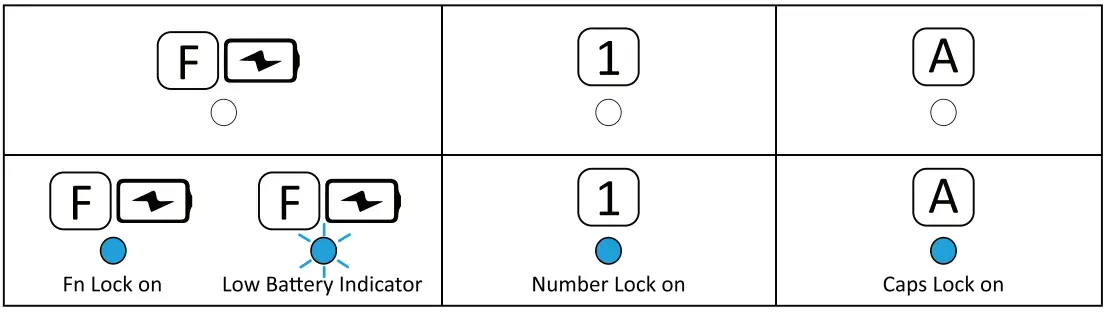

Keyboard Indicators
Product Illustration

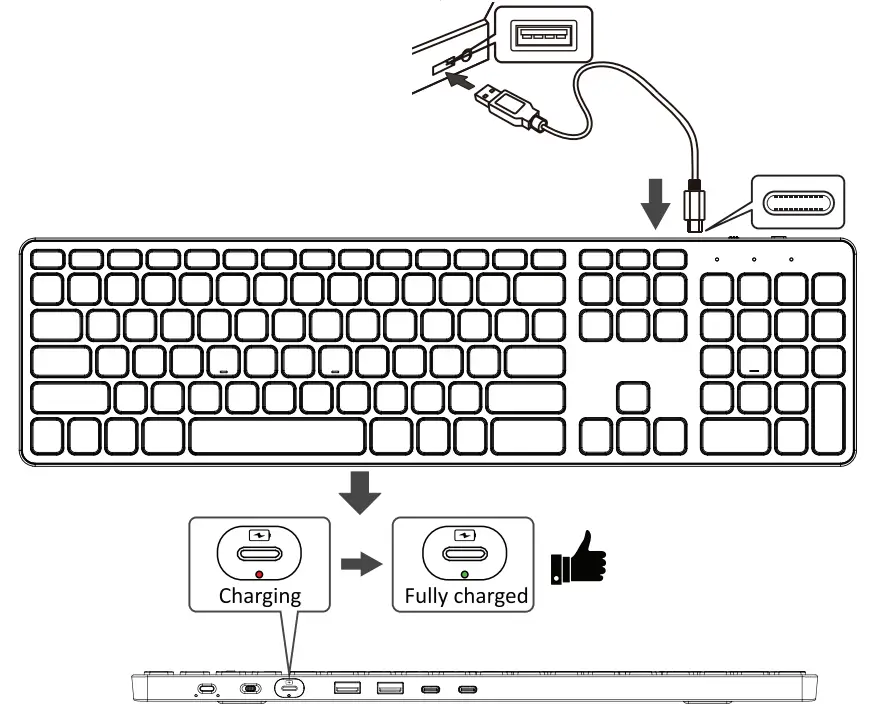

How do you charge PERIBOARD-816?

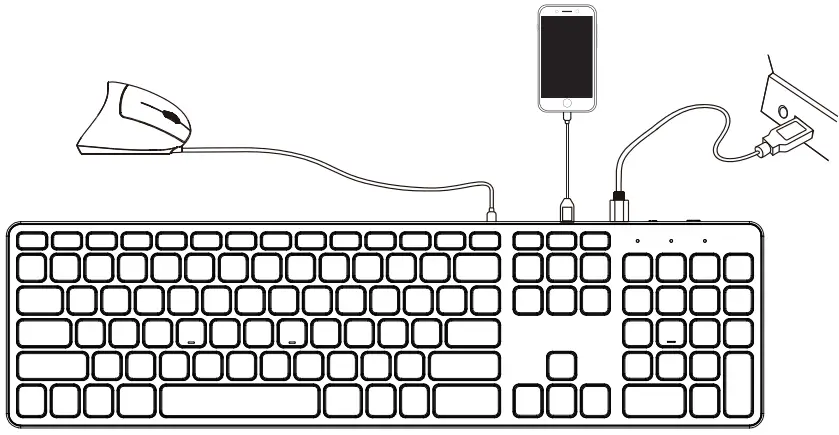

How do the 4 Hubs work?
The 4 Hubs can only be used when the keyboard is plugged into the computer (whether in wired or in Bluetooth mode)
How do you connect PERIBOARD-816?
Wired Connection

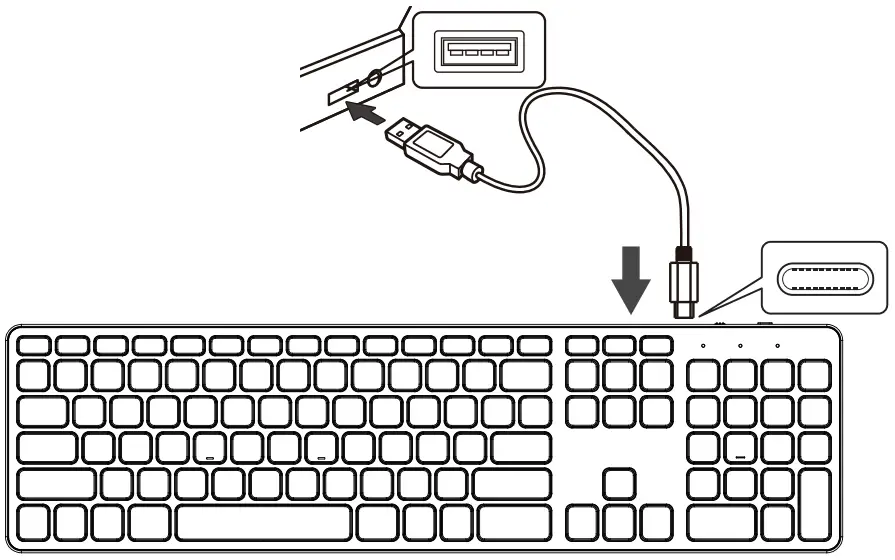

1. Plug PERIBOARD-816 into a computer

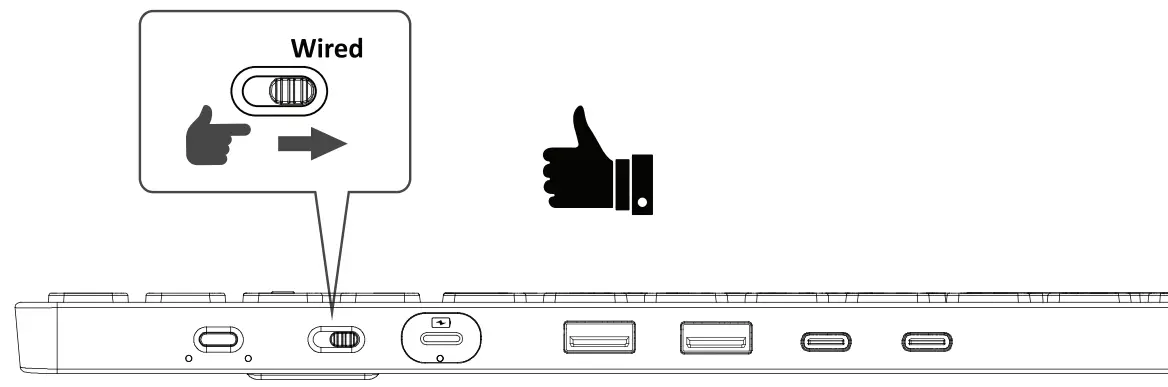

2. Switch to Wired
Wireless Connection
– Windows Bluetooth

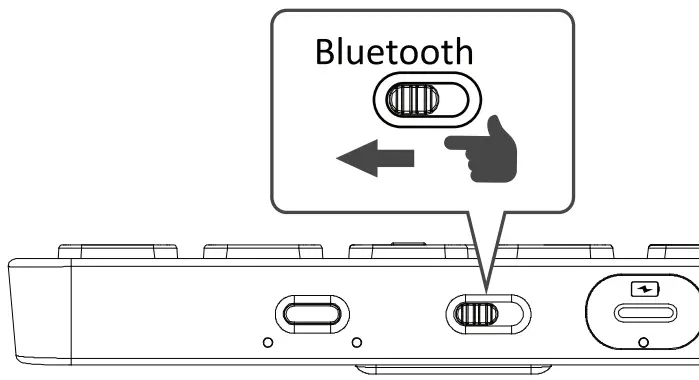

- Switch to Bluetooth

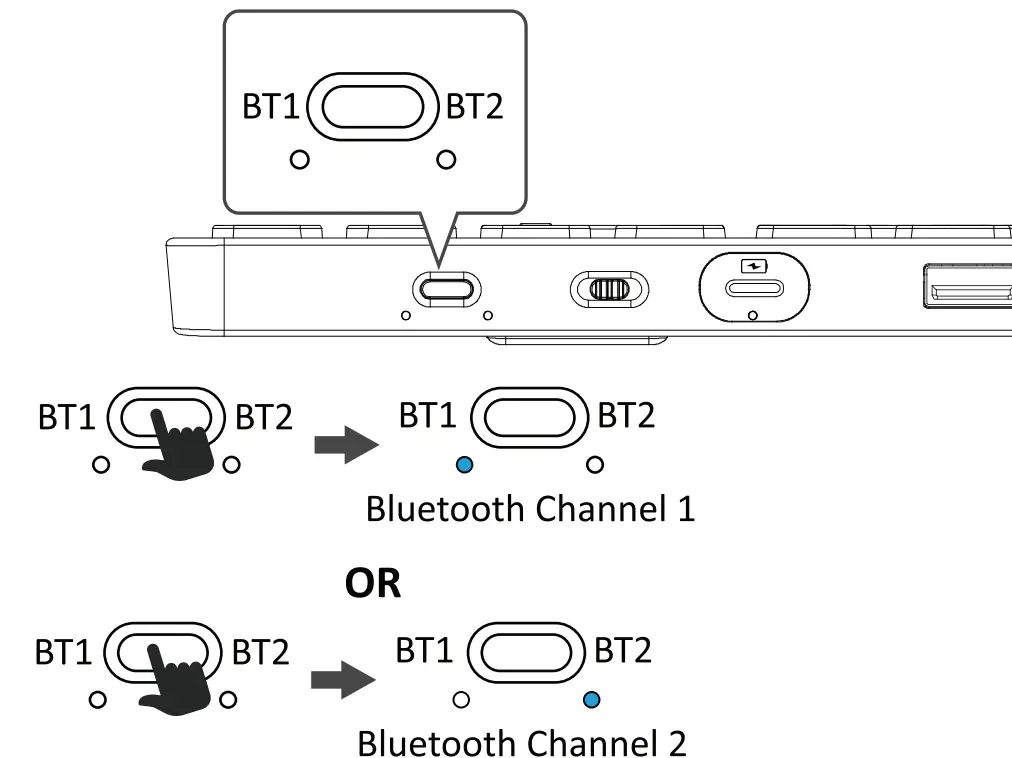

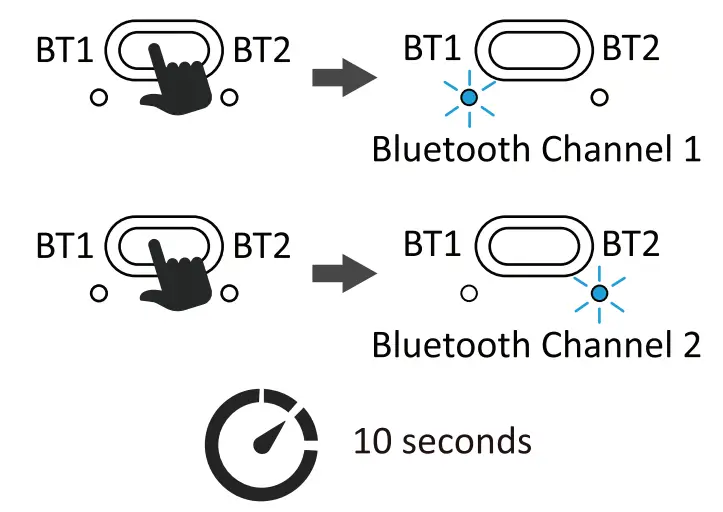

- Press the button to choose one Bluetooth channel that you want to connect

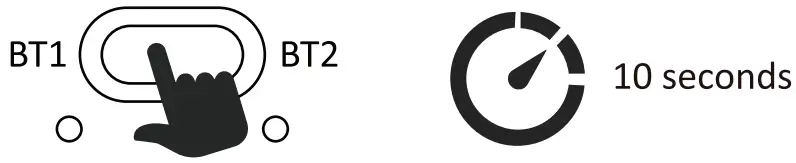

- Long press the button for 10 seconds

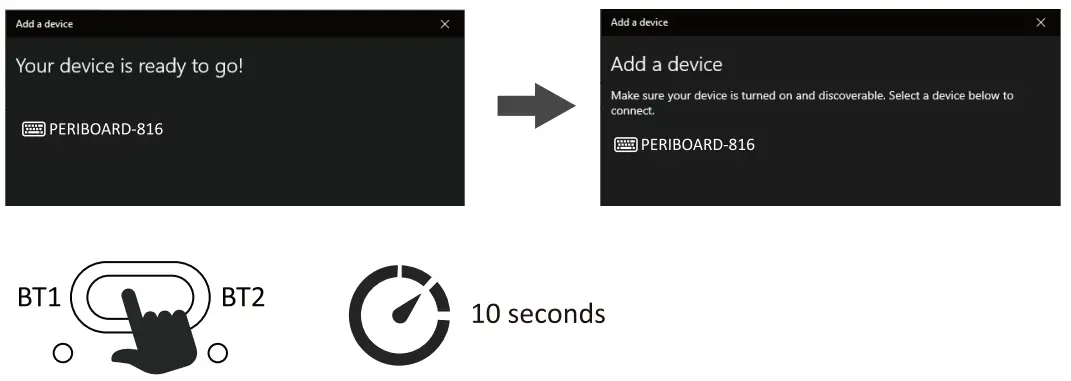

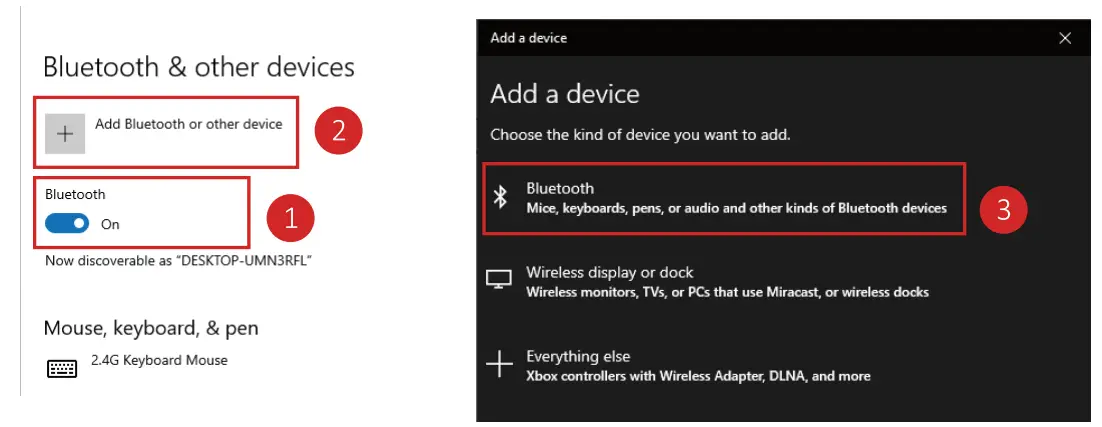

- Start -> Settings -> Devices -> Bluetooth & other devices
- If there’s no PERIBOARD-816 on the list, please press the Bluetooth pairing button again for 10 seconds.
– Mac Bluetooth
- Switch to Bluetooth

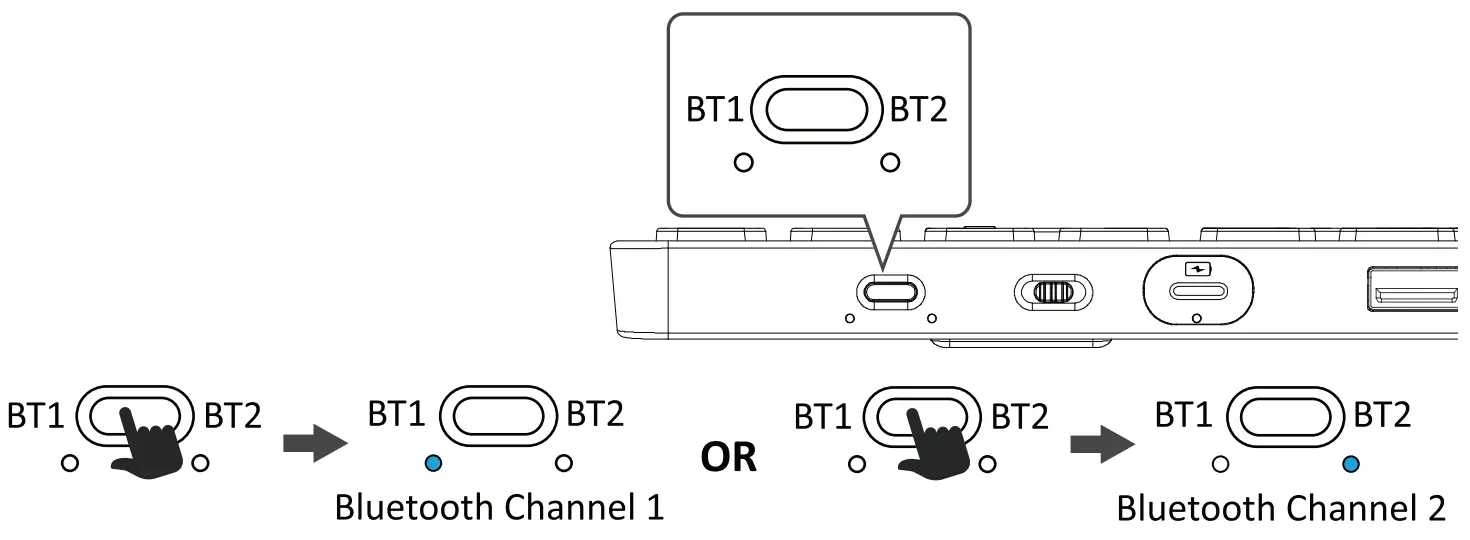

- Press the button to choose one Bluetooth channel that you want to connect

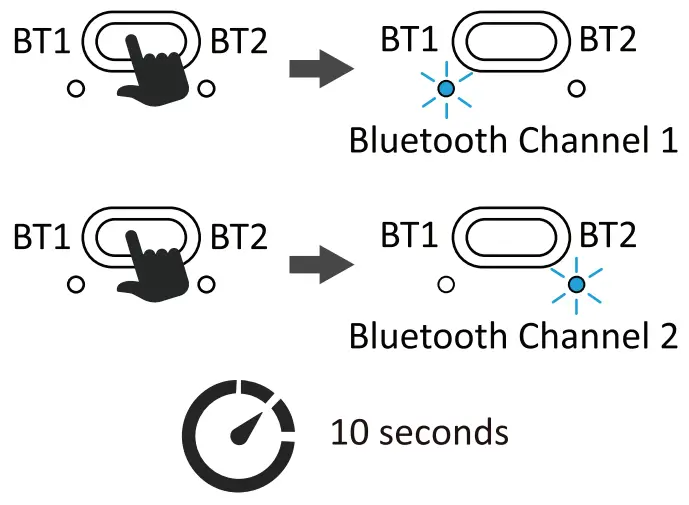

- Long press the button for 10 seconds

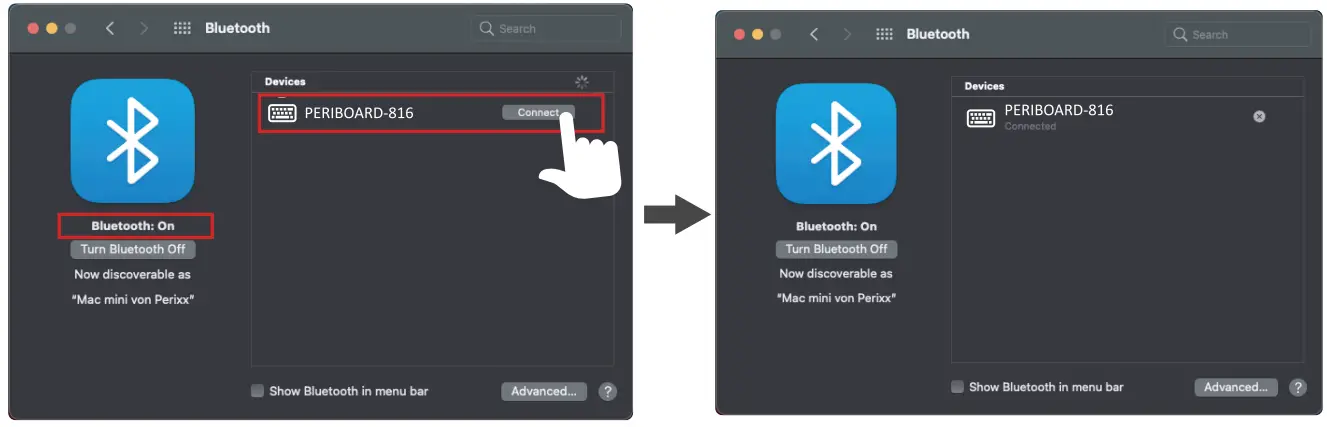

- Apple Menu-> System Preferences -> Bluetooth
If there’s no PERIBOARD-816 on the list, please press the Bluetooth pairing button again for 10 seconds.
If the Bluetooth pairing fails, please remove PERIBOARD-816 from the list of paired devices and redo it from Step-1.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE 1:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Caution
- The manufacturer and re-resellers are not responsible for any technical malfunctions, damage, or personal injury incurred by:
► Any attempt to dismantle, change or modify the product in any manner
► Malfunction or damage is due to misuse or improper alteration or repair
► Malfunction or damage caused by external influence such as falling
► Malfunction or damage is caused by fire, salt, gas, earthquake, lightning, wind, water, or other natural calamities, or abnormal voltage
► Malfunction or damage is caused by other devices connected to the products
► Malfunction or damage is caused by high temperature, humid, greasy, dusty, and hazardous environment - You are cautioned that changes or modifications not expressly approved by Perixx Computer GmbH could void your authority to operate the equipment.
- All brand names, trademarks, and logos are the properties of their respective owners.
Please Note:
Long-term repetitive use of any keyboard and mouse could cause injury to the user. Perixx recommends users avoid excessive use of this or any keyboard and mouse.
Important Safety Instructions:
- Avoid dropping
- Do not disassemble
- This product is suitable for moderate climates only
- The maximum ambient temperature during use of this product must not exceed 40 degree
- Open flame sources, such as candles, must not be placed on this product
- Only use a dry cloth or brush to clean this product
Perixx offers a one-year limited warranty with an optional one-year extension.
Specification
| Interface | USB Type-A/USB Type-C/BT5.1 |
| Size | 428*117*16mm |
| Weight | 510±5g |
| Cable Length | 1800mm(USB Type-C to USB Type-A) 1000mm(USB Type-C to USB Type-C) |
| Input current | 3.0V-4.2V/1.5mA |
| Material | ABS |
| Operating System Requirements | Win 7 or later |
| Number of keys | 107 keys (US layout) 108 keys (EU layout) |
| Type of keyboard | Scissor-switch |
| Actuation distance | 1.2±0.2mm |
| Total travel distance | 1.6±0.2mm |
| Durability | 3 million keypresses |
| Operating Temperature | 0°C-40°C |
| Storage Temperature | -20°C-65°C |
Sleep mode/Backlight sleep mode
| Sleep mode | Backlight sleep mode | |
| Y/N | Yes, after 30 minutes | Yes, after 1 minute |
| How to wake up the keyboard | Click | Click |
Power and Battery
| Battery Type | USB-C rechargeable Li-Po (780mAH) battery | Charging Current | 180mA (±20mA) |
| Battery Life | Up to 5 days of typical device usage with backlighting turned off At 50% brightness of the backlight: 5 hours At 100% brightness of the backlight: 3 hours | Charging Time | 6 hours |

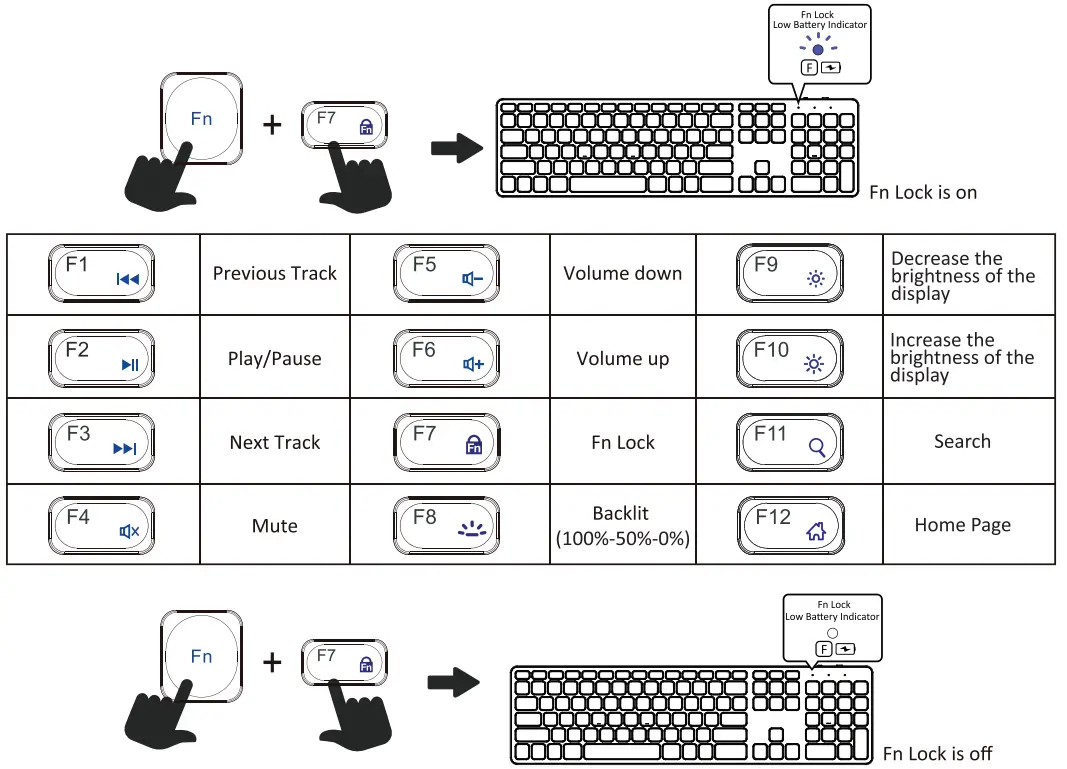

Multimedia keys
***Please press “Fn + Fn Lock” before using multimedia keys.
| Equipment name PERIBOARD-816 Type designation (Type) | ||||||
| Unit | Restricted substances and its chemical symbols | |||||
| Mead (Pb) | Mercury (Hg) | Cadmium (Cd) | Hexavalent chromium Cr+6 | Polybrominated biphenyls (PBB) | Polybrominated diphenyl ethers (PBDE) | |
| 0 | 0 | 0 | 0 | 0 | 0 | |
| 0 | 0 | 0 | 0 | 0 | 0 | |
| 0 | 0 | 0 | 0 | 0 | 0 | |
| 0 | 0 | 0 | 0 | 0 | 0 | |
| Note 1 : “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. Note 2 : “0” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 3 : The ” – ” indicates that the restricted substance corresponds to the exemption | ||||||
