Pallet scale KERN UFN
KERN BALANCES & TEST SERVICES 2022

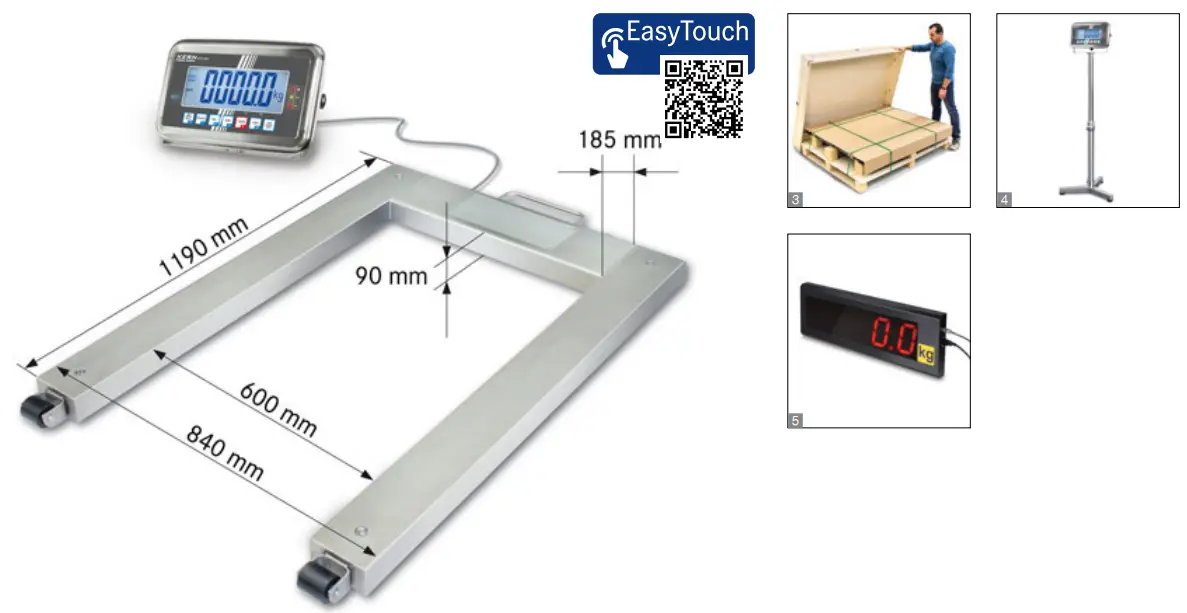

Pallet scale with stainless steel load support (IP67) and the stainless steel display device (IP65), with EC type approval [M]
Features
- High mobility: thanks to rechargeable battery operation, and compact, lightweight construction, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
- Load support: stainless steel,, extremely resistant to bending due to material thickness, 4 silicone-coated stainless steel load cells, protection against dust and water splashes IP67, weighing bridge can also be delivered as a component without the display device, for details see KERN KFU-V30
- Your support in a HACCP-compliant quality system · Suitable for the ever-increasing hygienic requirements in the food industry
- 2 Display device: for details see KERN KFN-TM
- The scale can be easily transported using rollers and a handle and does not require much storage space
- Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
- Weighing with tolerance range (check to weigh): A visual and audible signal assists the rapid checking of items on palettes
- Totalising of weights · Internal rechargeable battery pack included with delivery
- 3 Did you know? Our floor scales are delivered in a robust wooden box. This protects the high-quality weighing technology from environmental influences and stresses during transportation. KERN – always one step ahead
Technical data
- Large backlit LCD display, digit height 52 mm
- Dimensions of display device W×D×H 266×165×96 mm
- Cable length of display device approx. 5 m
- Net weight approx. 50 kg
- Permissible ambient temperature -10 °C/40 °C
Accessories
- 4 Stand to elevate display device, the height of stand approx. 800 mm, KERN BFN-A04
- Internal rechargeable battery pack, operating time up to 35 h without backlight, charging time approx. 10 h, KERN GAB-A04 · RS 232 data interface including interface cable, KERN KFN-A01
- Bluetooth data interface must be ordered at purchase, KERN KFB-A03
- Analog module, 0–10 V: KERN KFB-A04 4–20 mA: KERN KFB-A05
- 5 Large display with superior display size, only in combination with data interface KFN-A01, KERN YKD-A02
- Cable with special length 15 m, between display device and platform, for verified models which must be ordered at the time of purchase, KERN BFB-A03
- For further details, plenty of further accessories and suitable printers see Accessories
Limited tare range with verifiable models 1/6 from [Max]
Shipment via freight forwarder. Please ask for dimensions, gross weight, shipping costs
Optionally configurable with IP68 display the device on request, details see chapter 13
| Model | Weighing capacity | Readability | Minimal load | Option | ||||
| = Verification value | Verification | DAkkS Calibr. Certificate | ||||||
| [Max] | [d] = [e] | [Min] | DAkkS | |||||
| KERN | kg | kg | kg | KERN | KERN | |||
| UFN 600K200IPM | 600 | 0,2 | 4 | 965-230 | 963-130 | |||
| UFN 1.5T0.5IPM | 1500 | 0,5 | 10 | 965-230 | 963-130 | |||
| Note: For applications that require verification, please order verification at the same time, initial verification at a later date is not possible. | ||||||||
| For verification at the factory, we need to know the full address of the location of use. | ||||||||
Pictograms
 | Internal adjusting: Quick set up of the balance‘s accuracy with internal adjusting weight (motor dr ) iven |
 | Adjusting program CAL: For a quick setup of the balance‘s accuracy. External adjusting weight required |
 | Easy Touch: Suitable for connection, data transmission and control through a PC or tablet. |
 | Memory: Balance memory capacity, e.g. for article data, weighing data, tare weights, PLU, etc. |
 | Alibi memory: Secure, electronic archiving of weighing results, complying with the 2014/31/EU standard. |
 | Data interface RS-232: To connect the balance to a printer, PC or network |
 | RS-485 data interface: To connect the balance to a printer, PC or other peripherals. Suitable for data transfer over large distances. Network in bus topology is possible |
 | USB data interface: To connect the balance to a printer, PC or other peripherals |
 | Bluetooth* data interface: To transfer data from the balance to a printer, PC or other peripherals |
 | WiFi data interface: To transfer data from the balance to a printer PC or other peripherals |
 | Control outputs (optocoupler, digital I/O): To connect relays, signal lamps, valves, etc. |
 | Analog interface: to connect a suitable peripheral device for analog processing of the measurements |
 | Interface for second balance: For direct connection of a second balance |
 | Network interface: For connecting the scale to an Ethernet network |
 | KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers, and other digital systems curb Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers, and other digital systems |
 | GLP/ISO log: The balance displays the serial number, user ID, weight, date, and time, regardless of a printer connection |
 | GLP/ISO log: With weight, date, and time. Only with KERN printers. |
 | Piece counting: Reference quantities are selectable. The display can be switched from piece to weight |
 | Recipe level A: The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed out |
 | Recipe level B: Internal memory for complete recipes with the name and the target value of the recipe ingredients. User guidance through display |
 | Totalizing level A: The weights of similar items can be added together and the total can be printed out |
 | Percentage determination: Determining the deviation in % from the target value (100 %) |
 | Weighing units: Can be switched to e.g. non-metric units. See balance model. Please refer to KERN‘s website for more details |
 | Weighing with tolerance range: (Checkweighing) Upper and lower limiting can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model |
 | Hold function: (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value |
 | Protection against dust and water splashes IPxx: The type of protection is shown in the pictogram. |
 | Suspended weighing: Load support with a hook on the underside of the balance |
 | Battery operation: Ready for battery operation. The battery type is specified for each device |
 | Rechargeable battery pack: Rechargeable set |
 | Universal plug-in power supply: with universal input and optional input socket adapters for A) EU, CH, GB; B) EU, CH, GB, USA; C) EU, CH, GB, USA, AUS |
 | Plug-in power supply: 230V/50Hz in standard version for EU, CH. On request GB, USA, or AUS version available |
 | Integrated power supply unit: Integrated into balance. 230V/50Hz standard EU. More standards e.g. GB, USA, or AUS on request |
 | Weighing principle: Strain gauges: The electrical resistor on an elastic deforming body |
 | Weighing principle: Tuning fork: A resonating body is electromagnetically excited, causing it to oscillate |
 | Weighing principle: Electromagnetic force compensation: The coil is inside a permanent magnet. For the most accurate weighings |
 | Weighing principle: Single-cell technology: Advanced version of the force compensation the principle with the highest level of precision |
 | Verification possible: The time required for verification is specified in the pictogram |
 | DAkkS calibration possible (DKD): The time required for DAkkS calibration is shown in days in the pictogram |
 | Factory calibration (ISO): The time required for Factory calibration is shown in days in the pictogram |
 | Package shipment: The time required for internal shipping preparations is shown in days in the pictogram |
 | Pallet shipment: The time required for internal shipping preparations is shown in days in the pictogram |
