Anko 43117161 Slim Line Scales Instruction Manual

SLIMLINE SCALE
INSTRUCTIONS FOR USE

ISO 90001 CERRTIFIED BY SGS

MAIN FUNCTION

1. With high precision load cell
2. Water & milk volume measuring function.
3. Low battery and overloaded warning function.
4. Zero & tare function.
5. Auto-off function


   Division for high precision scale
   0.2g≤m<200g	d=0.1 g
   200g≤m< 1000g	d=0.5g
   1000g≤m≤3000g (5000g)	d=1 g

The above table is indicative only. Each product differs from one to another. For actual division, please refer to the product label.

TO REPLACE BATTERY AND CHARGE

3 x 1.5V(AA/AAA) batteries(excluded) Open the battery cover. Install new batteries by putting one side of the battery down first and pressing down the other side. (Please observe the polarity)

BUTTONS FUNCTION

MODE CHANGING, UNIT CHANGING BUTTONS:

ON/OFF, ZERO, TARE BUTTONS:

Note:

1. The above buttons are indicative only.
2. The UNIT button for some items is on the bottom of the scale, please set the unit there if needed.
3. Buttons UNIT and are indicative in this manual.

LED ICONS INDICATION

	Bluetooth connection		Zero Weight		Tare Weight
	Weight mode		Water mode		Milk mode
	Power		Negative Value		Volume unit(fl’oz)
	Weight unit(lb:oz)		Volume unit(ml)		Weight unit(g)

LED display differs from one to another, so the above icons are indicative only.

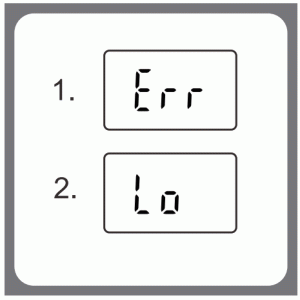

WARNING

OVERLOADED WARNING
When LED shows Err, it is overloaded ( Max capacity is shown on the product), please take off the loads to prevent damage to the scale.

LOW BATTERY WARNING
When LED shows Lo, battery power is low, please replace with a new battery (ies)

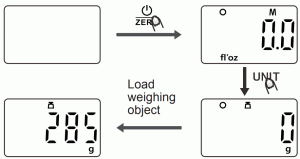

WEIGHING

1. Place the scale on a solid and flat surface. Place bowl (if any) on the scale.
2. Press the button to turn on the scale.
3. Start weighing when LED shows “0”. Press the UNIT button to convert to weighing mode.
4. Load weighing object on a scale(or bowl) to start weighing. LED will show the weight reading.

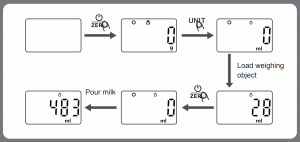

VOLUME MEASURING

1. Place the scale on a solid and flat surface.
2. Press the button to turn it on.
3. Press the UNIT button to convert the mode to water or milk volume mode when LED shows”0″.
4. Put a container onto the scale platform, LED shows the weight of the container.
5. Press the button for Zero or Tare.
6. Pour the liquid (water or milk) into the container, the LED shows the volume of the liquid.

MODE/UNIT TRANSFER

Press the UNIT button to switch the mode or unit you need after turning on the scale, it can be switched circularly.
There is a UNIT button on the base of the scale for some models, in this case, you need to set the unit with the UNIT button on the base.

Note: The unit system of scale depends on the scale destination or the requirement of the distributor.

ZERO & TARE FUNCTION

To weigh different loads consecutively without removing loads from the scale.
Put the first Load on the scale, get a weight reading. Press the button to reset the
LED reading to “0” before adding the next load. You can repeat this operation.

Condition 1: “ZERO” function
When total sum of all loads on scale ≤4% of scale’s max.weight capacity:
The LED will show —– or Og each time is pressed. —– means not stable, please wait for a moment. Og and meanwhile an icon o on the LED mean ZERO function is activated. Max. weight capacity remains unchanged.
(For example:
When capacity is 2000g, 4% is 80g;
When capacity is 5000g, 4% is 200g)

Condition 2: “TARE” function
When total sum of all loads on scale >4% of the scale’s max. weight capacity:
The LED will show —– or Og each time is pressed. —– means not stable, please wait for a moment. Og and meanwhile an icon T on the LED mean TARE function is activated. Max. Weight capacity is reduced by the total weight of all loads. (For example:
When capacity is 2000g, 4% is 80g;
When capacity is 5000g, 4% is 200g)

Under this condition:
By pressing , you can see the total weight of all loads on the scale. If you want to weigh more loads, just press to reset the LED reading to ‘0’ again.

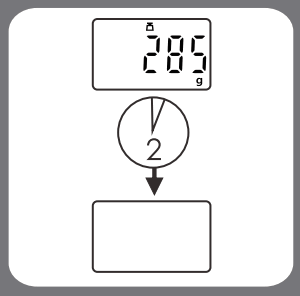

AUTO-OFF (BATTERY POWER-SAVING MODE)

If there is no operation or weight change in two minutes, the scale will be auto-off.

MANUALLY SHUT OFF

To maximize battery life, press and hold for seconds to turn off the scale after using.

ADVICE FOR USE & CARE

1. Clean the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical/corrosive cleaner. Keep the scale in a cool dry place.
2. All plastic parts should be cleaned immediately after contact with fats, spices, vinegar, and strongly flavored/colored foods. (Avoid contact with acid citrus juice.)
3. Always use the scale on a solid, flat surface, keep the scale unmoved when weighing.
4. This product is a precision instrument, please handle with care; Do not strike, shake or drop the scale.
5. I fail to turn it on, please check whether the battery(ies) are installed or battery power is low.
6. Keep away from high temperature, do not strip the scale arbitrarily.
7. Designed for family use only, not for commercial use.
