DANCO 62068 4 Inch Steel Floor Register
Instructions
Tools Required: Screw & Screwdriver (Not provided with kit)
- Refer to your OEM instructions on how to safely remove the old floor register.
- Remove your old floor register (A) and discard. Do not discard the old screws (B).
- Measure your floor duct opening size (C).
- Select the appropriate floor register for your need. Danco offers 4 different sizes.

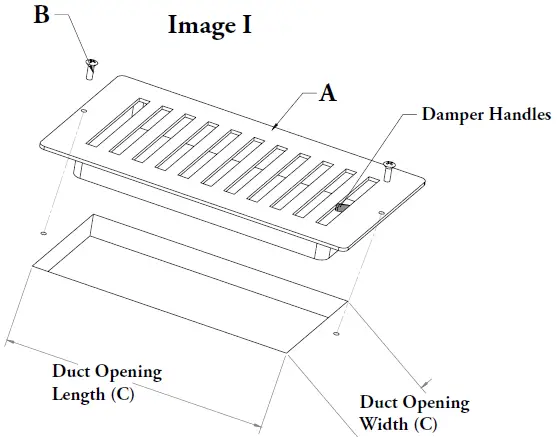

Always choose a size slightly bigger than the duct opening itself. For example, if your duct size is 3 ½” X 9 ¼” then choose the 4” width X 9 ¾” length (62068). - Install new register into your floor opening using the screws as shown on Image I.
Note: Some ducts don’t require the screws to hold register in place. If your duct opening doesn’t have screw holes, then simply set the register into the floor opening. - Adjust the damper handle as desired

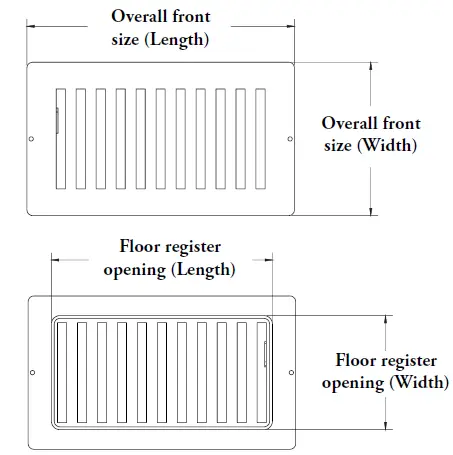

DIMENSION
Note: This dimension is what goes into the door duct opening
| Danco | Actual floor opening size | Overall front size | Depth |
| 62067 | 4″ width x 7-3/4″ length | 5-3/8″ width x 9-3/8″ length | 0.85″ |
| 62068 | 4″ width x 9-3/4″ length | 5-3/8″ width x 11-3/8″ length | 0.85″ |
| 62069 | 4″ width x 7-3/4″ length | 5-3/8″ width x 10-1/8″ length | 1.37″ |
| 62070 | 3-3/4″ width x 9-7/8″ length | 5-3/8″ width x 12-1/8″ length | 1.37″ |
©2022 Manufactured for Danco, Inc., Irving, TX 75062 62067i/62068i/62069i/62070i
