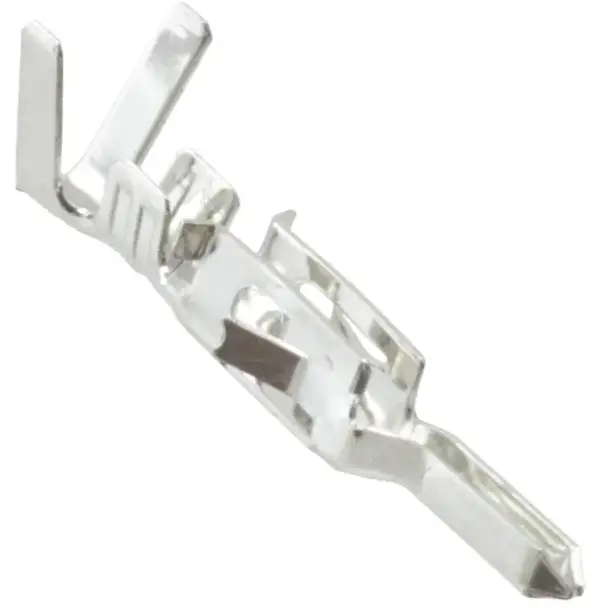

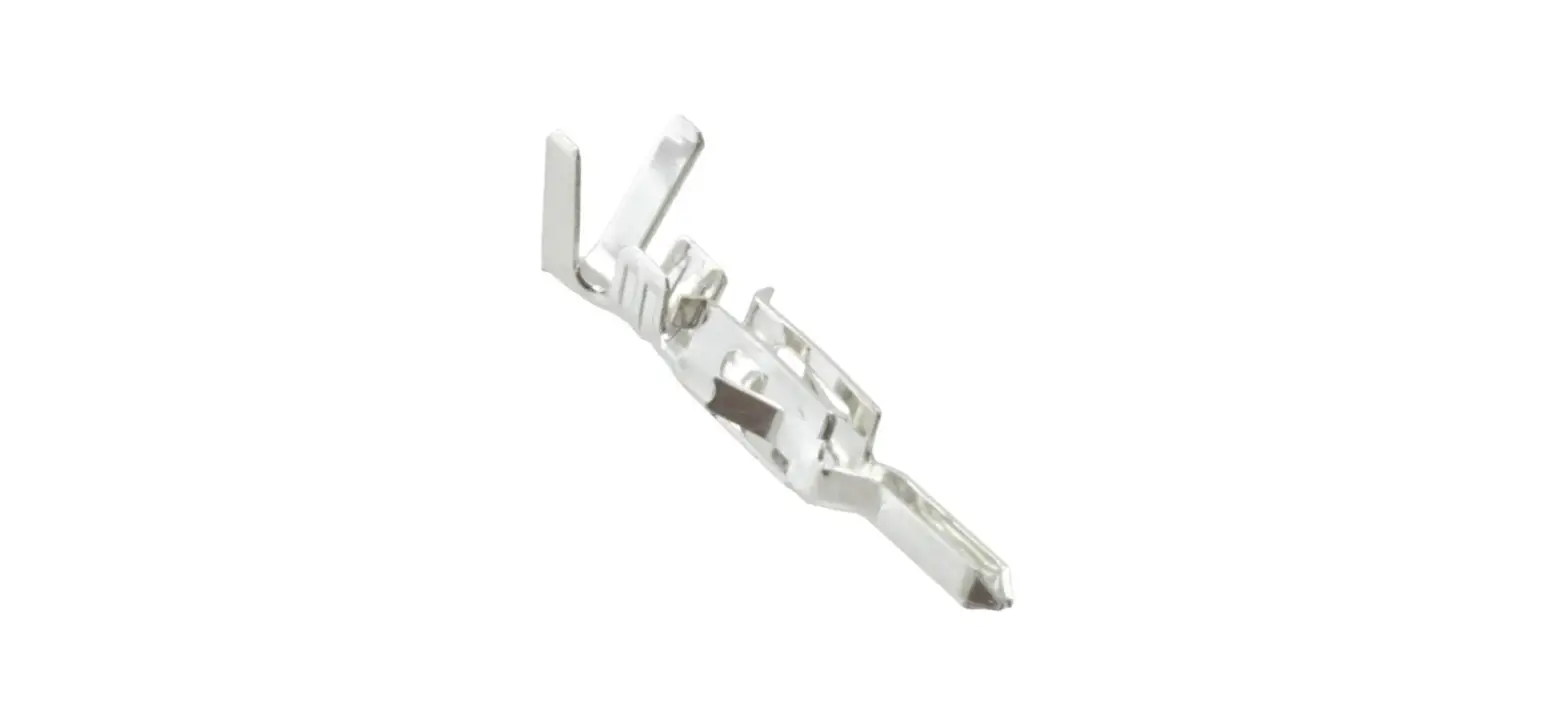

molex 0460121141 Mini Fit Plus Crimp Terminal
Part Number: 0460121141
Status: Active
Description: Mini-Fit Plus Crimp Terminal, 18-20 AWG, Reel, Tin (Sn) Plating
EU ELV Compliant
EU RoHS China RoHS
REACH SVHC
Not Contained Per -D(2020)9139-DC (19 Jan 2021)
Halogen-Free Status Low-Halogen
For more information, please visit Contact US
- China ROHS Green Image
- ELV Compliant
- RoHS Phthalates Not Contained
General
- Product Family Crimp Terminals
- Series 46012
- Application Power, Wire-to-Wire
- Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current de- rating information.
- Crimp Quality Equipment Yes
- Overview minifit_power_connector_solutions
- Packaging Alternative 460121142 (Bag)
- Product Name Mini-Fit Plus
- UPC 822350570435
Physical
- Durability (mating cycles max) 100
- Gender Male
- Material – Metal Copper Alloy
- Material – Plating Mating Tin
- Material – Plating Termination Tin
- Net Weight 0.145/g
- Packaging Type Reel
- Plating min – Mating 2.540µm
- Plating min – Termination 2.540µm
- Termination Interface: Style Crimp or Compression
- Wire Insulation Diameter 1.65-2.95mm
- Wire Size AWG 18, 20
- Wire Size mm² N/A
Electrical
- Current – Maximum per Contact 13.0A
- Voltage – Maximum 600V
- Solder Process Data
- Lead-freeProcess Capability N/A
Material Info
- Reference – Drawing Numbers
- Packaging Specification PK-46012-001-001
- Product Specification PS-45750-001-001
- Sales Drawing SD-46012-001-001
Search Parts in this Series 46012 Series
Use With
Mini-Fit Jr. Plugs 5559 <br> Mini-Fit MBI
Panel Mount Plugs 42475 <br> Mini-Fit TPA
Plugs 30068
Application Tooling FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document
Global Description Product
- Extraction Tool for Mini-Fit Jr. Terminals 11030044
- PremiumGrade Hand Crimp Tool for Mini-Fit Jr. Male and Female Terminals, 18-24 AWG 638190901
- FineAdjust Applicator for 18-20 AWG and 18-24 AWG Wires with
- Insulation Diameter 1.90-2.30mm 639015600
- FineAdjust Applicator for Insulation OD 1.40-1.70mm – 18-24 AWG 639023900
- FineAdjust Applicator for Insulation OD 2.50-2.95mm 639024800
- Optimized for 18 AWG Only
- FineAdjust Applicator for Insulation OD 2.30-2.60mm – 18-24 AWG 639024900
- FineAdjust Applicator for Insulation OD 2.50-2.95mm, 18-24 AWG 639047800
- FineAdjust Applicator for Insulation OD 1.65-2.05mm, 18-24 AWG 639048000
- T2 Terminator for insulation OD 1.90-2.30mm – 18-24 AWG 639115600
- T2 Terminator for insulation OD 1.40-1.70mm – 18-24 AWG 639123900
- T2 Terminator for insulation OD 2.50-2.95mm optimized for 18 AWG only 639124800
- T2 Terminator for insulation OD 2.30-2.60mm – 18-24 AWG 639124900
- T2 Terminator for Mini-Fit Crimp Terminals, 18-24 AWG with Large Insulation ODs 639147800
- T2 Terminator for Mini-Fit Crimp Terminals, 18-24 AWG with Smaller Insulation ODs
This document was generated on 06/09/2021
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
