SMART HOME LIGHTS
Fitting instructions
827808
230V /50 Hz
1x 24W LED-Board niche wechselbar /not changeable

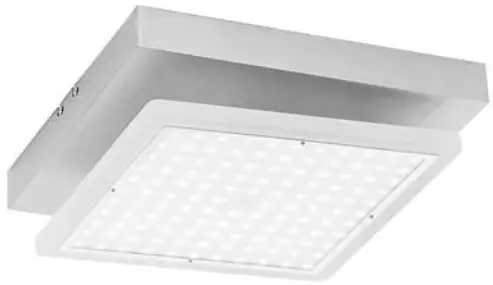

6032-55 Q-Vidal Ceiling Light
 | 24W |  |
| LED-Board | ||
| 2.500 I’m | ||
| 25.000 h | ||
| 3.000 K/RGBW | ||
| 15.000 x | ||
| <1s | ||
| dimmable with rrc |
Fitting
As ceiling light

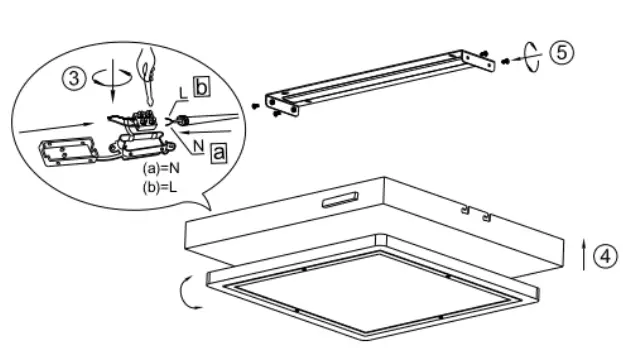

Electrical connection
230 voltage/50 Hz connection

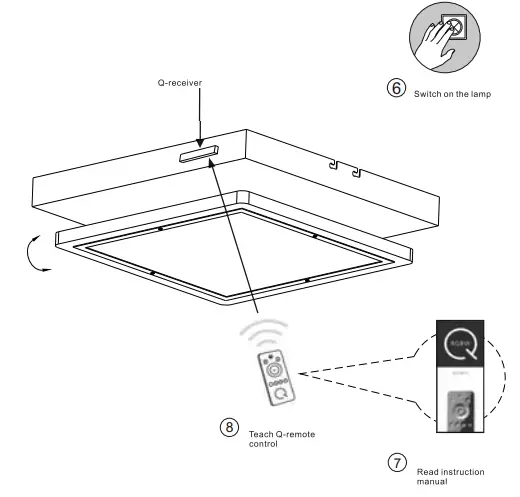

Teach remote control
See Q-remote control manual
 |  |
| https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4 | http://q.paul-neuhaus.de/ |

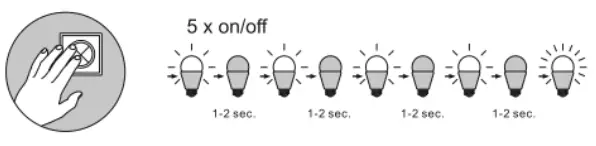

Reset
Reset the lamp, factory new
This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the Internet-address give below.
Paul Neuhaus GmbH
Olakenweg 36 D-59457 Werl
Telefon: +49 0 2922 9721 0
Telefax : +49 0 2922 9721 9120
E-mail: [email protected]
http://scm.paul-neuhaus.de/public/conformity/
