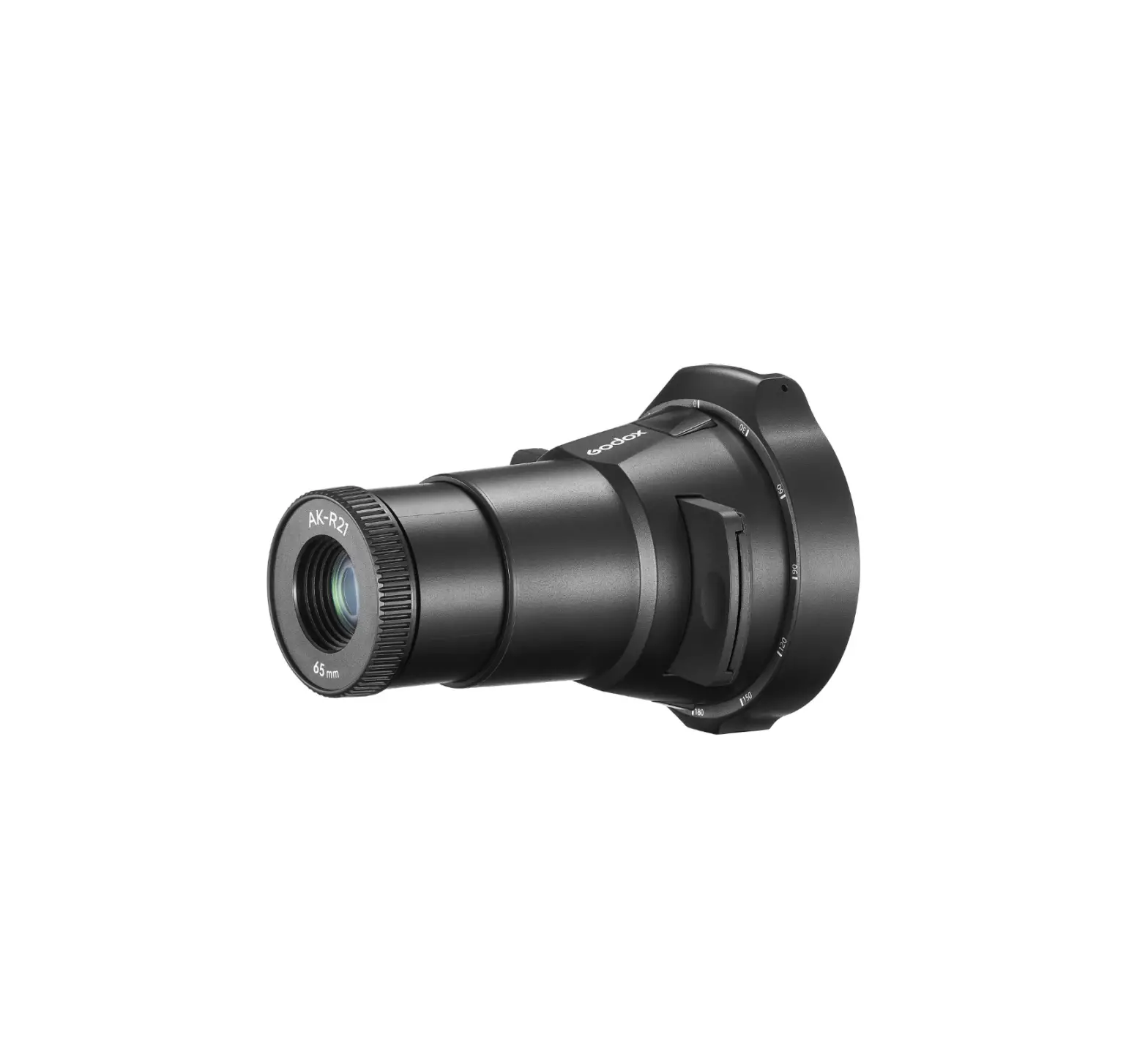

Godox AK-R21 Projection Attachment for Flash Heads

Foreword

Thank you for purchasing’
Projection Attachment for Flash Head AK-R21 is suitable for all Godox camera flashes with round head and most Godox camera flashes with square head, be able to create different effects such as beautiful scenes, fantasy space, special texture and art canvas when collocating with various slides.
Please read this manual carefully before using to make sure the correct operation and exert the optimum function.

Operation Instruction

1. When this projection attachment is collocated with V860II, V860III, TT685, TT685II and V1 series, Zoom should be set to the Max. value (Zoom=200mm).
2. When this projection attachment is collocated with AD1OOPro, Zoom should be set to the Max. value (Zoom=85mm).
3. Use within 1 /4+0.2 stop when collocating with AD200Pro of square flash head.
4. Use within 1 /2 stop when collocating with AD200Pro of round flash head.

Compatible Models

V860II, V860III, TT685, TT685II, V850III, Vl, ADlOOPro, AD200Pro
Note: An optional adapter holder AK-R25 is needed when collocating with square flash head.

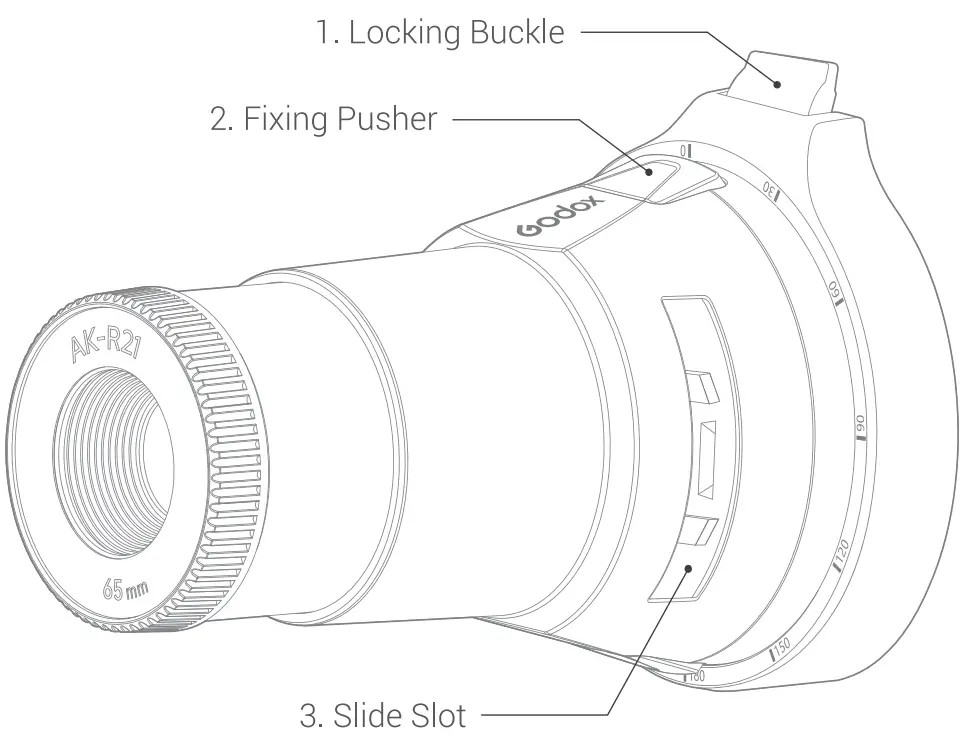

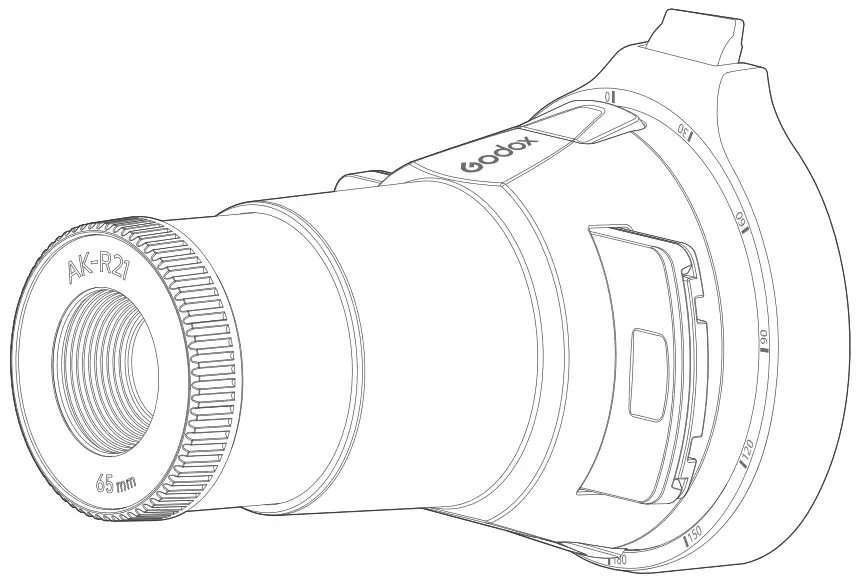

Name of Parts

What’s Inside

Adapter Holder•1

• LensAK-R23


• Lens AK-R24

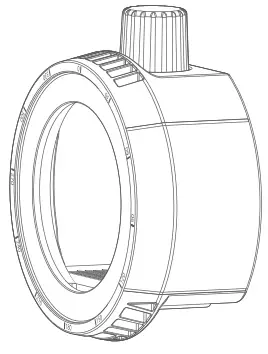

• Adapter Holder AK-R25



Installation Instruction (Take V1C as an example}

Aim the locking buckle of the adapter holder at the mount of V1C and insert it, then press down the locking buckle to fix it

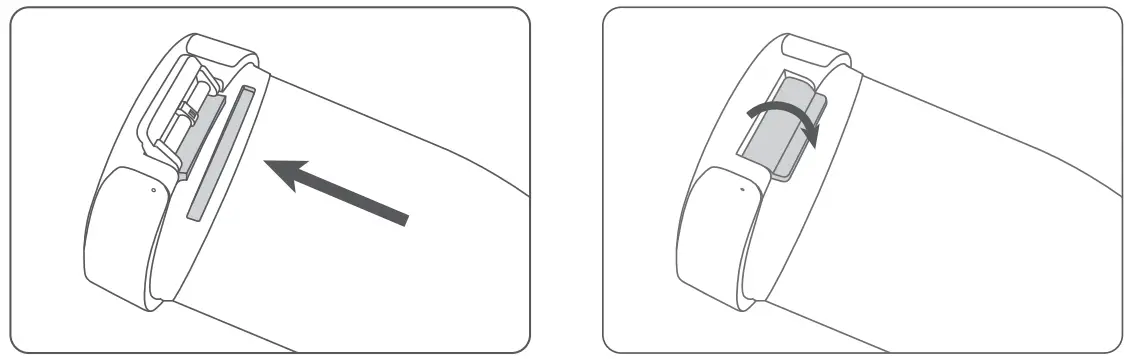

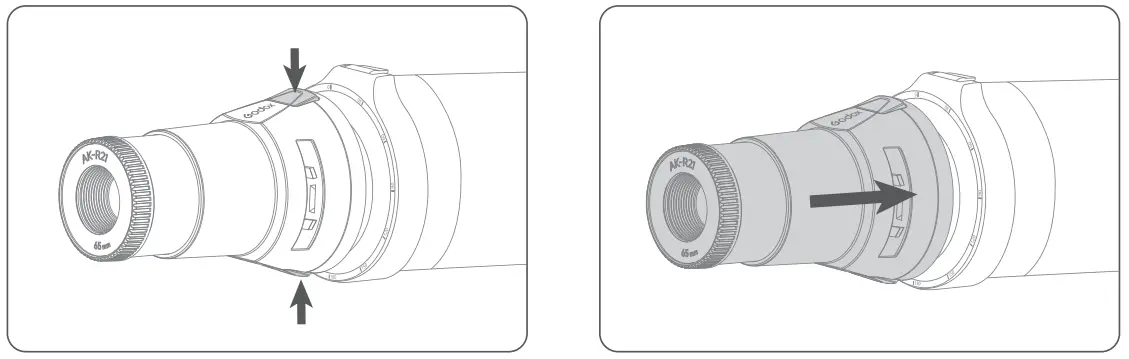

Press down the fixing pushers on the both sides, insert the adapter holder into the projection attachment then let go the pushers.

Technical Data

Specifications and data may subject to changes without notice.

Wechat Official Account

Customer Support
