IMI HEIMEIER Eclipse 300 Thermostatic Radiator Valves

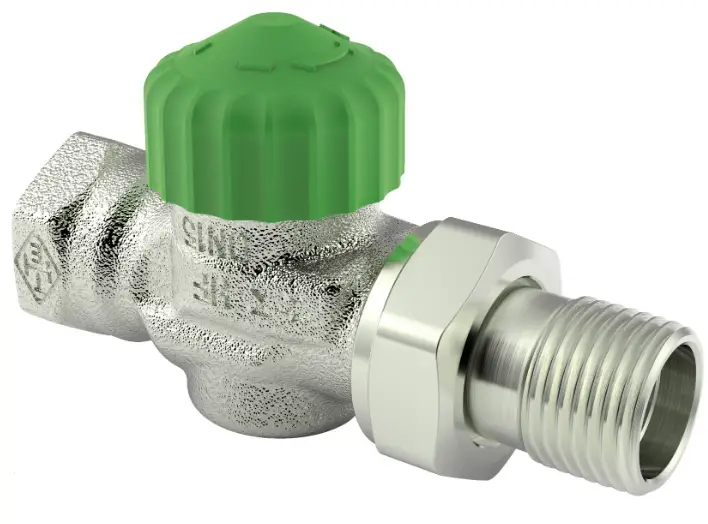

IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-product-img

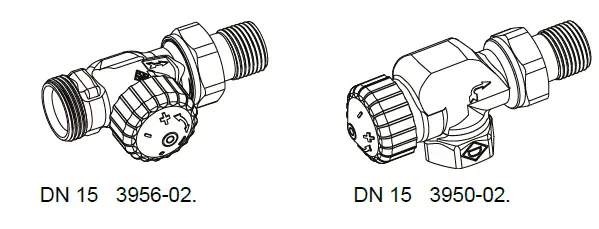

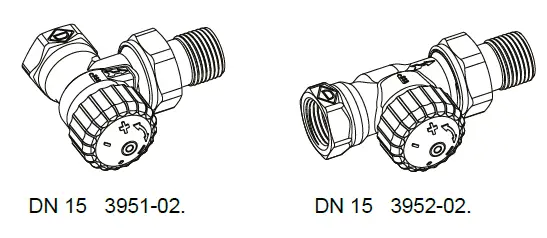

OVERVIEW

Eclipse 300IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (1)IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (2)

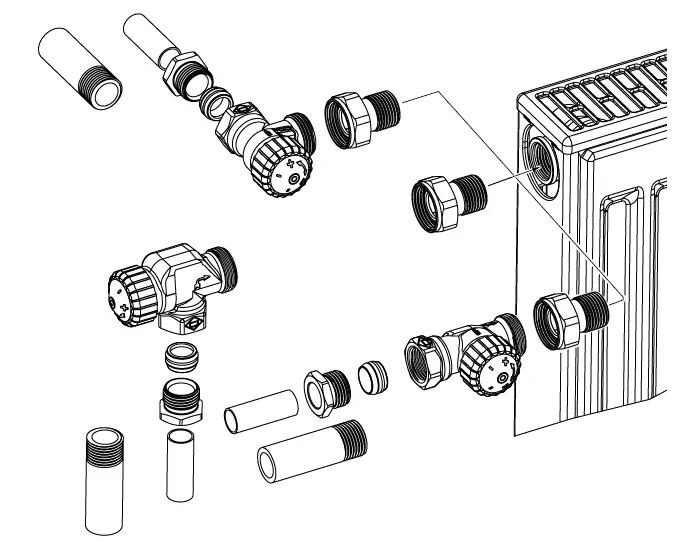

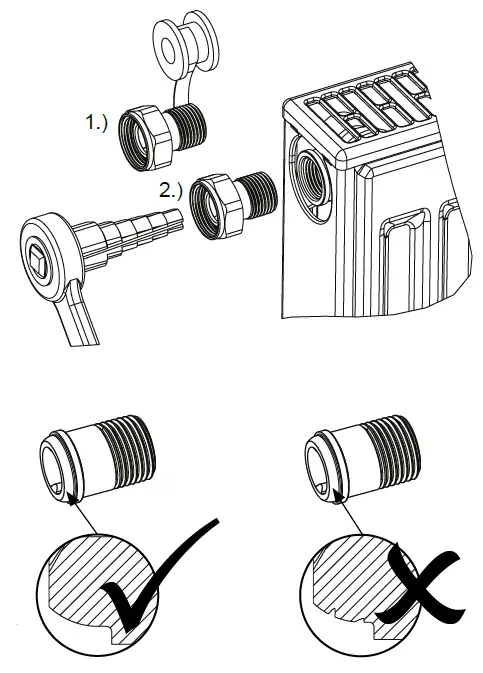

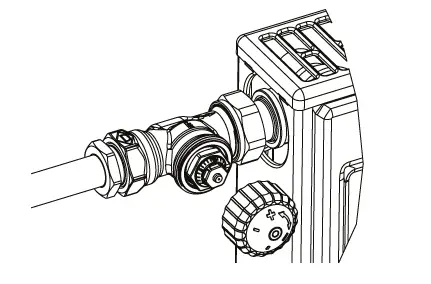

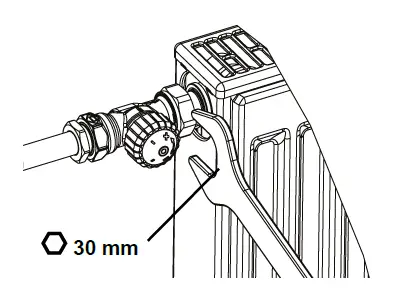

INSTALLATION

IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (3)IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (4)IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (5)IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (6)

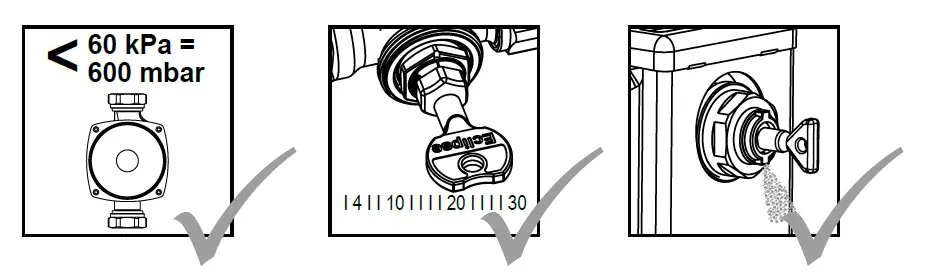

CAUTION

IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (7)

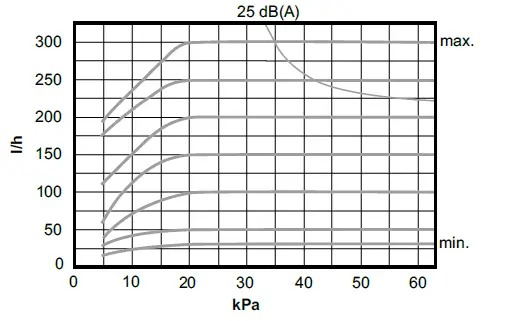

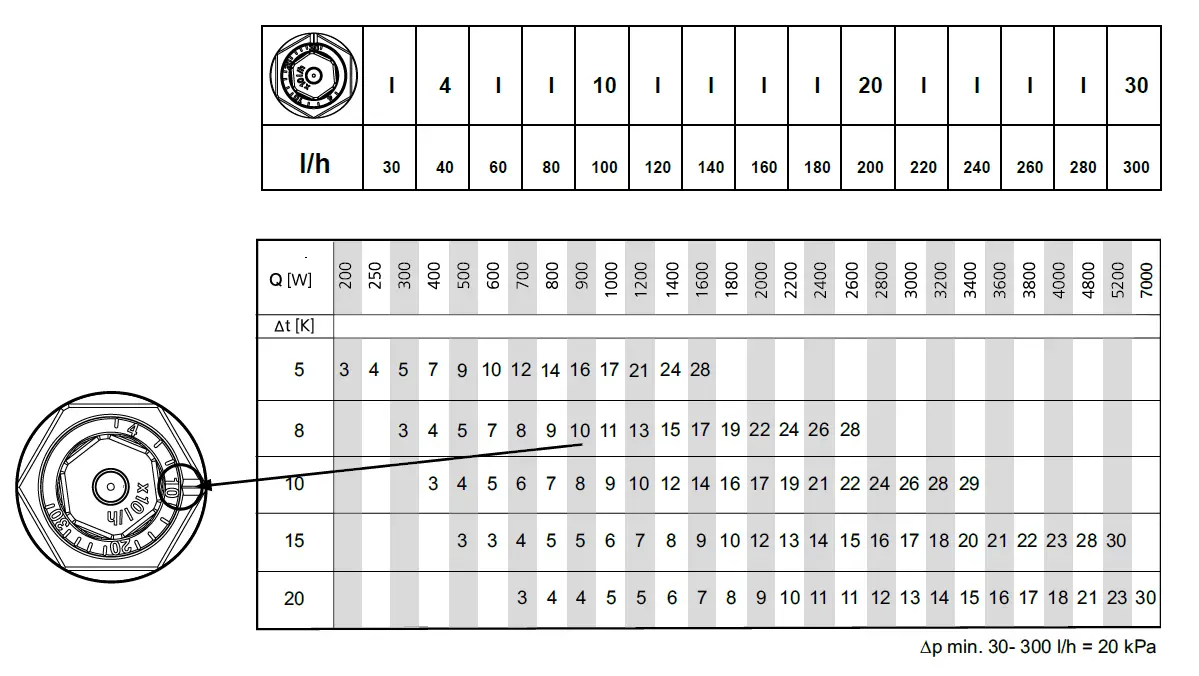

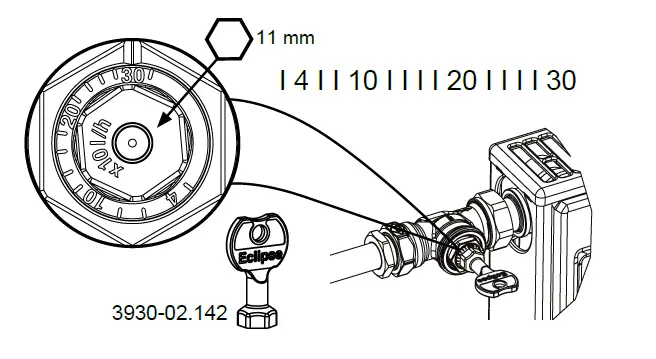

DIMENSION

IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (9)IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (8)IMI HEIMEIER-Eclipse-300-Thermostatic-Radiator-Valves-fig- (10)

We reserve the right to introduce technical alterations without previous notice.
IMI Hydronic Engineering Deutschland GmbH
Völlinghauser Weg
DE 59597 Erwitte
Tel.: +49 (0)2943 891-0
www.imi-hydronic.com
