FETTEC SW26 KISS FC Flight Controller Instruction Manual

Introduction

Thank you for purchasing the FETtec FC. This is a KISS licensed F7 Flight-controller

Features

KISS FC firmware
2S-6S Lipo voltage
Dimensions 35x30mm without 30×30 corners
20x20mm (with breakable holes M2 to M3)
30x30mm hole distance useable (breakable 30x30mm corners)
F7 Processor [DShot 2400, Oneshot, Onewire]
Direct places for RX and VTX (unify nano, CRSF nano, FrSky R9)
Build-in real Pit-Mode for unify nano (via VTX Pin and 5V on SER1)
Dedicated onboard 5V BEC for VTX (max 600mA)
Motor Signal and GND pads in each corner
8 pin connector for solder free FETtec ESC connection

Safety warning

Remove propeller before flashing and configuration

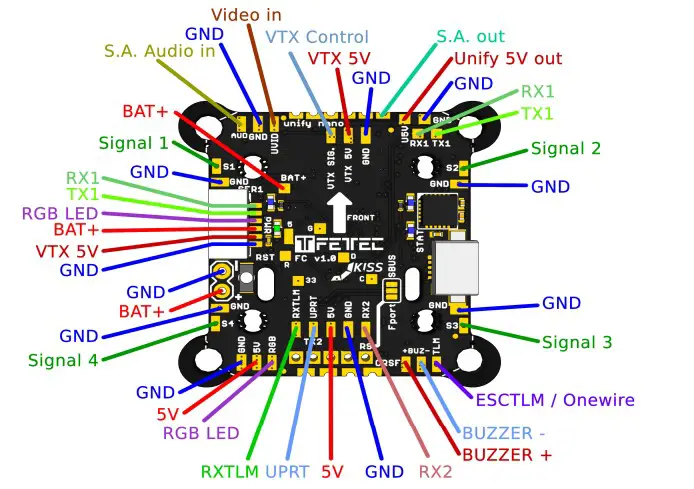

Connection Diagram

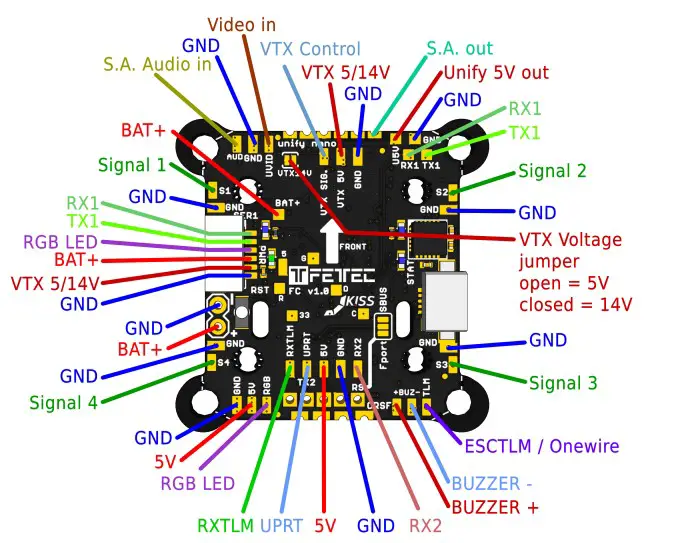

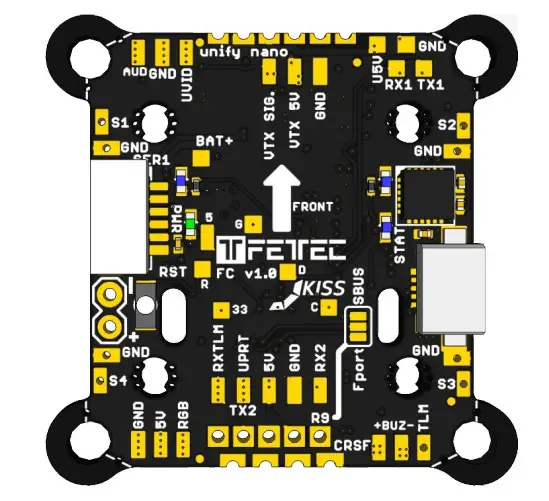

Top/Bottom Layout

Signal1-4 – Motor Signal 1-4
ESCTLM – Telemetry (Serial)
GND – Reference Signal Ground
UPRT – Receiver signal port (SBUS / F-Port / PPM / Crossfire TX)
RXTLM – Receiver telemetry (sPort / Crossfire RX)

Serial connectors (SER1&SER3) are JST-SH-1mm 6-pin

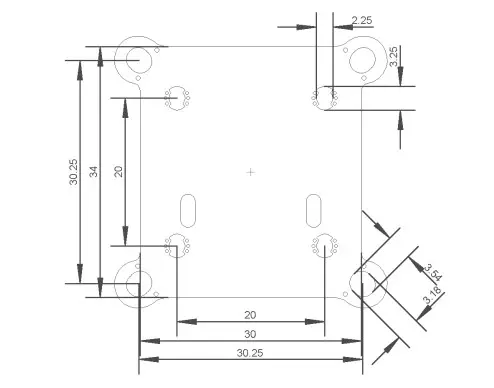

Dimension (in mm)

Dimensions 35x30mm without 30x30mm corners

20x20mm (with breakable holes M2 to M3)
30x30mm hole distance useable (breakable 30x30mm corners)

FC Version 1.2

Basic Setup

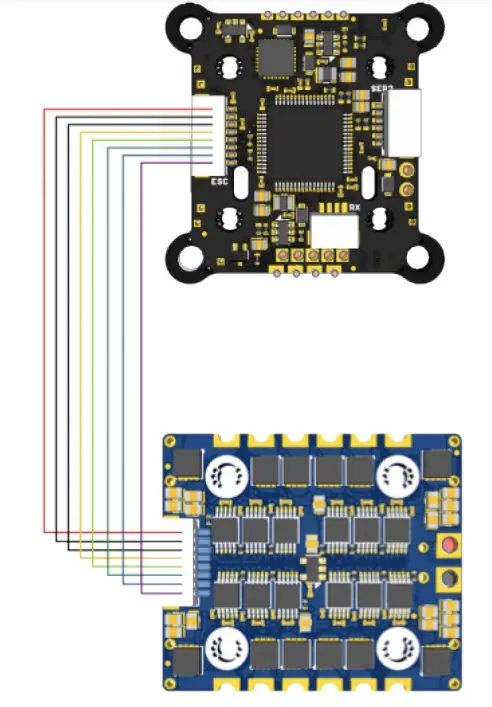

8 pin connection

(JST-SH-1mm 8-pin) FETtec KISS FC to FETtec ESC (cable included by FETtec ESC)

Introduction

Thank you for purchasing the FETtec FC. This is a KISS licensed F7 Flight-controller

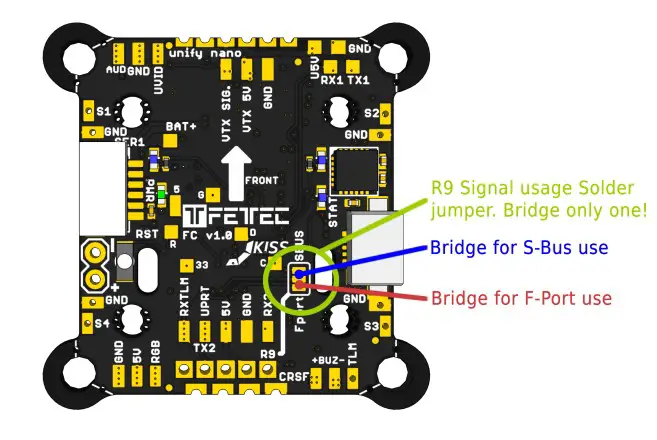

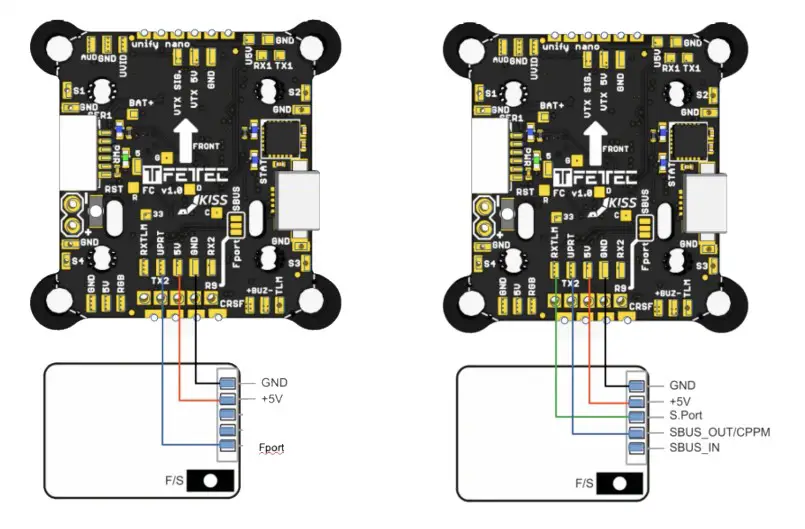

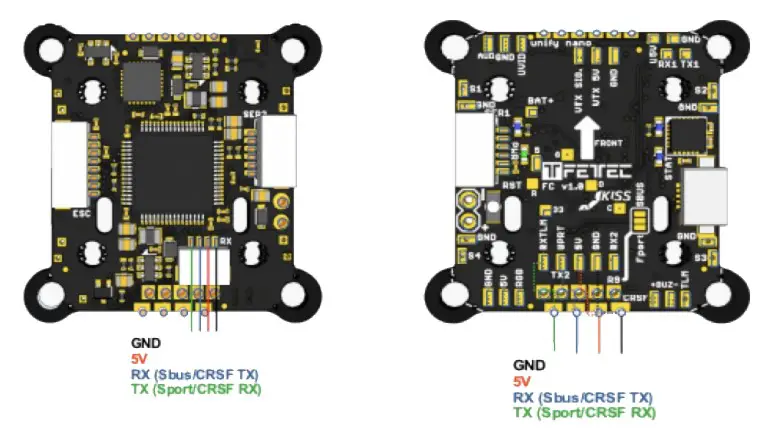

FrSky R-XSR

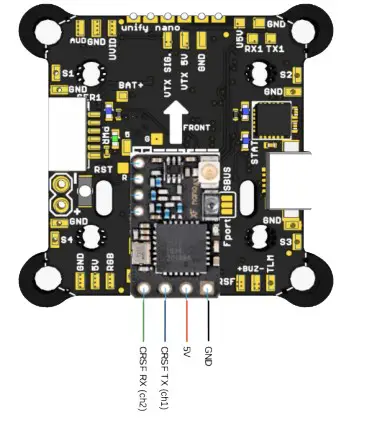

Crossfire nano connection

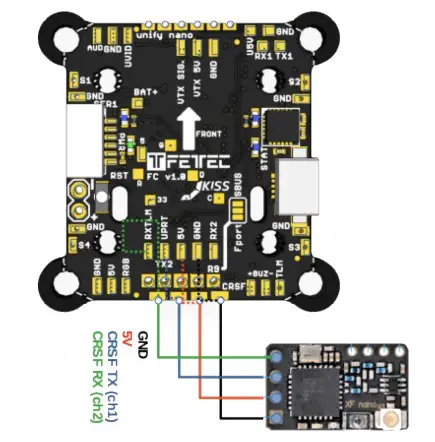

cable connection 2,54mm pinheader connection

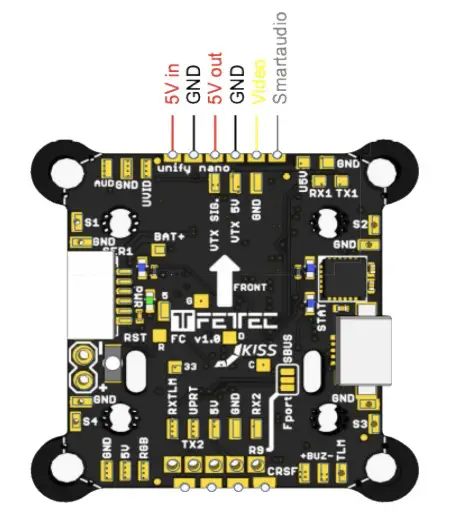

VTX connection (Unify nano)

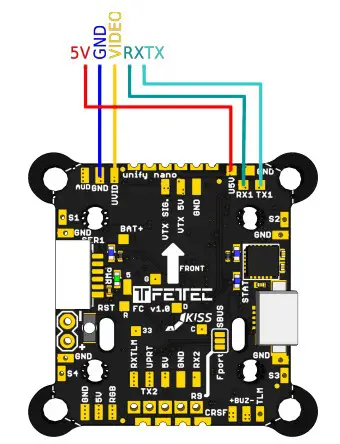

Camera connection

Notes:

RX and TX connection is only for cameras that support serial
5V (U5V) and Video (UVID) are only for use with a mounted unify PRO nano or unify PRO nano 32

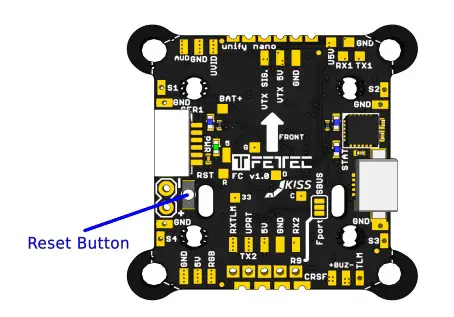

Resetbutton

Resets the FC to the preflashed bootloader

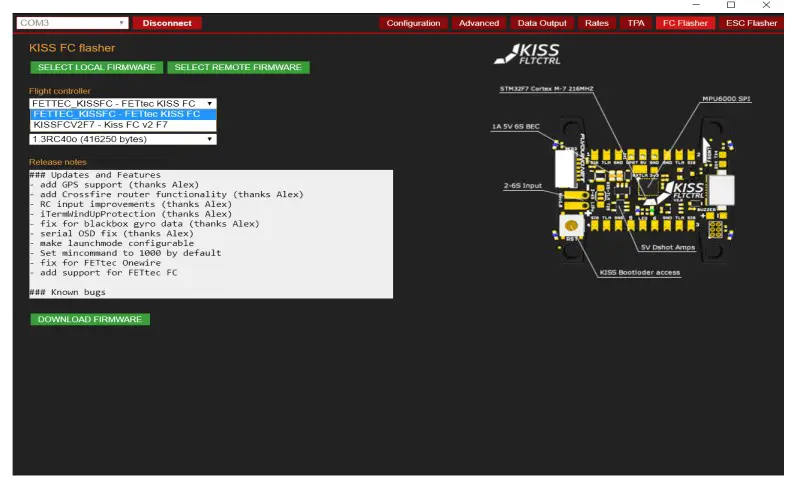

KISS Firmware

For the latest KISS FC firmware and GUI please visit https://github.com/flyduino
To update the FETtec FC firmware please use the KISS GUI and choose FETTEC KISS FC
