QUICK REFERENCE GUIDE > HBD1200E
External Blower
Series 7 | Professional
Stainless Steel
Date: 13.07.2022 > 1

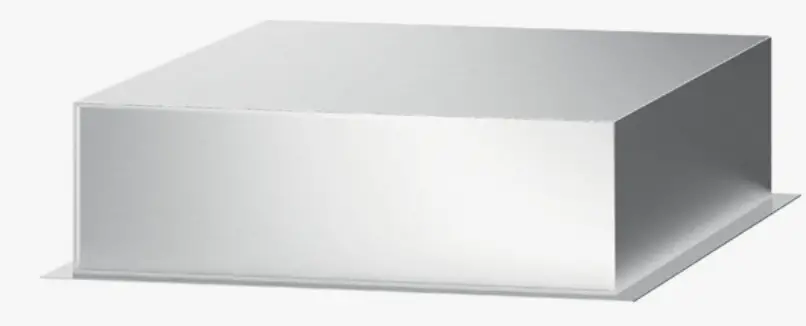

This remote external blower can be placed anywhere, working with a downdraft range hood to extract unwanted grease, smoke and odors.

Can be paired with a downdraft range hood such as HD36 or HD30
With the flexibility to be installed outside the kitchen for noise-free extraction
Powerful 1200CFM maximum airflow

Contents hide

1 DIMENSIONS

2 SPECIFICATIONS

3 Documents / Resources

3.1 References

4 Related Posts

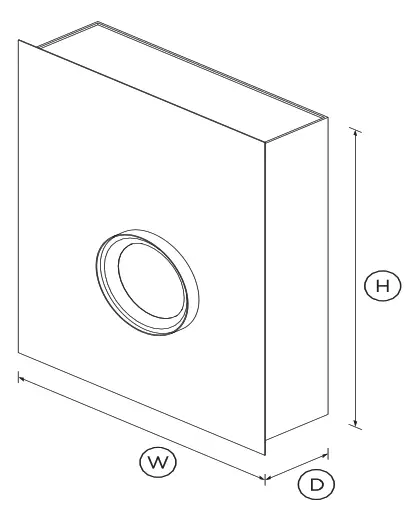

DIMENSIONS

Height	8 1/4″
Width	26 3/4″
Depth	33 1/4″

SPECIFICATIONS

Installation and cleaning

Air outlet size

10″”

Power requirements

Rated current	15A
Supply frequency	60Hz
Supply voltage	120V

Product dimensions

Depth	33 1/4″
Height	8 1/4″
Width	26 3/4″

Warranty

Parts and labour	Limited 2 years
SKU	50047

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
