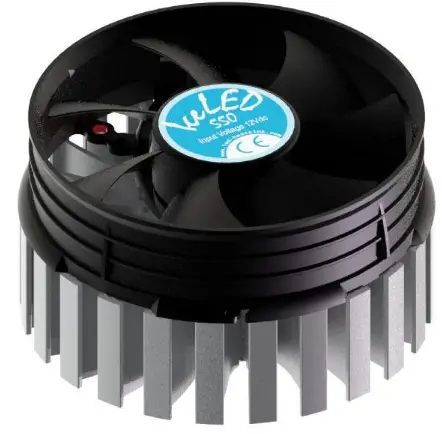

MechaTronix IceLED Ultra Active Star LED Cooler
Mounting Instruction
Patented, high performance Luminus LEDs are the brightest and most versatile solid state light sources available today, redefining the solid state lighting landscape by enabling the adoption of LED technology into emerging markets. Luminus technology is used in commercial and industrial lighting fixtures, theatrical lighting, projectors, signs, medical equipment, UV curing… just about anywhere a bright, efficient, reliable, long-life light source is needed.
Mounting indicator marks overview
MechaTronix recommends the use of a high thermal conductive interface between the LED module and the LED cooler. Either thermal grease, a thermal pad or a phase change thermal pad thickness 0.1-0.15mm is recommended. Thermal pads or phase change thermal pads can be preapplied from MechaTronix.

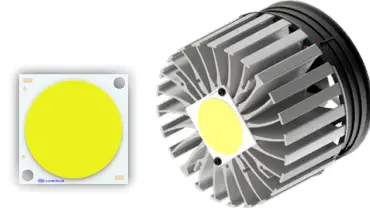

Luminus Gen 4 COB Array
Model names
- CXM-32
Mounting
- Direct mounting with 2 self tapping screws M3 x 6mm Red indicator marks

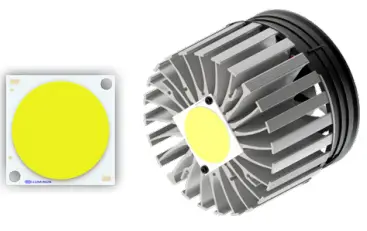

Luminus Gen 3 COB Array
Model names
- CXM-32 (AC
Mounting
- Direct mounting with 2 self tapping screws M3 x 6mm Red indicator marks

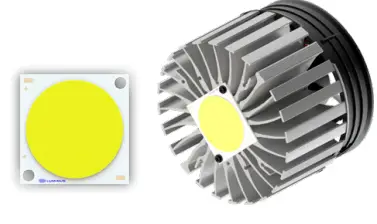

Luminus Studio COB Gen 4
Model names
- CVM-32
Mounting
- Direct mounting with 2 self tapping screws M3 x 6mm Red indicator marks
