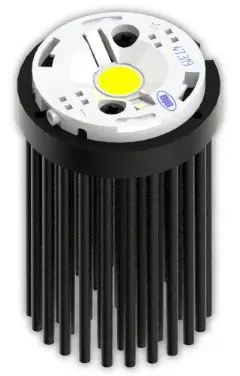

MechaTronix LPF4768-ZHP Luminus Pin Fin LED Cooler ø47mm
Mounting Instruction
Patented, high-performance Luminus LEDs are the brightest and most versatile solid-state light sources available today, redefining the solid-state lighting landscape by enabling the adoption of LED technology into emerging markets. Luminus technology is used in commercial and industrial lighting fixtures, theatrical lighting, projectors, signs, medical equipment, UV curing… just about anywhere a bright, efficient, reliable, long-life light source is needed.
Mounting indicator marks overview
MechaTronix recommends the use of a high thermal conductive interface between the LED module and the LED cooler. Either thermal grease, a thermal pad or a phase change thermal pad thickness 0.1-0.15mm is recommended. Thermal pads or phase change thermal pads can be preapplied from MechaTronix.

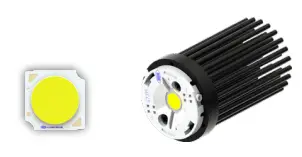

Luminus Gen 4 COB Array
Model names
- CXM-4 (Pico-COB)
- CXM-6
- CIM-9
- CLM-9
- CXM-9 (AC)
Mounting
- With Zhaga Book 3 LED holder Bender+Wirth 634a Mounting with 2 screws M3 x 6mm Green indicator marks
- With Zhaga Book 11 LED holder BJB spotlight connector 47.319.6060 BJB spotlight connector 47.360.1020 Ideal Industries Chip-Lok™ holder 50-2002CT Bender+Wirth 434 Typ 2 Mounting with 2 screwsM3 x 6mm Orange indicator marks
Model names
- CXM-9 (AA)
Mounting
- With Zhaga Book 11 LED holder Bender+Wirth 461 Typ 1 Mounting with 2 screws M3 x 6mm Orange indicator marks
Model names
- CIM-14
- CLM-14
Mounting
- With Zhaga Book 3 LED holder BJB spotlight connector 47.319.2021 Bender+Wirth 633a TE Connectivity Lumawise type Z50 2213254 Mounting with 2 screws M3 x 6mm Green indicator marks
- With Zhaga Book 11 LED holder BJB spotlight connector 47.319.6024 Mounting with 2 screwsM3 x 6mm Orange indicator marks

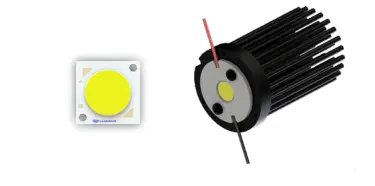

Luminus Gen 3 COB arrays
Model names
- CXM-6 (AC)
- CIM-9 (AC)
- CLM-9 (AC)
- CXM-9 (AC)
Mounting
- With Zhaga Book 3 LED holder Bender+Wirth 634a Mounting with 2 screws M3 x 6mm Green indicator marks
- With Zhaga Book 11 LED holder BJB spotlight connector 47.319.6060 BJB spotlight connector 47.360.1020 Ideal Industries Chip-Lok™ holder 50-2002CT Bender+Wirth 434 Typ 2 Mounting with 2 screwsM3 x 6mm Orange indicator marks
Model names
- CHM-9 (XD20)
Mounting
- With Zhaga Book 11 LED holder Bender+Wirth 461 Typ 1 Mounting with 2 screws M3 x 6mm Orange indicator marks
Model names
- CXM-11 (AC)
- CIM-14 (AC)
- CLM-14 (AC)
Mounting
- With Zhaga Book 3 LED holder BJB spotlight connector 47.319.2021 Bender+Wirth 633a TE Connectivity Lumawise type Z50 2213254 Mounting with 2 screws M3 x 6mm Green indicator marks
- With Zhaga Book 11 LED holder BJB spotlight connector 47.319.6024 Mounting with 2 screwsM3 x 6mm Orange indicator marks

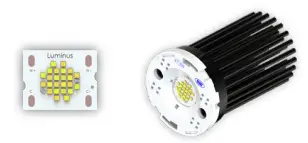

Luminus Dynamic COB Warm Dimming Modules
Model names
- CDM-9
Mounting
- With Zhaga Book 3 LED holder Bender+Wirth 490 Typ L8 Mounting with 2 screws M3 x 6mm Green indicator marks
- With Zhaga Book 11 LED holder BJB spotlight connector 47.319.6380 Mounting with 2 screwsM3 x 6mm Orange indicator marks
Luminus Dynamic COB Two Channel CCT Tunable Modules
Model names
- CTM-9
Mounting
- With Zhaga Book 3 LED holder Bender+Wirth 495 Typ L8 Mounting with 2 screws M3 x 6mm Green indicator marks
Model names
- CTM-14
Mounting
- With Zhaga Book 3 LED holder BJB spotlight connector 47.319.2051 Bender+Wirth 442 Typ 2 Mounting with 2 screws M3 x 6mm Green indicator marks
