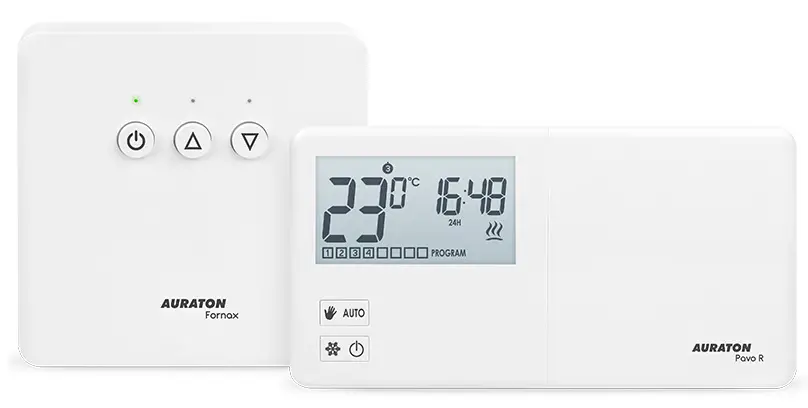

AURATON Pavo SET User Manual

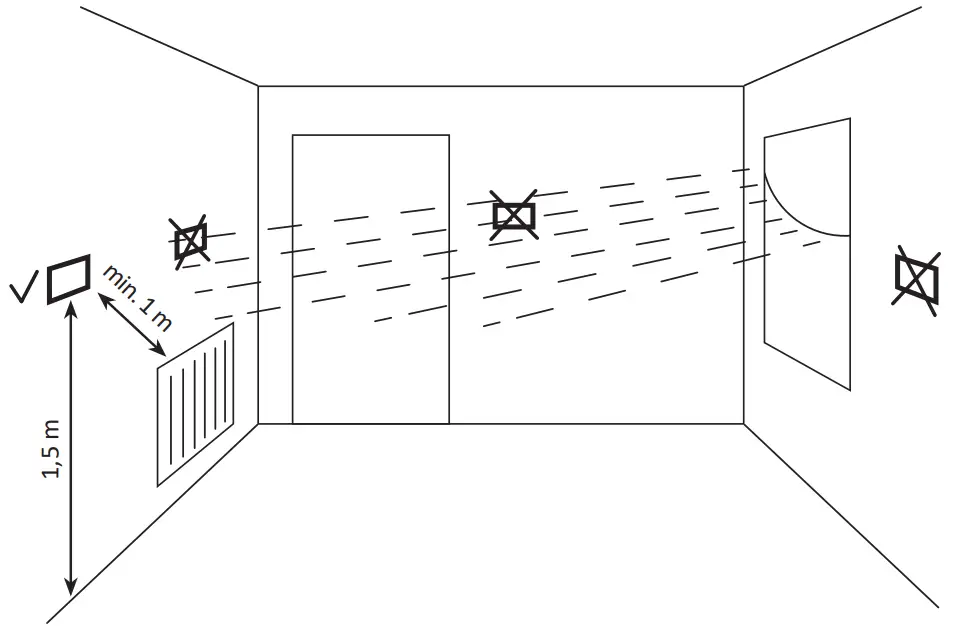

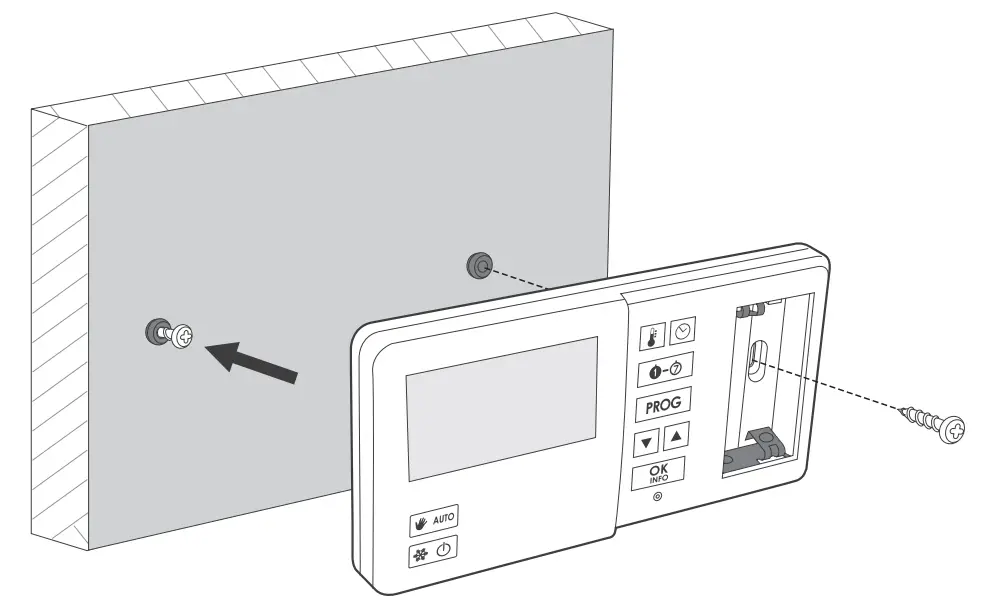

Choosing the right location for the AURATON Pavo R

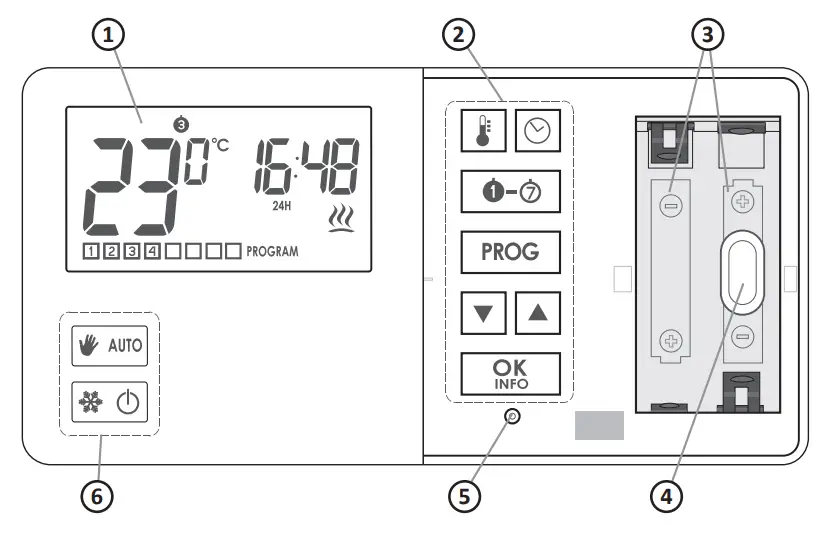

Thermostat

1. LCD display
2. Programming buttons
3. Place for 2 batteries (AA LR6 1.5 V)
4. Mounting hole
5. RESET button
6. Operating mode selection buttons

Display

1. Day of the week
2. Temperature
3. Temperature unit
4. Clock
5. Program number ()
6. Setting mode indicator (SET)
7. Manual control indicator ()
8. Anti-freeze mode indicator ()
9. Holiday mode indicator ()
10. Low battery ()
11. Broadcastsymbol ()
12. Relay power-on symbol ()
13. Information about the work of AURATON Pavo

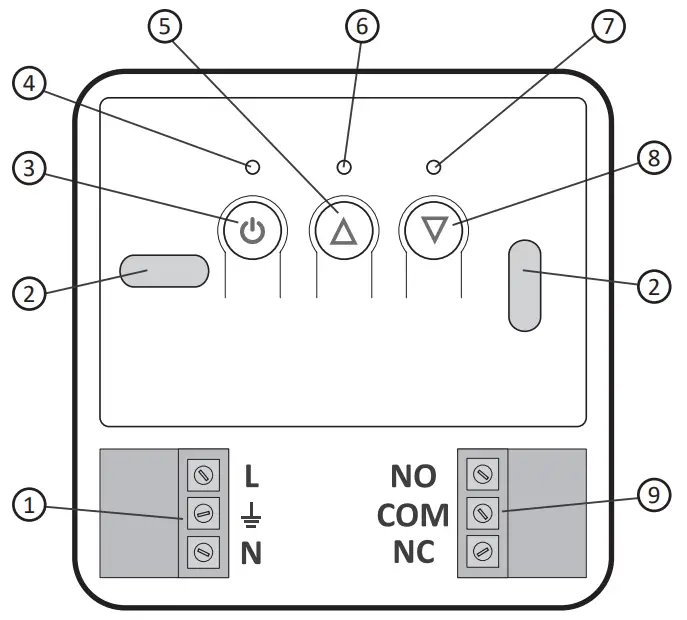

Receiver

1. Power connectors
2. Mounting hole
3. Power button ()
4. Power supply diode
5. Button to unpair devices ()
6. Diode indicating that the actuator device is switched on
7. Diode indicating that the actuator device has been switched off
8. Button to pair devices with the receiver ()
9. Control connectors

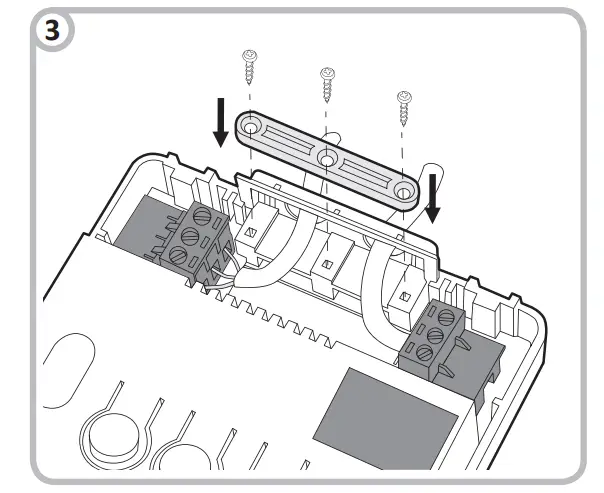

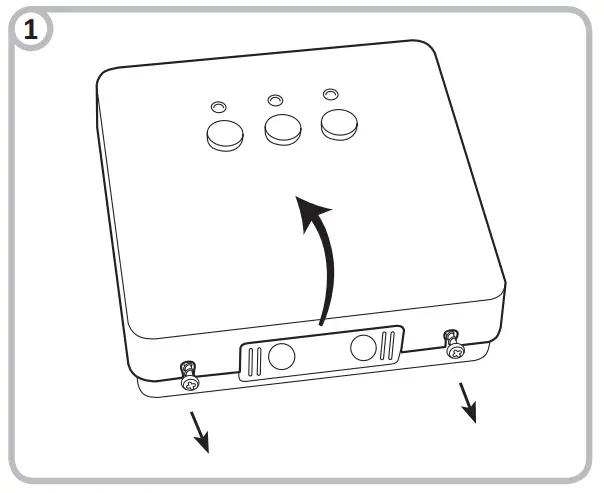

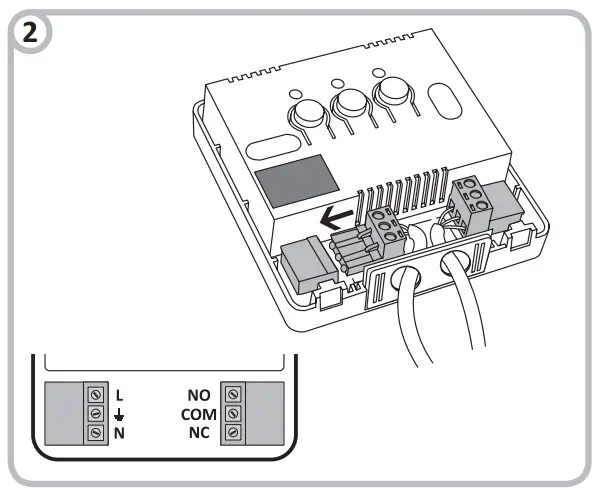

Connecting the wires AURATON Fornax (receiver)

WARNING!

The cables supplied with the thermostat are designed to transfer a load of max. value of 2.5 A. In the case of connecting devices with higher power, they should be replaced with wires of appropriate cross-section.

NOTE: while installing the AURATON Fornax receiver, the power supply should be turned off. It is recommended to entrust the installation of the receiver to a specialist.

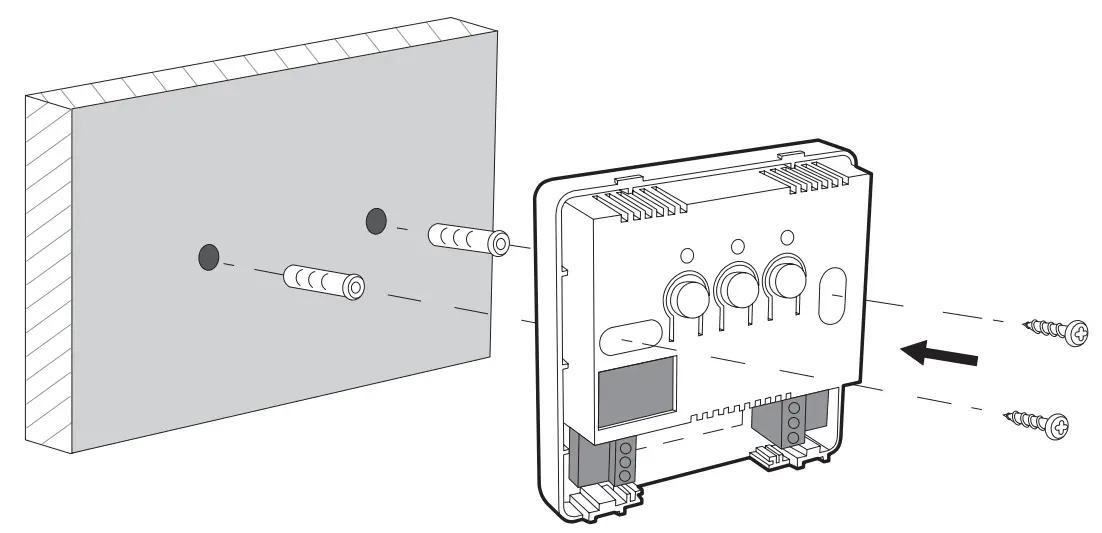

Mounting AURATON Fornax to the wall

Simplified diagram

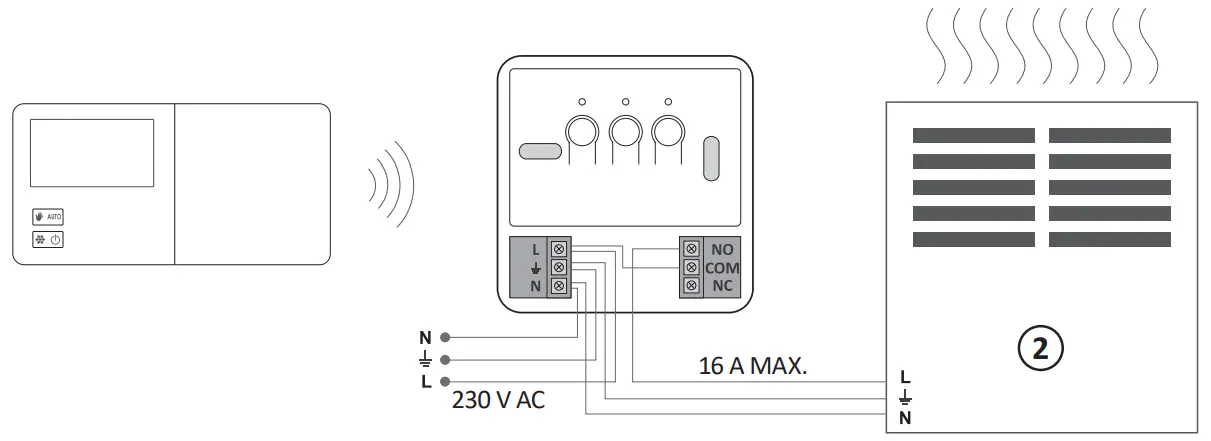

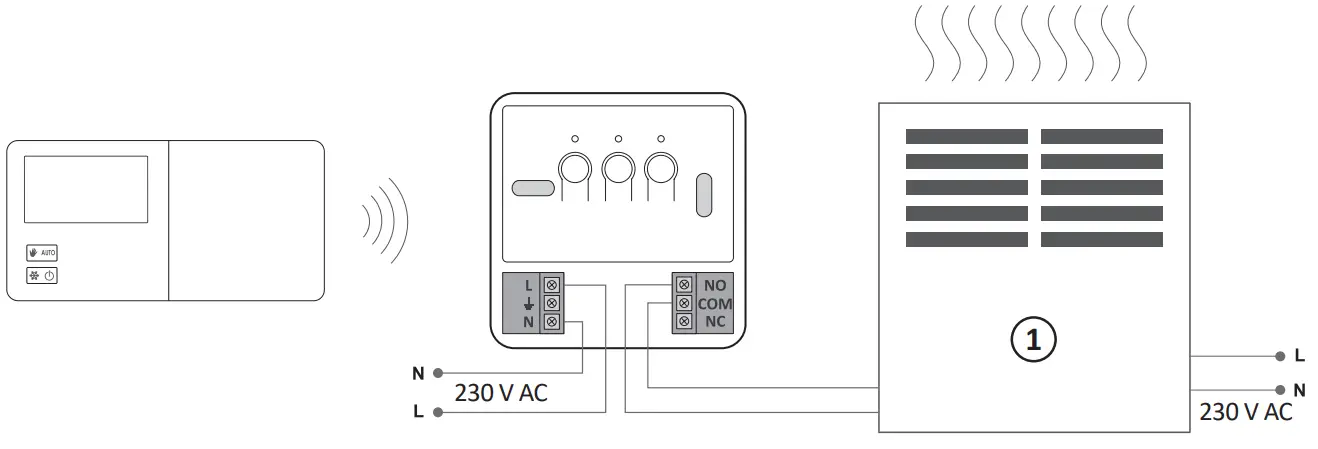

Simplified diagram of connection of AURATON Pavo SET with a heating device

1. Heating device e.g. a gas furnace
2. Electric heating device

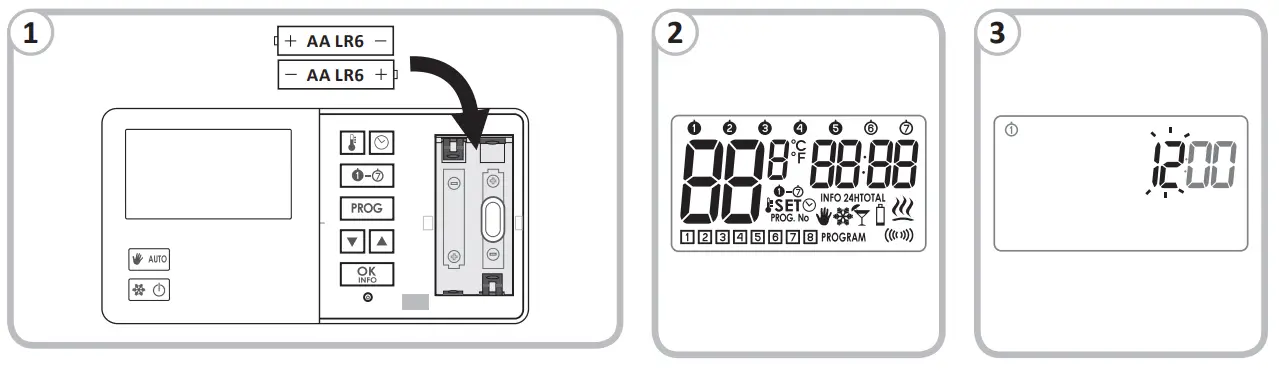

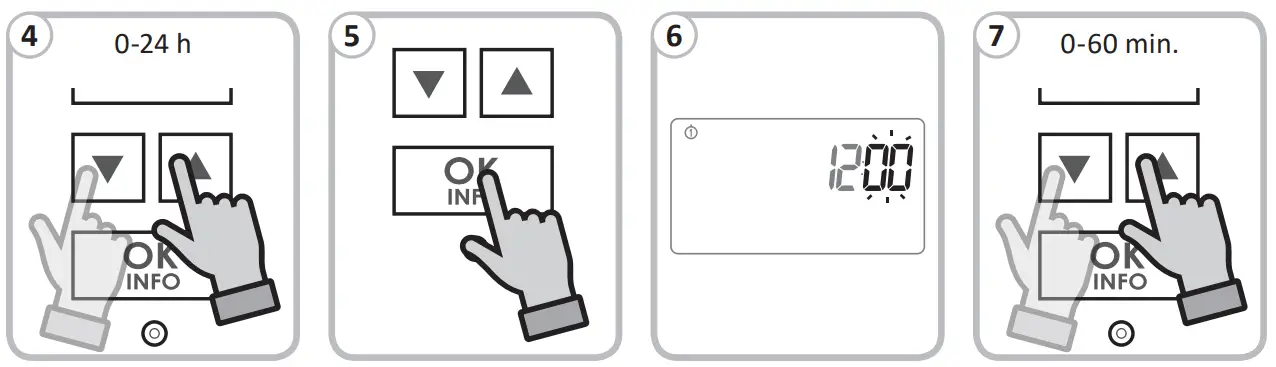

First start-up and setting of the AURATON Pavo R clock (transmitter)

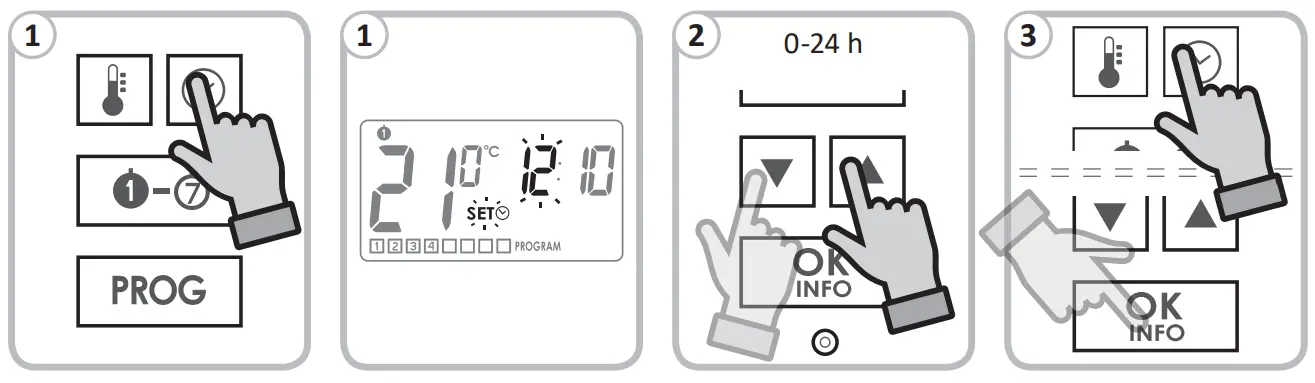

Setting of the AURATON Pavo R clock (transmitter)

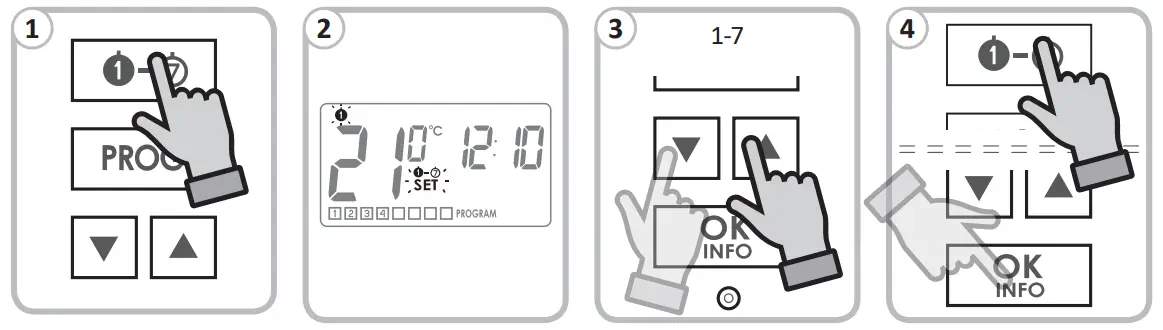

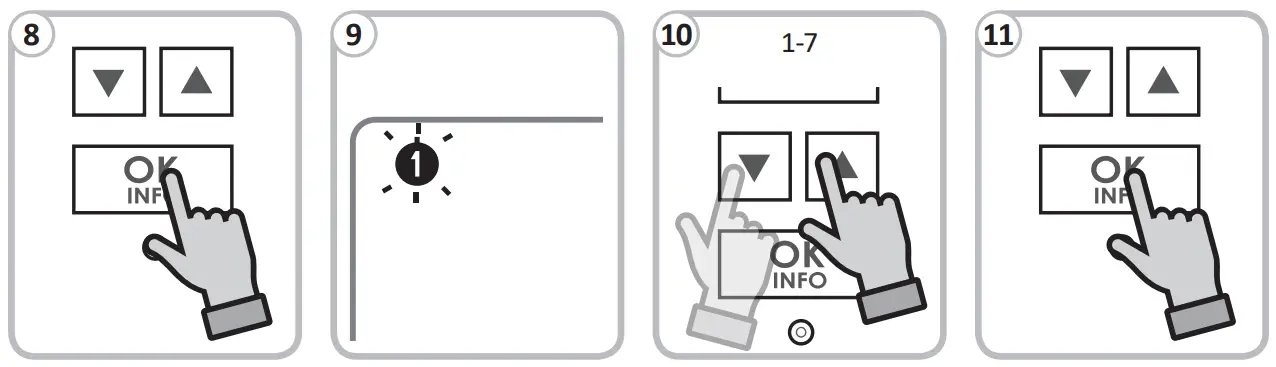

Setting of the AURATON Pavo R day of the week (transmitter)

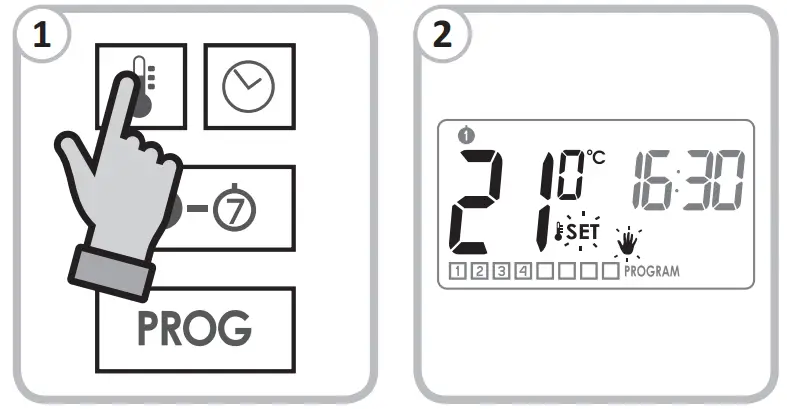

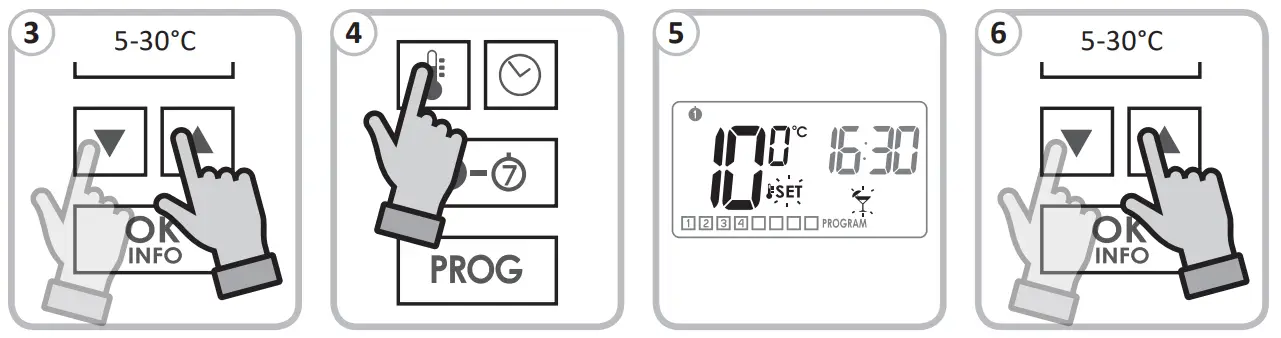

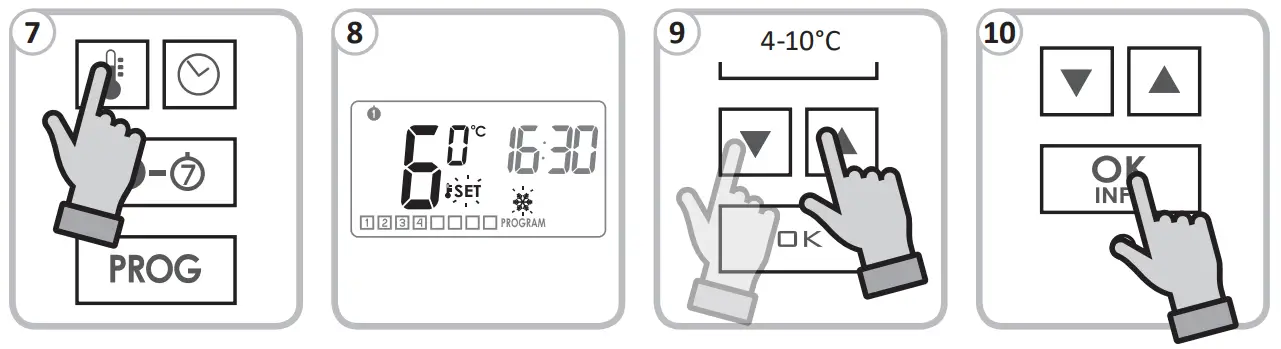

Setting the manual, holiday and anti-freeze temperature AURATON Pavo R (transmitter)

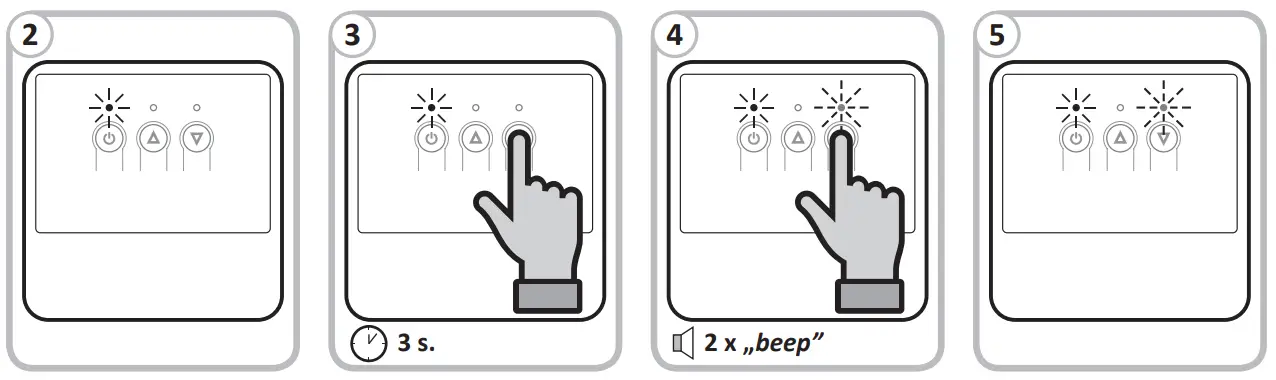

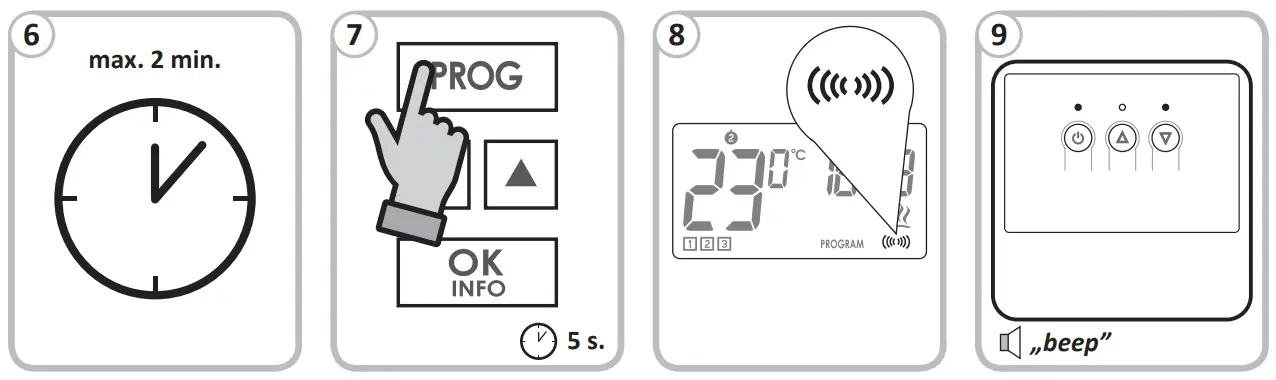

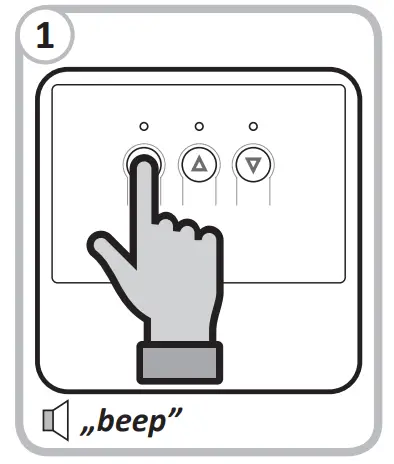

Pairing AURATON Pavo R with AURATON Fornax

Technical specifications

Working temperature range: 0 – 45°C
Operation range: approx. 30 m
Radio frequency: 868.850 MHz; 869.000 MHz
Radio signal strength: Up to 11 dBm
Level of security: IP20

AURATON Pavo R

Power supply: 2 x AA (2 x 1.5 V), alkaline
Number of temperature levels: 8 + holiday, manual and anti-freeze
Anti-freeze temperature: 4 – 10°C
Temperature control range: 5 – 30°C
Hysteresis: ±0.2°C / ±0.4°C / PWM
Working cycles: Weekly programmable
Number of programs: 8 for weekdays, 8 for Saturday and 8 for Sunday
Signalling the working status: LCD display
Dimensions [mm]: 155 x 80 x 25

AURATON Fornax

Power supply: 230 V AC, 50 Hz, 1.5 W
Working statussignaling: LED indicators, sound
Relay load capacity Max. 250 V AC, max. 16 A
Receiver Category: 2
Suggested installation location: Near the heating device
Dimensions [mm]: 100 x 100 x 29

Disposing of the devices

The devices are marked with the crossed waste bin symbol.
According to European Directive no. 2012/19/UE and the Act concerning used up electric and electronic equipment, such a marking indicates that this equipment may not be placed with other household generated waste.

The user is responsible for delivering the devices to a reception point for used-up electric and electronic equipment.

Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Pavo SET isin compliance with Directive 2014/53/EU and 2011/65/ EU. The full text of the EU declaration of conformity is available at the following internet address: https://manuals.auraton.pl

The extended manual can be found at: https://manuals.auraton.pl

Manufacturer

LARS Andrzej Szymański, Świerkowa 14,
64-320 Niepruszewo, POLAND
www.auraton.pl
