DELL logoOptiPlex 3070 Micro Factor PC with 9th Gen Intel
User Manual

OptiPlex 3070 Micro Factor PC with 9th Gen Intel

EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: NOTE indicates important information that helps you make better use of your product.
DELL Command Power Manager Apps - icon 1 CAUTION: CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
DELL Command Power Manager Apps - icon 2 WARNING: WARNING indicates a potential for property damage, personal injury, or death.

Set up your computer

  1. Connect the keyboard and mouse.
  2. Connect to your network using a cable, or connect to a wireless network.
  3. Connect the display.
    EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of your computer are covered. Connect the  display to the discrete graphics card.
  4. Connect the power cable.
  5. Press the power button.

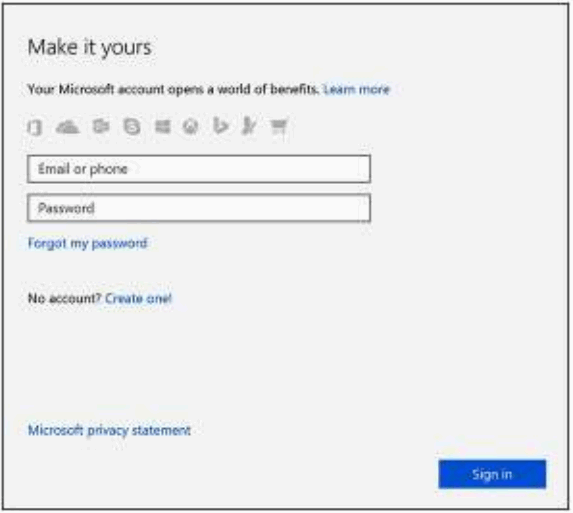

  6. Follow the instructions on the screen to finish Windows setup:

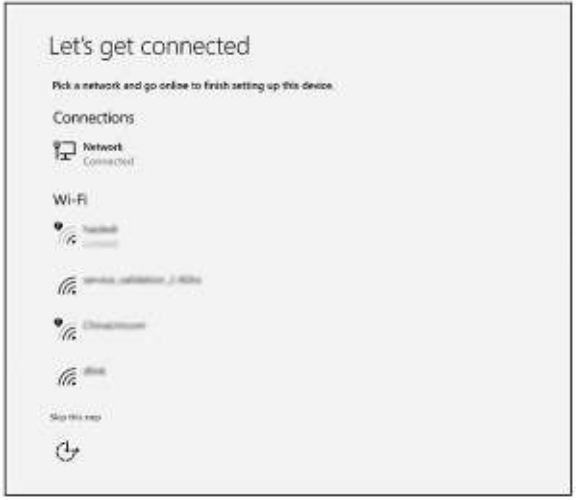

    a. Connect to a network.DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intelb. Sign-in to your Microsoft account or create a new account.DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - fig

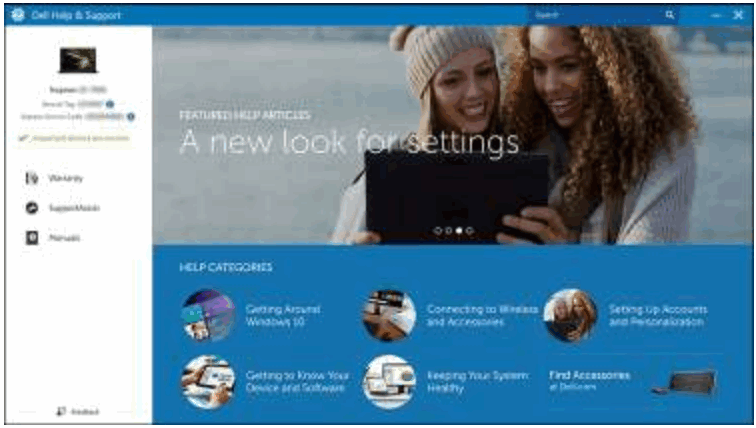

  7. Locate Dell apps.

Table 1. Locate Dell apps

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - iconRegister your computer
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 1Dell Help & Support
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - Dell apps
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 2SupportAssist — Check and update your computer

This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations.
Topics:

  • Front view
  • Micro computer view

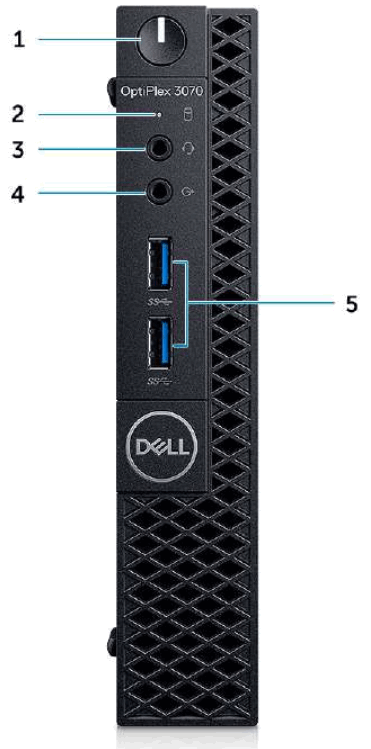

Front view

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - Front view

  1. Power button and power light/diagnostic LED
  2. Hard drive activity light
  3. Headset/Universal audio jack port (3.5 mm headphone/microphone combo port)
  4. Line-out port
  5. USB 3.1 Gen 1 ports (2)

Micro computer view

Back view

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - Micro computer view

  1. External antenna connectors
  2. DP1.2/HDMI2.0/VGA/Serial/Serial-PS/2 (Optional)
  3. USB 2.0 port
  4. Cable holder
  5. USB 3.1 Gen 1 ports (2)
  6. Padlock ring
  7. Network port
  8. USB 2.0 port (supports SmartPower On)
  9. Service tag label
  10. Kensington security cable slot
  11. DisplayPort
  12. HDMI port
  13. Power connector port

System specifications

NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer, go to Help and Support in your Windows operating system and select the option to view information about your computer.

Topics:

  • Chipset
  • Memory
  • Intel Optane Memory
  • Storage
  • Audio and speakers
  • Graphics and Video Controller
  • Communications – Wireless
  • Communications – Integrated
  • External ports and connectors
  • System board connector maximum add-in card allowable dimensions
  • Operating system
  • Power
  • System dimensions – physical
  • Regulatory and Environmental Compliance

Chipset

Table 2. Chipset

Tower/Small form factor/Micro
ChipsetH370
Non-volatile memory on chipset
BIOS Configuration SPI (Serial Peripheral Interface)256Mbit (32MB) located at SPI_FLASH on chipset
Trusted Platform Module (TPM) 2.0 Security Device (Discrete TPM Enabled)24KB located at TPM 2.0 on chipset
Firmware-TPM (Discrete TPM disabled)By default the Platform Trust Technology feature is visible to the OS.
NIC EEPROMLOM configuration contained within LOM e-fuse – no dedicated LOM EEPROM

Processor
NOTE: Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions on a worldwide basis.  They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby  reducing their costs. They also enable companies to implement global IT standards by locking in specific product configurations worldwide.
Device Guard (DG) and Credential Guard (CG) are the new security features that are only available on Windows 10 Enterprise today.
Device Guard is a combination of enterprise-related hardware and software security features that, when configured together, will lock a device down so that it can only run  trusted applications. If it is not a trusted application, it cannot run.
Credential Guard uses virtualization-based security to isolate secrets (credentials) so that only privileged system software can access them. Unauthorized access to these  secrets can lead to credential theft attacks. Credential Guard prevents these attacks by protecting NTLM password hashes and Kerberos Ticket Granting Tickets
EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: Processor numbers are not a measure of performance. Processor availability subject to change and may vary by region/country.

Table 3. Processor

Intel Core Processors 9th Gen Core CPUs (Offered offline only)Tower/ Small Form FactorMicroGSPDG/CG Ready
Intel® Celeron G4930 (2 Cores/2MB/2T/ 3.2GHz/65W); supports Windows 10/Linuxxx
Intel® Celeron G4930T (2 Cores/2MB/2T/ 3.0GHz/35W); supports Windows 10/Linuxxx
Intel® Pentium G5420 (2 Cores/4MB/4T/ 3.8GHz/65W); supports Windows 10/Linuxxx
Intel® Pentium G5420T (2 Cores/4MB/4T/ 3.2GHz/35W); supports Windows 10/Linuxx
Intel® Pentium G5600 (2 Cores/4MB/4T/ 3.9GHz/65W); supports Windows 10/Linuxxx
Intel® Pentium G5600T (2 Cores/4MB/4T/ 3.3GHz/35W); supports Windows 10/Linuxxx
Intel® Core™ i3-9100 (4 Cores/6MB/4T/ 3.6GHz to 4.2GHz/65W); supports Windows 10/Linuxxx
Intel® Core™ i3-9100T (4 Cores/6MB/4T/ 3.1GHz to 3.7GHz/35W); supports Windows 10/Linuxxx
Intel® Core™ i3-9300 (4 Cores/8MB/4T/ 3.7GHz to 4.3GHz/65W); supports Windows 10/Linuxxx
Intel® Core™ i3-9300T (4 Cores/8MB/4T/ 3.2GHz to 3.8GHz/35W); supports Windows 10/Linuxxx
Intel® Core™ i5-9400 (6 Cores/9MB/6T/ 2.9GHz to 4.1GHz/65W); supports Windows 10/Linuxxxx
Intel® Core™ i5-9400T (6 Cores/9MB/6T/ 1.8GHz to 3.4GHz/35W); supports Windows 10/Linuxxxx
Intel® Core™ i5-9500 (6 Cores/9MB/6T/ 3.0GHz to 4.4GHz/65W); supports Windows 10/Linuxxxx
Intel Core Processors 9th Gen Core CPUs (Offered offline only)Tower/ Small Form FactorMicroGSPDG/CG Ready
Intel® Core™ i5-9500T (6 Cores/9MB/6T/ 2.2GHz to 3.7GHz/35W); supports Windows 10/Linuxxxx
Intel® Core™ i7-9700 (8 Cores/12MB/8T/ 3.0GHz to 4.7GHz/65W); supports Windows 10/Linuxxx
Intel® Core™ i7-9700T (8 Cores/12MB/8T/ 2.0GHz to 4.3GHz/35W); supports Windows 10/Linuxxx

Table 4. Processor

Intel Core Processors 8th Gen Core CPUs (Offered offline only)TowerSmall Form FactorMicroGSPDG/CG Ready
Intel Core i7-8700 (6 Cores/12 MB/12T/up to 4.6 GHz/65 W); supports Windows 10/LinuxYesYesNoGSPYes
Intel Core i5-8500 (6 Cores/9 MB/6T/up to 4.1 GHz/65 W); supports Windows 10/LinuxYesYesNoGSPYes
Intel Core i5-8400 (6 Cores/9 MB/6T/up to 4.0 GHz/65 W); supports Windows 10/LinuxYesYesNoGSPYes
Intel Core i3-8300 (4 Cores/8 MB/4T/3.7 GHz/65 W); supports Windows 10/LinuxYesYesNoYes
Intel Core i3-8100 (4 Cores/6 MB/4T/3.6 GHz/65 W); supports Windows 10/LinuxYesYesNoYes
Intel Pentium Gold G5500 (2 Cores/4 MB/4T/3.8 GHz/65 W); supports Windows 10/LinuxYesYesNoYes
Intel Pentium Gold G5400 (2 Cores/4 MB/4T/3.7 GHz/65 W); supports Windows 10/LinuxYesYesNoYes
Intel Celeron G4900 (2 Cores/2 MB/2T/up to 3.1 GHz/65 W); supports Windows 10/LinuxYesYesNoYes
Intel Core i7-8700T (6 Cores/12 MB/12T/up to 4.0 GHz/35 W); supports Windows 10/LinuxNoNoYesGSPYes
Intel Core i5-8500T (6 Cores/9 MB/6T/up to 3.5 GHz/35 W); supports Windows 10/LinuxNoNoYesGSPYes
Intel Core i5-8400T (6 Cores/9 MB/6T/up to 3.3 GHz/35 W); supports Windows 10/LinuxNoNoYesGSPYes
Intel Core i3-8300T (4 Cores/8 MB/4T/3.2 GHz/35 W); supports Windows 10/LinuxNoNoYesYes
Intel Core i3-8100T (4 Cores/6 MB/4T/3.1 GHz/35 W); supports Windows 10/LinuxNoNoYesYes
Intel Pentium Gold G5500T (2 Cores/4 MB/4T/3.2 GHz/35 W); supports Windows 10/LinuxNoNoYes
Intel Pentium Gold G5400T (2 Cores/4 MB/4T/3.1 GHz/35 W); supports Windows 10/LinuxNoNoYes
Intel Core Processors 8th Gen Core CPUs (Offered offline only)TowerSmall Form FactorMicroGSPDG/CG Ready
Intel Celeron G4900T (2 Cores/2 MB/2T/2.9 GHz/35 W); supports Windows 10/LinuxNoNoYes

Memory

EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: Memory modules should be installed in pairs of matched memory size, speed, and technology. If the memory modules are not installed in matched pairs, the  computer will continue to operate, but with a slight reduction in performance. The entire memory range is available to 64-bit operating systems.

Table 5. Memory

TowerSmall Form FactorMicro
Type: DDR4 DRAM Non-ECC Memory2666 MHz on i5 and i7 processors (performs at 2400 MHz on Celeron, Pentium and i3 processors)
DIMM Slots222 (SODIMM)
DIMM CapacitiesUp to 16 GBUp to 16 GBUp to 16 GB
Minimum Memory4 GB4 GB4 GB
Maximum System Memory32 GB32 GB32 GB
DIMMs/Channel221
UDIMM supportYesYesNo
Memory configurations:
32 GB DDR4, 2666 MHz, (2 x 16 GB)YesYesYes
16 GB DDR4, 2666 MHz, (1 x 16 GB)YesYesYes
16 GB DDR4, 2666 MHz, (2 x 8 GB)YesYesYes
8 GB DDR4, 2666 MHz, (1 x 8 GB)YesYesYes
8 GB DDR4, 2666 MHz, (2 x 4 GB)YesYesYes
4 GB DDR4, 2666 MHz, (1 x 4 GB)YesYesYes

Intel Optane Memory

EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: Intel Otani memory cannot replace DRAM entirely. However, these two memory technologies complement each other within the PC.

Table 6. M.2 16 GB Intel Optane

Tower/Small form factor/Micro
Capacity (TB)16 GB
Dimensions (inches) (W x D x H)22 x 80 x 2.38
Interface type and Maximum speedPCIe Gen2
MTBF1.6 M hours
Tower/Small form factor/Micro
Logical Blocks28,181,328
Power Source:
Power Consumption (reference only)Idle 900 mW to 1.2 W, Active 3.5 W
Environmental Operating Conditions (Non-Condensing):
Temperature Range0°C to 70°C
Relative Humidity Range10 to 90%
Op Shock (@2 ms)1,000G
Environmental Non-Operating Conditions (Non-Condensing):
Temperature Range-10°C to 70°C
Relative Humidity Range5 to 95%

Storage

Table 7. Storage

TowerSmall form factorMicro
Bays:
Optical Drives Supported1 Slim1 Slim0
Hard Drive Bay Supported (Internal)1×3.5”/2×2.5”1×3.5″ or 1×2.5″1×2.5″
Hard Drives Supported 3.5”/2.5” (maximum)1/21/10/1
Interface:
SATA 2.0110
SATA 3.0211
M.2 Socket 3 (for SATA / NVMe SSD)111
M.2 Socket 1 (for WiFi/BT card)111
3.5” Drives:
3.5 inch 500 GB 7200 RPM HDDYYN
3.5 inch 1 TB 7200 RPM HDDYYN
3.5 inch 2 TB 7200 RPM HDDYYN
2.5” Drives:
2.5 inch 500 GB 5400 RPM HDDYYY
2.5 inch 512 GB 7200 RPM HDDYYY
2.5 inch 512 GB 7200 RPM SED HDDYYY
2.5 inch 1 TB 7200 RPM HDDYYY
2.5 inch 2 TB 5400 RPM HDDYYY
M.2 Drives:
M.2 1 TB PCIe C40 SSDYYY
M.2 256 GB PCIe C40 SSDYYY
TowerSmall form factorMicro
M.2 512 GB PCIe C40 SSDYYY
M.2 128 GB PCIe NVMe Class 35 Solid State DriveYYY
M.2 256 GB PCIe NVMe Class 35 Solid State DriveYYY
M.2 512 GB PCIe NVMe Class 35 Solid State DriveYYY

EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: 2.5 Inch Solid State Drives are only available as a secondary storage option and can only be paired with a M.2 Solid State Drive as the Primary Storage Device

Audio and speakers

Table 8. Audio and speakers

Tower/Small Form Factor/Micro
Realtek ALC3234 High Definition Audio Codec (supports multiple streaming)Integrated
Audio enhancement softwareWave Maxx Audio Pro (Standard)
Internal speaker (mono)Integrated
Speaker Performance, Speech Grade & Electrical GradeGrade D
Dell 2.0 Speaker System – AE215Optional
Dell 2.1 Speaker System – AE415Optional
Dell AX210 USB Stereo speakersOptional
Dell Wireless 360 Speaker System – AE715Optional
AC511 Sound BarOptional
Dell Professional Sound Bar – AE515Optional
Dell Stereo Soundbar – AX510Optional
Dell Performance USB Headset – AE2Optional
Dell Pro Stereo Headsets – UC150/UC350Optional

Graphics and Video Controller

EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: Tower supports Full Height (FH) cards and Small Form Factor supports low profile (LP) cards.
Table 9. Graphics / Video Controller

TowerSmall Form FactorMicro
Intel UHD 630 Graphics [with 8th Generation Core i3/i5/i7 CPU-GPU combo]Integrated on CPUIntegrated on CPUIntegrated on CPU
Intel UHD 610 Graphics [with 8th Generation Pentium CPU-GPU combo]Integrated on CPUIntegrated on CPUIntegrated on CPU
Enhanced Graphic/ Video Options
2 GB AMD Radeon R5 430OptionalOptionalNot available
4 GB AMD Radeon RX 550OptionalOptionalNot available
TowerSmall Form FactorMicro
2 GB NVIDIA GT 730OptionalOptionalNot available

Communications – Wireless

Table 10. Communications – Wireless

Tower/Small form factor/Micro
Qualcomm QCA9377 Dual- band 1×1 802.11ac Wireless + Bluetooth 4.1Yes
Qualcomm QCA61x4A Dual- band 2×2 802.11ac Wireless + Bluetooth 4.2Yes
Intel Wireless-AC 9560, Dual- band 2×2 802.11ac Wi-Fi with MU-MIMO + Bluetooth 5Yes
Internal Wireless AntennasYes
External Wireless Connectors and AntennaYes
Support for 802.11n and 802.11ac wireless NICYes via M.2
Energy-Efficient Ethernet capability as specified in IEEE 802.3az-2010. (required for California Energy Commission MEPs)Yes

Communications – Integrated

Table 11. Communications – Integrated Realtek RTL8111HSD-CG

Tower/Small Form Factor/Micro
Realtek RTL8111HSD-CG Gigabit Ethernet LAN 10/100/1000Integrated on system board

External ports and connectors

NOTE: Tower supports Full Height (FH) cards and Small Form Factor supports Low Profile (LP) cards. See chassis diagrams section for port/connector locations.
Table 12. External ports / connectors

TowerSmall Form FactorMicro
USB 2.0 (Front/Rear/Internal)2/2/02/2/00/2/0
USB 3.1 Gen 1 (Front/Rear/Internal)2/2/02/2/02/2/0
SerialParallel/Serial PCIe card or PS/2/SerialLow Profile Serial PCIe card or PS/2 & Serial port add in bracket (Optional)● Available in 2 options
○ Serial port (Optional)
TowerSmall Form FactorMicro
add-in bracket (Optional)○ Serial and PS/2 via fan out cable (Optional)
Network Connector (RJ-45)1 Rear1 Rear1 Rear
Video:
DisplayPort 1.21 Rear1 Rear1
HDMI 1.4 port1 Rear1 Rear1 Rear
Support for Dual 50W GraphicsNoNoNo
Support for Dual 25W GraphicsNoNoNo
Integrated Graphics output 3rd optional video out: VGA, DP, or HDMI 2.0bOptionalOptionalOptional
Audio:
Line out for headphones or speakers1 Rear1 Rear1 Front
Universal Audio Jack (3.5 mm headphone/microphone combo port)1 Front1 Front1 Front

System board connector maximum add-in card allowable dimensions
Table 13. System board connector maximum add-in card allowable dimensions

TowerSmall Form FactorMicro
PCIe x16 Connector (BLUE) (Voltage supported 3.3V/12V)11NA
Height (inches / centimeters)4.38 / 11.122.73 / 6.89NA
Length (inches / centimeters)6.6 / 16.776.6 / 16.77NA
Maximum Wattage75 W50 WNA
PCIe x1 Connector (Voltage supported 3.3/12V)31NA
Height (inch / cm)4.38 / 11.122.73 / 6.89NA
Length (inch / cm)4.5 / 11.446.6 / 16.77NA
Maximum Wattage10 W25 WNA

Operating system

This topic lists the operating system supported by
Table 14. Operating system

Operating systemTower/Small form factor/Micro
Windows operating systemMicrosoft Windows 10 Home (64-bit) Microsoft Windows 10 Pro (64-bit)
Operating systemTower/Small form factor/Micro
Microsoft Windows 10 Pro National Academic Microsoft Windows 10 Home National Academic Microsoft Windows 10 China
OtherUbuntu 18.04 LTS (64-bit) Neokylin v6.0 (China only)
Commercial Platform Windows 10 N-2 and 5 year OS Supportability
All newly introduced 2019 and later commercial platforms (Latitude, OptiPlex, and Precision) will qualify and ship with the most current factory installed Semi-Annual Channel Windows 10 version (N) and qualify (but not ship) the previous two versions (N-1, N-2). This device platform OptiPlex 3070 will RTS with Windows 10 version v19H1 at time of launch, and this version will determine the N-2 versions that are initially qualified for this platform.
For future versions of Windows 10, Dell will continue to test the commercial platform with coming Windows 10 releases during device production and for five years post-production, including both fall and spring releases from Microsoft.
Please reference the Dell Windows as a Service (WaaS) website for additional information on N-2 and 5 year Windows OS supportability. Website can be found at this link: Platforms Qualified on specific versions of Windows 10
This website also includes a matrix of other platforms qualified on specific versions of Windows 10.

Power

NOTE: These form factors utilize a more efficient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power Supplies (UPS) based on  Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave, or quasi-Square Wave. If you have questions, please contact the manufacturer to  confirm the output type.
Table 15. Power

TowerSmall Form FactorMicro
Power Supply1APFCEPA BronzeEPA PlatinumAPFCEPA BronzeEPA PlatinumEPS Level V
Wattage260 W200 W65 W
AC input voltage range90-264 Vac90-264 Vac90-264 Vac
AC input current (low ac range / high ac range)4.2 A/2.1 A3.2 A/1.6 A1.7 A/1.0 A
AC input frequency47 Hz/63 Hz47 Hz/63 Hz47 Hz/63 Hz
AC holdup time (80% load)16mS16mSNA
Average efficiency (ESTAR 7.0/7.1 compliant)NA82-85-82% @ 20-50-100%90-92-89% @ 20-50-100% loadNA82-85-82% @ 20-50-100%90-92-89% @ 20-50-100% load87%
Typical Efficiency (APFC)70%NANA70%NANANA
TowerSmall Form FactorMicro
DC Parameters:
+12.0v output12 VA/16.5 A; 12 VB/16 A12 VA/16.5 A; 12 VB/14 A
+19.5v outputNANA19.5 V/3.34 A
+12.0v auxiliary output2.5 A2.5 ANA
Max total power260 W200 WNA
Max combined 12.0v power (note: only if more than one 12v rail)260 W200 WNA
BTUs/h (based on PSU max WT)888 BTU683 BTU222 BTU
Power Supply Fan60 mm*25 mm60 mm*25 mmNA
Compliance:
ErP Lot6 Tier 2 0.5watt requirementYesYesYesYesYesYesNA
80Plus CertifiedNoYesYesNoYesYesNo
FEMP Standby Power CompliantYesYesYesYesYesYesNo

Table 16. CMOS battery

3.0v CMOS battery (Type and estimated battery life):
BrandTypeVoltageCompositionLife
JHIH HONGCR20323 VLithiumContinuous Discharge Under 15 kΩ Load to 2.5 V End-Voltage. 20 °C±2 °C: 940Hrs or longer; 910Hrs or longer after 12 mo.
PANASONICCR20323 VLithiumContinuous Discharge Under 15 kΩ Load to 2.5 V End-Voltage. 20 ℃±2 ℃.1183Hrs or longer 1133Hrs or longer after 12 mo.
MITSUBISHICR20323 VLithiumContinuous Discharge Under 15 kΩ Load to 2.0 V End-Voltage. 20 ℃±2 ℃ 940Hrs or longer 910Hrs or longer after 12 mo.
SHUNWO & KTSCR20323 VLithiumContinuous Discharge Under 15 kΩ Load to 2.5V End-Voltage. 20 ℃±2 ℃.1183Hrs or longer 1133Hrs or longer after 12 mo.

1 Power Supplies not available in all countries.

System dimensions – physical

NOTE: System Weight and Shipping Weight is based on a typical configuration and may vary based on PC configuration. A typical configuration includes: integrated graphics, one hard drive, one optical drive.

Table 17. System dimensions (Physical)

TowerSmall Form FactorMicro
Chassis Volume (liters)14.777.81.16
Chassis Weight (lb / kg)17.49 / 7.9311.57 / 5.262.60/1.18
TowerSmall Form FactorMicro
Chassis Dimensions (H x W x D)
Height (inch / cm)13.8 / 3511.42 / 297.2/18.2
Width (inch / cm)6.1 / 15.43.65 / 9.261.4/3.6
Depth (inch / cm)10.8 / 27.411.50 / 29.27/17.8
Shipping Weight (lb / kg – includes packaging materials)20.96 / 9.4314.19/6.455.91/2.68
Packaging Dimensions (H x W x D)
Height (inch / cm)13.19 / 33.510.38 / 26.45.2 / 13.3
Width (inch / cm)19.4 / 49.419.2 / 48.79.4 / 23.8
Depth (inch / cm)15.5 / 39.415.5 / 39.419.6 / 49.8

Regulatory and Environmental Compliance

Product related conformity assessment and regulatory authorizations including Product Safety, Electromagnetic Compatibility (EMC), Ergonomics, and Communication  Devices relevant to this product may be viewed at www.dell.com/regulatory_compliance. The Regulatory Datasheet for this product is located at  http://www.dell.com/regulatory_compliance.
Details of Dell’s environmental stewardship program to conserve product energy consumption, reduce or eliminate materials for disposal, prolong product life span and  provide effective and convenient equipment recovery solutions may be viewed at www.dell.com/environment. Product related conformity assessment, regulatory  authorizations, and information encompassing Environmental, Energy Consumption, Noise Emissions, Product Materials Information, Packaging, Batteries, and Recycling relevant to this product may be viewed by clicking the Design for Environment link on the webpage. This OptiPlex 3070 system is TCO 5.0 Certified.

Table 18. Regulatory/Environmental Certifications

Tower/ Small form factor/ Micro
Energy Star 7.0/7.1 Compliant (Windows & Ubuntu)Yes
Br/CL Reduction:
Plastic parts above 25 grams shall not contain greater than 1000 ppm chlorine or greater than 1000 ppm bromine at the homogenous level.
Following can be excluded:
– Printed circuit boards, cable and wiring, fans, and electronic components
Anticipated Required Criteria for EPEAT Revision Effective 1H 2018
Yes
Minimum 2% Post-Consumer Recycled (PCR) plastics as standard in product.
Anticipated Required Criteria for EPEAT Revision Effective 1H 2018
Yes
Higher level % Post-Consumer Recycled (PCR) plastics in product:
* DT, Workstations, Thin Clients – 10%
* Integrated Desktop Computers (AIO) 15%
Yes
Tower/ Small form factor/ Micro
(Anticipated 1 Optional point in the EPEAT Revision for higher level PCR)
BFR / PVC Free: (aka Halogen Free) : The system shall comply with the limits defined in Dell specification ENV0199 – BFR/CFR/PVC-Free Specification.Yes

BIOS setup

DELL Command Power Manager Apps - icon 1 CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program.
Certain changes can make your computer work incorrectly.
EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not be displayed.
EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen information for future reference.

Use the BIOS Setup program for the following purposes:

  • Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.
  • Change the system configuration information.
  • Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base devices.

Topics:

  • BIOS overview
  • Entering BIOS setup program
  • Navigation keys
  • One time boot menu
  • System setup options
  • Updating the BIOS
  • System and setup password
  • Clearing BIOS (System Setup) and System passwords

BIOS overview
The BIOS manages data flow between the computer’s operating system and attached devices such as hard disk, video adapter, keyboard, mouse, and printer.

Entering BIOS setup program

  1. Turn on your computer.
  2. Press F2 immediately to enter the BIOS setup program.

NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the desktop. Then, turn off your computer and try again.

Navigation keys
NOTE: For most of the System Setup options, changes that you make are recorded but do not take effect until you restart the system.

Table 19. Navigation keys

KeysNavigation
Up arrowMoves to the previous field.
KeysNavigation
Down arrowMoves to the next field.
EnterSelects a value in the selected field (if applicable) or follow the link in the field.
SpacebarExpands or collapses a drop-down list, if applicable.
TabMoves to the next focus area.

NOTE: For the standard graphics browser only.

EscMoves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message that prompts you to save any unsaved changes and restarts the system.

One time boot menu
To enter one time boot menu, turn on your computer, and then press F12 immediately.
NOTE: It is recommended to shutdown the computer if it is on.
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are:

  • Removable Drive (if available)
  • STXXXX Drive (if available)
    NOTE: XXX denotes the SATA drive number.
  • Optical Drive (if available)
  • SATA Hard Drive (if available)
  • Diagnostics
    The boot sequence screen also displays the option to access the System Setup screen.

System setup options
NOTE: Depending on the and its installed devices, the items listed in this section may or may not appear.

General options

Table 20. General

OptionDescription
System InformationDisplays the following information:
● System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Tag, Ownership Date, Manufacture Date, and the Express Service Code.
● Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory Channel Mode, Memory Technology, DIMM 1 Size, DIMM 2 Size.
● PCI Information: Displays SLOT1, SLOT 2, SLOT1_M.2, SLOT2_M.2
● Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3 Cache, HT Capable, and 64-Bit Technology.
● Device Information: Displays SATA-0, SATA 4, M.2 PCIe SSD-0, LOM MAC Address, Video Controller, Audio Controller, Wi-Fi Device, and Bluetooth Device.
OptionDescription
Boot SequenceAllows you to specify the order in which the computer attempts to find an operating system from the devices specified in this list.
Windows Boot Manager
Onboard NIC (IPV4)
Onboard NIC (IPV6)
Advanced Boot OptionsAllows you to select the Enable Legacy Option ROMs option, when in UEFI boot mode. By default, this option is selected.
Enable Legacy Option ROMs—Default
● Enable Attempt Legacy Boot
UEFI Boot Path SecurityThis option controls whether or not the system will prompt the user to enter the Admin password when booting a UEFI boot path from the F12 Boot Menu.
Always, Except Internal HDD—Default
● Always, Except Internal HDD and PXE
● Always
● Never
Date/TimeAllows you to set the date and time settings. Changes to the system date and time take effect immediately.

System information

Table 21. System Configuration

OptionDescription
Integrated NICAllows you to control the on-board LAN controller. The option ‘Enable UEFI Network Stack’ is not selected by default. The options are:
● Disabled
● Enabled
Enabled w/PXE (default)
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not appear.
SATA OperationAllows you to configure the operating mode of the integrated hard drive controller.
● Disabled = The SATA controllers are hidden
● AHCI = SATA is configured for AHCI mode
RAID ON = SATA is configured to support RAID mode (selected by default)
DrivesAllows you to enable or disable the various drives on-board:
SATA-0
SATA-4
M.2 Pie SSD-0
Smart ReportingThis field controls whether hard drive errors for integrated drives are reported during system startup. The Enable Smart Reporting option is disabled by default.
USB ConfigurationAllows you to enable or disable the integrated USB controller for:
● Enable USB Boot Support
● Enable Front USB Ports
● Enable Rear USB Ports
All the options are enabled by default.
Front USB ConfigurationAllows you to enable or disable the front USB ports. All the ports are enabled by default.
Rear USB ConfigurationAllows you to enable or disable the rear USB ports. All the ports are enabled by default.
OptionDescription
USB PowerShareThis option allows you to charge the external devices, such as mobile phones, music player. This option is enabled by default.
AudioAllows you to enable or disable the integrated audio controller. The option Enable Audio is selected by default.
Enable Microphone
Enable Internal Speaker
Both the options are selected by default.
Dust Filter MaintenanceAllows you to enable or disable BIOS messages for maintaining the optional dust filter installed in your computer. BIOS will generate a pre-boot reminder to clean or replace the dust filter based on the interval set.
Disabled (default)
● 15 days
● 30 days
● 60 days
● 90 days
● 120 days
● 150 days
● 180 days

Video screen options
Table 22. Video

OptionDescription
Primary DisplayAllows you to select the primary display when multiple controllers are available in the system.
Auto (default)
● Intel HD Graphics
NOTE: If you do not select Auto, the on-board graphics device will be present and enabled.

Security
Table 23. Security

OptionDescription
Strong PasswordThis option lets you enable or disable strong passwords for the system. The option is disabled by default.
Password ConfigurationAllows you to control the minimum and maximum number of characters allowed for a administrative password and the system password. The range of characters is between 4 and 32.
Password BypassThis option lets you bypass the System (Boot) Password and the internal HDD password prompts during a system restart.
Disabled — Always prompt for the system and internal HDD password when they are set. This option is enabled by default.
● Reboot Bypass — Bypass the password prompts on Restarts (warm boots).
NOTE: The system will always prompt for the system and internal HDD passwords when powered on from the off state (a cold boot). Also, the system will always prompt for passwords on any module bay HDDs that may be present.
OptionDescription
Password ChangeThis option lets you determine whether changes to the System and Hard Disk passwords are permitted when an administrator password is set.
Allow Non-Admin Password Changes – This option is enabled by default.
UEFI Capsule Firmware UpdatesThis option controls whether this system allows BIOS updates via UEFI capsule update packages. This option is selected by default. Disabling this option will block BIOS updates from services such as Microsoft Windows Update and Linux Vendor Firmware Service (LVFS)
TPM 2.0 SecurityAllows you to control whether the Trusted Platform Module (TPM) is visible to the operating system.
● TPM On (default)
● Clear
● PPI Bypass for Enable Commands
● PPI Bypass for Disable Commands
● PPI Bypass for Clear Commands
● Attestation Enable (default)
● Key Storage Enable (default)
● SHA-256 (default) Choose any one option:
● Disabled
● Enabled (default)
AbsoluteThis field lets you Enable, Disable or Permanently Disable the BIOS module interface of the optional Absolute Persistence Module service from Absolute Software.
Enabled (default)
● Disabled
● Permanently Disabled
Chassis IntrusionThis field controls the chassis intrusion feature. Choose any one of the option:
Disabled (default)
● Enabled
● On-Silent
OROM Keyboard Access● Disabled
Enabled (default)
● One Time Enable
Admin Setup LockoutAllows you to prevent users from entering Setup when Admin password is set. This option is not set by default.
SMM Security MitigationAllows you to enable or disable additional UEFI SMM Security Mitigation protections. This option is not set by default.

Secure boot options
Table 24. Secure Boot

OptionDescription
Secure Boot EnableAllows you to enable or disable Secure Boot feature
● Secure Boot Enable
This option is not selected by default.
Secure Boot ModeAllows you to modify the behavior of Secure Boot to allow evaluation or enforcement of UEFI driver signatures.
OptionDescription
Deployed Mode (default)
● Audit Mode
Expert key ManagementAllows you to manipulate the security key databases only if the system is in Custom Mode. The Enable Custom Mode option is disabled by default. The options are:
PK (default)
● KEK
● db.
● dbx
If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The options are:
Save to File– Saves the key to a user-selected file
Replace from File– Replaces the current key with a key from a user-selected file
Append from File– Adds a key to the current database from a user-selected file
Delete– Deletes the selected key
Reset All Keys– Resets to default setting
Delete All Keys- Deletes all the keys
NOTE: If you disable the Custom Mode, all the changes made will be erased and the keys will restore to default settings.

Intel Software Guard Extensions options

Table 25. Intel Software Guard Extensions

OptionDescription
Intel SGX EnableThis field specifies you to provide a secured environment for running code/storing sensitive information in the context of the main OS.
Click one of the following options:
● Disabled
● Enabled
Software controlled—Default
Enclave Memory SizeThis option sets SGX Enclave Reserve Memory Size Click one of the following options:
32 MB
64 MB
128 MB—Default

Performance
Table 26. Performance

OptionDescription
Multi Core SupportThis field specifies whether the process has one or all cores enabled. The performance of some applications improves with the additional cores.
All—Default
1
2
3
OptionDescription
Intel SpeedStepAllows you to enable or disable the Intel SpeedStep mode of processor.
Enable Intel SpeedStep
This option is set by default.
C-States ControlAllows you to enable or disable the additional processor sleep states.
C states
This option is set by default.
Intel TurboBoostAllows you to enable or disable the Intel TurboBoost mode of the processor.
Enable Intel TurboBoost
This option is set by default.
Hyper-Thread ControlAllows you to enable or disable the HyperThreading in the processor.
● Disabled
Enabled—Default

Power management

Table 27. Power Management

OptionDescription
AC RecoveryDetermines how the system responds when AC power is re-applied after a power loss. You can set the AC Recovery to:
● Power Off
● Power On
●  Last Power State
This option is set to Power Off by default.
Enable Intel Speed Shift TechnologyAllows you to enable or disable Intel Speed Shift Technology support. The option Enable Intel Speed Shift Technology is set by default.
Auto On TimeSets time to automatically turn on the computer. Time is kept in standard 12-hour format (hour:minutes:seconds). Change the startup time by typing the values in the time and AM/PM fields.
NOTE: This feature does not work if you turn off your computer using the switch on a power strip or surge protector or if Auto Power is set to disabled.
Deep Sleep ControlAllows you to define the controls when Deep Sleep is enabled.
Disabled (default)
● Enabled in S5 only
● Enabled in S4 and S5
Fan Control OverrideThe option is not set by default
USB Wake SupportAllows you to enable the USB devices to wake the computer from standby mode. The option “Enable USB Wake Support” is selected by default
Wake on LAN/WWANThis option allows the computer to power up from the off state when triggered by a special LAN signal. This feature only works when the computer is connected to AC power supply.
●    Disabled – Does not allows the system to power on by special LAN signals when it receives a wake-up signal from the LAN or wireless LAN.
OptionDescription
LAN or WLAN – Allows the system to be powered on by special LAN or wireless LAN signals.
LAN Only – Allows the system to be powered on by special LAN signals.
LAN with PXE Boot – A wakeup packet sent to the system in either the S4 or S5 state, that will cause the system to wake-up and immediately boot to PXE.
WLAN Only – Allows the system to be powered on by special WLAN signals. This option is set to Disabled by default.
Block SleepAllows you to block entering to sleep (S3 state) in OS environment. This option is disabled by default.

Post behavior
Table 28. POST Behavior

OptionDescription
Numlock LEDAllows you to enable or disable the Numlock feature when your computer starts. This option is enabled by default.
Keyboard ErrorsAllows you to enable or disable the keyboard error reporting when the computer starts. The option Enable Keyboard Error Detection is enabled by default.
Fast BootThis option can speed up the boot process by bypassing some compatibility steps:
● Minimal — The system boots quickly, unless the BIOS has been updated, memory changed, or the previous POST did not complete.
● Thorough — The system does not skip any steps in the boot process.
●  Auto — This allows the operating system to control this setting (this works only when the operating system supports Simple Boot Flag).
This option is set to Thorough by default.
Extend BIOS POST TimeThis option creates an additional pre-boot delay.
0 seconds (default)
● 5 seconds
● 10 seconds
Full Screen LogoThis option will display full screen logo if your image match screen resolution. The option Enable Full Screen Logo is not set by default.
Warnings and ErrorsThis option causes the boot process to only pause when warning or errors are detected. Choose any one of the option:
Prompt on Warnings and Errors (default)
● Continue on Warnings
●  Continue on Warnings and Errors

Manageability

Table 29. Manageability

OptionDescription
USB provisionThis option is not selected by default.
Mix HotkeyThis option is selected by default.

Virtualization support
Table 30. Virtualization Support

OptionDescription
VirtualizationThis option specifies whether a Virtual Machine Monitor (VMM) can utilize the additional hardware capabilities provided by the Intel Virtualization technology.
●    Enable Intel Virtualization Technology
This option is set by default.
VT for Direct I/OEnables or disables the Virtual Machine Monitor (VMM) from utilizing the additional hardware capabilities provided by the Intel Virtualization technology for direct I/O.
●    Enable VT for Direct I/O
This option is set by default.

Wireless options
Table 31. Wireless

OptionDescription
Wireless Device EnableAllows you to enable or disable the internal wireless devices. The options are:
WLAN/WiGig
Bluetooth
All the options are enabled by default.

Maintenance

Table 32. Maintenance

OptionDescription
Service TagDisplays the service tag of your computer.
Asset TagAllows you to create a system asset tag if an asset tag is not already set. This option is not set by default.
SERR MessagesControls the SERR message mechanism. This option is set by default. Some graphics cards require that the SERR message mechanism be disabled.
BIOS DowngradeAllows you to flash previous revisions of the system firmware.
Allow BIOS Downgrade
This option is set by default.
Bios RecoveryBIOS Recovery from Hard Drive—This option is set by default. Allows you to recover the corrupted BIOS from a recovery file on the HDD or an external USB key.
BIOS Auto-Recovery— Allows you to recover the BIOS automatically.
First Power On DateAllows you the set Ownership date. The option Set Ownership Date is not set by default.

System logs
Table 33. System Logs

OptionDescription
BIOS eventsAllows you to view and clear the System Setup (BIOS) POST events.

Advanced configuration
Table 34. Advanced configuration

OptionDescription
ASPMAllows you to set the ASPM level.
● Auto (default) – There is handshaking between the device and PCI Express hub to determine the best ASPM mode supported by the device
● Disabled – ASPM power management is turned off at all time
● L1 Only – ASPM power management is set to use L1

Updating the BIOS

Updating the BIOS in Windows
CAUTION: If BitLocker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the BitLocker key. You will then be prompted  to enter the recovery key to progress and the system will ask for this on each reboot. If the recovery key is not known this can result in data loss or an unnecessary  operating system re-install. For more information on this subject, see Knowledge Article: https://www.dell.com/support/article/sln153694

  1. Go to www.dell.com/support.
  2. Click Product support. In the Search support box, enter the Service Tag of your computer, and then click Search.
    EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: If you do not have the Service Tag, use the Support Assist feature to automatically identify your computer. You can also use the product ID or manually browse for your computer model.
  3. Click Drivers & Downloads. Expand Find drivers.
  4. Select the operating system installed on your computer.
  5. In the Category drop-down list, select BIOS.
  6. Select the latest version of BIOS, and click Download to download the BIOS file for your computer.
  7. After the download is complete, browse the folder where you saved the BIOS update file.
  8. Double-click the BIOS update file icon and follow the on-screen instructions.
    For more information, see knowledge base article 000124211 at www.dell.com/support.

Updating the BIOS in Linux and Ubuntu
To update the system BIOS on a computer that is installed with Linux or Ubuntu, see the knowledge base article 000131486 at www.dell.com/support.

Updating the BIOS using the USB drive in Windows
CAUTION: If BitLocker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the BitLocker key. You will then be prompted to enter the recovery key to progress and the system will ask for this on each reboot. If the recovery key is not known this can result in data loss or an
unnecessary operating system re-install. For more information on this subject, see Knowledge Article: https://www.dell.com/support/article/sln153694

  1. Follow the procedure from step 1 to step 6 in Updating the BIOS in Windows to download the latest BIOS setup program file.
  2. Create a bootable USB drive. For more information, see the knowledge base article 000145519 at www.dell.com/support.
  3. Copy the BIOS setup program file to the bootable USB drive.
  4. Connect the bootable USB drive to the computer that needs the BIOS update.
  5. Restart the computer and press F12 .
  6. Select the USB drive from the One Time Boot Menu.
  7. Type the BIOS setup program filename and press Enter.
    The BIOS Update Utility appears.
  8. Follow the on-screen instructions to complete the BIOS update.

Updating the BIOS from the F12 One-Time boot menu
Update your computer BIOS using the BIOS update.exe file that is copied to a FAT32 USB drive and booting from the F12 One-Time boot menu.
CAUTION: If BitLocker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the BitLocker key. You will then be prompted  to enter the recovery key to progress and the system will ask for this on each reboot. If the recovery key is not known this can result in data loss or an unnecessary operating  system re-install. For more information on this subject, see Knowledge Article: https://www.dell.com/support/article/sln153694

BIOS Update
You can run the BIOS update file from Windows using a bootable USB drive or you can also update the BIOS from the F12 One-Time boot menu on the computer.
Most of the Dell computers built after 2012 have this capability, and you can confirm by booting your computer to the F12 One-Time Boot Menu to see if BIOS FLASH  UPDATE is listed as a boot option for your computer. If the option is listed, then the BIOS supports this BIOS update option.
NOTE: Only computers with BIOS Flash Update option in the F12 One-Time boot menu can use this function.

Updating from the One-Time boot menu
To update your BIOS from the F12 One-Time boot menu, you need the following:

  • USB drive formatted to the FAT32 file system (key does not have to be bootable)
  • BIOS executable file that you downloaded from the Dell Support website and copied to the root of the USB drive
  • AC power adapter that is connected to the computer
  • Functional computer battery to flash the BIOS
    Perform the following steps to perform the BIOS update flash process from the F12 menu:

DELL Command Power Manager Apps - icon 1 CAUTION: Do not turn off the computer during the BIOS update process. The computer may not boot if you turn off your computer.

  1. From a turn off state, insert the USB drive where you copied the flash into a USB port of the computer.
  2. Turn on the computer and press F12 to access the One-Time Boot Menu, select BIOS Update using the mouse or arrow keys then press Enter.
    The flash BIOS menu is displayed.
  3. Click Flash from file.
  4. Select external USB device.
  5. Select the file and double-click the flash target file, and then click Submit.
  6. Click Update BIOS. The computer restarts to flash the BIOS.
  7. The computer will restart after the BIOS update is completed.

System and setup password

Table 35. System and setup password

Password typeDescription
System passwordPassword that you must enter to log in to your system.
Setup passwordPassword that you must enter to access and make changes to the BIOS settings of your computer.

You can create a system password and a setup password to secure your computer.
DELL Command Power Manager Apps - icon 1 CAUTION: The password features provide a basic level of security for the data on your computer.
DELL Command Power Manager Apps - icon 1 CAUTION: Anyone can access the data that is stored on your computer if it is not locked and left unattended.
EZVIZ CSCB3EB3 Smart Home Battery Camera - icon 8 NOTE: System and setup password feature is disabled.

Assigning a system setup password

You can assign a new System or Admin Password only when the status is in Not Set.
To enter the system setup, press F12 immediately after a power-on or reboot.

  1. In the System BIOS or System Setup screen, select Security and press Enter.
    The Security screen is displayed.
  2. Select System/Admin Password and create a password in the Enter the new password field.
    Use the following guidelines to assign the system password:
    ● A password can have up to 32 characters.
    ● At least one special character: ! ” # $ % & ‘ ( ) * + , – . / : ; < = > ? @ [ \ ] ^ _ ` { | }
    ● Numbers 0 through 9.
    ● Upper case letters from A to Z.
    ● Lower case letters from a to z.
  3. Type the system password that you entered earlier in the Confirm new password field and click OK.
  4. Press Esc and save the changes as prompted by the pop-up message.
  5. Press Y to save the changes.
    The computer restarts.

Deleting or changing an existing system setup password
Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup password. You cannot delete or  change an existing System or Setup password, if the Password Status is Locked.
To enter the System Setup, press F12 immediately after a power-on or reboot.

  1. In the System BIOS or System Setup screen, select System Security and press Enter.
    The System Security screen is displayed.
  2. In the System Security screen, verify that Password Status is Unlocked.
  3. Select System Password, update, or delete the existing system password, and press Enter or Tab.
  4. Select Setup Password, update, or delete the existing setup password, and press Enter or Tab.
    NOTE: If you change the System and/or Setup password, reenter the new password when prompted. If you delete the System and/or Setup password, confirm the  deletion when prompted.
  5. Press Esc and a message prompts you to save the changes.
  6. Press Y to save the changes and exit from System Setup.
    The computer restarts.

Clearing BIOS (System Setup) and System passwords
To clear the system or BIOS passwords, contact Dell technical support as described at www.dell.com/contactdell.
NOTE: For information on how to reset Windows or application passwords, refer to the documentation accompanying Windows or your application.

Software

This chapter details the supported operating systems along with instructions on how to install the drivers.
Topics:
• Downloading drivers

Downloading drivers

  1. Turn on the .
  2. Go to Dell.com/support.
  3. Click Product Support, enter the Service Tag of your , and then click Submit.
    NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your model.
  4. Click Drivers and Downloads.
  5. Select the operating system installed on your .
  6. Scroll down the page and select the driver to install.
  7. Click Download File to download the driver for your .
  8. After the download is complete, navigate to the folder where you saved the driver file.
  9. Double-click the driver file icon and follow the instructions on the screen.

System device drivers
Verify if the system device drivers are already installed in the system.

Serial IO driver
Verify if the drivers for Touchpad, IR camera, and keyboard and are installed.

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 5Human Interface Devices
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 5USB Input Device
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 5USB Input Device
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 6Keyboards
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 6HID Keyboard Device
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 7Mice and other pointing devices
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 7HID-compliant mouse

Figure 1. Serial IO driver
Security drivers
Verify if the security drivers are already installed in the system.

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 8Security devices
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 8Trusted Platform Module 2.0

USB drivers
Verify if the USB drivers are already installed in the computer.

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 3Universal Serial Bus controllers
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 3Intel(R) USB 3.1 extensible Host Controller – 1.10 (Microsoft)
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 3USB Root Hub (USB 3.0)

Network adapter drivers
Verify if the Network adapter drivers are already installed in the system.

Realtek Audio
Verify if audio drivers are already installed in the computer.

DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 4Sound, video and game controllers
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 4Intel(R) Display Audio
DELL OptiPlex 3070 Micro Factor PC with 9th Gen Intel - icon 4Realtek Audio

Storage controller
Verify if the storage control drivers are already installed in the system.
Topics:
• Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.  To contact Dell for sales, technical support, or customer service issues:

  1. Go to Dell.com/support.
  2. Select your support category.
  3. Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
  4. Select the appropriate service or support link based on your need.

© 2018 – 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Regulatory Model: D10U
Regulatory Type: D10U003
July 2020 Rev. A01

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
