USER GUIDE
SHANGRI- LA

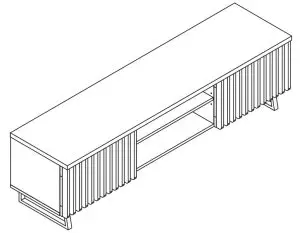

MANILA ENTERTAINMENT UNIT 160CM
SLMANILELWA, SLMANILELNA, SLMANILELBA
SAFETY & WARNINGS
Ensure to read all instructions and warnings in this user guide prior to assembly.
- Ensure no parts are missing. If parts are missing, contact help.Kogan.com for assistance.
- Layout all the components on a soft surface.
- Carefully identify each component, especially those that are similar. The most common mistake is getting things back to front.
- Do not fully tighten screws (leave slightly loose) during assembly. When the item is fully assembled, tighten the screws but do not overtighten.
- Separate and identify each component from the hardware pack and rest each one in its proper location before fastening.
- Do not, for any reason, use a power tool to assemble this product. The use of power tools may apply excess force on the fixtures, causing damage.
- A Phillips screwdriver (not supplied) is required for assembly.

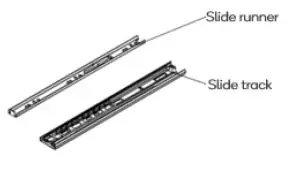

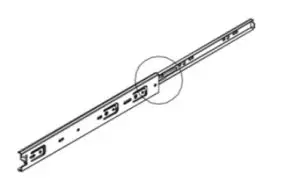

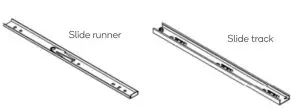

The user guide enclosed refers to multiple sets of metal slide runners and slide tracks (pictured above separately).
To avoid any damage to these items during transportation, the slide runners and slide tracks have been pre-assembled together in pairs. Each pair includes a slide runner and slide track. Before assembling your new Shangri-La unit, please separate the slide runners from the slide tracks according to the following instructions.
Step 1: Extend the slide runners apart from the slide track.

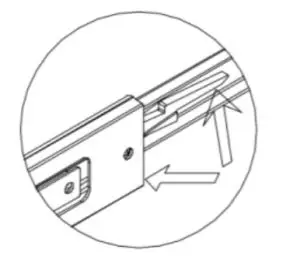

Step 2: Gently press the plastic release lever on the slide runner while pulling the slide runner and slide track apart from each other.
Step 3: The slide runner and slide track should now be separated. repeat these steps for all remaining pairs of slide runners and slide tracks.

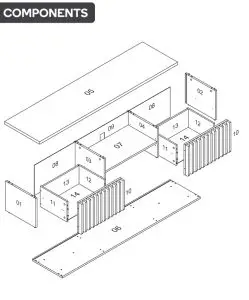

Parts list
| No. | Dimensions (mm) | Qty |
| 1 | 285 x 350 x15 | 1 |
| 2 | 285 x 350 x15 | 1 |
| 3 | 285 x 350 x15 | 1 |
| 4 | 285 x 350 x15 | 1 |
| 5 | 394 x1550 x 25 | 1 |
| 6 | 340 x 1549 x15 | 1 |
| 7 | 322 x 580 x15 | 1 |
| 8 | 294 x 462 x 2.5 | 2 |
| 9 | 294 x 590 x 2.5 | 1 |
| 10 | 297 x 479 x 50 | 2 |
| 11 | 198 x 300 x 12 | 2 |
| 12 | 198 x 300 x12 | 2 |
| 13 | 196 x 409 x12 | 2 |
| 14 | 294 x 418 x 2.5 | 2 |

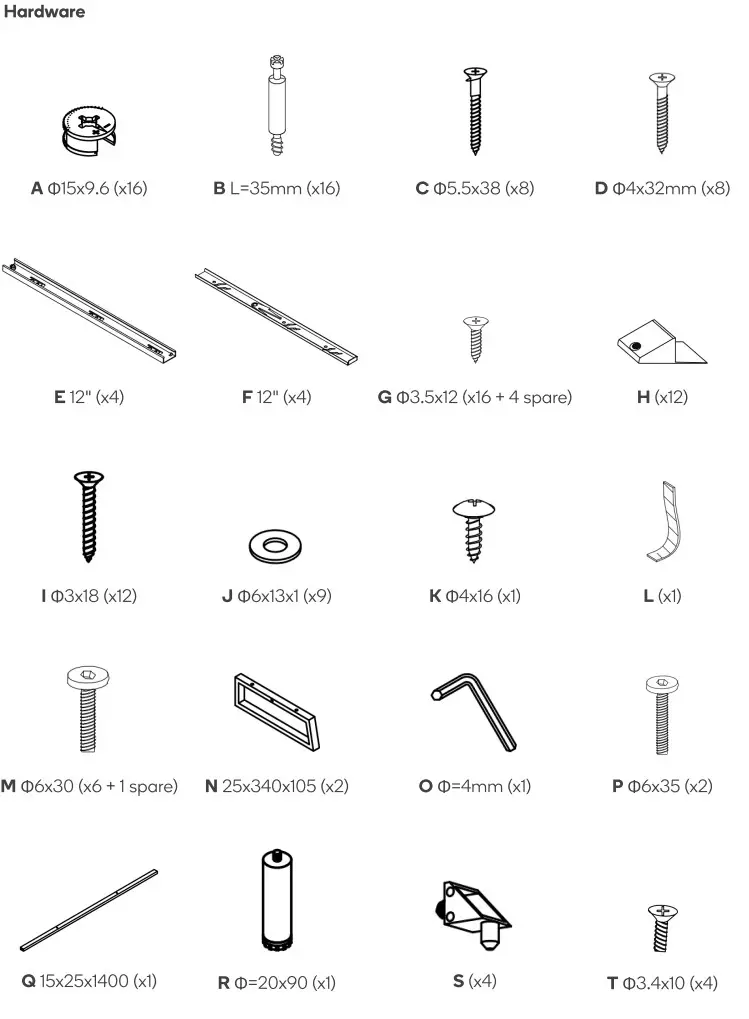

Hardware

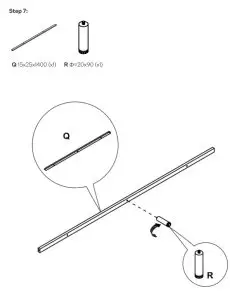

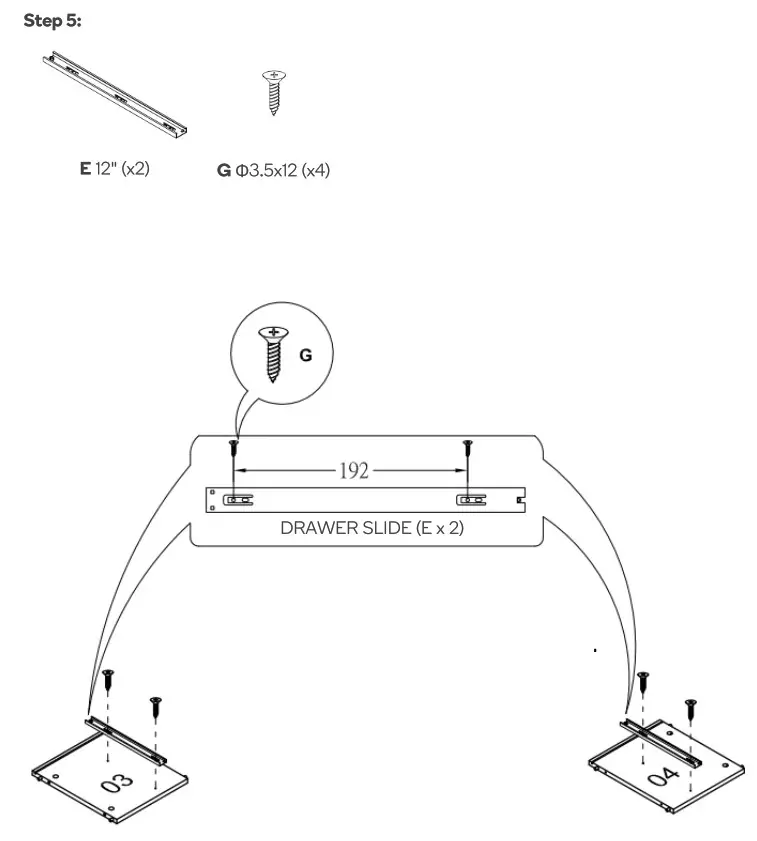

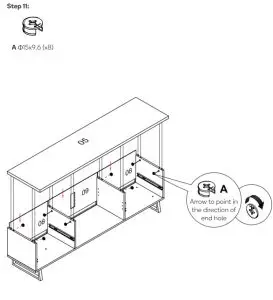

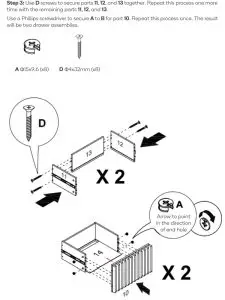

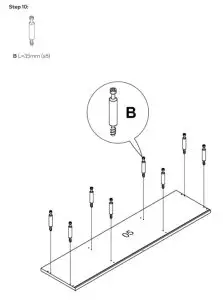

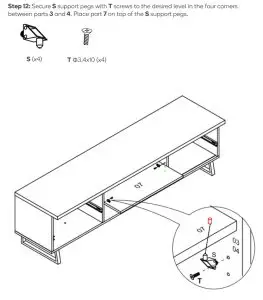

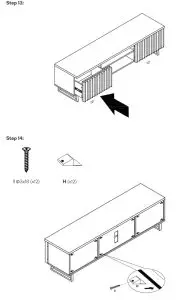

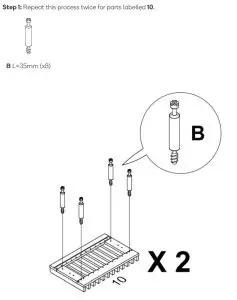

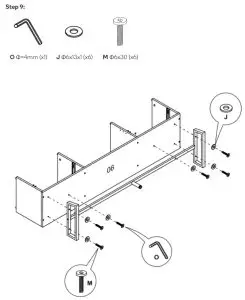

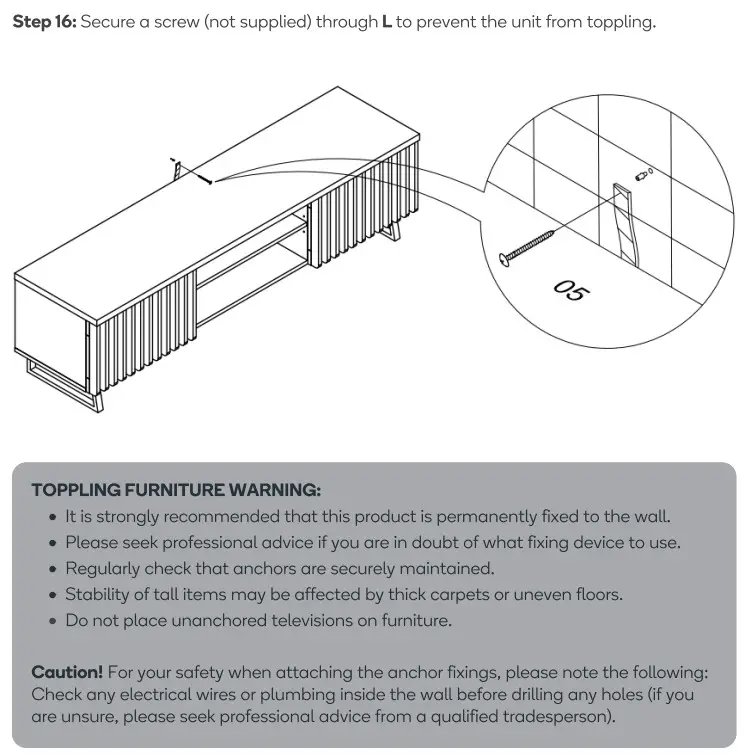

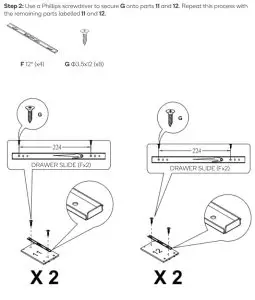

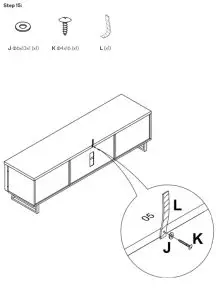

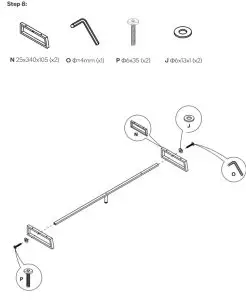

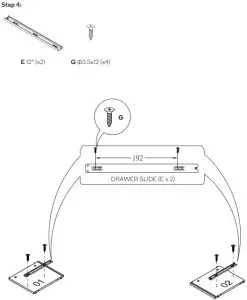

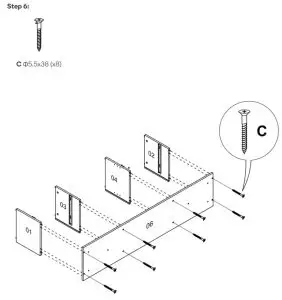

ASSEMBLY
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
Assembly complete
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
