User Guide

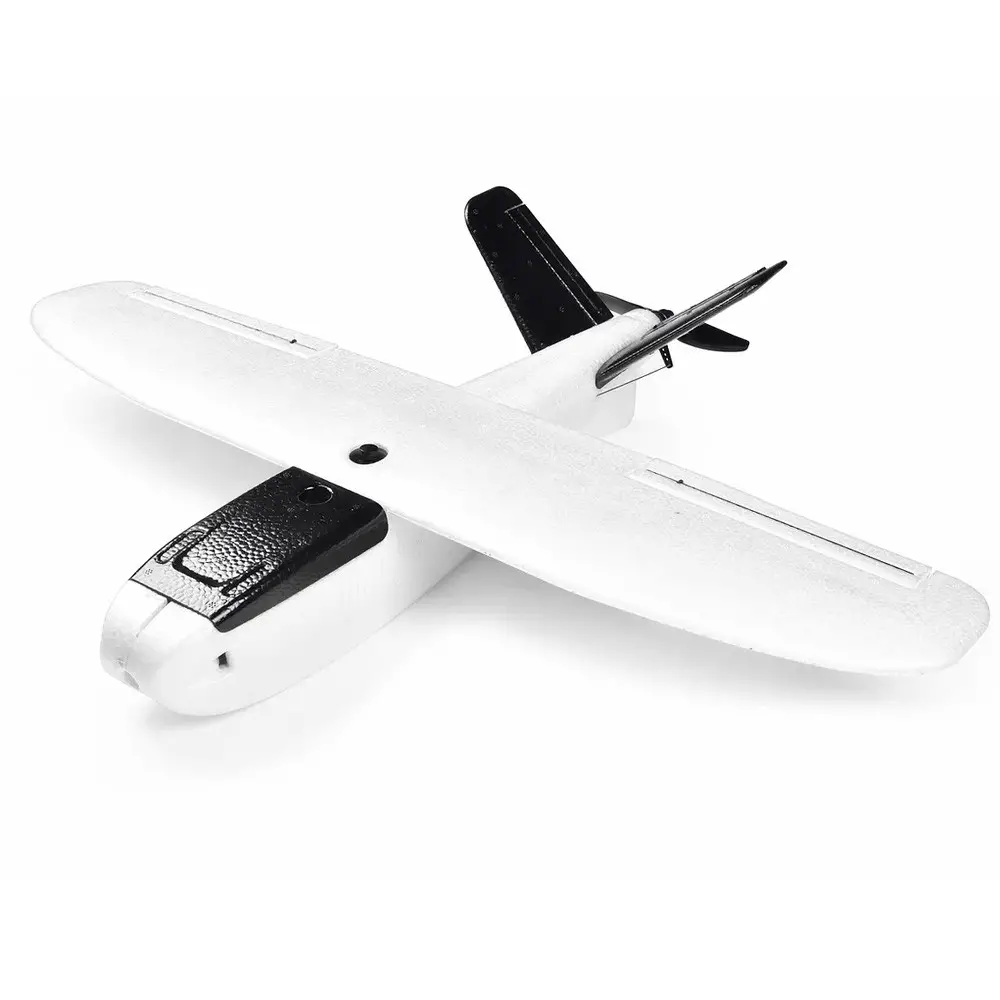

ZOHD Talon 250G
Thank you for supporting us buying a ZOHD TALON 250G
Stay connected with us through our social media channels:
Contact us: [email protected] [email protected] Customer service: [email protected]
Description of ZOHD TALON 250G:
- Brand Name: ZOHD
- Item Name: TALON 250G
- Material: High Quality EPP
- Wingspan: 620mm (24.41″)
- Length: 452mm (17.79”)
- Recommended take off weight: 240-320g
OPTION A (2S Version)
- Motor: 1406-2600KV
- ESC: 30A w/5V 2A BEC
- Servos: 4.3g*4
- Propeller: 2 blade 5×5
- Recommended Battery: Lipo 25 900-1500mAh
- ZOHD Lionpack 18650 2S1P 3500mAh
OPTION B (3S Version)
- Motor: 1406-2600KV
- ESC: 30A w/5V 2A BEC
- Servos: 4.3g*4
- Propeller: 3 blade 3x5x3
- Recommended Battery: Lipo 3S 1100-1500mAh

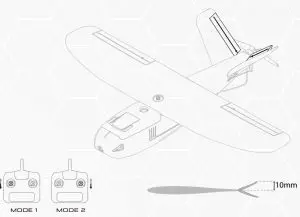

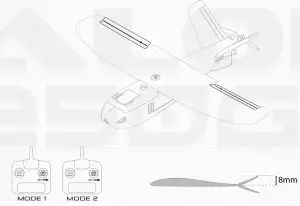

Installation

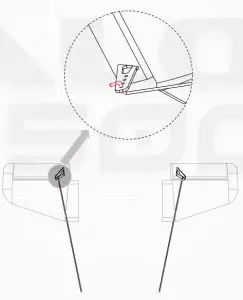

- Install the push-rods on the control horns as shown in the picture.

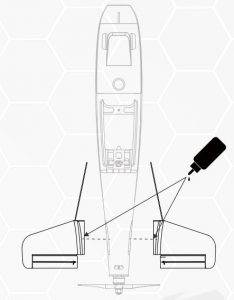

2. Glue the V-Tail fins in place using an EPP-safe glue.
3. Install the other end of the push-rods on the servo horns. Be sure to align them properly.

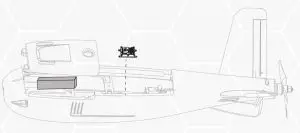

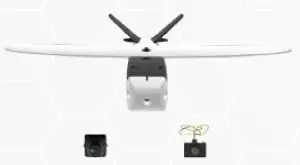

4. Install all your FPV gear and battery.
5. There is a provided thumbscrew to secure the main wing once you finish the installation.

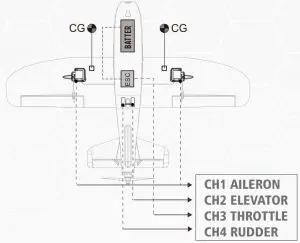

CG: 27.5mm from the leading edge.
For the ESC manual, please download the PDF version from our website: www.zohd.net
