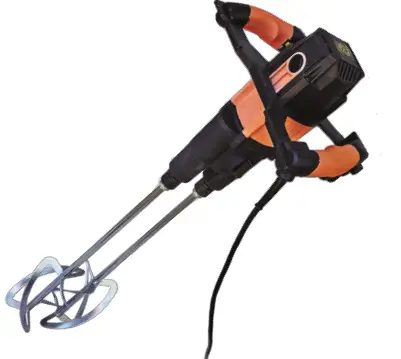

BNR6502 Dual paddel electric mixer 1800w
BNR6502 Dual-Paddle Power Mixer: Part Number Listing
| 1 | BNRPDDDDl | Screw ST4.8X70 | 6 |
| 2 | BNRPDD002 | Left Handle Upper | 1 |
| 3 | BNRPDD003 | Rear Housing | 1 |
| 4 | BNRPD0004 | Speed Control | 1 |
| 5 | BNRPDOOOS | Cable Clamp | 1 |
| 6 | BNRPDD006 | Screw ST3.9×14 | 10 |
| 7 | BNRPDD007 | Aluminium Handle Frame | 1 |
| 8 | BNRPDD051 | Handle Frame Cover Upper | 1 |
| 9 | BNRPD0051 | Handle Frame Cover Lower | 1 |
| 10 | BNRPD0010 | Left Handle Lower | 1 |
| 11 | BNRPD0011 | Motor Housing | 1 |
| 12 | BNRPD0012 | Brush Holder | 2 |
| 13 | BNRPD0013 | Carbon Brush | 2 |
| 14 | BNRP00014 | Brush Cover | 2 |
| 15 | BNRP00015 | Stator | 1 |
| 16 | BNRPD0016 | Wind Baffle | 1 |
| 17 | BNRPDDD17 | Bearing Sleeve | 1 |
| 18 | BNRPD0018 | Bearing 6000 | 1 |
| 19 | BNRPDOD19 | Armature | 1 |
| 20 | BNRPD0020 | Bearing 6001 | 1 |
| 21 | BNRPD0021 | Spring | 1 |
| 22 | BNRPD0022 | Cable Plug | 1 |
| 23 | BNRPD0023 | Cable Guard | 1 |
| 24 | BNRPD0024 | Right Handle Lower | 1 |
| 25 | BNRPD0025 | Screw M4x12 | 2 |
| 26 | BNRPD0026 | Screw ST3.9×20 | 1 |
| 27 | BNRPD0027 | Press Plate | 1 |
| 28 | BNRPD0028 | Capacitor | 1 |
| 29 | BNRPD0029 | Switch | 1 |
| 30 | BNRPD0030 | Insulation Plate | 1 |
| 31 | BNRPD0031 | Right Handle Upper | 1 |
| 32 | BNRP00063 | Output Shaft | 2 |
| 33 | BNRPD0064 | Key SxlD | 2 |
| 34 | BNRP00065 | Connection Sleeve ( R) | 1 |
| BNRP00066 | Hole Ring 42 | 2 | |
| 36 | BNRPD0067 | Dust Proof Ring | 2 |
| BNRPD0068 | Bearing 6004 | 2 | |

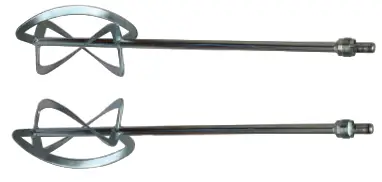

BNR013-120 Paddle Set

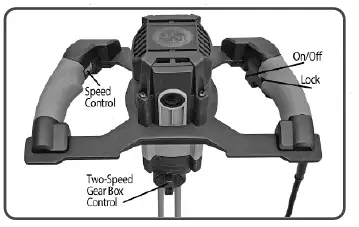

Handle & Control Callouts:

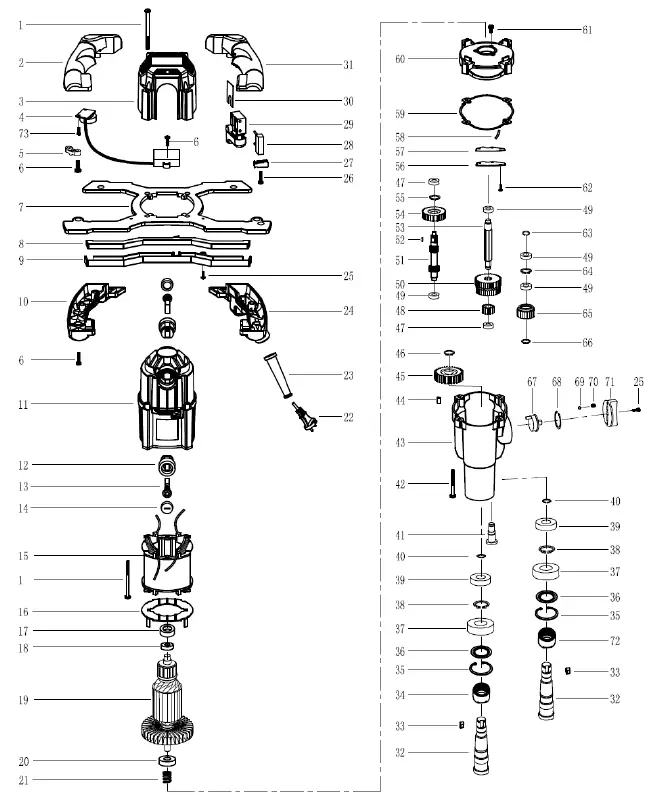

BNR6502 Dual-Paddle Power Mixer: Exploded View

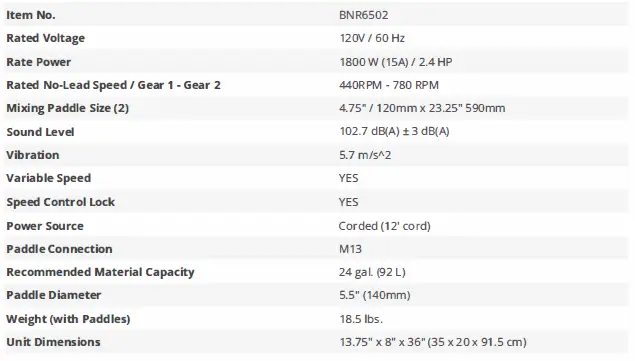

Product Specifications
