ROCKER MultiVac 300-MS Stainless Steel Multi-Branch Manifold
Features
- Quick-assembly and disassembly
Each component can be easily removed for cleaning and autoclaving. - SS316 stainless steel
All wetted parts of MultiVac 300 / 600 manifold are made of SS316 stainless steel, which is more durable. - Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source. - Innovative vent valve design
Adjustable vent valve eliminates water hammer phenomenon and helps drain residual liquid in pipe. - Individual control valve
Control feeds of each filter holder individually. - Versatile & compatible
MultiVac 300 / 600 – MS manifolds include No.8 silicone stoppers that are adaptable to most filter holders. - Two-Year Warranty
MultiVac 300 – MS

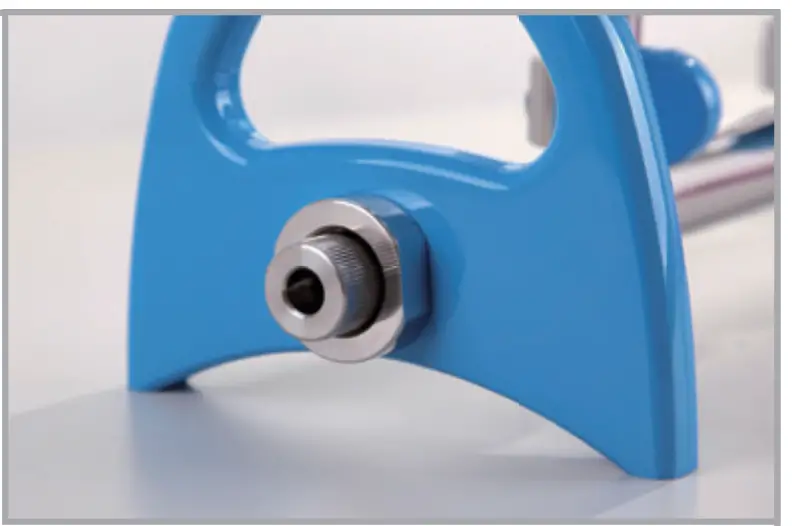

Adjustable vent valve

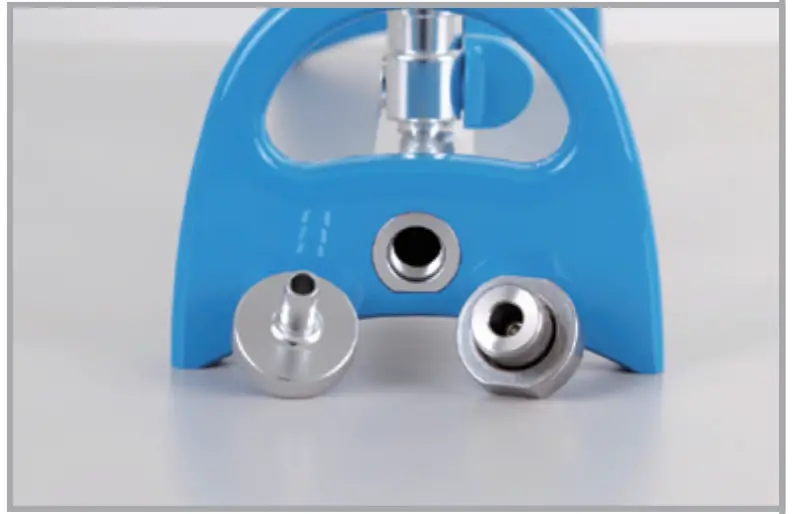

Quick-Fit hose barb

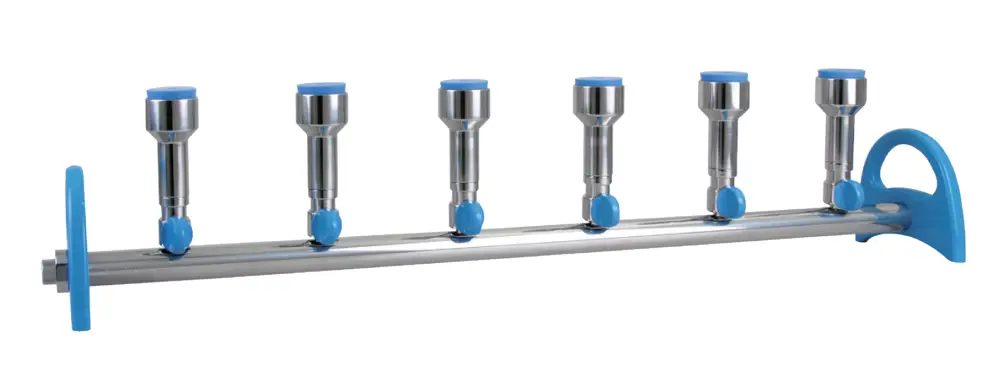

MultiVac 600 – MS
Applications
- Microbiological test
- Suspended solid test
- Vacuum filtration
Specification
| Model | MultiVac 300 – MS | MultiVac 600 – MS |
| Number of branch | 3 | 6 |
| Filter diameter | Depends on filter holder | Depends on filter holder |
| Funnel capacity | Depends on filter holder | Depends on filter holder |
| Hose barb | ID8 | ID8 |
| Net weight | 3.0 Kg | 5.1 Kg |
| Dimension (LxWxH) | 48 x 13 x 16 cm | 85 x 13 x 16 cm |
| Part | Material | Material |
| Body | SS316 | SS316 |
| Control valve | SS316 | SS316 |
| Adaptor | SS316 | SS316 |
| Hose barb / Vent valve | SS316 | SS316 |
| Handle / Knob | Aluminum | Aluminum |
Ordering Information
180300-01
MultiVac 300 – MS, 3 Places SS Manifold with No.8 stopper funnel adaptor.
80600-01
MultiVac 600 – MS, 6 Places SS Manifold with No.8 stopper funnel adaptor.
200300-01
MF 3, Magnetic Filter Holder, 300 mL
167110-16
No.8 Silicone Stopper
