BeBa_24910 Shaped Bath Panel
Product Information: Shaped Bath Panel Installation
Instructions
The Shaped Bath Panel is a product manufactured in the UK and
comes with a 2-year guarantee. The package includes a Bath front
panel (A), and suitable panel clips to be attached to the underside
of the bath and the floor. The product requires additional tools
for installation, including a spirit level, pozi screwdriver, tape
measure, utility knife, and fine-toothed saw. The product should be
cleaned using warm soapy water only, and it is recommended not to
use scourers, abrasives or chemical cleaners.
Safety Instructions:
- Handle the panel with care.
- When drilling walls or floors, check first for hidden pipes and
cables. - Use safety eyewear when drilling.
- Keep small parts away from children.
Product Usage Instructions:
- Place the bath panel into position.
- Use a spirit level to ensure that the panel is vertical.
- Mark a line on the floor along the length of the panel and
remove the panel. - Using suitable fixings, secure the panel clips along the edge
of the marked line on the floor, aligning to the panel clips
attached to the underside of the bath. - Push the panel into position so that it is held by the panel
clips attached to the floor and to the underside of the bath. - Clean using warm soapy water only, and do not use scourers,
abrasives or chemical cleaners.
4. Using suitable xings secure the panel clips along the edge of the marked line on the oor, aligning to the panel clips a ached to the underside of the bath.
(see Fig. 2)
Fig. 2
Panel clips
Made in UK
Marked line
5. Push the panel into posion
so that it is held by the panel clips ed to the oor and to
the underside of the bath.
(see Fig. 3)
Fig. 3
Quality Bath Panels
Manufactured in the UK
Shaped Bath Panel Installaon Instrucons
– Read through the instrucon booklet rst before commencing any work. If you are unsure of any aspect of the installaon, we recommend you contact a reputable tradesperson. -Prior to ng your panel, carefully remove all the packaging and lm from the panel and examine the panel for damage and suitability of colour match. – Check the panel t and match priorto installaon. – Any rexing costs or claims for wrong colour match and/or any other fault will not be accepted a er xing. No claims for the above will be accepted once the bath is ed.
Care & Use: – Clean using warm soapy water only. Do not use scourers, abrasives or chemical cleaners.
Please Note: – Baths should be set at supplied panel height.
P4
1020 V1/280617
2
Year Guarantee

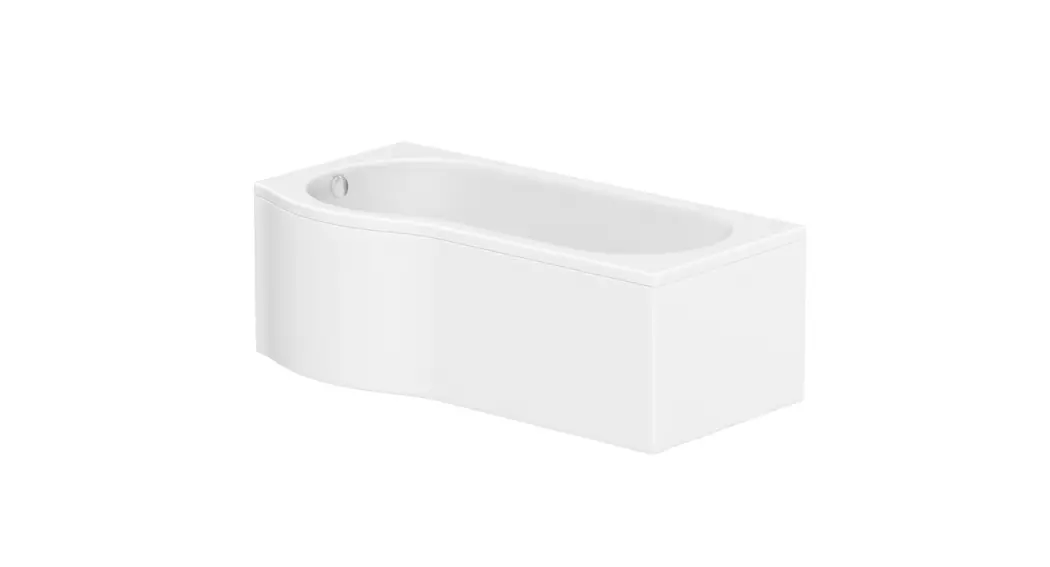

Please note, LH P-Shape bath shown for illustraonal purposes.
Ref: 68/75 Version 1
Shaped Bath Panel InstallaonInstrucons
Before you start – Before xing remove ALL protecve covering and examine carefully. The polythene lm must be removed in full and the panel checked for any visible damage. – Unpack and check the product is complete and undamaged. – Have the correct tools available. – Please nofy the retailer immediately of any damage or faults. The manufacturer cannot be held responsible for any installaon costs that may arise from damaged or faulty product being installed. The guarantee does not cover impact related damage. Please dispose of all packaging with due regard to the environment. Please note: Read the installaon insrucon rst. Although these instrucons are comprehensive, it is always recommended that a technically competent installer should undertake installaon.
Safety – Handle the panel with care. – Should the cung of panels be necessary (due to water pipes or skirng boards) a small ne toothed saw or sharp knife is recommended. – When drilling walls or oors,check rst for hidden pipes and cables. – Use safety eyewear when drilling. – Keep small parts away from children.
Parts provided Bath front panel (A)
Parts Required (not supplied) Suitable xings for the panel clips to the oor.
Tools required
Spirit Level
Pozi Screwdriver
Tape Measure
Ulity Knife
Pencil
*Tools shown not supplied
– We have taken great care to ensure that this product reaches you in perfect condion. However should any parts be damaged or missing please contact your point of purchase. This does not affect yffour statutory rights. In addion ifyou require replacement parts your point of purchase will be happy to assist.
P2
Fine Toothed Saw
Assembly
Fig. 1
Panel (A)
1. Place the bath panel into posion. (See Fig. 1)
2. Ensure that the panelis vercal using a spirit level.
Note- If ng both the end and front panel check that the end panel is located behind the front panel at the corner joint.
3. Mark a line on the oor along the length of the panel then remove the panel. (See Fig. 1)
Mark a line
Ref: 68/75 Version 1
P3
