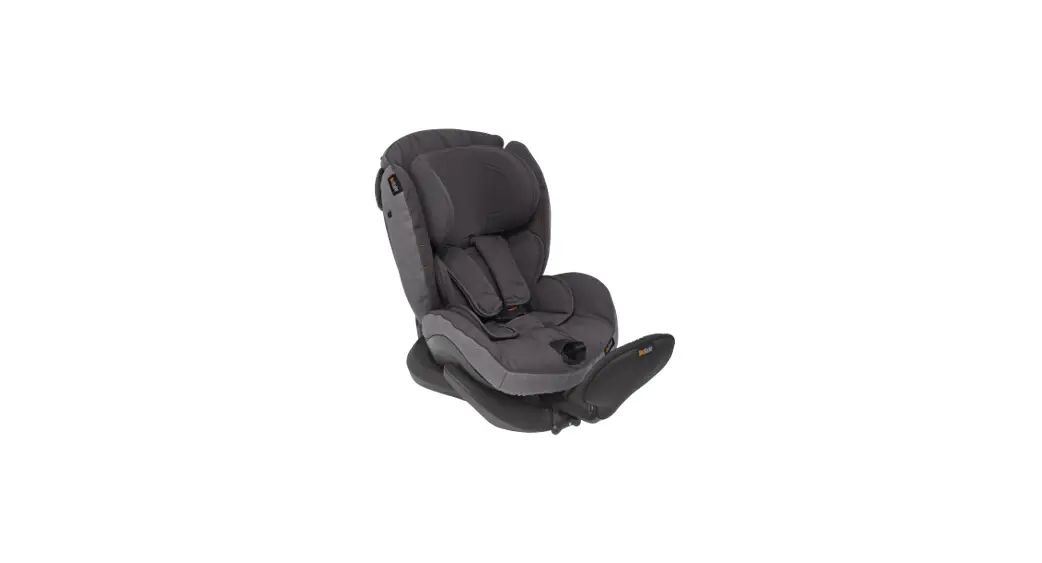

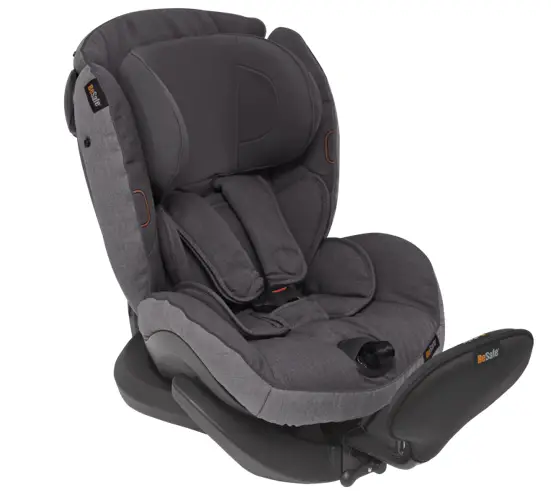

BeSafe logoECE R44 04 Baby Car Seats
Instruction ManualBeSafe ECE R44 04 Baby Car Seats

Recommendation list for cars and installation of iZi Plus

Note: The car manual is the leading guideline and must always be followed. This car list does not limit or guarantee the fit of this child seat.
The child seat is a specific vehicle enhanced child restraint system. It is approved to regulation R44-04 series to use in vehicles fitted with 3-point belts approved to UN/ECE  Regulation No. 16 or other equivalent standards.
The child seat is suitable for fixing into the seat positions of the cars listed below, providing approved 3-point belt is fitted and available. Seat positions in other cars may also  be suitable to accept this child restraint, however we have not yet tested that combination of car and Stretch seat. If in doubt, consult either BeSafe or the retailer. For updated  carlist see: www.besafe.com
Vehicle seat positions marked with * can have a storage compartment in front of the vehicle seat.
If the support leg would be positioned on a storage compartment in front of the seat, you must follow the car manufacturer’s instructions regarding how to handle the storage compartment. When the floor under the floor support is unsufficient to hold the forces you can not use this child seat in this position of the car.
BeSafe recommends to test the installation of this child seat in all vehicle seat positions which are intended to be used and check installation, available space in the vehicle and  position of the child, to verify if this child seat is acceptable for your situation.
Some cars have very limited belt length. Always check in your car to verify if the belt length is long enough for installation.
Recent car model updates are not mentioned with their year of introduction.
Generally, this child seat fits in later model updates of the same model.

important iconNotice: DO NOT use on a passenger seat fitted with activated frontal airbag.

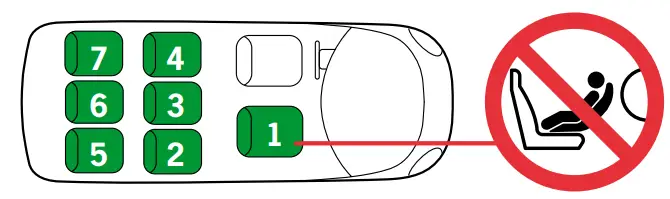

BeSafe ECE R44 04 Baby Car Seats - Figure 1

Car manufacturerModel1st  year  of productionApproved seats
AiwaysU520201,2,3,4
U620221,2,3,4
Alfa Romeo14720001,2,4
15519921,2,3,4
15619971,2,3,4
15920061,2,3,4
16419871,2,4
Giulia20151,2,4
Giulietta20101,2,3,4
Mito20081,2,4
Stelvio20171,2,3,4
Tonale20221,2,4
AudiA120101,2,4
A220001,2,4
A3, S319971,2,3,4
A3, S320031,2,3,4
A3 sportback20031,2,4
A3 cabrio20081,2,4
A4, S4, RS419981,2,3,4
A4 cabrio20021,2,4
A4 Avant20071,2,3,4
A5, S520091,2,3,4
A5 sportback20091,2,4
A5 cabrio20091,2,4
A6, S6, RS619981,2,3,4
A7 sportback20101,2,4
A8, S819981,2,3,4
E-tron20191,2,3,4
S4 cabrio20021,2,4
Q220161,2,4
Q320101,2,3,4
Q4 e-tron (sportback)20211,2,3,4
Q520081,2,3,4
Q720061,2,3,4
Q820191,2,3,4
BMW1 serie20051,2,4
2 serie  active tourer20141,2,3,4
2 serie  Gran coupé20191,2,3,4
2 serie  gran tourer20151,2,3,4
3 serie19981,2,4
4 serie  gran coupe20141,2,3,4
5 serie20001,2,3,4
6 serie20031,2,3,4
7 serie20011,2,3,4
8 serie20181,2,3,4
i320131,2,3,4
I420211,2,3,4
iX (i20)20211,2,3,4
iX320211,2,3,4
Mini20061,2,4
Mini Clubman20071,2,4
Mini Countryman20101,2,3,4
X120041,2,3,4
X320041,2,3,4
X420041,2,3,4
Car manufacturerModel1st year of productionApproved seats
X520041,2,3,4
X620081,2,3,4
X720181,2,3,4
BYDATTO 320221,2,3,4
ChevroletAveo20061,2,4
Captiva20061,2,3,4
Cruze20091,2,3,4
Epica20061,2,3,4
Kalos20021,2,3,4
Lacetti20041,2,3,4
Malibu20111,2,3,4
Matiz20051,2,4
Nubira20091,2,3,4
Orlando20111,2,3,4
Spark20091,2,3,4
Trax20131,2,3,4
Chrysler300 CC20081,2,3,4
Dodge Caliber20061,2,3,4
Dodge Nitro20061,2,3,4
Dodge RAM20021,2,3,4
Jeep Commander20061,2,3,4
Jeep Grand Cherokee20101,2,3,4
Jeep Wrangler20111,2,3,4
PT cruiser20001,2,3,4
Sebring20071,2,3,4
Voyager20011,2,3,4
CitroenAX19861
Berlingo20081,2*,3,4*
BX19821,2,3,4
CX19741,2,3,4
C120051,2,4
C220041,2,4
C320041,2,3,4
C3 Picasso20131,2,3,4
C3 Aircross20171,2,4
C420041,2,3,4
C4 Aircross20122.4
C4 Cactus20142.4
C4 Picasso20071,2*,3,4*
C4 Grande Picasso20071,2*,3,4*
C4 Grand Spacetourer20201,2,3,4
C4 Spacetourer20201,2,3,4
C4 X20221,2,3,4
C520001,2,3,4
C5 X20221,2,3,4
C5 Aircross20181,2,3,4
C620081,2,3,4
C820031,2,3,4
C-crosser20081,2,3,4
C-Elysée20121,2,3,4
Jumpy20041,2,3,4
Nemo20071,2,3,4
Saxo19961,2,4
Xantia19931,2,3,4
XM19891,2,3,4

Car manufacturer

Model1st year of production

Approved seats

Xsara19971,2,3,4
Xsara Picasso20001,2,3,4
ZX19911,2,4
CupraBorn20221,2,3,4
Formentor20211,2,3,4
Leon20211,2,3,4
DaciaDokker20121,2,3,4
Duster20101,2,3,4
Duster 220171,2,3,4
Jogger20211,2,4
Lodgy20121,2,3,4
Logan MVC20051,2,3,4
Logan 2 MCV20131,2,3,4
Sandero20081,2,3,4
Sandero 220131,2,3,4
Spring20211,2,4
DaihatsuCharade20111,2,3,4
Cuora19971
Gran Move19961,2,3,4
Sirion20051,2,3,4
Terios19971,2,3,4
YRV19991,2,3,4
DS AutomobilesDS320101,2,3,4
DS420111,2,3,4
DS520121,2,3,4
DS720171,2,3,4
DS920221,2,3,4
Fiat50020071
500 L20131,2,3,4
500 X20151,2,3,4
Bravo20071,2,3,4
Croma19861,2,3,4
Doblò20101,2,3,4
Fiorno / Qubo20081,2,3,4
Fiorino20071,2,3,4
Freemont20111,2*,3,4*
Grande Punto20061,2,3,4
Marea19961,2,3,4
Multipla19981,2,3,4
Panda20041
Punto19931,2,4
Sedici20051,2,3,4
Scudo20071,2,3,4
Stilo20011,2,3,4
Tipo (SW/Sedan/Hatchback)20161,2,3,4
Ulysse19941,2,3,4
FordB-max20121,2*,3,4*
C-max20031,2*,3,4*
Ecosport20141,2,3,4
Escort19901,2,3,4
Explorer20191,2,3,4
Fiesta20081,2,4
Focus20041,2,3,4
Fusion20021,2*,3,4*
Galaxy20061,2*,3,4*

Car manufacturer

Model1st year of production

Approved seats

Ka19961
Kuga20081,2*,3,4*
Mondeo20001,2,3,4
Mustang Mach-E20201,2,3,4
Puma20191,2,3,4
Scorpio19851,2,3,4
Sierra19821,2,3,4
S-max20061,2*,3,4*
Tourneo Connect20131,2*,3,4*
Tourneo Courier20141,2*,3,4*
Transit19851,2,3,4
GenesisGV6020221,2,3,4
G7020211,2,3,4
GV7020211,2,3,4
G8020211,2,3,4
GV8020211,2,3,4
HondaAccord20031,2,3,4
City20091,2,3,4
Civic20061,2,3,4
CR-V20021,2,3,4
CR-Z20101,2,3,4
FR-V20041,2,3,4
Insight20091,2,3,4
Jazz20021,2,3,4
Legend20061,2,3,4
Odyssey20061,2,3,4
Stream20011,2,3,4
HuyndaiAccent20021,2,3,4
BAYON20211,2,3,4
Coupe20011,2,3,4
Elantra20021,2,4
Getz20021,2,3,4
H1/iMax/i800/H30020081,2,3,4
i1020081,2,4
i2020091,2,4
i3020071,2,3,4
i4020111,2,3,4
IONIQ20161,2,3,4
iX2020101,2,3,4
iX3520101,2,3,4
iX5520091,2,3,4
KONA20181,2,3,4
Matrix20021,2,3,4
NEXO20181,2,3,4
Pony19851,2,3,4
Santa Fe20021,2,3,4
Sonata19881,2,3,4
Terracan20021,2,3,4
TUCSON20041,2,3,4
Trajet19991,2,3,4
InfinitiQ30/QX3020151,2,3,4
Q5020141,2,3,4
QX7020141,2,3,4
JaguarE-Pace20171,2,3,4
F-Pace20161,2,3,4

Car manufacturer

Model1st year of production

Approved seats

I-Pace20181,2,3,4
S type20021,2,3,4
X type20051,2,3,4
XE20151,2,3,4
XF20081,2,3,4
XJ20031,2,3,4
JeepCherokee19931,2,3,4
Compass20171,2,3,4
Grand Cherokee19931,2,3,4
Patriot20061,2,3,4
Renegade20141,2,3,4
KiaCarens/Rondo20021,2,3,4
Carnival/Sedona19991,2,3,4
Ceed20071,2,3,4
Cerato/Spectra20041,2,3,4
e-Niro20191,2,3,4
EV620211,2,3,4
Magentis/Optima20021,2,3,4
Niro20161,2,3,4
Opirus/Amanti20031,2,3,4
Picanto/Morning20001
ProCeed20181,2,4
Rio/Pride20051,2,4
Rio20171,2,4
Sorento20021,2,3,4
Soul20081,2,4
Sportage20041,2,3,4
Stinger20171,2,3,4
Stonic20171,2,3,4
Venga20091,2,4
LadaVesta20162.4
LanciaDelta19931,2,3,4
Musa20041,2,3,4
Phedra20021,2,3,4
Thema20111,2,3,4
Ypsilon19961,2,4
LandroverDefender20201,2,3,4
Discovery19981,2,3,4
Discovery Sport20141,2,3,4
Freelander20061,2,3,4
Range Rover20021,2,3,4
Range Rover Evoque20111,2,3,4
Range Rover Sport20051,2,3,4
Range Rover Velar20171,2,3,4
LexusCT20111,2,3,4
ES20181,2,3,4
GS20001,2,3,4
IS20051,2,3,4
LS20061,2,3,4
LX20081,2,3,4
NX20141,2,3,4
RX20031,2,3,4
RX200t/RX350/RX450h20151,2,3,4
RX350L/RX450hL20181,2,3,4
UX20191,2,3,4
Car manufacturerModel1st year of productionApproved seats
LucidAir20221,2,3,4
Lynk & Co0120201,2,3,4
MaseratiGhibli20131,2,3,4
Mazda220031,2,4
320041,2,4
32320011,2,4
520041,2,3,4
620031,2,3,4
62620001,2,3,4
CX-320151,2,3,4
CX-3020191,2,3,4
CX-520111,2,3,4
CX-720071,2,3,4
CX-920091,2,3,4
CX-6020221,2,3,4
MX-3020201,2,3,4
Premacy19991,2,3,4
MercedesA class W 16820011,2,4
A class W/C 16920051,2,3,4
A class W 17620121,2,3,4
A class V 17720181,2,3,4
A class W 17720181,2,3,4
B class T 24520051,2,3,4
B class V 17720191,2,3,4
B class W 24620111,2,3,4
C class C 20520151,2,3,4
C class W/S 20320001,2,3,4
C class W/S 20420071,2,3,4
C class W 20520141,2,3,4
C class A 20520161,2,3,4
C class S 20620211,2,3,4
C class W 20620211,2,3,4
Citan20131,2*,3,4*
Citan Tourer W 42020211,2,3,4
CL C 21520021,2,3,4
CL C 21620051,2,3,4
CLA C 11720131,2,3,4
CLA C 11820191,2,3,4
CLA X 11820191,2,3,4
CLA shooting break20151,2,3,4
CLC 180 C 20420081,2,3,4
CLK CL 20320021,2,3,4
CLS C 21920041,2,3,4
CLS C 25720181,2,3,4
E class A 23820171,2,3,4
E class C 23820171,2,3,4
E class W/S 21120021,2,3,4
E class W/S 21220091,2,3,4
E class W/S 21320161,2,3,4
EQA-class H 24320211,2,3,4
EQB-class X 24320211,2,3,4
EQC-class N 29320191,2,3,4
EQC-class N 29720211,2,3,4
EQE-class V 29520221,2,3,4
EQS-class V 29720211,2,3,4

Car manufacturer

Model1st year of production

Approved seats

G class G 46320181,2,3,4
GLA class20141,2,3,4
GLA class H 24720201,2,3,4
GLB class X 24720191,2,3,4
GLC class C25320151,2,3,4
GLC class X25320151,2,3,4
GLC class X25420221,2,3,4
GLE class C 16720191,2,3,4
GLE class V 16720181,2,3,4
GLK X 20420081,2,3,4
GLS class X 16720181,2,3,4
Maybach S class X22220151,2,3,4
M class W 16320011,2,3,4
M class W 16420051,2,3,4
M class W 16620111,2,3,4
ML class X 16420061,2,3,4
R class W/V 25120051,2,3,4
S class W/V 22020021,2,3,4
S class W/V 22120051,2,3,4
S class W/V 22320211,2,3,4
S class A21720151,2,3,4
Vaneo W 41420031,2,3,4
Viano W 63920031,2,3,4
Vito W 63920041,2,3,4
MGMG420221,2,3,4
MG520221,2,3,4
MG EHS20211,2,3,4
MG Marvel R20211,2,3,4
MG ZS20211,2,3,4
MitsubishiASX20101,2,3,4
Carisma19951,2,3,4
Colt20051,2,4
Eclipse Cross20171,2,3,4
Grandis20041,2,3,4
i-MiEV20091,2,4
Lancer20031,2,3,4
L 20020061
Outlander20031,2,3,4
Pajero20071,2,3,4
Space star20021,2,3,4
MobilizeLIMO20221,2,3,4
NIOES720221,2,3,4
ES820211,2,3,4
NissanAlmera20001,2,3,4
Ariya20221,2,3,4
Juke20101,2,4
Leaf20111,2,4
Micra20001,2,4
Murano20051,2,3,4
Note20051,2,4
NV200 / Evalia20131,2,3,4
Pathfinder20071,2,3,4
Pixo20091
Primastar20011,2,3,4
Primera20021,2,3,4
Car manufacturerModel1st year of productionApproved seats
Qashqai20071,2,3,4
Townstar20211,2,3,4
X-Trail20071,2,3,4
Opel/VauxhallAdam20131,2,4
Agila20021,2,4
Ampera20111,2,3,4
Ampera-e20171,2,3,4
Antara20061,2,3,4
Astra20041,2,3,4
Combo20011,2*,3,4*
Corsa/Corsa-e20001,2,4
Crossland X20171,2,3,4
Grandland X (hybrid)20171,2,3,4
Insignia20081,2,3,4
Kadett E19981,2,4
Karl / Viva20151,2,3,4
Meriva20021,2,3,4
Mokka/Mokka-E20211,2,3,4
Omega19931,2,4
Signum20021,2,3,4
Vectra20021,2,4
Vivaro20011,2,3,4
Zafira20031,2,3,4
Zafira Tourer20131,2,3,4
OraFunky Cat20221,2,4
Peugeot10720051,2,4
10820141,2,4
20619981,2,4
20720061,2,4
20820121,2,4
30120131,2,3,4
30619931,2,4
30720011,2,3,4
30820071,2,3,4
40619951,2,4
40720041,2,3,4
40820221,2,3,4
50820111,2,3,4
60519901,2,4
60720061,2,3,4
80619941,2,4
80720031,2,3,4
100720051,2,3,4
200820131,2,3,4
300820101,2*,3,4*
400720071,2,3,4
500820101,2*,3,4*
ION20101,2,4
Expert20071,2,3,4
Partner Tepee20081,2*,3,4*
Rifter20181,2*,3,4*
Travellar20151,2,3,4
Polestar220201,2,3,4
PorscheCayenne20031,2,3,4
Macan20141,2,3,4
Car manufacturerModel1st year of productionApproved seats
Panamera20091,2,3,4
Taycan20191,2,4
QorosQoros 320131,2,3,4
RenaultAustral20221,2,3,4
Avantime20011,2,3,4
Captur20131,2,3,4
Clio II19981,2,4
Clio III20051,2,4
Clio IV20121,2,4
Clio V20191,2,4
Clio Grandtour20091,2,4
Cougar20131,2,3,4
Cougar II20191,2,3,4
Espace III19971,2,3,4
Espace IV20021,2,3,4
Espace V20141,2,3,4
Fluence20101,2,3,4
Kadjar20151,2,3,4
Kangoo I19991,2,3,4
Kangoo II20081,2*,3,4*
Koleos20081,2,3,4
Koleos II20171,2,3,4
Laguna II20001,2,3,4
Laguna III20071,2,3,4
Master Combi20101,2,3,4
Megane I19991,2,4
Megane II20021,2,3,4
Megane III20081,2,3,4
Megane IV20151,2,3,4
Megane Grandtour20091,2,3,4
Modus20041,2,4
Grand Modus20081,2,4
Scenic II20031,2*,3,4*
Scenic III20091,2*,3,4*
Scenic IV20161,2*,3,4*
Grand Scenic II20041,2*,3,4*
Grand Scenic III20091,2*,3,4*
Talisman20152.4
Twingo I20051,2,4
Twingo II20081,2,4
Twingo III20141,2,4
Vel Satis20021,2,3,4
Zoe20121,2,3,4
Rolls-RoyceGhost20101,2,3,4
Phantom20031,2,3,4
Rover4519991,2,4
7519991,2,4
Saab9-320051,2,3,4
9-520051,2,3,4
90019941,2,3,4
Saic MaxusMIFA920221,2,3,4
SeatAlhambra19981,2*,3,4*
Altea20041,2,4
Arona20171,2,3,4
Arosa19981,2,4
Car manufacturerModel1st year of productionApproved seats
Ateca20161,2,3,4
Cordoba (Vario)19991,2,3,4
Exeo20091,2,3,4
Ibiza20041,2,4
Leon19991,2,4
Mii20111,2,4
Tarraco20181,2,3,4
Toledo19991,2,3,4
SkodaCitigo20111,2,4
Enyaq20211,2,3,4
Fabia20001,2,4
Kamiq20191,2,3,4
Karoq20171,2,3,4
Kodiaq20161,2,3,4
Octavia19961,2,3,4
Rapid20121,2,3,4
Roomster20061,2,3,4
Scala20191,2,3,4
Superb20011,2,3,4
Yeti20091,2,3,4
SmartForfour20041,2,4
Fortwo20141
#120221,2,4
SsangyongActyon20061,2,3,4
Korando20191,2,3,4
Kyron20051,2,3,4
Rexton20011,2,3,4
Tivoli/XLV20161,2,3,4
SubaruForester20031,2,3,4
Impreza20021,2,3,4
Legacy20031,2,3,4
Levorg20161,2,3,4
Outback20141,2,3,4
Solterra20221,2,3,4
Trezia20111,2,3,4
Tribecca20061,2,3,4
WRX STI/WRX20141,2,4
SuzukiAlto20101
Celerio20141,2,4
Grand Vitara20021,2,3,4
Ignis20041,2,3,4
Jimny20181,2,3,4
Kizashi20101,2,3,4
Liana20021,2,3,4
Splash20071
Swift20041,2,4
SX420061,2,4
SX4 S-Cross20131,2,4
Wagon R+20021
TataInica Vista20081
TeslaModel 320181,2,3,4
Model S20131,2,3,4
Model S20141,2,3,4
Model X20161,2,3,4
Model Y20221,2,3,4
Car manufacturerModel1st year of productionApproved seats
ToyotaAuris20071,2,3,4
Avensis (Verso)20011,2*,3,4*
Aygo20051,2,4
Aygo X20221,2,4
bZ4X20221,2,3,4
Camry20001,2,3,4
Carina19921,2,4
Corollo (Verso)(Cross)20001,2*,3,4*
IQ20091
Land Cruiser20021,2,3,4
Mirai20211,2,3,4
Picnic19961,2,4
Previa20001,2,3,4
Prius20031,2,3,4
Proace20151,2,3,4
RAV 420001,2,3,4
Urban cruiser20091,2,3,4
Verso20081,2,4
Yaris19991,2*,4*
Yaris Cross20211,2,4
Yaris Verso19991,2*,4*
Verso20041,2*,3,4*
Verso-S20111,2*,3,4*
VolkswagenAmarok20101,2,3,4
Arteon20171,2,3,4
Beetle19981,2,3,4
Bora19981,2,3,4
Caddy20001,2*,3,4*
EOS20061,2,4
Fox20051
Golf IV19971,2,4
Golf V20031,2,3,4
Golf VI20081,2,3,4
Golf VII20121,2,3,4
Golf VIII20191,2,3,4
Golf Sportsvan20141,2,3,4
ID.320201,2,3,4
ID.420211,2,3,4
ID.520221,2,3,4
Jetta20061,2,3,4
Lupo19981
Passat19981,2,4
Passat B8 Saloon20141,2,3,4
Passat B8 Estate20141,2,3,4
Phaeton20021,2,3,4
Polo19991,2,4
Scirocco20081,2,3,4
Sharan19981,2*,3,4*
T4 Multivan/Caravelle19991,2,3,4
T5 Multivan/Caravelle20031,2,3,4
T720211,2,3,4
Taigo20211,2,3,4
Tiguan20071,2,3,4
Touareg20021,2,3,4
Touran20031,2*,3,4*
Car manufacturerModel1st year of productionApproved seats
T-Roc20171,2,3,4
Up20111,2,4
Volvo240/26019831,2,4
340/36019821,2,4
440/46019871,2,4
740/760/78019821,2,4
85019911,2,4
940/96019901,2,4
C 3020061,2,4
C 4020211,2,3,4
C 7020071,2,3,4
S 4020031,2,3,4
S 6020101,2,3,4
S 7020001,2,3,4
S 8020061,2,3,4
S 9020161,2,3,4
V 4019961,2,3,4
V 5020031,2,3,4
V 6020101,2,3,4
V 7020001,2,3,4
V 9020161,2,3,4
XC 4020171,2,3,4
XC 6020081,2,3,4
XC 7020071,2,3,4
XC 9020021,2,3,4
XpengP520221,2,3,4
WeyCoffee 0120221,2,3,4
Coffee 0220221,2,3,4

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
