BeSafe iZi Flex S FIX Child Car Seat

BeSafe iZi Flex S FIX Child Car Seat

Product Information

The iZi Flex S FIX is a universal ISOfix child restraint system approved to regulation R44-04 series of amendments for general use in vehicles fitted with ISOfix anchorage systems or 3-point carbelt. It is suitable for children weighing between 15-36 kg and aged approximately 4-12 years, falling under Group 2-3. This child seat has to be tested in the particular vehicle seat if it really fits in the right way due to differences in cushion shape and angle. The child seat is designed to fit into the seat positions of certain vehicles, provided approved ISOfix points are fitted and available and the car manual does not forbid the installation of this type of child seat.

Recent car model updates are not mentioned, only when the seating positions are changed, the car model update is mentioned.
This child seat fits normally in later model updates of the same car model. For correct usage of the airbag in combination with the seat, it is recommended to read the vehicle handbook.

Product Usage Instructions

  1. Refer to the car manual for guidelines and instructions on installing child seats.
  2. Ensure that your vehicle has approved ISOfix points that are fitted and available before installing the iZi Flex S FIX child seat.
  3. Refer to the list of approved car models and standing height of the child before installing the child seat.
  4. Test if the child seat fits in the particular vehicle seat in terms of cushion shape and angle before using it.
  5. Follow the instructions provided with the iZi Flex S FIX child seat for installation and usage.
  6. Read the vehicle handbook for correct usage of the airbag in combination with the seat.

Recommendation list for cars and installation of iZi Flex S FIX

Note: The car manual is the leading guideline and must always be followed. This car list does not limit or guarantee the fit of this child seat.
The child seat is a universal ISOfix child restraint system. It is approved to regulation R44-04 series of amendments for general use in vehicles fitted with ISOfix anchorage systems or 3-point carbelt.
This child seat is suitable for fixing into the seat positions of the vehicles listed below, providing approved ISOfix points are fitted and available and
the car manual does not forbid the installation of this type of child seat. Due to differences in cushion shape and angle, this child seat has to be tested in the particular vehicle seat if it really fits in the right way.

Seat positions in other cars may also be suitable to accept this child seat, however, we have not yet tested that combination of car and child seat. This carlist refers only to ISOfix positions. Positioning in seating positions without ISOfix is in principle always possible with stowed FIX arms. For updated car list see: www.besafe.com
The child must always be secured with the 3-point carbelt, using this child seat. In cases where the fixation point of the 3 point carbelt is positioned
in between the ISOfix points of the car, this child seat can not be used with connected FIX arms.

In some vehicles the space for the head in the rear seat is limited. If you fasten this child seat with the FIX arms in these vehicles, it may not be possible to use the child seat up to a standing height of 1.50 m. This may be the case, for example, if the headrest hits the vehicle’s C-pillar. Please observe the heights shown in the type list. When a vehicle is marked with *, the space for the head might be limited to 1,35 m. standing height for specific models of this vehicle. ISOfix anchorages in the passenger seat (position 1) are normally offered as option, so depending on the model this position can be availble or not.
Recent car model updates are not mentioned, only when the seating positions are changed, the car model update is mentioned. This child seat fits normally in later model updates of the same car model.
Notice: For the correct usage of the airbag in combination with the seat; read the vehicle handbook.BeSafe iZi Flex S FIX Child Car Seat fig-1

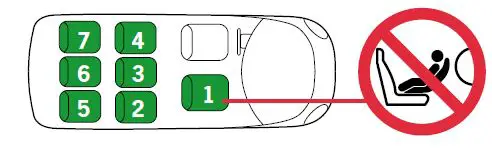

ManufacturerModel1st year of productionApproved seatsStanding height child
AiwaysU520202,4
 U620222.4
Alfa Romeo14720072,4
 156 wagon20052,4
 15920052,4
 Giulia20152,4
 Giulietta20102,4
 Mito20081,2,4
 GT Sportcoupe*20102,4<1,35 m.
 Stelvio20172,4
 Tonale20222.4
AudiA1*20102,4<1,35 m.
 A220002,4
 A3, S319972,4
 A3, S320031,2,4
 A3 sportback20031,2,4
 A3 cabrio*20081,2,4<1,35 m.
 A4, S4, RS419981,2,4
 A4 avant19962,4
 A4, S4, RS420001,2,4
 A4 avant20001,2,4
 A4 cabrio20021,2,4
 A4 imo20151,2,4
 A4 avant20151,2,4
 A5, S5*20071,2,4<1,35 m.
 A5 sportback20091,2,4
 A5 cabrio*20092,4<1,35 m.
 A5 coupe20162,4
 A6, S6, RS619982,4
 A6, S6, RS6, avant20041,2,4
 A720101,2,4
 A7 sportback20101,2,4
 A8, S819982,4
 E-tron20191,2,4
 Q220161,2,4
 Q320101,2,4
 Q4 e-tron (sportback)20211,2,4
 Q520081,2,4
 Q720061,2,4
 Q820191,2,4
 TT *20151,2,4<1,35 m.
BMW1 serie *20052,4<1,35 m.
 2 serie Active tourer20142,4
 2 serie Gran coupe20192,4
 2 serie Gran tourer20152,4
 3 serie19982,4
 3 serie Sedan20182,4
 4 serie Gran coupe20142,4
 4 serie Coupe20202,4
 4 serie Convertible20202,4
 5 serie20002,4
 5 serie Limousine20162,4
 5 serie Touring20172,4
 6-serie20032,4
 6 serie GT20172,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 7 serie20012,4
 8 serie Coupe20182,4
 i320132,4
 I420212.4
 iX (i20)20212,4
 iX120222,4
 iX320212,4
 Mini20062,4
 Mini Clubman20072,4
 Mini Countryman20102,4
 X120042,4
 X320042,4
 X320172,4
 X420182,4
 X520042,4
 X620082,4
 X720182,4,7
BYDATTO 320222.4
CHERYOMODA520222,4
ChevroletAveo20062,4
 Captiva20062,4
 Cruze20092,4
 Epica20062,4
 Kalos20022,4
 Lacetti20042,4
 Malibu20112,4
 Matiz20052,4
 Nubira20092,4
 Orlando20112,4
 Spark20092,4
 Trax20132,4
Chrysler300 CC20082,4
 Dodge Caliber20062,4
 Dodge Journey20092,4
 Jeep Cherokee20022,4
 Jeep Grand Cherokee19922,4
 Jeep Patriot20062,4
 Jeep Wrangler20112,4
 PT cruiser20002,4
 Voyager20012,4,5,7
CitroenBerlingo20081,2,4
 Berlingo XTR20082,4
 Berlingo20182,3,4
 C120052,4
 C220042,4
 C320042,4
 C3 Picasso20092,4
 C3 Aircross20172,4
 C420042,4
 C4 Cactus20142,4
 C4 Aircross20122,4
 C4 Picasso20071,2,3,4
 C4 Grande Picasso20071,2,3,4
 C4 Grand Spacetourer20202,3,4
 C4 Spacetourer20202,3,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 C4 X20222,4
 C520002,4
 C5 X20221,2,4
 C5 Aircross20181,2,4
 C620082,4
 C820032,3,4
 C-Elysée20122,4
 Nemo Multispace20082,4
 Xsara Picasso20002,4
CupraBorn20221,2,4
 Formentor20211,2,4
 Leon20211,2,4
DaciaDokker20122,4
 Duster20102,4
 Duster 220172,4
 Jogger20212.4
 Lodgy20122,3,4
 Logan MCV20052,4
 Logan 2 MCV20132,4
 Sandero20082,4
 Sandero 220132,4
 Spring20212.4
DaihatsuSirion20052,4
DS AutomobilesDS320102,4
 DS420112,4
 DS4 II20211,2,4
 DS520122,4
 DS720171,2,4
 DS920221,2,4
Fiat500*20072,4<1,35 m.
 500 L20132,4
 500 X20152,4
 Bravo20072,4
 Croma20082,4
 Doblò20102,4
 Fiorno Qubo20082,4
 Freemont20112,4
 Grande Punto20062,4
 Idea20042,4
 Linea20072,4
 Multipla20042,4
 Panda20072,4
 Punto20082,4
 Scudo20072,4
 Sedici20092,4
 Stilo20042,4
 Tipo (SW/Sedan/Hatchback)20162,4
 Ulysee20032,4
FordB-max20122,4
 C-max20032,4
 Ecosport20142,4
 Edge20152,4
 Explorer20192,4
 Fiesta20082,4
 Focus20042,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 Fusion20082,4
 Galaxy20062,4
 Grand C-max20102,4
 Ka*20092,4<1,35 m.
 Kuga20082,4
 Mondeo20002,4
 Mustang Mach-E20202,4
 Puma20192,4
 S-max20062,3,4
 Tourneo Connect20132,4
 Tourneo Courier20142,4
 Transit20062,4
GenesisGV6020222,4
 G7020212,4
 GV7020212,4
 G8020212,4
 GV8020212,4
HondaAccord20032,4
 City20092,4
 Civic20062,4
 CR-V20022,4
 CR-Z20102,4
 FR-V20052,4
 HR-V20152,4
 Insight*20092,4<1,35 m.
 Jazz20022,4
 Legend20062,4
 Odyssey20062.4
 Stream20012,4
HuyndaiAccent20022,4
 BAYON20212.4
 Coupe20012,4
 Elantra20022,4
 Getz20022,4
 H1/iMax/i800/H30020082,4
 i1020082,4
 i2020092,4
 i2020142,4
 i3020072,4
 i4020112,4
 IONIQ20162,4
 iX2020102,4
 iX3520102,4
 iX5520092,4
 KONA20172,4
 Matrix20022,4
 NEXO20182,4
 Santa Fe20022,4
 Sonata20012,4
 Terracan20022,4
 TUCSON20042,4
 Veloster*20042,4<1,35 m.
InfinitiQ30/QX3020152,4
 Q5020142,4
 QX7020142,4
ManufacturerModel1st year of productionApproved seatsStanding height child
JaguarE-Pace20172,4
 F-Pace20162,4
 I-Pace20182,4
 S type20022,4
 X type20052,4
 XE-type20152,4
 XF20082,4
 XJ20032,4
 XK20062,4
JeepCherokee20132,4
 Grand Cherokee20222,4
 Compass20172,4
 Renegade20142,4
KiaCarens/Rondo20022,4
 Carens20132,4
 Carnival/Sedona20062,4
 Ceed20052,4
 Cerato/Spectra20042,4
 e-Niro20192,4
 EV620212.4
 Magentis/Optima20022,4
 Niro20162,4
 Opirus/Amanti20032,4
 Optima JF20152,4
 Picanto/Morning20042,4
 ProCeed20182,4
 Rio/Pride20022,4
 Rio20172,4
 Sorento XM20022,4
 Sorento UM20142,4
 Sportage20212.4
 Sportage SL20102,4
 Sportage QL20152,4
 Soul AM20092,4
 Soul PS20142,4
 Soul EV20142,4
 Stinger20172,4
 Stonic20172,4
 Venga20092,4
 Xceed20192,4
LadaVesta20162,4
LanciaDelta20082,4
 Musa20042,4
 Phedra20022,4
 Thema20112,4
 Ypsilon*20032,4<1,35 m.
LandroverDefender20202,4
 Discovery20012,4
 Discovery20171,2,4,5,7
 Discovery Sport20142,4
 Freelander20062,4
 Range Rover20022,4
 Range Rover Evoque20112,4
 Range Rover Sport20052,4
 Range Rover Velar20172,4
ManufacturerModel1st year of productionApproved seatsStanding height child
LexusCT20112,4
 ES20182,4
 GS*20002,4<1,35 m.
 IS*20052,4<1,35 m.
 IS20132,4
 LS20062,4
 LX20082,4
 RX20032,4
 RX200t/RX350/RX450h20152,4
 RX350L/RX450hL20182,4
 UX20192,4
LucidAir20222.4
Lynk & Co0120202,4
MaseratiGhibli*20132,4<1,35 m.
Mazda2*20032,4<1,35 m.
 320042,4
 32320012,4
 520042,4
 620032,4
 6 Sportbreak20042,4
 CX-320152,4
 CX-3020192,4
 CX-520112,4
 CX-520172,4
 CX-720072,4
 CX-920092,4
 CX-6020222.4
 MX5*19981<1,35 m.
 MX-3020202,4
 Premacy19992,4
 RX-820032,4
MercedesA class W 16820012,4
 A class W/C 16920052,4
 A class W 17620122,4
 A class V 17720182,4
 A class W 17720182,4
 B class T 24520052,4
 B class V 17720192,4
 B class W 24620112,4
 C class C 20520152,4
 C class W/S 20320002,4
 C class W/S 20420072,4
 C class W 20520142,4
 C class A 20520162,4
 C class S 20620212,4
 C class W 20620212,4
 Citan20132,4
 Citan Tourer W 42020211,2,4
 CL C 21520022,4
 CL C 21620052,4
 CLA C 11720132,4
 CLA C 11820192,4
 CLA X 11820192,4
 CLA shooting break20152,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 CLC 180 C 204*20082,4<1,35 m.
 CLK CL 203*20022,4<1,35 m.
 CLS C 21920042,4
 CLS C 25720182,4
 E class A 23820172,4
 E class C 23820172,4
 E class W/S 21120022,4
 E class W/S 21220092,4
 E class W/S 21320162,4
 EQA-class H 24320212,4
 EQB-class X 24320212,4
 EQC-class N 29320192,4
 EQC-class N 29720212,4
 EQE-class V 29520222,4
 EQS-class V 29720212,4
 G class G 46320182,4
 GLA class20142,4
 GLA class H 24720202,4
 GLB class X 24720192,4
 GLC class C25320152,4
 GLC class X25320152,4
 GLC class X25420222,4
 GLE class C 16720192,4
 GLE class V 16720182,4
 GLK X 20420082,4
 GLS class X 16720182,4
 Maybach S class X22220152,4
 M class W 16320012,4
 M class W 16420052,4
 M class W 16620112,4
 ML class X 16420062,4
 R class W/V 25120052,4
 S class W/V 22020022,4
 S class W/V 22120052,4
 S class W/V 22320212,4
 S class A21720152,4
 Vaneo W 41420032,4
 Viano W 63920032,4
 Vito W 63920042,4
MGMG420222,4
 MG520222,4
 MG EHS20212,4
 MG Marvel R20212,4
 MG ZS20212,4
MitsubishiASX20102,4
 Colt20022,4
 Eclipse Cross20172,4
 Grandis20042,4
 i-MiEV20092,4
 Lancer20032,4
 L 20020062,4
 L200 D/cab (KK0T/KL0T)20152,4
 Mirage / Space star20132,4
 Outlander20032,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 Outlander PHEV20132,4
 Pajero20072,4
MobilizeLIMO20222,4
NIOEL720232.4
 ES820212.4
NissanAlmera19952,4
 Ariya20222,4
 Juke20102,4
 Juke20191,2,4
 Leaf20112,4
 Leaf20181,2,4
 Micra*20002,4<1,35 m.
 Micra*20171,2,4<1,35 m.
 Murano20052,4
 Note20052,4
 Nvara20082,4
 NV200 / Evalia20132,4
 Pathfinder20072,3,4
 Pixo20092,4
 Primastar20012,4
 Primera20022,4
 Qashqai20072,4
 Townstar20212.4
 X-Trail20072,4
Opel/VauxhallAdam*20132,4<1,35 m.
 Agila20022,4
 Ampera20112,4
 Ampera-e20172,4
 Antara20062,4
 Astra20042,4
 Combo20012,4
 Combo20182,3,4
 Corsa20002,4
 Corsa (e)20191,2,4
 Crossland X20172,4
 Grandland X (Hybrid)20171,2,4
 Insignia20082,4
 Karl / Viva20152,4
 Meriva20032,4
 Mokka /Mokka-E20122,4
 Mokka X20162,4
 Signum20032,4
 Vectra20022,4
 Vivaro20012,4
 Zafira20032,4
 Zafira Tourer20132,4
OraFunky Cat20222,4
Peugeot10720052,4
 10820142,4
 20619982,4
 20720062,4
 20820122,4
 30120122,4
 30720012,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 30820072,4
 308 SW20072,3,4
 40720042,4
 40820222,4
 50820112,4
 508 SW20112,4
 60720062,4
 80720032,3,4
 100720052,4
 200820132,4
 300820102,4
 300820161,2,4
 400720072,4
 500820102,3,4
 Expert20072,4
 iON20102,4
 Partner Tepee20082,4
 Rifter20182,3,4
 Travellar20152,4
Polestar220201,2,4
PorscheCayenne20032,4
 PO 536 Cayenne20172,4
 Macan P014620142,4
 Panamera20092,4
 Taycan20192,4
QorosQoros 320132,4
RenaultArkana20212,4
 Austral20221,2,4
 Avantime20012,4
 Captur20131,2,4
 Clio II19982,4
 Clio III20052,4
 Clio IV20122,4
 Clio V20192,4
 Clio Grandtour20092,4
 Espace III19972,4
 Espace IV20022,3,4
 Espace V20142,3,4
 Fluence20102,4
 Kadjar20152,4
 Kangoo I19993
 Kangoo II20082,4
 Koleos20082,4
 Koleos II20172,4
 Laguna II20002,4
 Laguna III20072,4
 Master Combi20102,4
 Megane I19992,4
 Megane II20022,4
 Megane III20082,4
 Megane iV20152,4
 Megane Grandtour20092,4
 Megane-e20221,2,4
 Mobilize Limo20222,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 Modus20042,4
 Grand Modus20082,4
 Scenic II*20032,4<1,35 m.
 Scenic III20092,4
 Scenic IV20161, 2,4
 Grand Scenic II20042,4
 Grand Scenic III20092,4
 Talisman20152,4
 Twingo I20052,4
 Twingo II20072,4
 Twingo III20142,4
 Vel Satis20022,4
 Zoe20121,2,4
Rolls-RoyceGhost20102,4
 Phantom20032,4
Saab9-3ISOFIX2,4
 9-5ISOFIX2,4
Saic MaxusMIFA920222,4
SeatAlhambra19982,3,4
 Altea20042,4
 Altea XL20062,4
 Arona20172,4
 Arosa19982,4
 Ateca20162,4
 Cordoba (Vario)19992,4
 Cupra*20102,4<1,35 m.
 Exeo20092,4
 Ibiza20042,4
 Ibiza ST20102,4
 Leon19982,4
 Mii20112,4
 Toledo19992,4
SkodaCitigo20112,4
 Enyaq20211,2,4
 Fabia20002,4
 Fabia20211, 2,4
 Kamiq20192,4
 Karoq20172,4
 Kodiaq20162,4
 Octavia20042,4
 Octavia20121,2,4
 Rapid20122,4
 Roomster20062,4
 Scala20192,4
 Superb20012,4
 Yeti20092,4
SmartForfour20042,4
 #120222.4
SsangYongKorando20192,4
 Tivoli/XLV20162,4
SubaruForester20032,4
 Impreza20022,4
 Legacy20022,4
 Levorg20162,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 Outback19992,4
 Solterra20222,4
 Trezia20112,4
 Tribecca20062,4
 WRX STI/WRX20142,4
SuzukiAlto20102,4
 Baleno20162,4
 Celerio20142,4
 Grand Vitara20022,4
 Ignis20042,4
 Jimny20182,4
 Kizashi20102,4
 Liana20022,4
 Splash20072,4
 Swift20042,4
 SX420062,4
 SX4 S-Cross20132,4
 Vitara20152,4
 Wagon R+20022,4
TataInica Vista20082,4
TeslaModel 320182,4
 Model S20132,3,4
 Model S20142,4
 Model X20162,4
 Model X Bench20192,4
 Model X Monopost20192,4
 Model Y20222,4
ToyotaAuris20072,4
 Avensis (Verso)20012,4
 Avensis Sedan20152,4
 Avensis Touring Sports20152,4
 Aygo20052,4
 Aygo X20222.4
 bZ4X20222,4
 Camry20002,4
 Corolla (Verso) (Cross)20012*,4*
 Corolla20132,4
 Hilux20162,4
 IQ*20082,4<1,35 m.
 Land Cruiser20022,4
 Mirai20212,4
 Previa20002,4
 Prius20032,4
 Proace20152,4
 RAV 420002,4
 Urban cruiser20092,4
 Yaris19992,4
 Yaris Cross20212,4
 Yaris Verso19992,4
 Verso20042,4
 Verso-S20112,4
VolkswagenAmarok20102,4
 Arteon20172,4
 Beetle19982,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 Bora19982,4
 Caddy20002,4
 Caddy 420152,4
 Caddy 520151,2,4
 EOS20062,4
 Fox20052,4
 Golf IV19972,4
 Golf V20032,4
 Golf VI20082,4
 Golf VII20122,4
 Golf VIII20191,2,4
 Golf Sportsvan20142,4
 ID.320201,2,4
 ID.420211,2,4
 ID.520221,2,4
 ID.Buzz20222,4
 Jetta20062,4
 Lupo19982,4
 Passat19982,4
 Phaeton20022,4
 Polo19992,4
 Polo20211,2,4
 Scirocco20082,4
 Sharan19982,3,4
 Sharan20152,3,4,5,7
 T4 Multivan/Caravelle19992,4
 T5 Multivan/Caravelle20032,4
 T720212,3,4,5,6,7
 Taigo20211,2,4
 Tiguan20072,4
 Touareg20022,4
 Touran20032,4
 Touran20152,3,4,5,7
 T-Roc20172,4
 Up20112,4
VolvoC 3020062,4
 C 4020211,2,4
 C 7020072,4
 S 4020032,4
 S 6020102,4
 S 7020002,4
 S 9020162,4
 S 8020062,4
 V 4019962,4
 V 5020032,4
 V 6020102,4
 V 6020181,2,4
 V 7020002,4
 V 9020162,4
 V 90 CC20172,4
 XC 4020172,4
 XC 40 Recharge20201,2,4
 XC 6020082,4
 XC 7020072,4
ManufacturerModel1st year of productionApproved seatsStanding height child
 XC 9020022,4
XpengP520222,4
WeyCoffee 0120222,4
 Coffee 0220222,4

Visit us: besafe.com
facebook.com/BeSafe

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
