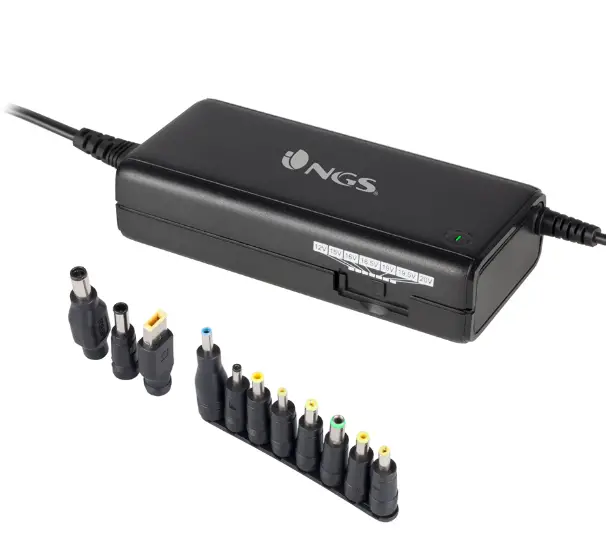

NGS BAN 90W Notebook Charger
Specification
Specification| Tip number | Tip size | Compatible with |
| A | 6.5×4.3mm – black | For Sony / Fujitsu / Dell |
| B | 6.3×3.0mm – green | For Toshiba |
| C | 5.5×2.5mm – yellow | For Acer / Asus / Compaq / Delta / HP / Fujitsu / Gateway / Toshiba / Liteon |
| N | 4.0×1.35mm – black | For Acer |
| E | 5.5×1.7mm – yellow | For Acer |
| F | 4.8×1.7mm – yellow | For Asus / Compaq / HP / Acer |
| G | 4.0×1.7mm – yellow | For Samsung / Sony |
| H | 5.0×3.0mm – yellow | For Samsung |
| R | Flat Pin – yellow | For Lenovo |
| For HP | 7.4×5.0x0.6mm – black | For HP (with charge Rs) |
| For HP | 4.5×3.0mm – blue | For HP |
Instruction
- Check your notebook working power on the specification label located under the device.
Should the label be missing, check the original adapter’s label.
In case you can’t find out the information, please contact your notebook’s provider. - Select the right voltage on the adapter.
- Insert the right plug in your notebook, as shown.

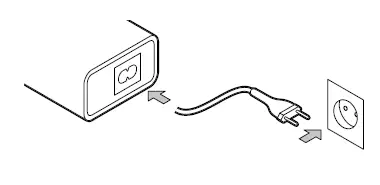

- Conect the adapter to power source.
Declaration Of Conformity
WE, AUTHORIZED REPRESENTATIVE, LURBE GRUP S.A, SAN SEBASTIAN, SPAIN, DECLARE UNDER OUR SOLE RESPONSIBILITYTHATTHE FOLLOWING PRODUCT:
LURBE GRUP S.A, SAN SEBASTIAN, ESPANA, DECLARA BAJO SU EXCLUSIVA RESPONSABILIDAD LA CONFORMIDAD DEL PRODUCTO:
NGS: WALL LAPTOP CHARGER NGS I MODEL: BAN
NGS: CARGADOR DE PARED PARA PORTATIL NGS / MODELO: BAN
HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:
HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:
EN 55032:2015/AC:2016
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017
EN 60950-1:2006+A 11:2009+A 1:2010+A 12:2011+A2:2013
AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:
Y, POR LOTANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU
LDW VOLTAGE DIRECTIVE (LVD) 2014/35/EU
ROHS DIRECTIVE 2011 /65/EU
DIRECTIVA DE COMPATIBILIDAD ELECTROMAGNTICA (EMC) 2014/30/EU
DIRECTIVA DE BAJA TENSION (LVD) 2014/3S/EU
DIRECTIVA ROHS 2011/65/EU
AUTHORIZED REPRESENTATIVE: REPRESENTANTE AUTORIZADO:
LURBE GRUP S.A PORTUETXE 27
200 7 8 SAN SEBASTIAN (GUIPOZCOA) SPAIN
SAN SEBASTIAN,JNOVEMBER 26TH 2018 SAN SEBASTIAN, 26 DE NOVIEMBRE DE 2018
technical support: www.ngs.eu/support
