SLIMPAR 37 Powerful PAR Effect Equipped
User Guide

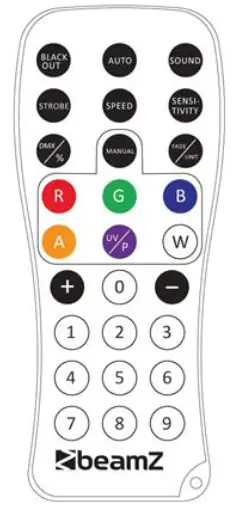

REMOTE CONTROLLER
BLACK OUT MODE
Press <BLACK OUT> off existing modes. Press <BLACK OUT> return the last modes.
AUTO MODE
Automatic mode will enable you to run the automatic programs on the product. To turn on Automatic mode:
- Press <AUTO> on the remote controller.
- Press <+> or <—> to choose between the different auto programs.
SOUND MODE
Sound-Active mode will enable the product to respond to the music. To turn on Sound-Active mode:
- Press <SOUND> on the remote controller.
- Press <+> or <—> to choose between the different sound programs.
STROBE MODE
To adjust the strobe speed of the automatic program and the sound active program.
- Press <STROBE> on the remote controller.
- Press <+> or <—> to either increase or decrease the speed of the program.
- Press <STROBE> again to turn off the strobe.
SPEED MODE
To adjust the speed of the automatic program and the sound active program.
- Press <SPEED> on the remote controller.
- Press <+> or <-> to either increase or decrease the speed of the program.
SENSITIVITY MODE
To adjust sound sensitivity for in Sound-Active mode
- Press <SENSIlIVITY> on the remote controller.
- Press <+> or <-> to either increase or decrease sound sensitivity.
DMX / % MODE
To enable DMX or disallow DMX on the product. Press <DMX> on the remote controller, the product work on the DMX controlling modes.
MANUAL MODE
- Press <MANUAL> on the remote controller.
- Press <R>. <G>. <B>. <14> (red, green, blue or white) to choose your colour.
- Press again <R>. <G>. <B>, <14> (red, green, blue or white) to close your colour.
- Press <+> or <—> to either increase or decrease the percentage of each colour.
FADE/UNIT MODE
To adjust the FADE speed of the automatic program, the sound active program and the manual mode.
- Press <FADE> on the remote controller.
- Press <FADE> again to turn off the Fade mode.
| MENU | DESCRIPTION | |||
| ADDR | 8CH | d001-d512 | DMX channel mode and address setting | |
| 4CH | ||||
| STAT | S 01-18 | Select static colours | ||
| AUTO | Au 1-2 | Select auto | program | |
| SOUN | So 1-2 | Select sound program | ||
| SPEE | SP 1-9 | Adjust program speed | ||
| SENS | SE 1-9 | Adjust microphone sensitivity | ||
| COLO | r000-255 | Red (0-100%) | ||
| g000-255 | Green (0-100%) | |||
| b000-255 | Blue (0-100%) | |||
| U000-255 | White (0-100%) | |||
| DIMM | dl 1- dl 9 | Master dimming | ||
| SILE | on/oFF | Silent scene by Sound program | ||
| SLAV | Slave | Slave | ||
| INFR | on/oFF | Enable or Disenable IR remote | ||
DMX CHANNELS
4 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Colours | 000-255 | Red (0-100%) |
| 2 | 000-255 | Green (0-100%) | |
| 3 | 000-255 | Blue (0-100%) | |
| 4 | 000-255 | White (0-100%) |
8 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Dimmer | 000-255 | Master dimming (0-100%) |
| 2 | Strobe | 000-255 | Stroboscope (Rate 0-100%) |
| 3 | Colours | 000-255 | Red (0-100%) |
| 4 | 000-255 | Green (0-100%) | |
| 5 | 000-255 | Blue (0-100%) | |
| 6 | 000-255 | White (0-100%) | |
| 7 | Macro colours | 000-009 | No Function |
| 010-019 | Red | ||
| 020-029 | Green | ||
| 030-039 | Blue | ||
| 040-049 | White | ||
| 050-059 | Yellow | ||
| 60-069 | Magenta | ||
| 070-079 | Cyan | ||
| 080-089 | Dark orange | ||
| 090-099 | Green yellow | ||
| 100-109 | Salmon | ||
| 110-119 | Turquoise | ||
| 120-129 | Light Green | ||
| 130-139 | Orange | ||
| 140-149 | Lavender | ||
| 150-159 | Light blue | ||
| 160-169 | Dark blue | ||
| 170-179 | Pink | ||
| 180-255 | All on | ||
| 8 | Mode | 000-009 | No function |
| 010-069 | Colour blending (rate) | ||
| 070-129 | Colour change (rate) | ||
| 130-189 | Sound colour blending (rate) | ||
| 190-255 | Sound colour change (rate) |
