TYPE LDPH RACEWAY
FOR USE WITH PANDUIT TYPE LDPH
SURFACE RACEWAY ROUTING SYSTEM

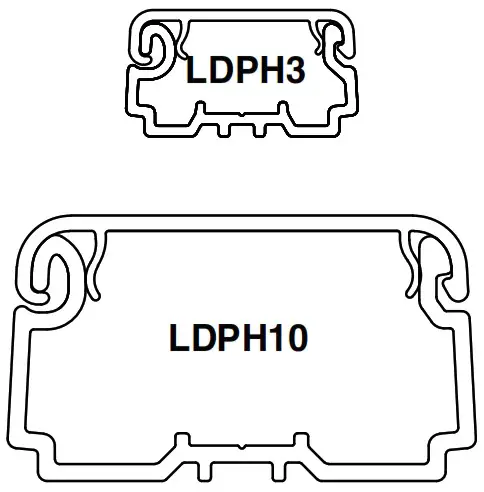

Part Number(s): LDPH3, & LDPH10

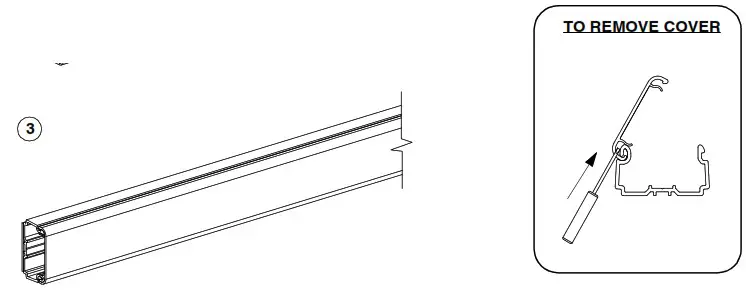

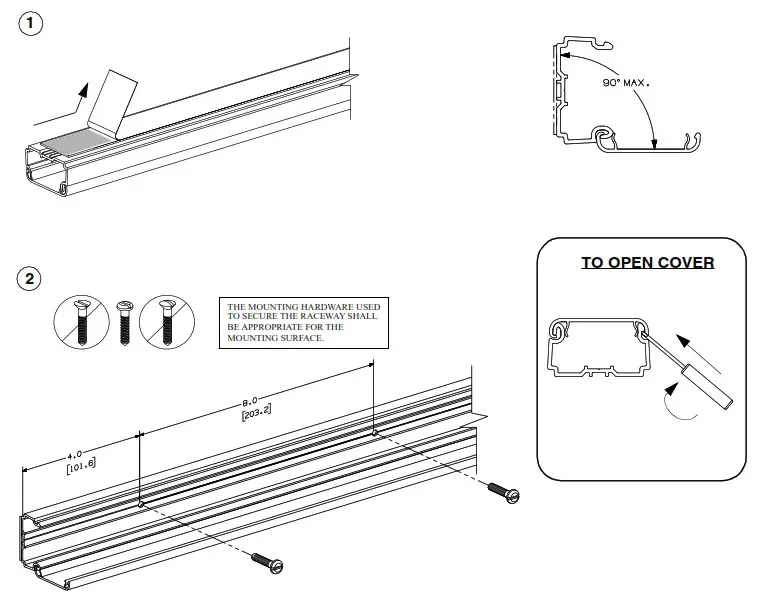

INSTALLATION INSTRUCTIONS
PARTS LIST:
| 1. LDPH10 – RACEWAY B. SINGLE GANG BOX C. SINGLE GANG FACEPLATE D. OCFX – OUTSIDE CORNER FITTING E. CFX – COUPLER FITTING F. RAEFX – ENTRANCE END FITTING | G. ICFX – INSIDE CORNER FITTING H. DOUBLE GANG BOX J. DOUBLE GANG FACEPLATE K. RAFX – RIGHT ANGLE FITTING L. DCEFX – DROP CEILING ENTRANCE END FITTING |
FILL CAPACITY TABLE
| RACEWAY TYPE | FILL AREA (IN 2) | • ELECTRICAL | DATA GRADE CABLE | COAX CABLE | FIBER OPTIC CABLE | ||||||||||
| 14 AWG | 12 AWG | 10 AWG | 24 AWG/UTP CM | RG6 | 2 STRAND | ||||||||||
| THHN | CAT 5 4 pr. | CAT 6 4 pr. | |||||||||||||
| .105 DIA. | .122 DIA. | .153 DIA. | .217 DIA. | .250 DIA. | .275 DIA. | .175 DIA. | |||||||||
| MAXIMUM FILL | SPEC | MAX. | SPEC | MAX. | SPEC | MAX. | SPEC | MAX. | |||||||
| USA | CANADA | USA | CANADA | USA | CANADA | 40% | 60% | 40% | 60% | 40% | 60% | 40% | 60% | ||
| LDPH3 | .17 | 9 | 7 | 7 | 5 | 4 | 3 | 1 | 2 | 1 | 2 | 1 | 1 | 2 | 4 |
| LDPHIO | .89 | 18 | 18 | 18 | 18 | 16 | 16 | 9 | 14 | 7 | 10 | 5 | 8 | 14 | 22 |
* WIRES NOT BUNDLED
For all cable options please see the Raceway cable fill calculator on
https://www.panduit.com/en/support/tools1/calculators-and-design-tools.html
For Technical Support: www.panduit.com
For Instructions in Local Languages
and Technical Support:
www.panduit.com
E-mail: [email protected]
Fax: 866-405-6654
© Panduit Corp. 2022
RW195_03 Printed in U.S.A.
