PLCM10B Industrial LTE Modem
Owner’s Manual

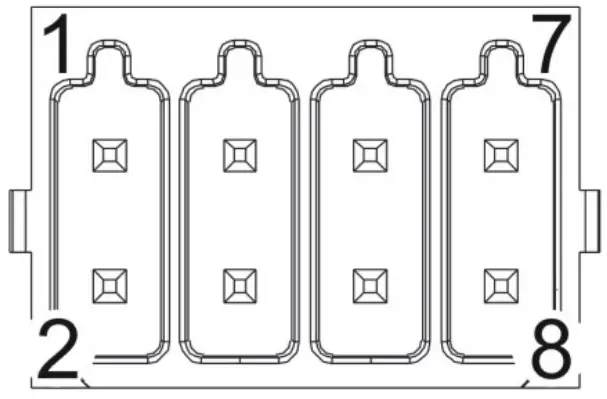

Description

PLCM10B is a compact and robust plug-in module designed to add IoT M2M connectivity to systems based on eX700 Series and eXware. PLCM10 adds Internet connectivity to systems based on eX700 Series and eXware. It is a 4G wireless modem supporting LTE cat. 4 cellular networks.

The I/O channels are SELV (Safety Extra – Low Voltage) according European Standards

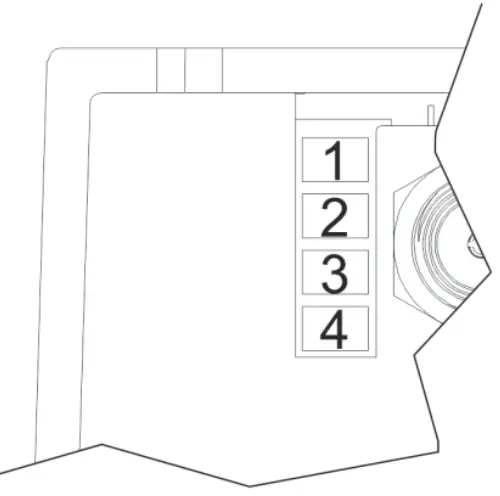

LEDs description

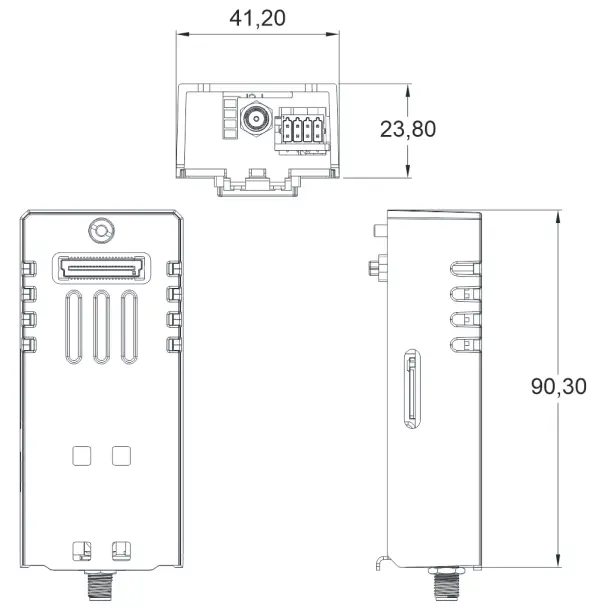

Dimensions

Connect the antenna or a remote antenna via cable. If an antenna extension is used, a cable no longer than 3m and the isolation of the antenna from the ground is recommended in order the final application not to vary beyond the test configuration.
Antenna electrical specifications:

(*) Antennas with equal or lower gain are allowed.
The position of the antenna must always respect the minimum distance of 20cm from the human body for the protection of human health

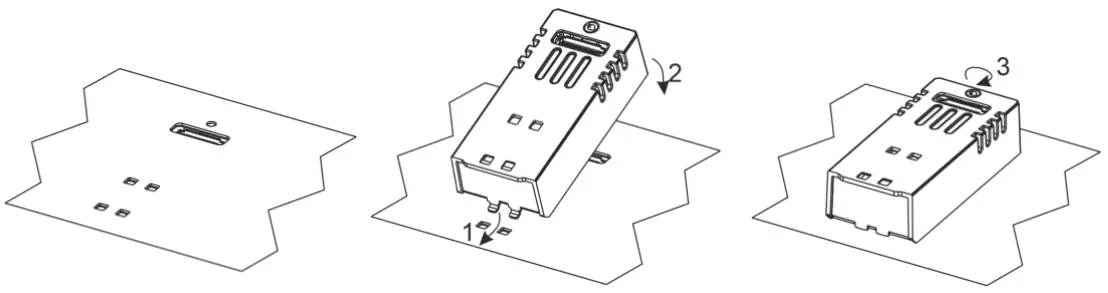

Mounting the module

Remove the connector protective cover from the equipment before installing the module.

The connection and installation have to be performed by authorized, qualified personnel and in possession of necessary skill’s
WARNING: Do not separate when energized.
This device cannot be disposed of as a domestic waste but according to WEEE European Directive 2012/19/EU
The product has been designed for use in industrial, residential, commercial, light industrial and marine environment in compliance with the 2014/53/EU, 2011/65/EC directives on Exor eXware and eX700 series products.
The full text of the EU declaration of conformity is available at the following Internet address: www.exorint.com
The products have been designed in compliance with:
EN 61000-6-4
EN 61000-6-2
EN 61000-6-3 *
EN 61000-6-1
ETSI EN 301 489-1
ETSI EN 301 489-52
EN 301 511
ETSI EN 301 908-1
EN 62311
EN 61010-1
EN IEC 61010-2-201
* The installation of this device on eX700 series into the residential, commercial and light-industrial environments is allowed only in the case that special measures are taken in order to get the conformity to EN 61000-6-3.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation

This device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including any interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense

Reproduction of the contents of this copyrighted document, in whole or part, without written permission of Exor International S.p.A., is prohibited.
MANPLCM10B-001
V.1.01 23.09.2022

© 2022 Exor International S.p.A
Exor International S.p.A. – San Giovanni Lupatoto VR, Italy
www.exorint.com
