Nightsearcher Galaxy-pro-6k Pro Rechargeable Work Light User Manual

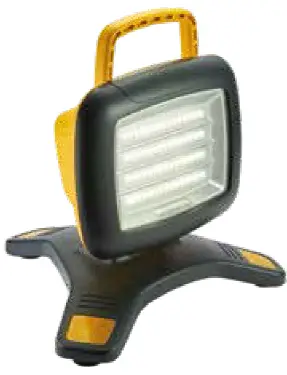

NightSearcher GALAXY-PRO-6K Pro Rechargeable Work Light

Supplied with: AC Mains Charger

• Product weight (g)  1.5kg
• Product size (mm)  310x350x285mm
• NS Part No.  NSGALAXYPRO-6K

ON/OFF

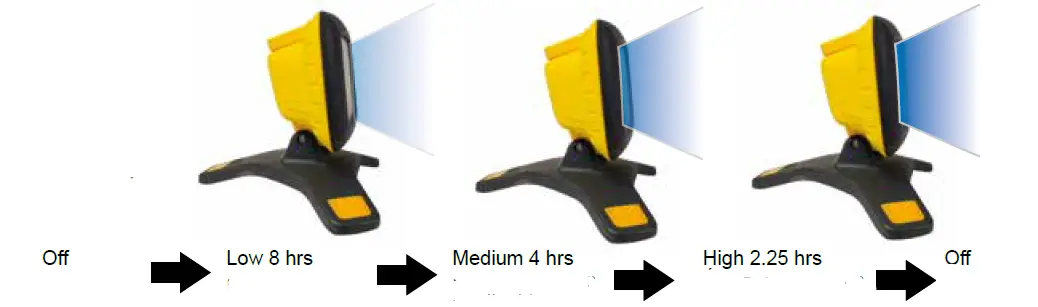

Power/light levels switch:

To dim the light, switch the light level to High and hold the power switch for 3 seconds and release at the desired light level. (Lowest level operates for 60 hrs).

Battery status indicator

• Flashing amber (steady flash) when battery level is low.
• Flashing red when the unit needs charging.
  The Galaxy Pro can also run from its AC Charger on Low light level (indoor use only).

Charging Options

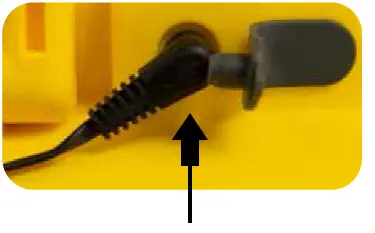

AC Mains Charger (Supplied)

Or Vehicle Charger (Optional Accessory)

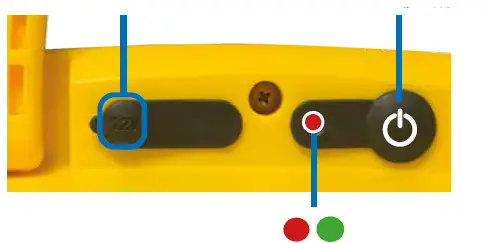

Charging Socket and Power/Light Levels Switch

 Battery Status and Charging Indicator

• Red light while charging
• Green light when charged

Recharge is approximately 8 hours.

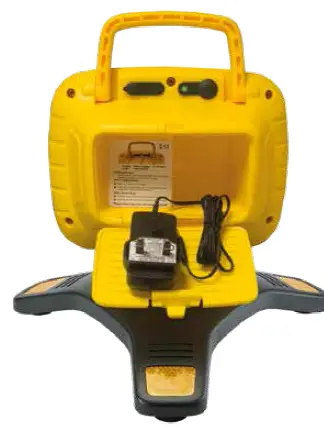

Handy storage compartment for chargers

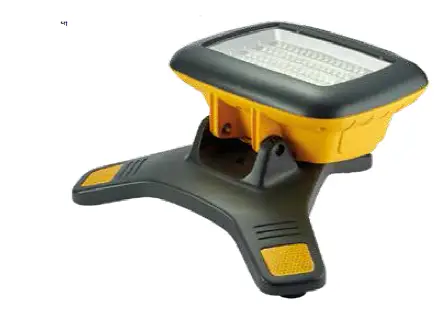

The floodlight and handle will fold flat for compact storage
Hi-Vis reflective feet

Optional Accessories

Quick Release Tripods – 2 Types Available

• Both Can Be Single Or Dual Mounted On T-Bar

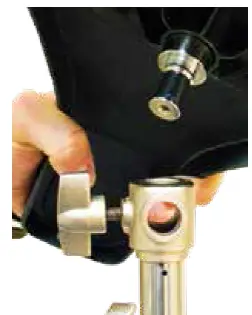

Quick Release Tripod Mount

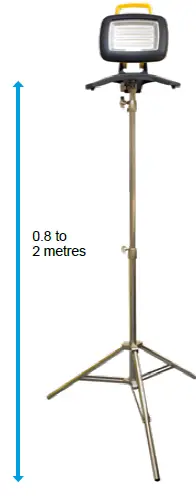

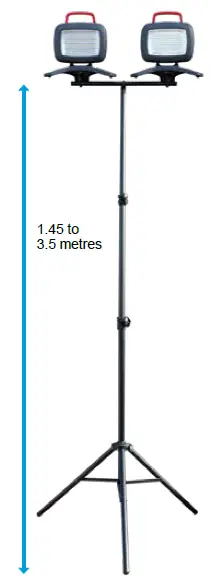

 2m Stainless Steel Tripod  3.5m Aluminium Tripod

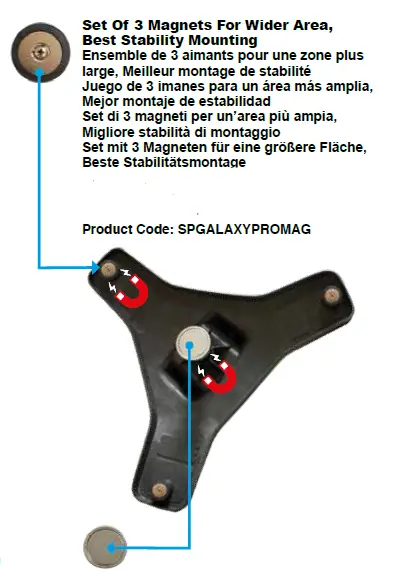

Product Code: SPTRIPOD3.5M  Magnetic Mounts – 2 Types Available Vehicle Charger  T-Bar Bracket  Single Large Centre Magnet For Narrow Beam Mounting

IMPORTANT SAFETY INFORMATION

•  Never submerge in water.
•  If you suspect the Galaxy Pro 6K has water inside, do not use or attempt to recharge.
• Dropping the Galaxy Pro 6K may damage the battery or circuit components inside.
•  IF THE Galaxy Pro 6K HAS BEEN SUBMERGED IN WATER OR SUSTAINED DAMAGE IT COULD BE A FIRE HAZARD. DO NOT USE THE PRODUCT.
  Place outdoors in a non-combustible container well away from flammable materials. DO NOT RECHARGE THE BATTERY AND CONTACT NIGHTSEARCHER.
•  Never use the charger if the leads, contacts or casings are damaged.
  Do not use any chargers other than those provided.
• Always recharge the battery on a hard, flat, heat resistant surface.
•  Avoid charging the battery in temperatures below 0°C or above 45°C and exposing the battery to temperatures below -20C or above 60°C.
•  Never expose the charger to rain, moisture or damp. If you suspect any of these have occurred then do not use the charger.
•  Always check with your airline before attempting to transport by air.

NightSearcher Limited
Unit 4 Applied House, Fitzherbert Spur, Farlington, Portsmouth, Hampshire, PO6 1TT, UK
T: +44 (0)23 9238 9774
E: [email protected]

All NightSearcher products have a 3-year standard warranty on all manufacturing defects and 1-year warranty on all rechargeable batteries from the date of purchase. For extended 5 year warranty please visit www.nightsearcher.co.uk proof of purchase is required.
